Hitachi CR13V wszystkie części zamienne nowe i używane
Wszystkie części zamienne nowe i używane -prosimy pytać.
Ceny z reguły to koszt (w zależności od stanu technicznego oraz wizualnego ) 50% wartości nowych -części używane -sprawne -sprzedajemy tylko takie, które nadają się do zamontowania.
Na części używane, po montażu w naszym serwisie dajemy 6 miesięczną gwarancję ( nie dotyczy elementów naturalnie zużywających się -komutatory,szczotki,uchwyty narzędzia)

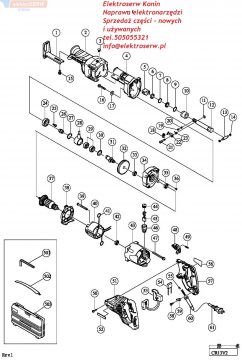

| Pozycja | Nr katalogowy | Opis | Ilość |
| 1 | 318486 | WASHER (D) 1 | 1 |
| 2 | 318453 | RETAINING RING (E-TYPE) FOR D14 SHAFT 1 | 1 |
| 3 | 318457 | WASHER (F) 1 | 1 |
| 4 | 878609 | O-RING (S-24) 1 | 1 |
| 5 | 318458 | FELT WASHER 1 | 1 |
| 6 | 318460 | SEAL SLEEVE 1 | 1 |
| 7 | 318459 | V-RING 1 | 1 |
| 8 | 318463 | METAL (A) 1 | 1 |
| 9 | 318462 | GUIDE SLEEVE ASS'Y 1 | 1 |
| 11 | 318481 | HOLDER PIN 1 | 1 |
| 12 | 318483 | SPRING (B) 1 | 1 |
| 13 | 318478 | HOLDER SLEEVE (A) 1 | 1 |
| 14 | 318479 | HOLDER SLEEVE (B) 1 | 1 |
| 15 | 959149 | STEEL BALL D4.76 (10 PCS.) 2 | 2 |
| 16 | 318480 | HOLDER SLEEVE (C) 1 | 1 |
| 17 | 318477 | GUIDE WASHER 1 | 1 |
| 18 | 318487 | DUST WASHER 1 | 1 |
| 19 | 318482 | SPRING (A) 1 | 1 |
| 20 | 318484 | WASHER (E) 1 | 1 |
| 21 | 318485 | THRUST BEARING 1 | 1 |
| 22 | 318455 | BASE ASS'Y 1 | 1 |
| 23 | 310222 | TAPPING SCREW D4X8 1 | 1 |
| 24 | 318495 | HOLD SPRING 1 | 1 |
| 25 | 318497 | BASE LEVER 1 | 1 |
| 26 | 318471 | FRONT COVER (B) 1 | 1 |
| 27 | 318496 | PUSHING BUTTON 1 | 1 |
| 28 | 318494 | SPRING (C) 1 | 1 |
| 29 | 677495 | FT-MACHINE SCREW M4X6 2 | 2 |
| 30 | 318456 | FELT COVER 1 | 1 |
| 31 | 318468 | GEAR COVER 1 | 1 |
| 32A | 319771 | PLUNGER (A) 1 | 1 |
| 33 | 318469 | INNER COVER (A) 1 | 1 |
| 34 | 318489 | CHANGE SHAFT 1 | 1 |
| 35 | 872654 | O-RING (1AP-10) 2 | 2 |
| 36 | 974577 | RETAINING RING (E-TYPE) FOR D7 SHAFT 1 | 1 |
| 37 | 945161 | BRUSH CAP 2 | 2 |
| 38 | 999043 | CARBON BRUSH (1 PAIR) 2 | 2 |
| 39 | 958900 | BRUSH HOLDER 2 | 2 |
| 40 | 318506 | HOUSING (GREEN) 1 | 1 |
| 42 | 307224 | MACHINE SCREW (W/WASHERS) M5X60 (BLACK) 4 | 4 |
| 43 | 307028 | TAPPING SCREW (W/FLANGE) D4X25 (BLACK) 1 | 1 |
| 44 | 303851 | SEAL LOCK SCREW (W/WASHERS) M4X10 (BLACK 1 | 1 |
| 45 | 318490 | CHANGE KNOB 1 | 1 |
| 46 | 318470 | FRONT COVER (A) 1 | 1 |
| 47 | 318451 | NYLOCK BOLT (W/FLANGE) M6X35 1 | 1 |
| 48 | 318452 | WASHER (G) 1 | 1 |
| 49 | 318493 | BOLT M10 2 | 2 |
| 50 | 318454 | BASE ADAPTER 1 | 1 |
| 51 | 318461 | CUSHION RUBBER 1 | 1 |
| 52 | 318488 | SWING RAIL 2 | 2 |
| 53 | 321136 | SWING ROLLER 2 | 2 |
| 54A | 326585 | PIN D6 1 | 1 |
| 55 | HITACHI LABEL | 1 | |
| 56 | 6003DD | BALL BEARING 6003DDCMPS2S 1 | 1 |
| 57 | 318475 | SUB SHAFT 1 | 1 |
| 58 | 318476 | BEARING COVER (B) 1 | 1 |
| 59 | 949216 | MACHINE SCREW M4X10 (10 PCS.) | 2 |
| 60 | 967261 | RETAINING RING FOR D17 SHAFT | 1 |
| 61 | 321121 | RECIPRO PLATE | 1 |
| 62 | 6003VV | BALL BEARING 6003VVCMPS2L | 2 |
| 63 | 939556 | RETAINING RING FOR D35 HOLE (10 PCS.) | 1 |
| 64 | 318474 | SECOND SHAFT (A) | 1 |
| 65 | 318473 | GEAR | 1 |
| 66 | 608VVM | BALL BEARING 608VVC2PS2L | 2 |
| 67 | 6001VV | BALL BEARING 6001VVCMPS2L | 1 |
| 68 | 302435 | BEARING COVER | 1 |
| 69 | 949321 | FLAT HD. SCREW M4X8 (10 PCS.) | 2 |
| 70 | 360514C | ARMATURE 110V-115V | 1 |
| 70 | 360514U | ARMATURE ASS'Y 120V-127V | 1 |
| 70 | 360514E | ARMATURE 220V-230V | 1 |
| 70 | 360514F | ARMATURE 240V | 1 |
| 71 | 318467 | FAN GUIDE | 1 |
| 72 | 961501 | HEX. HD. TAPPING SCREW D5X60 | 2 |
| 72 | 961501 | HEX. HD. TAPPING SCREW D5X55 | 2 |
| 73A | 340479H | STATOR ASS'Y 110V-115V | 1 |
| 73A | 340479G | STATOR ASS'Y 120V-127V | 1 |
| 73A | 340479J | STATOR ASS'Y 220V-230V | 1 |
| 73A | 340479E | STATOR ASS'Y 220V-230V | 1 |
| 73A | 340479K | STATOR ASS'Y 240V | 1 |
| 74 | 318509 | HANDLE (B) (GREEN) | 1 |
| 74 | 320143 | HANDLE (B) (GREEN) | 1 |
| 75 | 318505 | SWITCH ASS'Y (1P SCREW TYPE) | 1 |
| 75 | 318504 | SWITCH ASS'Y (1P SCREW TYPE) | 1 |
| 75 | 318504 | SWITCH ASS'Y (1P SCREW TYPE) | 1 |
| 75 | 320142 | SWITCH ASS'Y(1P SCREW TYPE)W/SAFETY LOCK | 1 |
| 76 | 318499 | SWITCH TRIGGER | 1 |
| 77 | 984750 | TAPPING SCREW (W/FLANGE) D4X16 | 2 |
| 78 | 937631 | CORD CLIP | 1 |
| 79 | 981373 | TUBE (D) | 4 |
| 80 | 318508 | HANDLE (A) (GREEN) | 1 |
| 81 | 318472 | GRIP COVER | 1 |
| 82 | 938108 | TERMINAL | 1 |
| 83 | 994273 | NOISE SUPPRESSOR | 1 |
| 84 | 953327 | CORD ARMOR D8.8 | 1 |
| 84 | 938051 | CORD ARMOR D10.1 | 1 |
| 85 | 500201Z | CORD | 1 |
| 85 | 500234Z | CORD | 1 |
| 85 | 500245Z | CORD | 1 |
| 85 | 500435Z | CORD | 1 |
| 85 | 500439Z | CORD | 1 |
| 85 | 500461Z | CORD | 1 |
| 85 | 500447Z | CORD | 1 |
| 85 | 500434Z | CORD | 1 |
| 85 | 500455Z | CORD | 1 |
| 85 | 500423Z | CORD | 1 |
| 86 | 321960 | SWITCH (1P SCREW TYPE) | 1 |
| 86 | 321959 | SWITCH (1P SCREW TYPE) | 1 |
| 86 | 321961 | SWITCH (1P SCREW TYPE) | 1 |
| 86 | 321962 | SWITCH (1P SCREW TYPE) W/SAFETY LOCK | 1 |
| 87 | 872971 | RETAINING RING (E-TYPE) FOR D3 SHAFT | 1 |
