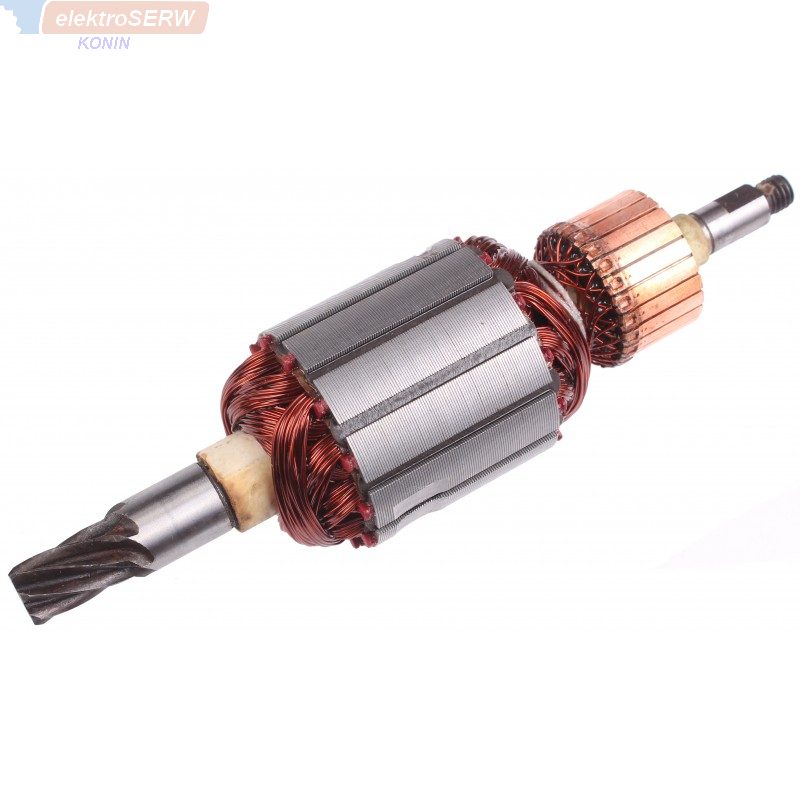

Hilti wirnik do młota udarowego 20584 TE 804
Wirnik do młota udarowego TE804 / TE805- nowy zamiennik

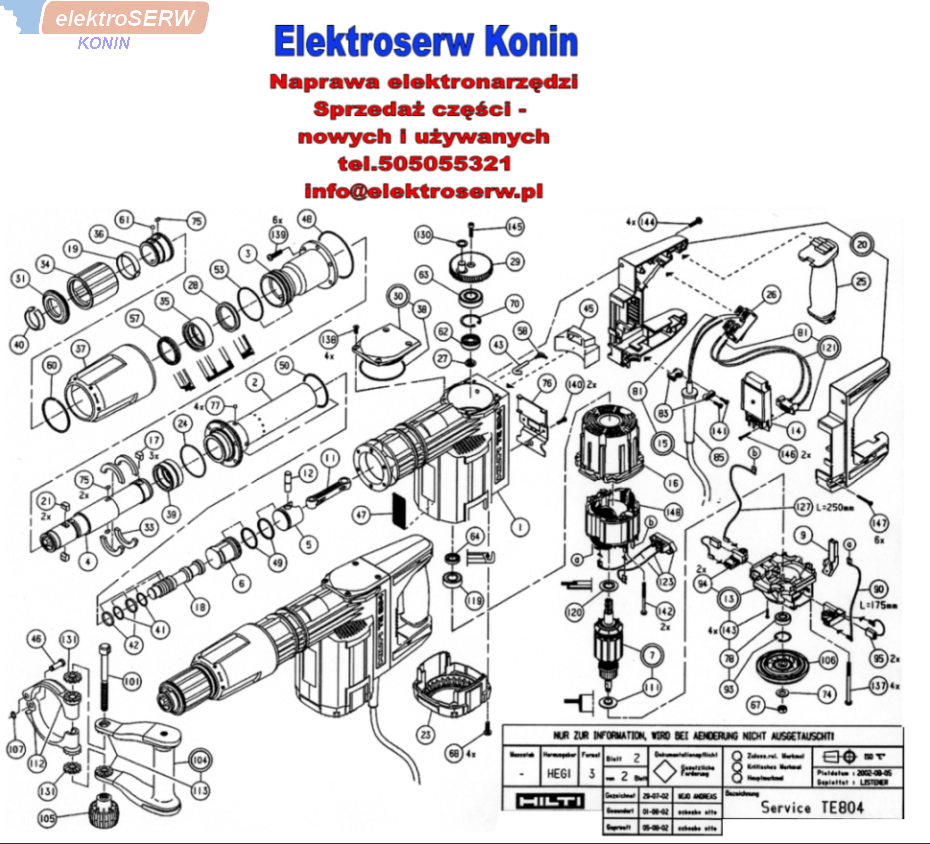

Spis części zamiennych do młota 20584 TE 804
Przy zapytaniu o dostępność i cenę prosimy podać pozycję
na schemacie lub nr katalogowy części.
| Pozycja na schemacie | Nr katalogowy | Nazwa Części |
| 1 | 20566 | housing |
| 2 | 26238 | cylinder assy |
| 3 | 13979 | flange |
| 4 | 13978 | chuck body |
| 5 | 234281 | drive piston |
| 6 | 13982 | striker piston |
| 7 | 26398 | rotor 110/120V assy |
| 9 | 74738 | transducer assy |
| 11 | 234284 | conrod |
| 12 | 234282 | piston pin |
| 13 | 26345 | motor housing endcap assy |
| 14 | 74588 | rpm regulator 100/115V |
| 15 | 17878 | supply cord USA/CDN |
| 16 | 26294 | insulating unit |
| 17 | 20535 | slide |
| 18 | 20534 | ram |
| 19 | 13983 | annular spring |
| 20 | 13926 | grip |
| 21 | 13984 | slide |
| 23 | 13724 | housing endcap |
| 24 | 20511 | o-ring 54X2,5 |
| 25 | 13898 | grip |
| 26 | 17904 | switch |
| 27 | 13727 | nut |
| 28 | 26216 | seal.ring |
| 29 | 13728 | crankshaft |
| 30 | 13763 | cover assy |
| 31 | 13985 | washer |
| 33 | 26188 | stop |
| 34 | 13994 | locking sleeve assy |
| 35 | 26222 | bushing |
| 36 | 13987 | sleeve |
| 37 | 13988 | guard sleeve |
| 38 | 13771 | o-ring 71,44X3,53 |
| 39 | 13745 | damping spring |
| 40 | 13749 | stop |
| 41 | 20565 | o-ring 18,72X2,62 |
| 42 | 20508 | seal.ring |
| 43 | 17940 | bleed tube |
| 45 | 13744 | filter |
| 46 | 13747 | clevis pin |
| 47 | 26106 | rating plate TE804 |
| 48 | 13773 | o-ring 80X2,5 |
| 49 | 13772 | o-ring 31,34X3,53 |
| 50 | 26237 | o-ring 55X3 |
| 53 | 20506 | o-ring 55,25X2,62 |
| 57 | 26215 | scraper ring |
| 58 | 13783 | bleed tube connector |
| 60 | 26178 | retaining ring SW60 |
| 61 | 17972 | ball 7 IV |
| 62 | 74161 | ball bearing 6201 |
| 63 | 13777 | ball bearing 6203-2RS/VT245 |
| 64 | 234270 | rotary shaft seal B15X25X5 |
| 67 | 17979 | hex nut M8 LH |
| 68 | 26372 | torx-soc.tapt.scr. M5X20 |
| 70 | 71468 | circlip 32X1,2 |
| 74 | 66299 | washer 10,5 |
| 75 | 70123 | roller |
| 76 | 13960 | cover |
| 77 | 13790 | ball 6 |
| 78 | 70428 | ball bearing |
| 81 | 71483 | conductor end A1-6 |
| 83 | 75094 | supp.co.cl. |
| 85 | 72402 | protective sleeve |
| 88 | 201495 | torx-soc.tapt.scr. M3,5X5,5 |
| 90 | 26248 | flexible conductor assy |
| 93 | 74238 | circlip 26X1,2 |
| 94 | 74719 | brush holder assy |
| 95 | 74718 | carbon brush |
| 101 | 74709 | clamping bolt |
| 104 | 13715 | chiselling handle |
| 105 | 74680 | knob |
| 106 | 74729 | cooling fan assy |
| 107 | 70421 | circlip 8X0,8 |
| 111 | 74722 | labyrinth seal |
| 112 | 13748 | chiselling handle clam |
| 113 | 13776 | detent |
| 119 | 13813 | ball bearing 15-32-10 |
| 120 | 13816 | labyrinth seal |
| 121 | 26348 | connector housing assy |
| 123 | 26347 | holder assy |
| 127 | 26323 | flexible conductor assy |
| 128 | 70326 | conductor terminal |
| 130 | 9357 | supporting washer S12X18 |
| 131 | 26180 | washer |
| 137 | 26370 | torx-soc.cap screw M5X80 |
| 138 | 26368 | torx-s.h.s. M5X12 |
| 139 | 233637 | torx-rec.ov.screw M6X25 10.9 |
| 140 | 26367 | torx-rec.ov.screw M4X16 |
| 141 | 207960 | torx-soc.re.scr 4X18 |
| 142 | 206035 | plastite screw 45 5X60 |
| 143 | 26358 | torx-soc.re.scr 3X16 |
| 144 | 26365 | torx-rec.ov.screw M6X16 |
| 145 | 26369 | torx-soc.cap screw M5X25 |
| 146 | 26352 | torx-soc.re.scr 3X25 |
| 147 | 26373 | torx-soc.re.scr 4X30 |
| 148 | 26343 | stator 110/120V |
| 750 | 308976 | hilti spray |
| 750 | 314648 | hilti spray 300 ML |
| 800 | 26195 | greas 1KG ALN1001/00 |
| 810 | 30214 | grease Molykote TP42 100GR |
| 901 | 3994 | loctite 243 50CCM |
