Milwaukee włącznik do klucza HD18HIW-O

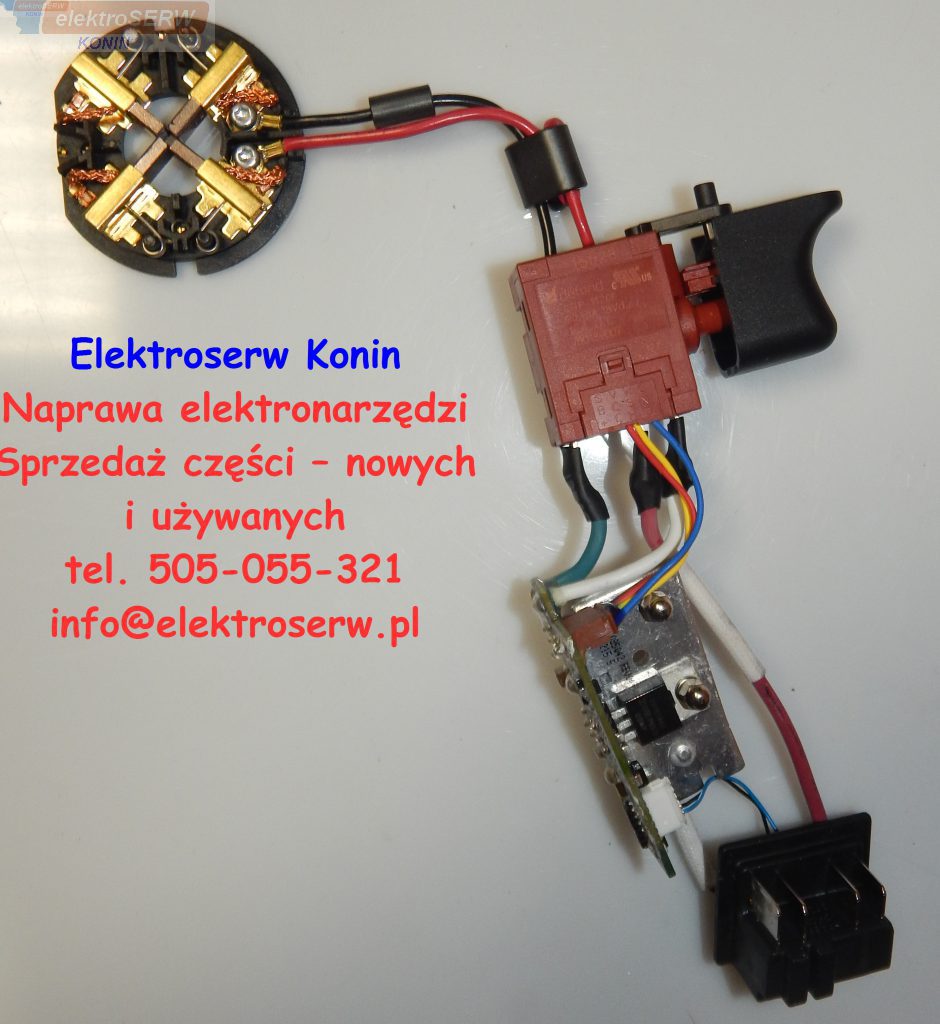

Milwaukee - włącznik- nowy oryginalny.

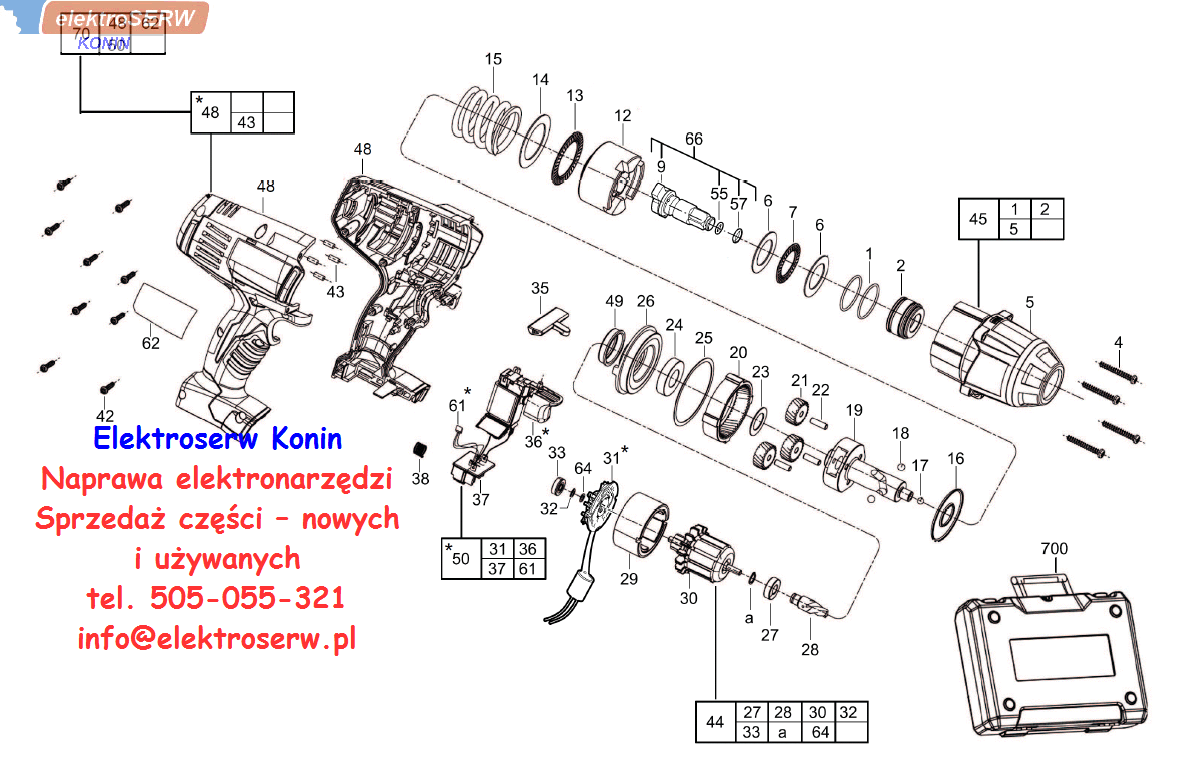

Pozycja na schemacie nr 31,36,37 i 61
Nr katalogowy : 4931433316
Zastosowanie : HD18HIW-O
| Position | Description (Qty) | Part number |
| 1 | O-RING (2) | 570690001 |
| 2 | BUSH (1) | 680413031 |
| 4 | SCREW (4) | 661046002 |
| 5 | HOUSING CAP (1) | 641356001 |
| 6 | WASHER (2) | 4931436152 |
| 7 | BALL BEARING (1) | 680658012 |
| 9 | PUNCH (1) | 4931416491 |
| 12 | RAM (1) | 671486010 |
| 13 | BALL BEARING (1) | 2800200 |
| 14 | WASHER (1) | 680335060 |
| 15 | PRESSURE SPRING (1) | 671588010 |
| 16 | WASHER (1) | 680335059 |
| 17 | BALL (1) | 680595003 |
| 18 | BALL (2) | 680185001 |
| 19 | SPINDLE (1) | 671488015 |
| 20 | PLANET WHEEL (1) | 610449013 |
| 21 | PLANET GEAR (3) | 4931433835 |
| 22 | PIN (3) | 671565004 |
| 23 | WASHER (1) | 680335058 |
| 24 | BALL BEARING (1) | 681340001 |
| 25 | GASKET (1) | 560123001 |
| 26 | MOTOR HOUSING (1) | 641357001 |
| 27 | BALL BEARING (1) | 4931441228 |
| 28 | PINION (1) | 610447020 |
| 29 | ELECTRIC FIELD (1) | 4931440971 |
| 30 | ARMATURE (1) | 4931453442 |
| 31 | CARBON BRUSH SET (1) | Item discontinued (290330001) |
| 32 | WASHER (1) | 902206001 |
| 33 | BALL BEARING (1) | 681286001 |
| 35 | KNOB (1) | 519198001 |
| 36 | SWITCH (1) | Item discontinued (760465007) |
| 37 | CONNECTOR (1) | 4931441229 |
| 38 | SPRING (1) | 4931408243 |
| 42 | SCREW (9) | 660024018 |
| 43 | RUBBER BUFFER (4) | 560085001 |
| 44 | ARMATURE (1) | 201038002 |
| 45 | GEAR BOX HOUSING (1) | 201040003 |
| 48 | HANDLE SET (1) | Item discontinued (201039002) |
| 49 | RUBBER CAP (1) | 570692005 |
| 50 | SWITCH (1) | Item discontinued (201305004) |
| 55 | O-RING (1) | 4931416492 |
| 57 | CIRCLIP (1) | 4931416493 |
| 61 | ADAPTER (1) | Item discontinued (290052004) |
| 62 | RATING PLATE (1) | 4931441499 |
| 64 | WASHER (1) | 902207001 |
| 66 | ANVIL (1) | 4931416494 |
| 70 | BODY HOUSINGÂ +SWITCH (1) | 4931448389 |
| 700 | CARRYING CASE (1) | 201607001 |
