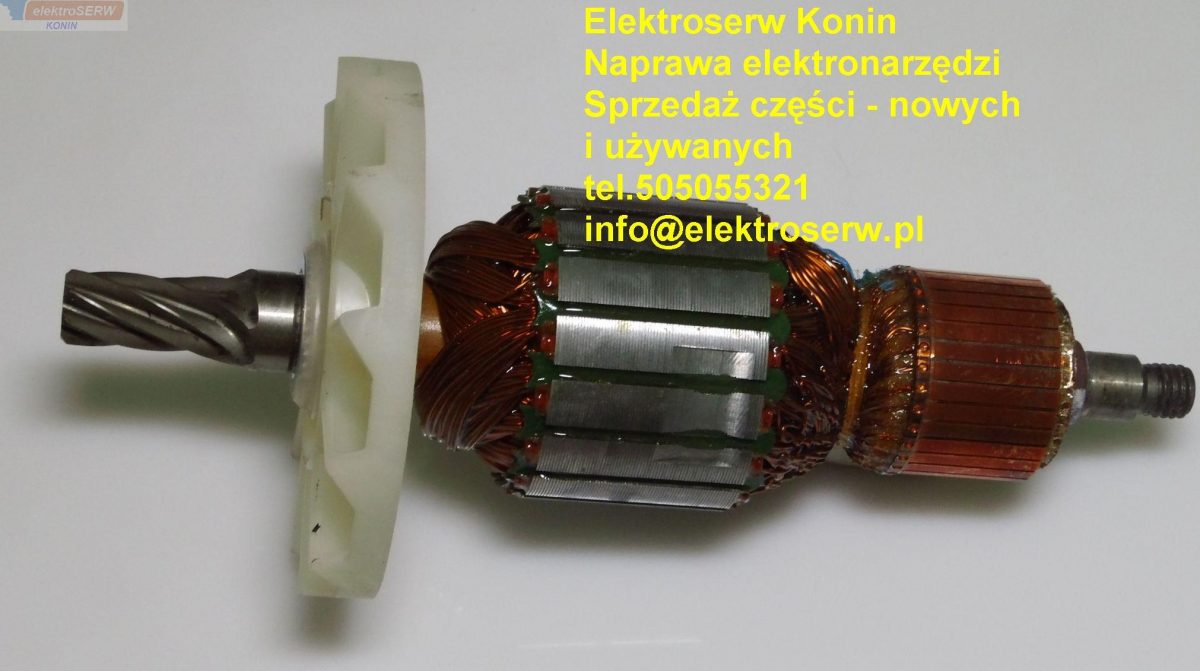

Hitachi wirnik do młota H 60MR 360-691E H 60MRV

Hitachi wirnik do młota H 60MR 360-691E H 60MRV thumb
Hitachi wirnik do młota H 60MR 360-691E H 60MRV thumb
Hitachi wirnik do młota H 60MR 360-691E H 60MRV thumb
Hitachi wirnik do młota H 60MR 360-691E H 60MRV thumb

Zobacz inne produkty marki: HITACHI

Producent: HITACHI

Kod producenta: 360-691

Kod produktu: 1170

Powiadom mnie o zmianie dostępności   Zgłoś błąd w opisie

Hitachi - wirnik- nowy oryginalny.

Zastosowanie: H60MR,H60MRV

Nr katalogowy: 360-691E

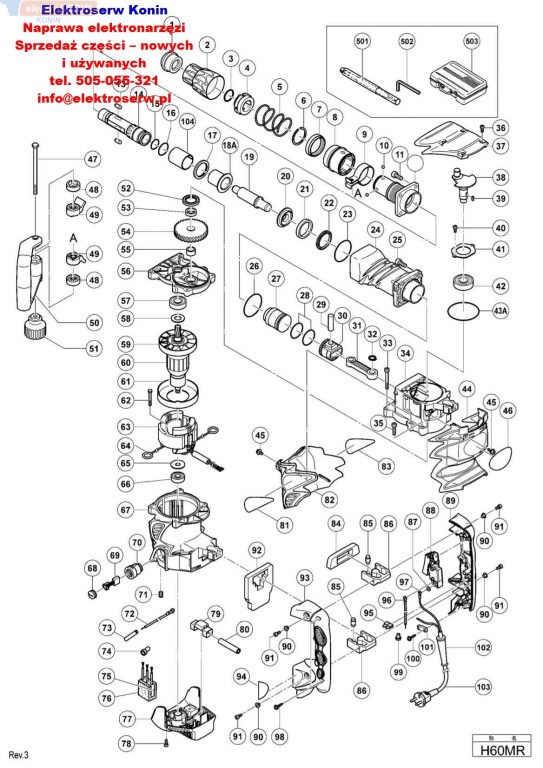

H60MR





1 315529  FRONT CAP
2 324025  GRIP (A)
3 320803  RING
4 320804  NEEDLE HOLDER
5 324027  SPRING (A)
6 317088  RETAINING RING D42
7 320810  BALL HOLDER
8 324028  GRIP (B)
9 320635  BAND (OLD 317104)
10 959150  STEEL BALL D6.35 (10 PCS)
11 985479  SEAL LOCK HEX. SOCKET HD. BOLT M8X25
12 324029  FRONT COVER
13 313421  NEEDLE ROLLER D8X20
14 324026  RETAINER SLEEVE
15 872470  O-RING (S-26)
16 872767  O-RING (S-32)
17 317094  DAMPER (B)
18 324030  HAMMER HOLDER (B)
19 324031  SECOND HAMMER
20 317091  HAMMER HOLDER (A)
21 324032  DAMPER (A)
22 317095  DAMPER WASHER
23 317119  O-RING (S-56)
24 324034  CYLINDER CASE
25 995400  HEX.SOCKET HD.BOLT M8X30 (W/FLANGE)
26 956996  O-RING (1AS-60)
27 324033  STRIKER
28 985454  O-RING (A) FPM810
29 301509  PISTON PIN
30 317084  PISTON
31 317082  CONNECTING ROD
32 939543  RETAINING RING FOR D14 (10 PCS)
33 301567  SEAL LOCK HEX. SOCKET BOLT M6X55
34 324035  CRANK CASE
35 324056  SEAL LOCK HEX. SOCKET HD. BOLT M6X35
36 990079  SEAL LOCK HEX. SOCKET HD. BOLT M5X16
37 324037  CRANK COVER
38 317078  CRANK SHAFT
39 940533  FEATHER KEY 3X3X10
40 984509  SEAL LOCK HEX. SOCKET HD. BOLT M5X14 (OLD 315636)
41 985443  BEARING COVER
42 6204DD  BALL BEARING 6204DDUCMPS2S
43 301506  O-RING (S-75)
44 324038  BACK COVER
45 998471  HEX.SOCKET HD.BOLT M5X12
47 317107  BOLT M8
48 317106  HANDLE HOLDER (B)
49 317105  HANDLE HOLDER (A)
51 317108  GRIP
52 995403  OIL SEAL
53 995402  DISTANCE RING (C)
54 317080  FIRST GEAR
55 985442  NEEDLE BEARING NTN BK1512
56 324048  GEAR COVER ASS'Y
57 6203DD  BALL BEARING 6203DDUCMAV2S
58 992841  BEARING WASHER
58 940540  BRUSH CAP
59 996370  FAN
60 360691E  ARMATURE ASS'Y 230 VOLT
61 305610  FAN GUIDE
62 953121  HEX.HD. TAPPING SCREW D5X50
63 340608E  STATOR ASS'Y 230 VOLT
64 945932  BRUSH TERMINAL
65 944954  BEARING WASHER
66 6201DD  BALL BEARING 6201DDUCMAV2S
67 324055  HOUSING ASS'Y
69 999074  CARBON BRUSH A.S. TYPE (OLD 937943Z)
70 956984  BRUSH HOLDER
71 938477  HEX.SOCKET SET SCREW M5X8
72 324122  INTERNAL WIRE 235L
74 959140  CONNECTOR 50091 (10 PCS) (OLD 939557)
75 994273  NOISE SUPPRESSOR
76 317492  SUPPORT (B)
77 324041  TAIL COVER
78 317245  SEALLOCK HEX.SOCKET HD.BOLT M5X22
79 324045  SLEEVE (B)
82 324036  CRANK CASE COVER
84 324046  HANDLE PACKING (A)
85 310124  HANDLE DAMPER
86 310123  TRANSATORY UNIT
87 949423  WASHER M4 (10 PCS)
88 306143  SWITCH B (1P SCREW TYPE ) W/LOCK
89 324042  HANDLE (A)
90 991711  DISTANCE PIECE (B)
91 991690  SEAL LOCK HEX. SOCKET HD. BOLT M5X12
92 324047  HANDLE PACKING (B)
93 324043  HANDLE (B)
95 938307  PILLAR TERMINAL (OLD 938307Z/512-31870-20))
96 981974Z  @ INTERNAL WIRE
97 980063  TERMINAL
98 307028  TAPPING SCREW D4X25 (W/FLANGE)
99 959141  CONNECTOR 50092 (10 PCS) (OLD 939558)
100 984750  TAPPING SCREW D4X16 (W/FLANGE)
101 960266  CORD CLIP
101 981987Z  CORD CLIP
102 953327  CORD ARMOR D8.8
103 500391Z  CORD FOR SWISS
104 324130  DAMPER (C)
601 981840  GREASE (FG-6A) (30G)
602 308471  GREASE FOR HAMMER.HAMMER DRILL (70G)
603 980927  GREASE FOR IMPACT DRILL (FG-6A) (500G)

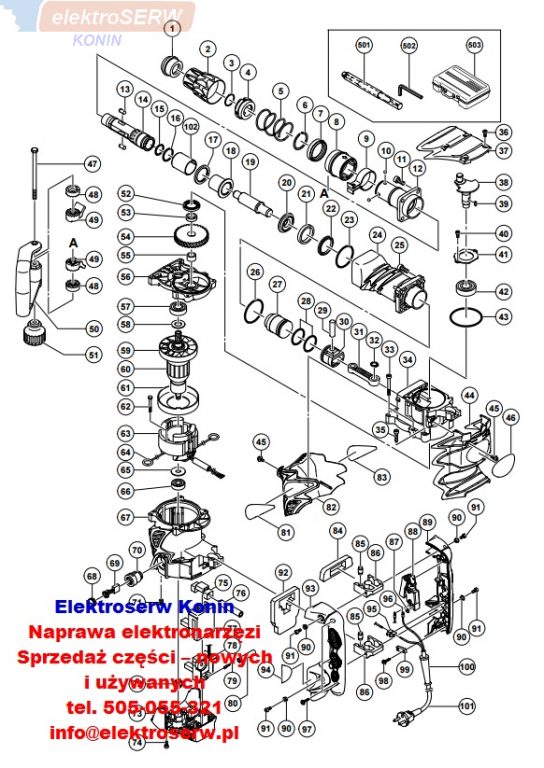

H60MRV



1 315529  FRONT CAP
2 324025  GRIP (A)
3 320803  RING
4 320804  NEEDLE HOLDER
5 324027  SPRING (A)
6 317088  RETAINING RING D42
7 320810  BALL HOLDER
8 324028  GRIP (B)
9 320635  BAND (OLD 317104)
10 959150  STEEL BALL D6.35 (10 PCS)
11 985479  SEAL LOCK HEX. SOCKET HD. BOLT M8X25
12 324029  FRONT COVER
13 313421  NEEDLE ROLLER D8X20
14 324026  RETAINER SLEEVE
15 872470  O-RING (S-26)
16 872767  O-RING (S-32)
17 317094  DAMPER (B)
18 324030  HAMMER HOLDER (B)
19 324031  SECOND HAMMER
20 317091  HAMMER HOLDER (A)
21 324032  DAMPER (A)
22 317095  DAMPER WASHER
23 317119  O-RING (S-56)
24 324034  CYLINDER CASE
25 995400  HEX.SOCKET HD.BOLT M8X30 (W/FLANGE)
26 956996  O-RING (1AS-60)
27 324033  STRIKER
28 985454  O-RING (A) FPM810
29 301509  PISTON PIN
30 317084  PISTON
31 317082  CONNECTING ROD
32 939543  RETAINING RING FOR D14 (10 PCS)
33 301567  SEAL LOCK HEX. SOCKET BOLT M6X55
34 324035  CRANK CASE
35 324056  SEAL LOCK HEX. SOCKET HD. BOLT M6X35
36 990079  SEAL LOCK HEX. SOCKET HD. BOLT M5X16
37 324037  CRANK COVER
38 317078  CRANK SHAFT
39 940533  FEATHER KEY 3X3X10
40 984509  SEAL LOCK HEX. SOCKET HD. BOLT M5X14 (OLD 315636)
41 985443  BEARING COVER
42 6204DD  BALL BEARING 6204DDUCMPS2S
43 301506  O-RING (S-75)
44 324038  BACK COVER
45 998471  HEX.SOCKET HD.BOLT M5X12
47 317107  BOLT M8
48 317106  HANDLE HOLDER (B)
49 317105  HANDLE HOLDER (A)
51 317108  GRIP
52 995403  OIL SEAL
53 995402  DISTANCE RING (C)
54 317080  FIRST GEAR
55 985442  NEEDLE BEARING NTN BK1512
56 324048  GEAR COVER ASS'Y
57 6203DD  BALL BEARING 6203DDUCMAV2S
58 992841  BEARING WASHER
59 996370  FAN
60 360691C  ARMATURE ASS'Y 110 VOLT
60 360691C  ARMATURE ASS'Y 110 VOLT
60 360691E  ARMATURE ASS'Y 230 VOLT
61 305610  FAN GUIDE
62 953121  HEX.HD. TAPPING SCREW D5X50
63 340610C  STATOR ASS'Y (B) 110 VOLT
63 340610E  STATOR ASS'Y (B) 230 VOLT
64 945932  BRUSH TERMINAL
65 944954  BEARING WASHER
66 6201DD  BALL BEARING 6201DDUCMAV2S
67 324040  HOUSING ASS'Y
68 940540  BRUSH CAP
69 999074  CARBON BRUSH A.S. TYPE (OLD 937943Z)
70 956984  BRUSH HOLDER
71 938477  HEX.SOCKET SET SCREW M5X8
72 317087  MAGNET
73 324041  TAIL COVER
74 317245  SEALLOCK HEX.SOCKET HD.BOLT M5X22
75 324045  SLEEVE (B)
76 322530  VINYL TUBE
77 317100  CASE (B)
78 324050  CONTROLLER CIRCUIT 110 VOLT
78 324052  CONTROLLER CIRCUIT 230-240 VOLT
79 317113  INTERNAL WIRE
82 324036  CRANK CASE COVER
84 324046  HANDLE PACKING (A)
85 310124  HANDLE DAMPER
86 310123  TRANSATORY UNIT
87 949423  WASHER M4 (10 PCS)
88 306143  SWITCH B (1P SCREW TYPE ) W/LOCK
89 324042  HANDLE (A)
90 991711  DISTANCE PIECE (B)
91 991690  SEAL LOCK HEX. SOCKET HD. BOLT M5X12
92 324047  HANDLE PACKING (B)
93 324043  HANDLE (B)
95 938307  PILLAR TERMINAL (OLD 938307Z/512-31870-20))
96 980063  TERMINAL
96 930804  TERMINAL M4.0 (10 PCS) (OLD 930800)
97 307028  TAPPING SCREW D4X25 (W/FLANGE)
98 984750  TAPPING SCREW D4X16 (W/FLANGE)
99 960266  CORD CLIP
99 981987Z  CORD CLIP
100 953327  CORD ARMOR D8.8
101 500424Z  @ CORD FOR SINZ KUW
101 500465Z  CORD 4M 2 X 1.0 H07RN-F W/PLUG 16A CEE FORM 2P+E 110 VOLT
101 500446Z  CORD FOR GBR 230V
101 500391Z  CORD FOR SWISS
102 324130  DAMPER (C)
601 981840  GREASE (FG-6A) (30G)
602 308471  GREASE FOR HAMMER.HAMMER DRILL (70G)
603 980927  GREASE FOR IMPACT DRILL (FG-6A) (500G)
