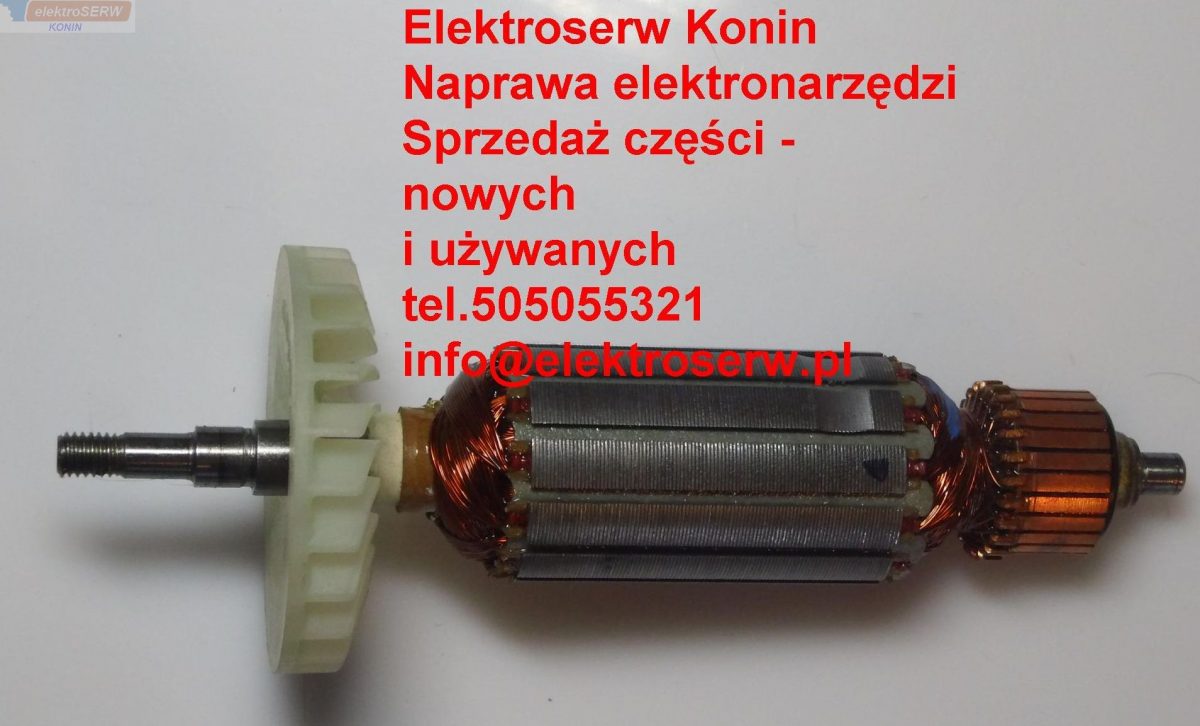

Hitachi wirnik do szlifierki G 12SR3 G10SR3 360-799E
Hitachi - wirnik
Zastosowanie :
G 12SR3 G10SR3
Nr katalogowy 360-799 E
G 12SR3
| 1 | 307028 | TAPPING SCREW D4X25 (W/FLANGE) |
| 2 | 301944 | PUSHING BUTTON |
| 3 | 327891 | GEAR COVER ASS'Y |
| 4 | 309191 | SPECIAL NUT M6 |
| 6 | 628VVC | BALL BEARING 628VVC2PS-L |
| 7 | 327887 | BEARING HOLDER |
| 8 | 360799E | ARMATURE 220-240 VOLT |
| 8 | 360799C | ARMATURE 110 VOLT |
| 9 | 327886 | FAN GUIDE |
| 10 | 963712 | HEX.HD. TAPPING SCREW D4X65 |
| 11 | 340702C | STATOR 110 VOLT |
| 11 | 340702E | STATOR 220-230 VOLT |
| 12 | 321722 | DUST SEAL |
| 13 | 626VVM | BALL BEARING 626VVMC2ERPS2S |
| 14 | 309929 | RUBBER BUSHING |
| 15 | 301943 | LOCK PIN |
| 16 | 316487 | RETAINING RING FOR D11 SHAFT |
| 17 | 316486 | WAVE WASHER |
| 19 | 987201 | SEAL LOCK SCREW M4X10 (W/SP WASHER) |
| 20 | 316490 | BEARING COVER |
| 21 | 6201DD | BALL BEARING 6201DDUCMAV2S |
| 22 | 301946 | FELT PACKING |
| 23 | 316489 | PACKING GLAND |
| 24 | 951039 | MACHINE SCREW (W/SP.WASHER) M4X12 |
| 25 | 302047 | WOOD-RUFF KEY |
| 26 | 327896 | SPINDLE |
| 27 | 308386 | MACHINE SCREW M5X16 |
| 28 | 301949 | SET PLATE |
| 29 | 315492 | WHEEL GUARD ASS'Y |
| 32 | 994324 | WHEEL NUT (OLD 937818Z) |
| 33 | 327888 | GEAR ASSďY (OLD 327889/327890) |
| 34 | 327893 | SLIDE BAR |
| 35 | 314429 | SPRING |
| 36 | 314428 | SLIDE KNOB |
| 37 | 327885 | HOUSING ASS'Y |
| 38 | 327895 | BRUSH HOLDER ASSďY |
| 39 | 999091 | CARBON BRUSH A.S. TYPE (1 PAIR) |
| 40 | 328210 | TAPPING SCREW D3X8 |
| 41 | 938307 | PILLAR TERMINAL (OLD 938307Z/512-31870-20)) |
| 42 | 314603 | SWITCH (1P SOLDER TYPE) |
| 43 | 305499 | MACHINE SCREW (W/WASHER) M3,5X6 |
| 44 | 959140 | CONNECTOR 50091 (10 PCS) (OLD 939557) |
| 45 | 980063 | TERMINAL |
| 46 | 317491 | NOISE SUPPRESSOR |
| 47 | 328509 | INTERNAL WIRE |
| 49 | 327894 | TAIL COVER |
| 51 | 307811 | TAPPING SCREW D4X16 (W/FLANGE) (BLACK) |
| 52 | 500423Z | @ CORD 2,5M 2 X 1.0 H05VV-F W/PLUG 13A/250V (OLD 500223Z) |
| 52 | 500240Z | CORD FOR USA/CAN |
| 52 | 500447Z | CORD 2,5M 2 X 1.0 H05VV-F (OLD 500395Z) |
| 52 | 500461Z | CORD 3M 2 X 1,0 H05VV-F W/PLUG 16A CEE FORM 2P+E FOR GBR |
| 52 | 500435Z | CORD 2,5M 2 X 1.0 H05VV-F W/PLUG 13A/250V GBR |
| 53 | 980063 | TERMINAL |
| 54 | 953327 | CORD ARMOR D8.8 |
| 55 | 937631 | CORD CLIP (OLD 994566) |
| 56 | 984750 | TAPPING SCREW D4X16 (W/FLANGE) |
| 502 | 318312 | SIDE HANDLE |
G10SR3
| 1 | 307-028 | TAPPING SCREW (W/FLANGE) D4X25 (BLACK) |
| 2 | 301-944 | PUSHING BUTTON |
| 3 | 327-891 | GEAR COVER ASS'Y - INCLUD.2,15 |
| 4 | 309-191 | SPECIAL NUT M6 |
| 5 | 327-889 | PINION |
| 6 | 628-VVC | BALL BEARING 628VVC2PS2-L |
| 7 | 327-887 | BEARING HOLDER |
| 8 | 360-799C | ARMATURE 110V |
| 8 | 360-799U | ARMATURE ASS'Y 120V - INCLUD.6,12,13 |
| 8 | 360-799E | ARMATURE 220V-240V |
| 9 | 327-886 | FAN GUIDE |
| 10 | 963-712 | HEX. HD. TAPPING SCREW D4X65 |
| 11 | 340-702C | STATOR 110V |
| 11 | 340-702G | STATOR 110V - FOR TPE |
| 11 | 340-702D | STATOR 120V |
| 11 | 340-702E | STATOR 220V-230V |
| 11 | 340-702F | STATOR 240V |
| 12 | 321-722 | DUST SEAL |
| 13 | 626-VVM | BALL BEARING 626VVC2PS2L |
| 14 | 309-929 | RUBBER BUSHING |
| 15 | 301-943 | LOCK PIN |
| 16 | 316-487 | RETAINING RING FOR D11 SHAFT |
| 17 | 316-486 | WAVE WASHER |
| 18 | 327-890 | GEAR |
| 19 | 987-201 | SEAL LOCK SCREW (W/SP. WASHER) M4X10 - FOR FRG |
| 20 | 316-490 | BEARING COVER |
| 21 | 620-1VV | BALL BEARING 6201VVCMPS2L |
| 22 | 301-946 | FELT PACKING |
| 23 | 316-489 | PACKING GLAND |
| 24 | 987-203 | SEAL LOCK SCREW (W/SP. WASHER) M4X12 |
| 25 | 302-047 | WOODRUFF KEY |
| 26 | 327-903 | SPINDLE |
| 26 | 327-904 | SPINDLE - FOR USA,CAN |
| 27 | 308-386 | MACHINE SCREW (W/SP. WASHER) M5X16(BLAC |
| 28 | 301-949 | SET PLATE |
| 29 | 301-948 | WHEEL GUARD ASS'Y - INCLUD.26,27 |
| 29A | 331076 | WHEEL GUARD ASS'Y - INCLUD.23,24 |
| 30 | 320-497 | WHEEL WASHER |
| 30 | 937-834Z | WHEEL WASHER - FOR USA |
| 31 | 316-820 | D. C. WHEELS 100MMX4T A36Q (25 PCS.) -FOR AUS,NZL |
| 32 | 321-795 | WHEEL NUT (C) |
| 32 | 312-048 | WHEEL NUT M10XP1.25 - FOR USA |
| 33 | 327-888 | GEAR ASS'Y - INCLUD.5,18 |
| 34 | 327-893 | SLIDE BAR |
| 35 | 314-429 | SPRING |
| 36 | 314-428 | SLIDE KNOB |
| 37 | 327-885 | HOUSING ASS'Y - INCLUD.14 |
| 38 | 327-895 | BRUSH HOLDER |
| 39 | 999-091 | CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) |
| 39 | 999005 | CARBON BRUSH (1 PAIR) |
| 40 | 328-210 | TAPPING SCREW D3X8 |
| 41 | 938-307 | PILLAR TERMINAL |
| 42 | 314-603 | SWITCH (1P SOLDER TYPE) |
| 43 | 305-499 | MACHINE SCREW (W/WASHER) M3.5X6 |
| 44 | 959-140 | CONNECTOR 50091 (10 PCS.) |
| 46 | 317-491 | NOISE SUPPRESSOR |
| 46 | 994-273 | NOISE SUPPRESSOR |
| 47 | 328-509 | INTERNAL WIRE - EXCEPT FOR INA,SIN,KUW |
| 49 | 327-894 | TAIL COVER |
| 51 | 307-811 | TAPPING SCREW (W/FLANGE) D4X16 (BLACK) |
| 52 | 500-409Z | CORD - (CORD ARMOR D8.8) FOR INA,KOR |
| 52 | 500-435Z | CORD - (CORD ARMOR D8.2) FOR GBR (230V),HKG |
| 52 | 500-461Z | CORD - FOR GBR (110V) |
| 52 | 500-447Z | CORD - (CORD ARMOR D8.2) FOR SYR |
| 52 | 500-470Z | CORD - FOR TPE |
| 52 | 500-240Z | CORD - (CORD ARMOR D8.2) FOR USA |
| 52 | 500-439Z | CORD - (CORD ARMOR D8.2) FOR OCEANIA |
| 52 | 500-423Z | CORD - (CORD ARMOR D8.2) FOR SAU (220V),SIN |
| 52 | 500-468Z | CORD - FOR THA |
| 53 | 980-063 | TERMINAL - FOR AUS |
| 54 | 953-327 | CORD ARMOR D8.8 |
| 55 | 937-631 | CORD CLIP |
| 56 | 984-750 | TAPPING SCREW (W/FLANGE) D4X16 |
| 501 | 313-933 | WRENCH |
| 502 | 318-312 | SIDE HANDLE - FOR USA,CAN |
| 503 | 319-375 | CASE - FOR NZL,AUS |
| 601 | 314-053 | SANDING DISCS 100MM C-P24 (10 PCS.) |
| 602 | 314-054 | SANDING DISCS 100MM C-P30 (10 PCS.) |
| 603 | 314-057 | SANDING DISCS 100MM C-P50 (10 PCS.) |
| 604 | 314-059 | SANDING DISCS 100MM C-P80 (10 PCS.) |
| 605 | 314-061 | SANDING DISCS 100MM C-P120 (10 PCS.) |
| 606 | 314-051 | SANDING DISCS 100MM C-P16 (10 PCS.) |
| 607 | 314-052 | SANDING DISCS 100MM C-P20 (10 PCS.) |
| 608 | 314-055 | SANDING DISCS 100MM C-P36 (10 PCS.) |
| 609 | 314-056 | SANDING DISCS 100MM C-P40 (10 PCS.) |
| 610 | 314-058 | SANDING DISCS 100MM C-P60 (10 PCS.) |
| 611 | 314-060 | SANDING DISCS 100MM C-P100 (10 PCS.) |
| 612 | 935-513 | WASHER NUT M10XP1.5 |
| 612 | 313-173 | WASHER NUT M10XP1.25 - FOR USA |
| 613 | 936-548 | WASHER |
| 614 | 936-558Z | RUBBER PAD |
| 615 | 302-098 | GUIDE BASE |
| 616 | 323-918 | DUST COLLECTION ADAPTER (DISC GRINDER) |
