MILWAUKEE wirnik do młota 4935412361
MILWAUKEE -wirnik (wirnik z łożyskiem i magnesem)
Nr katalogowy: 4935412361
Pozycja na schemacie nr 107
Zastosowanie:AEG: KH5E, MH5E, 545S, 500S, EH6M, EHB7M, 545S, MH5E, KH 5E, MH 5E, 545S, 500S, EH 6M, EHB 7M, 545S, MH5E,
MH5E

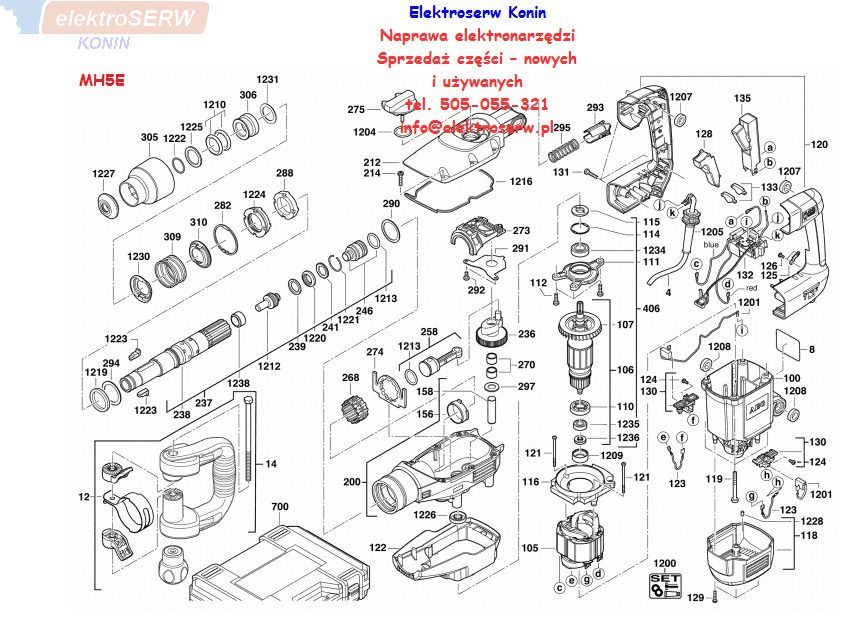

| Pozycja na schemacie | NR KAT. CZĘŚCI | NAZWA CZĘŚCI |
| 4 | 4931624585 | CONNECTION CABLE |
| 8 | 4931412368 | RATING PLATE |
| 9 | 4931412349 | RATING PLATE |
| 12 | 4931398272 | STRIP-BAND |
| 14 | 4931398238 | HANDLE COMPL. |
| 100 | 4931412340 | MOTOR HOUSING |
| 105 | 4931426287 | ELECTRIC FIELD |
| 106 | 4931426275 | ARMATURE |
| 107 | 4931398185 | FAN |
| 110 | 4931398508 | DUST SEAL |
| 111 | 4931426441 | BEARING END PLATE |
| 112 | 4931624541 | SCREW |
| 114 | 4931890311 | LOCKING RING |
| 115 | 4931398198 | SEAL RING |
| 116 | 4931398205 | AIR DEFLECTOR RING |
| 118 | 5131000000 | CORPS |
| 119 | 4931624565 | SCREW D7500-1CE M6X38 T30 TAPT.2000 SW B |
| 120 | 4931412338 | PAIR HANDLE SHELLS |
| 121 | 4931339996 | SCREW |
| 122 | 4931412337 | GEAR BOX INSULATION |
| 123 | 4931624263 | WIRE |
| 124 | 4931624538 | SCREW |
| 125 | 4931256500 | CABLE COLLAR |
| 126 | 4931624538 | SCREW |
| 128 | 4931398131 | SLIDER |
| 129 | 4931624517 | SCREW N874101-1 SHR H-K4X22 T15 |
| 130 | 4931381694 | BRUSH HOLDER |
| 131 | 4931624504 | SCREW |
| 132 | 4931409100 | ELECT.CIRCUIT BOARD |
| 133 | 4931398114 | LIGHT PIPE |
| 135 | 4931375458 | SWITCH |
| 156 | 4931398095 | BEARING |
| 158 | 4931398746 | BEARING BOLT |
| 200 | 4931412369 | GEAR BOX |
| 212 | 4931426456 | GEAR BOX COVER |
| 214 | 4931624555 | SCREW |
| 236 | 4931409600 | CRANK WHEEL |
| 238 | 4931426168 | SPINDLE SLEEVE |
| 239 | 4931398031 | BACK-PRESSURE RING |
| 241 | 4931398642 | CORE LIFTER RING |
| 246 | 4931398037 | PERCUSSION BODY |
| 258 | 4931398747 | PISTON COMPL. |
| 268 | 4931398078 | SET COLLAR |
| 270 | 4931621847 | NEEDLE BEARING |
| 273 | 4931398154 | ADJUSTING PIECE |
| 274 | 4931398075 | LOCKING PLATE |
| 275 | 4931398626 | SWITCH |
| 282 | 4931624479 | RING |
| 288 | 4931398091 | THRUST COLLAR |
| 290 | 4931624499 | DISC |
| 291 | 4931398658 | LATCH PLATE |
| 292 | 4931624236 | SCREW |
| 293 | 4931398097 | THRUST PIECE |
| 295 | 4931398099 | PRESSURE SPRING |
| 297 | 4931624535 | DISC |
| 305 | 4931398065 | SLEEVE |
| 306 | 4931426248 | LOCKING LEVER |
| 309 | 4931398856 | PRESSURE SPRING |
| 310 | 4931426013 | REPAIR KIT |
| 406 | 4931398187 | ARMATURE |
| 420 | 4931442219 | REPAIR |
| 700 | 4931412328 | CARRYING CASE |
| 1200 | 4931407636 | MAINTENANCE SET |
| 1201 | 4931398132 | CARBON BRUSH SET |
| 1204 | 4931622166 | O-RINGSN874701S26X3 |
| 1205 | 4931393422 | PROTECTING COVER |
| 1207 | 4931398748 | DAMPING ELEMENT |
| 1208 | 4931398101 | BUSH |
| 1209 | 4931398085 | RUBBER SLEEVE |
| 1210 | 4931624440 | SEAL RING |
| 1212 | 4931398578 | SNAP DIE |
| 1213 | 4931398297 | O-RING |
| 1216 | 4931398539 | SEAL |
| 1220 | 4931398033 | CORE LIFTER RING |
| 1221 | 4931398073 | RING |
| 1222 | 9170319040 | SPRING RINGSP |
| 1223 | 4931398068 | INTERLOCK ELEMENT |
| 1224 | 4931398034 | SEAL RETAINER |
| 1225 | 4931398080 | INTERLOCK ELEMENT |
| 1226 | 4931624495 | SEAL RING |
| 1227 | 4931398064 | RUBBER CAP |
| 1228 | 4931409768 | HOLDING-DOWN DEVICE |
| 1230 | 4931426013 | REPAIR KIT |
| 1231 | 4931398298 | WASHER |
| 1234 | 4931398189 | GROOVED BALL BEAR. |
| 1235 | 4931341741 | BALL BEARING |
| 1236 | 4931426570 | MAGNETIC DISC |
| 1238 | 4931409781 | STOP WASHER |
