Prosimy o podanie pozycji na schemacie w celu dokonania wyceny.
Posiadamy części do Hilti - do większości modeli - starych i nowych.

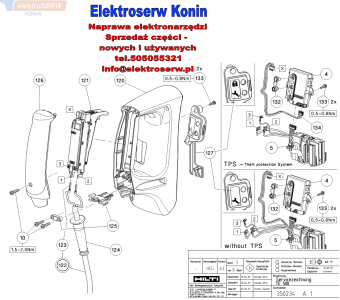

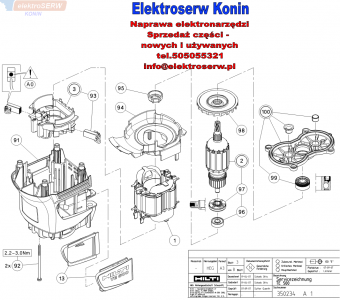

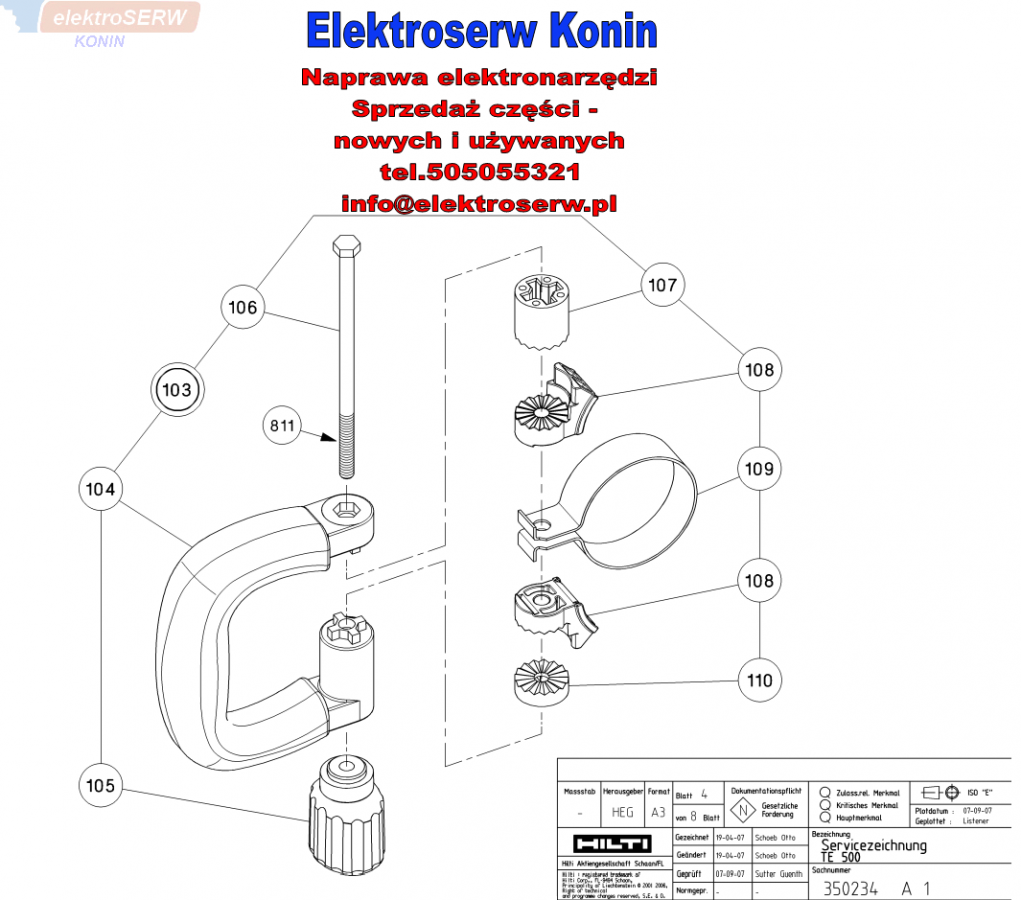

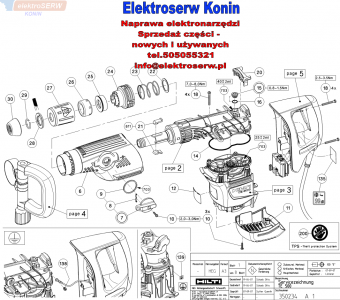

Spis części zamiennych:
| Pozycja na schemacie | Nr katalogowy | Nazwa Części |
| 1 | 241368 | Stator 110V - 120V packed |
| 2 | 241371 | Rotor 110V - 120V packed |
| 3 | 275079 | Brush holder UNI 42 7x12,5 assy |
| 6 | 389908 | Casing printed |
| 7 | 389968 | Setting lever assy |
| 8 | 366289 | Spring |
| 9 | 366163 | Seal FILZ |
| 10 | 207960 | Torx-soc re scr 4X18 T15 black |
| 11 | 208557 | Motor housing end cap |
| 12 | 390315 | Rating plate TE 500 TPS 120V USA |
| 13 | 389904 | Insert TE 500 printed |
| 14 | 208523 | Seal |
| 15 | 71886 | Screw plug Service assy |
| 16 | 73455 | O-ring 11,5X1,5 |
| 18 | 347648 | Torx-soc re scr 5X40/22T25 black |
| 20 | 208843 | Bow |
| 21 | 345238 | Pawl MIM |
| 22 | 390979 | Washer 33x42x1 |
| 23 | 330080 | Compression spring 2X40X49,3 |
| 24 | 366264 | Cap |
| 25 | 330048 | Ring |
| 26 | 366138 | Absorber |
| 27 | 330050 | Cover cap |
| 28 | 330051 | Washer |
| 29 | 330170 | Retaining ring |
| 30 | 330166 | Cap |
| 31 | 208612 | Gear housing finpt |
| 32 | 208595 | Stop |
| 34 | 366228 | Conrod |
| 35 | 366225 | Drive piston |
| 36 | 202193 | Dowel pin 7X23 |
| 37 | 366293 | O-ring 20,22X3,53 |
| 38 | 208958 | Guide tube |
| 39 | 38827 | Striker piston TE 500 packed |
| 40 | 391675 | O-ring 20,22x3,53 |
| 41 | 208614 | Coupling |
| 42 | 202115 | Compression spring |
| 43 | 366355 | Centering ring |
| 44 | 366239 | O-ring 20X9,5 |
| 45 | 366236 | Washer 37,6X18,5X5 |
| 46 | 233656 | Sealing ring 18,4X25,4X5,4 |
| 47 | 38828 | Ram TE 500 packed |
| 48 | 366161 | O-ring |
| 49 | 366162 | Sealing ring |
| 57 | 208956 | Chuck Y |
| 58 | 345232 | Absorber |
| 59 | 208608 | Stop Alu |
| 60 | 329092 | Washer 40x51,5x0,8 |
| 61 | 391069 | Circlip JS 52x2,5 |
| 62 | 348133 | O-ring 44x4 |
| 63 | 208596 | Cap assy |
| 69 | 330091 | O-ring 12X2 |
| 70 | 208604 | Eccentric |
| 71 | 208616 | Eccentric |
| 72 | 366260 | Ball bearing 20X42X12 |
| 73 | 366578 | O-ring 37,5x1,25 |
| 74 | 76581 | Retaining ring SW20 |
| 75 | 208605 | Toothed gear Z=47 |
| 76 | 366272 | Disc spring 20X10,2X0,5 |
| 77 | 206304 | Washer |
| 78 | 206303 | Thrust needle roller cage |
| 79 | 206305 | O-ring 8X1 |
| 91 | 208550 | Motor housing |
| 92 | 201239 | Int hexalob remf scr 4X75 T15 |
| 93 | 330956 | Carbon brush 7x12,5x26 100V-120V AO |
| 94 | 275083 | Air deflector |
| 95 | 208875 | Insert rubber |
| 96 | 206210 | Ball bearing 608-2Z |
| 97 | 341146 | Insulating washer |
| 98 | 275084 | Cooling fan |
| 99 | 346291 | Ball bearing 10X26X12,4 |
| 100 | 208567 | Bearing plate assy |
| 103 | 389724 | Chiselling handle assy |
| 104 | 234296 | Chiselling handle |
| 105 | 233549 | Twist grip assy |
| 106 | 233548 | Hexagon bolt M8X160 black |
| 107 | 233627 | Snap-lock ring 2 |
| 108 | 389726 | Holder |
| 109 | 389725 | Clamping band |
| 110 | 233547 | Snap-lock ring 1 |
| 120 | 208584 | Grip moulding |
| 121 | 209033 | Switch PF Arretierung assy |
| 122 | 201155 | Supply cord USA/CDN |
| 123 | 72417 | Conductor end sleeve |
| 124 | 71753 | Protective sleeve |
| 125 | 347404 | Clamp Kombi |
| 126 | 208974 | Grip cover kpl |
| 127 | 389909 | Cover TPS printed |
| 132 | 208972 | Lightguide |
| 133 | 366522 | Torx-soc pl scr 45 3x12 T10 black |
| 134 | 208992 | Cable harness MMI |
| 138 | 201495 | Torx-soc tapt scr M3,5X5,5 T15 |
| 139 | 277216 | Adhesive label SCHUTZERDUNG |
| 200 | 202804 | Sticker D 50 |
| 200 | 202806 | Sticker D 15 |
| 200 | 202805 | Sticker D 30 |
| 703 | 30215 | Oil Turmopol 20HD 1L |
| 800 | 26195 | Grease 1KG ALN1001/00 |
| 811 | 203086 | Grease 50 ML |
