Hilti części zamienne do młota udarowego 234137 TE 905

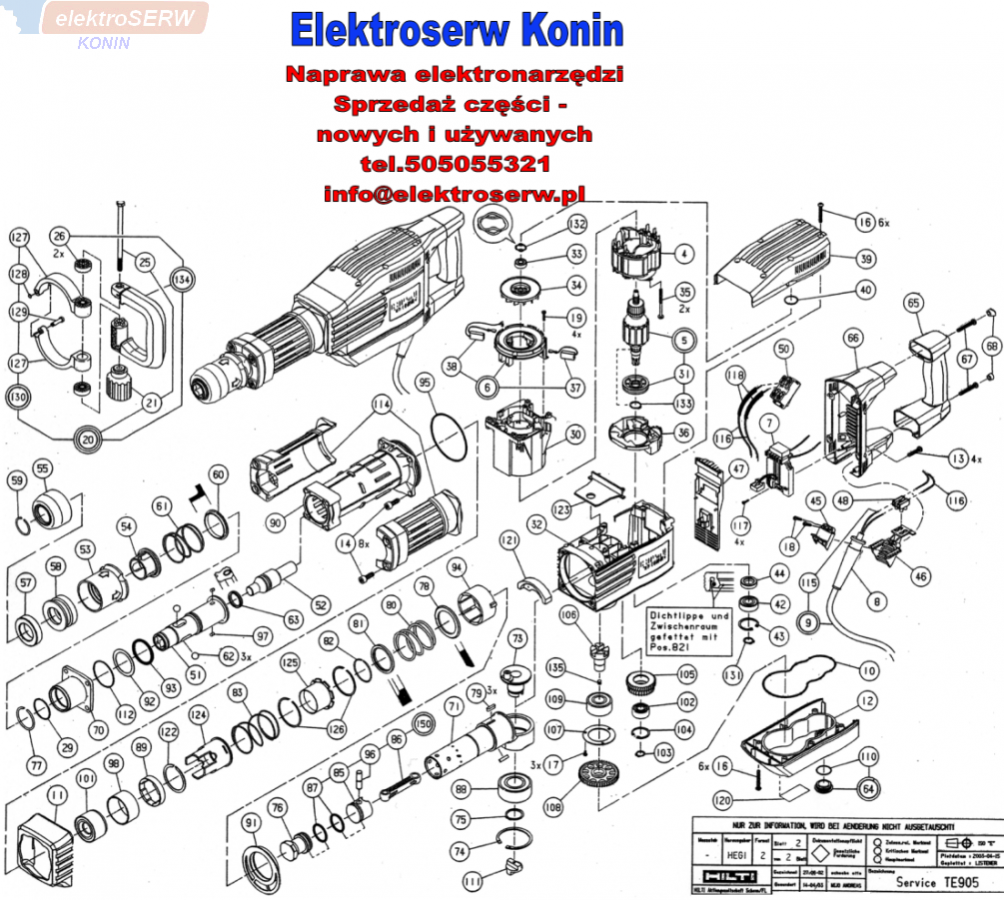

Spis części zamiennych do młota 234137 TE 905
Przy zapytaniu o dostępność i cenę prosimy podać pozycję
na schemacie lub nr katalogowy części.
| Pozycja na schemacie | Nr katalogowy | Nazwa Części |
| 4 | 234217 | stator 110/120V SERV. |
| 5 | 234220 | rotor 110/120V SERVICE |
| 6 | 206242 | brush holder 100V/115V assy |
| 7 | 234213 | electronics 100V/120V assy |
| 8 | 330179 | protective sleeve DM10 |
| 9 | 233636 | supply cord USA/CDN |
| 10 | 234041 | sealing ring |
| 11 | 234042 | cover |
| 12 | 234040 | lid |
| 13 | 233637 | torx-rec ov screw M6X25 10.9 |
| 14 | 234156 | torx-soc cap screw M8X25 |
| 16 | 234158 | torx-rec ov screw M5X40-8.8 |
| 17 | 234159 | torx-soc cap screw M4X8 |
| 18 | 207960 | torx-soc re scr 4X18 |
| 19 | 72432 | recess tapping screw ST3,9X16 |
| 20 | 234166 | chiselling handle assy |
| 21 | 233549 | knob assy |
| 25 | 233548 | hexagon bolt M8X160 |
| 26 | 233547 | snap-lock ring 1 |
| 29 | 234197 | o-ring 42X2,5 |
| 30 | 234025 | motor housing |
| 31 | 234104 | insulating washer |
| 32 | 234201 | housing assy |
| 33 | 250740 | ball bearing |
| 34 | 234203 | cooling fan |
| 35 | 206035 | plastite screw 45 5X60 |
| 36 | 234080 | insulation |
| 37 | 206240 | carbon brush 7x12,5x26 100V-120V AO |
| 38 | 206241 | carbon brush 7x12,5x26 100V-120V AO |
| 39 | 234067 | housing endcap |
| 40 | 206145 | o-ring 21,3X2,4 |
| 42 | 234199 | ball bearing 15X35X11 |
| 43 | 51090 | circlip 35X1,5 |
| 44 | 234126 | rotary shaft seal BAUM2X7-18X30X7 |
| 45 | 234255 | lid 2 |
| 46 | 234254 | lid 1 |
| 47 | 234094 | cover |
| 48 | 233628 | terminal block TYP1000/3DS |
| 50 | 17904 | switch |
| 51 | 234239 | chuck |
| 52 | 234225 | ram |
| 53 | 234059 | cap |
| 54 | 234237 | sleeve |
| 55 | 234061 | cover |
| 57 | 234063 | absorber ring |
| 58 | 234238 | lock |
| 59 | 234019 | retaining ring |
| 60 | 234194 | washer |
| 61 | 234058 | compression spring |
| 62 | 234026 | ball 15 III |
| 63 | 234235 | sealing ring |
| 64 | 234236 | screw plug assy |
| 65 | 234257 | grip |
| 66 | 234089 | adaptor |
| 67 | 206048 | plastite screw 45 6X40 |
| 68 | 233639 | spall guard |
| 70 | 234226 | flange |
| 71 | 234014 | guide tube assy |
| 73 | 234273 | eccentric |
| 74 | 72423 | circlip J62X2 |
| 75 | 74143 | circlip 30X1,5 |
| 76 | 234033 | striker piston |
| 77 | 234195 | retaining ring |
| 78 | 234043 | supporting washer |
| 79 | 234044 | feather key A5X5X20 |
| 80 | 234047 | compression spring 4,5X51X46,94 |
| 81 | 234049 | supporting washer |
| 82 | 234050 | retaining ring RW45X2.5 |
| 83 | 234051 | compression spring 2,6X51,6X67,2 |
| 85 | 234285 | drive piston |
| 86 | 234284 | conrod |
| 87 | 13772 | o-ring 31,34X3,53 |
| 88 | 234031 | ball bearing 30X62X23,8 |
| 89 | 234066 | bushing |
| 90 | 234001 | flange |
| 91 | 234013 | absorber ring assy |
| 92 | 234193 | washer |
| 93 | 234196 | o-ring 42X6 |
| 94 | 234109 | bushing |
| 95 | 234045 | o-ring 90X3 |
| 96 | 234282 | piston pin |
| 97 | 70123 | roller |
| 98 | 234157 | bushing |
| 101 | 234012 | absorber assy |
| 102 | 234129 | ball bearing 12X32X14 |
| 103 | 70416 | circlip 12X1 |
| 104 | 71468 | circlip 32X1,2 |
| 105 | 234007 | toothed gear |
| 106 | 234271 | sear |
| 107 | 234112 | detent ring |
| 108 | 234008 | toothed gear |
| 109 | 234030 | ball bearing 20X47X20,6 |
| 110 | 74157 | o-ring 24X2 |
| 111 | 234272 | adaptor piece |
| 112 | 234054 | o-ring 53X2 |
| 114 | 234111 | grip moulding |
| 115 | 72417 | conductor end |
| 116 | 233557 | flexible conductor AWG16 assy |
| 117 | 202264 | torx-soc pl scr 45 3X12 |
| 118 | 234276 | insulating tube 4.0X70 |
| 120 | 234175 | rating plate TE 905 120V USA |
| 121 | 234110 | stop |
| 122 | 234198 | retaining ring SB 57 |
| 123 | 234202 | plate |
| 124 | 234206 | sleeve |
| 125 | 234205 | sleeve |
| 126 | 234207 | retaining ring SB60 |
| 127 | 234204 | chiselling handle clamp |
| 128 | 208268 | circlip 6X0,7 |
| 129 | 234210 | clevis pin |
| 130 | 234208 | chiselling handle clamp assy |
| 131 | 8120 | circlip 14X1 |
| 132 | 234227 | compression spring |
| 133 | 51113 | circlip 18X1,2 |
| 134 | 234297 | grip unit |
| 135 | 4679 | hex skt set screw M6X8 MK |
| 136 | 201495 | torx-soc tapt scr M3,5X5,5 |
| 137 | 234200 | flexible conductor assy |
| 150 | 234283 | drive piston assy |
| 703 | 30215 | oil TURMOPO.20HD 1L |
| 811 | 203086 | grease dispenser 50 ML |
| 821 | 234280 | grease 1KG THERMOPL. 2TML |
| 900 | 59299 | loctite 222 250CCM |
