Hilti części zamienne do młotowiertarki TE 75 206404

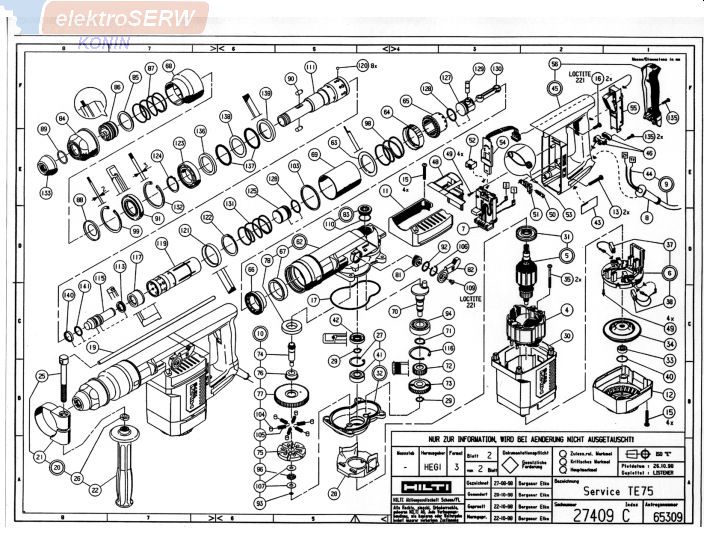

Spis części zamiennych do Młotowiertarki HILTI TE 75 206404
Przy zapytaniu o dostępność i cenę prosimy podać pozycję
na schemacie lub nr katalogowy części.
| Pozycja na schemacie | Nr katalogowy | Nazwa Części |
| 4 | 206255 | stator 110/115V assy |
| 5 | 206251 | rotor 110/115V assy |
| 6 | 206242 | brush holder 100V/115V assy |
| 7 | 202280 | electronics 100/115V assy |
| 8 | 76561 | protective sleeve |
| 9 | 206226 | supply cord USA/CDN |
| 10 | 206361 | safety clutch assy |
| 11 | 206051 | casing |
| 12 | 206018 | housing endcap |
| 13 | 76438 | plastite screw 45 5X35 T25 SW |
| 15 | 206048 | plastite screw 45 6X40 |
| 16 | 206264 | torx-rec ov screw M5X16 |
| 17 | 206052 | seal |
| 19 | 72320 | depth gauge |
| 20 | 206466 | side handle assy |
| 21 | 206465 | side handle clamp |
| 22 | 206462 | side handle |
| 25 | 206464 | screw |
| 26 | 206467 | washer 12.2X20X5.5 |
| 27 | 51090 | circlip 35X1,5 |
| 28 | 206006 | insulation |
| 29 | 71465 | circlip 15X1 |
| 30 | 206446 | motor housing TE 75 |
| 31 | 206008 | insulating washer |
| 32 | 206016 | bearing plate assy |
| 33 | 250740 | ball bearing |
| 34 | 206126 | cooling fan assy |
| 35 | 206035 | plastite screw 45 5X60 |
| 37 | 206292 | carbon brush 7x12,5x26 100V-120V AO |
| 38 | 206293 | carbon brush 7x12,5x26 100V-120V AO |
| 40 | 206145 | o-ring 21,3X2,4 |
| 41 | 206211 | ball bearing 6202 |
| 42 | 206125 | rotary shaft seal BAUM2X7-15X35X7 |
| 43 | 206419 | rating plate TE 75 115V USA/C |
| 44 | 72417 | conductor end |
| 45 | 206447 | grip unit |
| 46 | 76560 | supp.co.cl. |
| 48 | 206124 | cover |
| 49 | 202264 | torx-soc pl scr 45 3X12 |
| 50 | 202265 | lockbutton |
| 51 | 202182 | setting lever assy |
| 52 | 206141 | adaptor |
| 53 | 76875 | spring |
| 54 | 202272 | flexible conductor assy |
| 55 | 76095 | switch 100/240V |
| 56 | 202657 | grip cover |
| 57 | 201496 | torx-rec ov screw M3,5X8 |
| 59 | 74332 | grounding bridge |
| 60 | 206235 | flexible conductor assy |
| 62 | 206454 | gear housing assy |
| 63 | 206107 | washer |
| 64 | 206087 | coupling ring |
| 65 | 206271 | coupling |
| 66 | 206089 | bevel gear |
| 67 | 206090 | bearing sleeve |
| 68 | 206091 | sleeve |
| 69 | 206092 | spacing sleeve |
| 70 | 206334 | eccentric |
| 71 | 221398 | circlip 20X1,2 |
| 72 | 206335 | toothed gear Z=24 |
| 73 | 206336 | toothed gear |
| 74 | 206096 | bevel pinion |
| 75 | 206360 | clutch boss |
| 76 | 244953 | boss |
| 77 | 206359 | clutch gear |
| 78 | 245005 | bearing sleeve |
| 81 | 202130 | eccentric |
| 82 | 202131 | setting lever assy |
| 83 | 234236 | screw plug assy |
| 84 | 202127 | dust shield assy |
| 85 | 202106 | washer |
| 86 | 206165 | locking sleeve |
| 87 | 202124 | compression spring 2,3X44X66 |
| 88 | 206164 | spring guide |
| 89 | 74668 | retaining ring |
| 90 | 72139 | roller |
| 91 | 206105 | rotary shaft seal AS35X62X10-FPM |
| 92 | 70442 | o-ring 18,72X2,62 |
| 93 | 206110 | o-ring 6,07X1,78 |
| 94 | 206111 | ball bearing 20X47X14 |
| 96 | 206112 | needle bearing |
| 98 | 206115 | compression spring |
| 99 | 72423 | circlip J62X2 |
| 103 | 206172 | washer |
| 104 | 244954 | cylindrical roller RC-7X7 |
| 105 | 206357 | compression spring |
| 106 | 202142 | circlip JV24 |
| 107 | 206497 | thrust washer 8X21X0,93 |
| 109 | 202187 | screw M6X8 TORX-T30 |
| 110 | 74157 | o-ring 24X2 |
| 111 | 206332 | chuck |
| 113 | 233656 | sealing ring |
| 115 | 206486 | ram |
| 116 | 76460 | circlip J47 |
| 117 | 206244 | absorber |
| 119 | 206081 | guide tube |
| 120 | 17972 | ball 7 G20 |
| 121 | 206084 | sleeve |
| 122 | 206117 | circlip A47X1,75 |
| 123 | 72401 | ball bearing 6007 |
| 124 | 206261 | circlip AS35-00 |
| 125 | 206085 | striker piston |
| 127 | 206086 | drive piston |
| 128 | 17955 | o-ring 24,99X3,53 |
| 129 | 26010 | piston pin |
| 130 | 330395 | conrod |
| 131 | 206116 | compression spring 2,5X42X66 |
| 132 | 206259 | circlip |
| 133 | 206308 | cap |
| 134 | 201495 | torx-soc tapt scr M3,5X5,5 |
| 135 | 207960 | torx-soc re scr 4X18 |
| 136 | 206328 | ring |
| 137 | 206329 | o-ring 41,2X5,7 |
| 138 | 206330 | washer |
| 139 | 206331 | ring |
| 140 | 206103 | seal |
| 141 | 206121 | o-ring 18,64X3,53 |
| 703 | 30215 | oil TURMOPO.20HD 1L |
| 811 | 203086 | grease dispenser 50 ML |
| 900 | 59299 | loctite 222 250CCM |
