Spis części zamiennych do do wiertnicy diamentowej
DD 200 279257
Przy zapytaniu o dostępność i cenę prosimy podać
pozycję na schemacie lub nr katalogowy części.

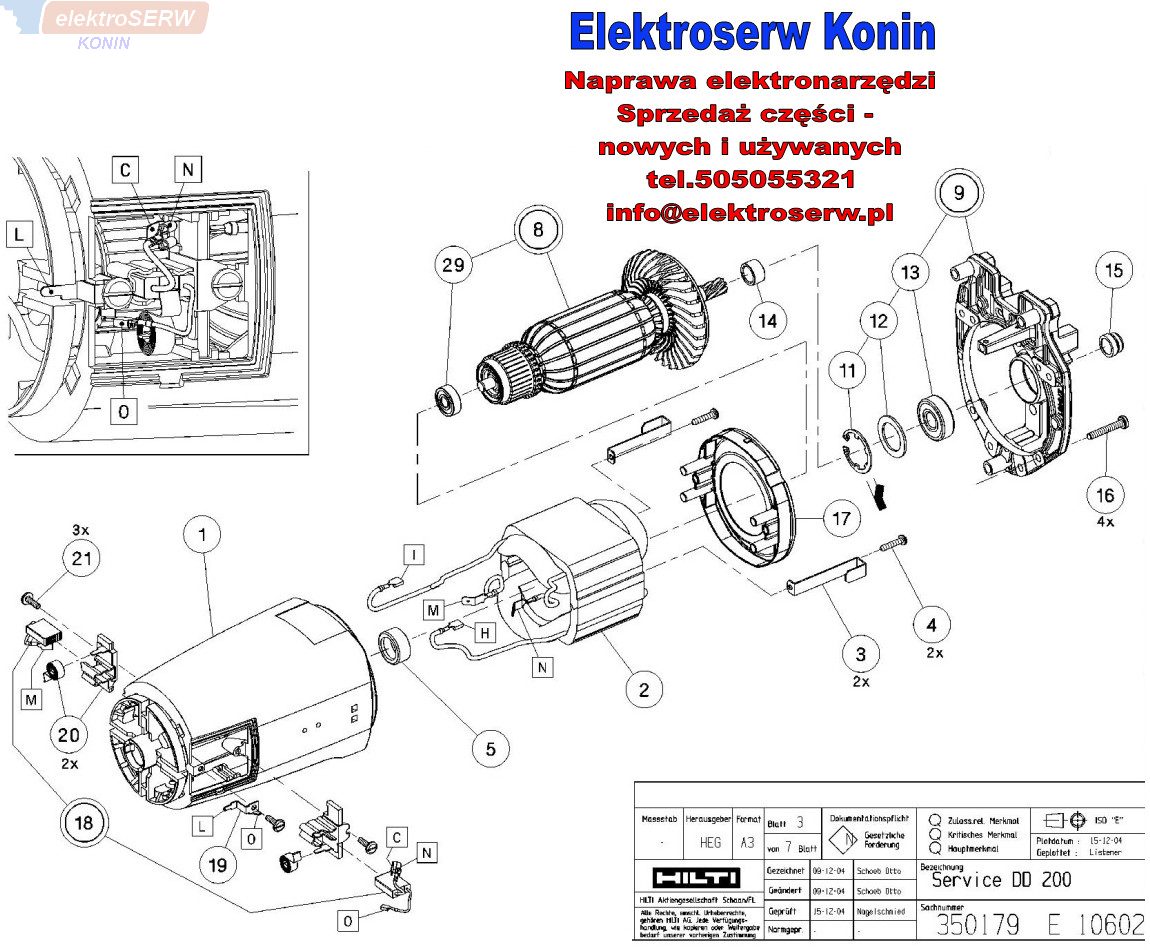

| Pozycja na schemacie | Nr katalogowy | Nazwa Części | Ilość sztuk |
| 1 | 281791 | Motor housing | 1 |
| 2 | 282067 | Stator 230V | 1 |
| 3 | 279693 | Staple | 2 |
| 4 | 93904 | Recess tapping screw 3,9X19 | 2 |
| 5 | 93884 | Ring KOLLEKTORSEIT. | 1 |
| 8 | 279516 | Rotor 220-240V packed | 1 |
| 9 | 279525 | Bearing plate assy | 1 |
| 11 | 279440 | Circlip JL32 | 1 |
| 12 | 279439 | Shim ring 22x32x1,5 | 1 |
| 13 | 279316 | Ball bearing 12X32X10 | 1 |
| 14 | 279317 | Ring | 1 |
| 15 | 279318 | Sleeve | 1 |
| 16 | 277826 | Slotted tapping screw 4,8X25 | 4 |
| 17 | 390139 | Air deflector | 1 |
| 18 | 280097 | Carbon brush 220V-240V set | 1 |
| 19 | 279496 | Terminal tab | 1 |
| 20 | 282143 | Brush holder assy | 2 |
| 21 | 93903 | Slotted tapping screw C 3,9X13 | 3 |
| 23 | 279321 | Housing | 1 |
| 24 | 279446 | Brush cap left | 1 |
| 25 | 279453 | Torx-soc re scr 4X10 T20 black | 2 |
| 26 | 279445 | Brush cap right | 1 |
| 27 | 280029 | Housing end cap printed | 1 |
| 28 | 279515 | Torx-soc re scr 5X28 T20 black | 8 |
| 29 | 93862 | Ball bearing 8X22X7 | 1 |
| 30 | 279568 | Lid | 1 |
| 31 | 279520 | Torx-soc cap screw 3X12 T10 black | 2 |
| 32 | 279447 | Lid | 1 |
| 33 | 278313 | Torx-soc re scr 4X16 T20 black | 7 |
| 34 | 208188 | Adhesive label PRCD | 1 |
| 35 | 208187 | Adhesive label WASSERFANG | 1 |
| 36 | 279331 | Multi-connector 6,3 mm | 2 |
| 37 | 201542 | Torx-soc re scr 3X10 T10 | 6 |
| 38 | 279627 | Tab terminal 4,8 mm | 1 |
| 39 | 214894 | Electronics 100V-240V packed | 1 |
| 41 | 279461 | Lightguide 2 | 1 |
| 42 | 280027 | Lightguide 1 short | 1 |
| 43 | 17904 | Switch 100V-240V | 1 |
| 44 | 207057 | Protective cap | 1 |
| 45 | 279495 | Suppressor | 1 |
| 46 | 213329 | Terminal block TYP1000/2DS | 1 |
| 47 | 279691 | Hanger clamping | 1 |
| 48 | 208120 | Taptite screw CM3,5X10 T10 | 1 |
| 49 | 207741 | Clamp | 1 |
| 51 | 208488 | Supply cord UK PRCD10 | 1 |
| 54 | 208100 | Protective sleeve 10MM | 1 |
| 55 | 280089 | Gear housing packed | 1 |
| 56 | 51139 | Ball bearing 30x62x20 | 1 |
| 57 | 51161 | Supporting washer S50X62 | 1 |
| 58 | 207522 | Circlip 62X3 | 1 |
| 59 | 11255 | Ball bearing 15x35x14 | 1 |
| 60 | 279363 | Needle bearing 15x23x20 | 2 |
| 61 | 51160 | Supporting washer S30X42 | 2 |
| 62 | 207474 | Circlip 30X2 | 3 |
| 63 | 51157 | Rotary shaft seal AS30X62X7 | 1 |
| 65 | 280090 | Bearing cover packed | 1 |
| 66 | 345158 | Rotary shaft seal 14,8x25x7 | 1 |
| 67 | 207917 | Ball bearing 12X37X12 | 1 |
| 68 | 279362 | Needle bearing 20x32x20 | 1 |
| 70 | 280091 | Safety clutch packed | 1 |
| 71 | 214893 | Shaft z14 assy | 1 |
| 72 | 44241 | Feather key A5X5X40 | 1 |
| 73 | 226508 | Shim ring 15X22X1,5 | 2 |
| 74 | 279411 | Shaft BL | 1 |
| 75 | 279491 | O-ring 17X2,5 | 1 |
| 78 | 279351 | Toothed gear Z40 | 1 |
| 79 | 226311 | Circlip 28X1,5 | 2 |
| 80 | 390565 | Setting lever boss Z18 assy | 1 |
| 81 | 279352 | Setting lever boss Z18 | 1 |
| 82 | 207381 | Pin 7x31 | 1 |
| 83 | 279383 | Setting rod | 1 |
| 84 | 279372 | Compression spring 0,7x4,3x8,5 | 1 |
| 85 | 70402 | Ball 5 G80 | 1 |
| 86 | 279353 | Toothed gear Z37 | 1 |
| 87 | 279354 | Toothed gear Z50 | 1 |
| 88 | 390564 | Toothed gear Z60 | 1 |
| 89 | 207383 | Washer 24,1x33,5x2 | 1 |
| 90 | 279371 | Circlip 24x1,75 | 1 |
| 91 | 279361 | Shaft Z26 | 1 |
| 92 | 279319 | Seal 1,5 | 1 |
| 93 | 279384 | Setting lever boss Z18 | 1 |
| 94 | 279414 | Switch | 1 |
| 95 | 279418 | Spring pin 5x28 | 1 |
| 96 | 277557 | O-ring 16X2 | 1 |
| 97 | 71886 | Screw plug Service assy | 1 |
| 98 | 73455 | O-ring 11,5X1,5 | 1 |
| 99 | 278893 | Taptite screw M4X10 | 1 |
| 100 | 221345 | Hex nut with flange M8 | 4 |
| 101 | 207471 | Hex skt hd cap screw M8X20 black | 4 |
| 102 | 279358 | Tool suspension | 1 |
| 103 | 279511 | Lid right | 1 |
| 104 | 279510 | Lid left | 1 |
| 105 | 208365 | Hex skt hd cap screw M6X40 | 4 |
| 106 | 207499 | O-ring 30X2,5 | 2 |
| 107 | 302054 | Bushing | 1 |
| 111 | 46833 | Water connection assy | 1 |
| 112 | 46905 | Ball cock G1/4" | 1 |
| 113 | 47051 | Hose assy | 1 |
| 114 | 51510 | Hose coupling assy | 1 |
| 115 | 278807 | O-ring 10,85X2,75-NBR 70 | 1 |
| 116 | 51279 | Hose coupling | 1 |
| 119 | 280094 | Water swivel packed | 1 |
| 120 | 302058 | Rotary shaft seal 40X55X7 | 2 |
| 121 | 279533 | Torx-soc ov screw M6x16 T20 blac | 4 |
| 122 | 207765 | Attachment | 2 |
| 130 | 282987 | Chuck DD-CS-BL | 1 |
| 131 | 279345 | Absorber ring | 1 |
| 132 | 279527 | Washer 48x38x1 | 1 |
| 133 | 279528 | Circlip 38x1,75 | 1 |
| 134 | 279346 | Hex skt hd cap screw M12x55 mc | 1 |
| 135 | 213056 | Retaining ring A38 | 1 |
| 136 | 279344 | Sleeve | 1 |
| 137 | 70446 | O-ring 34,65X1,78 | 1 |
| 138 | 279342 | Chuck DD-C-BL | 1 |
| 139 | 74581 | Hex skt hd cap screw M6X55 black | 3 |
| 140 | 279514 | Spade grip assy | 1 |
| 141 | 279512 | Torx-soc ov screw M5x20 MK T20 bl | 2 |
| 142 | 277219 | Rating plate DD 200 230V GB | 1 |
| 810 | 30214 | Grease MOLYKOTE TP42 100G | 1 |
| 826 | 280102 | Grease PETAMO GHY 133 N 400G | 1 |
| 901 | 3994 | Adhesive LOCTITE 243 50CCM | 1 |
