Hilti części zamienne do młotowiertarki TE 16 344744

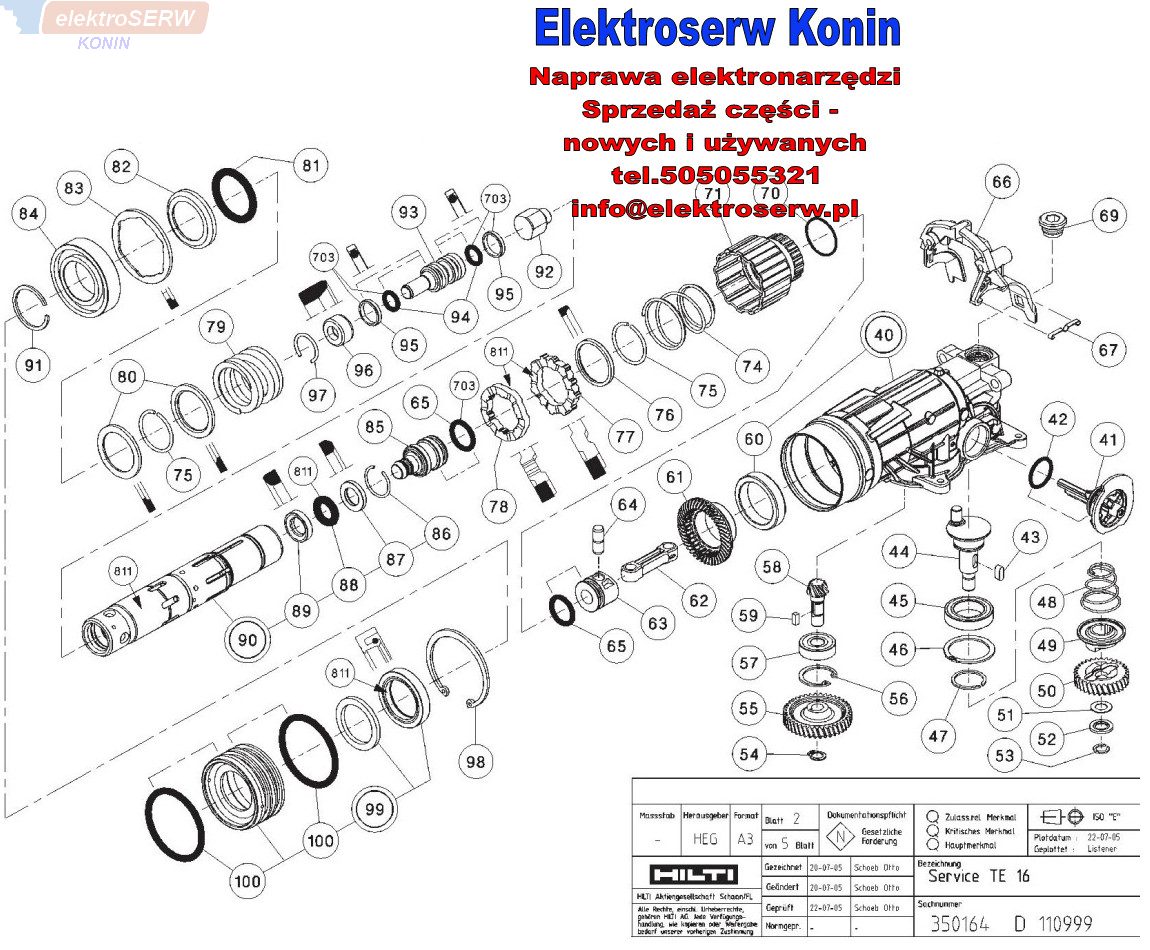

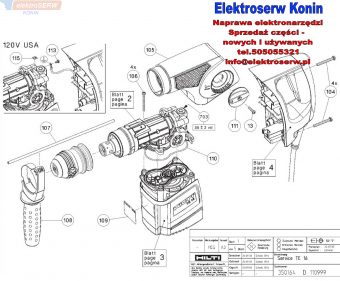

Spis części zamiennych do młotowiertarki
TE 16 344744
Przy zapytaniu o dostępność i cenę prosimy podać pozycję
na schemacie lub nr katalogowy części.
| Pozycja na schemacie | Nr katalogowy | Nazwa Części | Ilość sztuk |
| 4 | 349211 | Stator TE 16 110V/120V SERVICE | 1 |
| 5 | 349217 | Rotor TE 16 110V-120V SERVICE | 1 |
| 6 | 349676 | Brush holder 100V-120V assy | 1 |
| 8 | 76561 | Protective sleeve | 1 |
| 9 | 73328 | Supply cord USA/CDN | 1 |
| 10 | 347875 | Grip TE16 | 1 |
| 11 | 72417 | Conductor end | 2 |
| 12 | 347404 | Clamp Kombi | 1 |
| 13 | 207960 | Torx-soc re scr 4X18 | 4 |
| 14 | 346296 | Grip cover assy | 1 |
| 15 | 344809 | Switch 100V-120V | 1 |
| 21 | 347892 | Electric plug Bausatz TE16C assy | 1 |
| 23 | 344691 | Bearing plate assy | 1 |
| 24 | 76583 | Bearing bushing 10X8X8 | 2 |
| 25 | 346291 | Ball bearing 10X26X12,4 | 1 |
| 26 | 346292 | Insulating washer | 1 |
| 27 | 206210 | Ball bearing 608-2Z | 1 |
| 28 | 347803 | Cooling fan ohne Magnet | 1 |
| 29 | 344696 | Air deflector | 1 |
| 30 | 234227 | Compression spring 21,65x5,4 | 1 |
| 31 | 348766 | Motor housing TE 16 printed | 1 |
| 32 | 265887 | Int hexalob remf scr 3X40 | 2 |
| 33 | 367224 | Torx-soc re scr 4X20 black | 3 |
| 35 | 344811 | Motor housing endcap assy | 1 |
| 37 | 348132 | Carbon brush 6,3x10x19 100V-120V AO | 2 |
| 40 | 344662 | Gear housing Service assy | 1 |
| 41 | 344770 | Setting rod SCHALTER | 1 |
| 42 | 74154 | O-ring 18X2 | 1 |
| 43 | 76049 | Feather key A4X4X10 | 1 |
| 44 | 344764 | Eccentric | 1 |
| 45 | 76452 | Ball bearing 61804 | 1 |
| 46 | 76488 | Circlip JV32 | 1 |
| 47 | 76581 | Retaining ring SW20 | 1 |
| 48 | 344765 | Spring | 1 |
| 49 | 344760 | Coupling sleeve | 1 |
| 50 | 344783 | Toothed gear Z=32 *SINT* | 1 |
| 51 | 76492 | Shim ring 14X8X0,5 | 1 |
| 52 | 344822 | Supporting ring | 1 |
| 53 | 343511 | Retaining ring SW8VERSTAERKT | 1 |
| 54 | 70421 | Circlip 8X0,8 | 1 |
| 55 | 344782 | Toothed gear Z=41 *SINT* | 1 |
| 56 | 76582 | Circlip 24X1,2 | 1 |
| 57 | 73154 | Ball bearing 9X24X7 | 1 |
| 58 | 344750 | Bevel pinion Z=9 | 1 |
| 59 | 70415 | Feather key 3X3X7.7 | 1 |
| 60 | 344768 | Bearing bushing 30X38,5X8.5 | 1 |
| 61 | 344751 | Bevel gear Z=38 | 1 |
| 62 | 344759 | Conrod | 1 |
| 63 | 347276 | Drive piston | 1 |
| 64 | 76406 | Dowel pin 7X20 | 1 |
| 65 | 349862 | O-ring 16,0x3,0 | 2 |
| 66 | 347819 | Bow | 1 |
| 67 | 349671 | Leaf spring | 1 |
| 69 | 71886 | Screw plug Service assy | 1 |
| 70 | 60143 | O-ring 22.0 X 1.5 | 2 |
| 71 | 344475 | Coupling sleeve | 1 |
| 74 | 344485 | Spring | 1 |
| 75 | 201095 | Retaining ring RW28 | 2 |
| 76 | 344471 | Ring | 1 |
| 77 | 344467 | Coupling ring | 1 |
| 78 | 344468 | Coupling ring | 1 |
| 79 | 344479 | Compression spring 4,75X33,05X28,0 | 1 |
| 80 | 344777 | Ring | 2 |
| 81 | 344808 | O-ring 28,0x5,0 | 1 |
| 82 | 344774 | Supporting washer | 1 |
| 83 | 344703 | Support | 1 |
| 84 | 287373 | Ball bearing 28X52X12 | 1 |
| 85 | 344466 | Striker piston | 1 |
| 86 | 348461 | Retaining ring RB21x1,6 | 1 |
| 87 | 344804 | Ring | 1 |
| 88 | 344781 | O-ring 11X5 | 1 |
| 89 | 344800 | Stop | 1 |
| 90 | 349235 | Guide tube SERVICE assy | 1 |
| 91 | 74141 | Retaining ring SW28 | 1 |
| 92 | 344815 | Ram HINTEN | 1 |
| 93 | 405339 | Ram front | 1 |
| 94 | 348667 | O-ring 9,19X2,62 | 2 |
| 95 | 348666 | Sealing ring 14.85x18.25x2.93 | 2 |
| 96 | 344453 | Stop | 1 |
| 97 | 76487 | Circlip 17X2 | 1 |
| 98 | 213217 | Circlip 52X2 | 1 |
| 99 | 349223 | Cap assy | 1 |
| 100 | 348133 | O-ring 44x4 | 2 |
| 104 | 347648 | Torx-soc re scr 5X40/22 T25 SN65 | 4 |
| 105 | 347965 | Casing TE16 | 1 |
| 106 | 240438 | Int hexalob remf scr 4X45/25 black | 4 |
| 107 | 73131 | Depth gauge | 1 |
| 108 | 354585 | Side handle assy | 1 |
| 109 | 349099 | Rating plate TE 16 120V | 1 |
| 110 | 344797 | Seal | 1 |
| 111 | 346294 | Switch | 1 |
| 703 | 30215 | Oil Turmopol 20HD 1L | 1 |
| 811 | 203086 | Grease 50 ML | 1 |
| 900 | 59299 | Adhesive LOCTITE 222 250CCM | 1 |
