Hilti części zamienne do młotowiertarki TE 60-ATC 364123
Spis części zamiennych do młotowiertarki
TE 60-ATC 364123

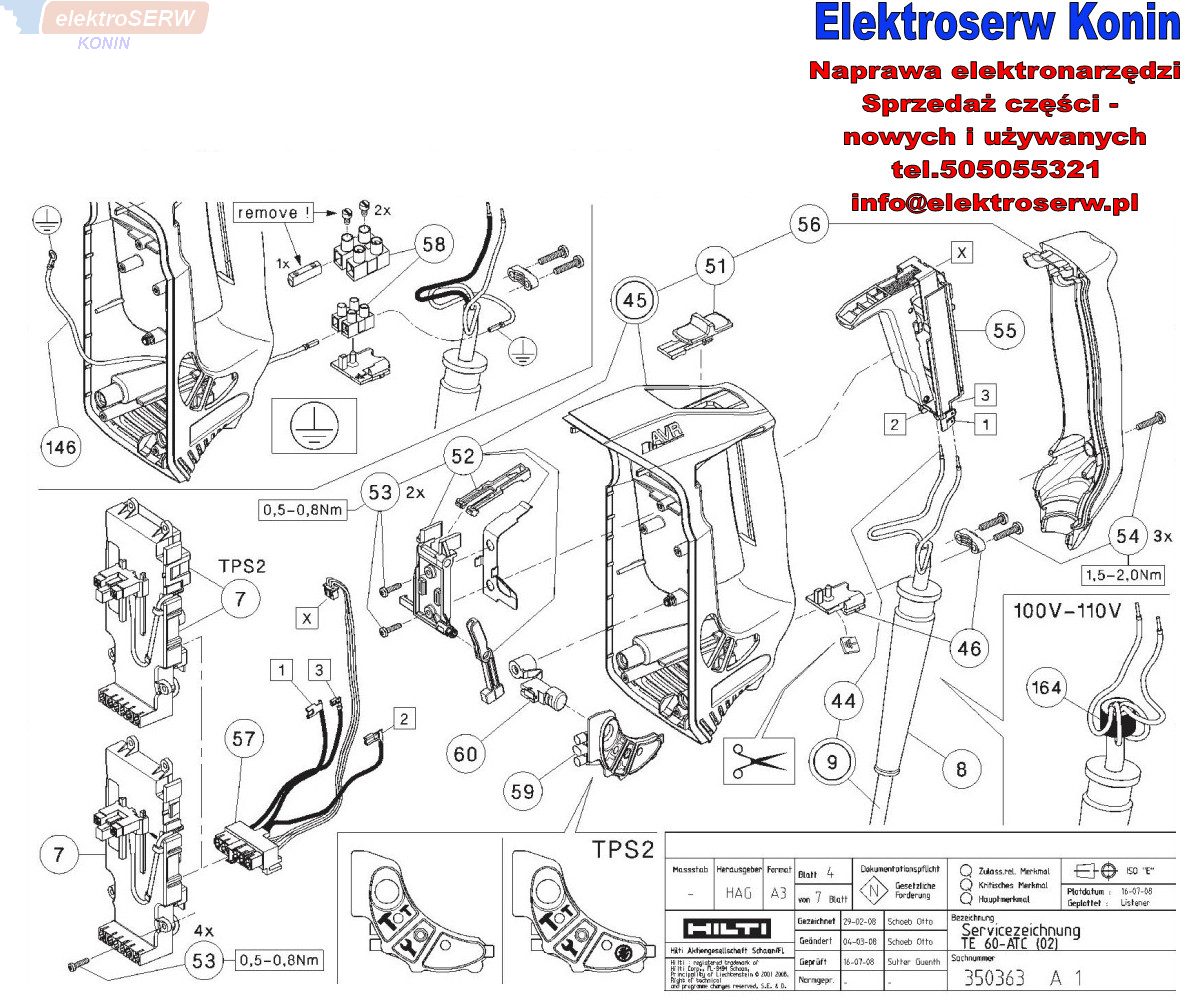

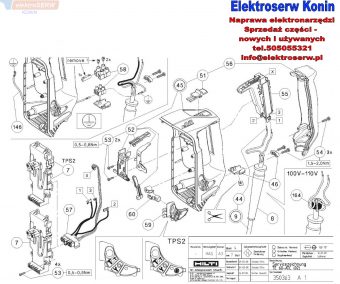

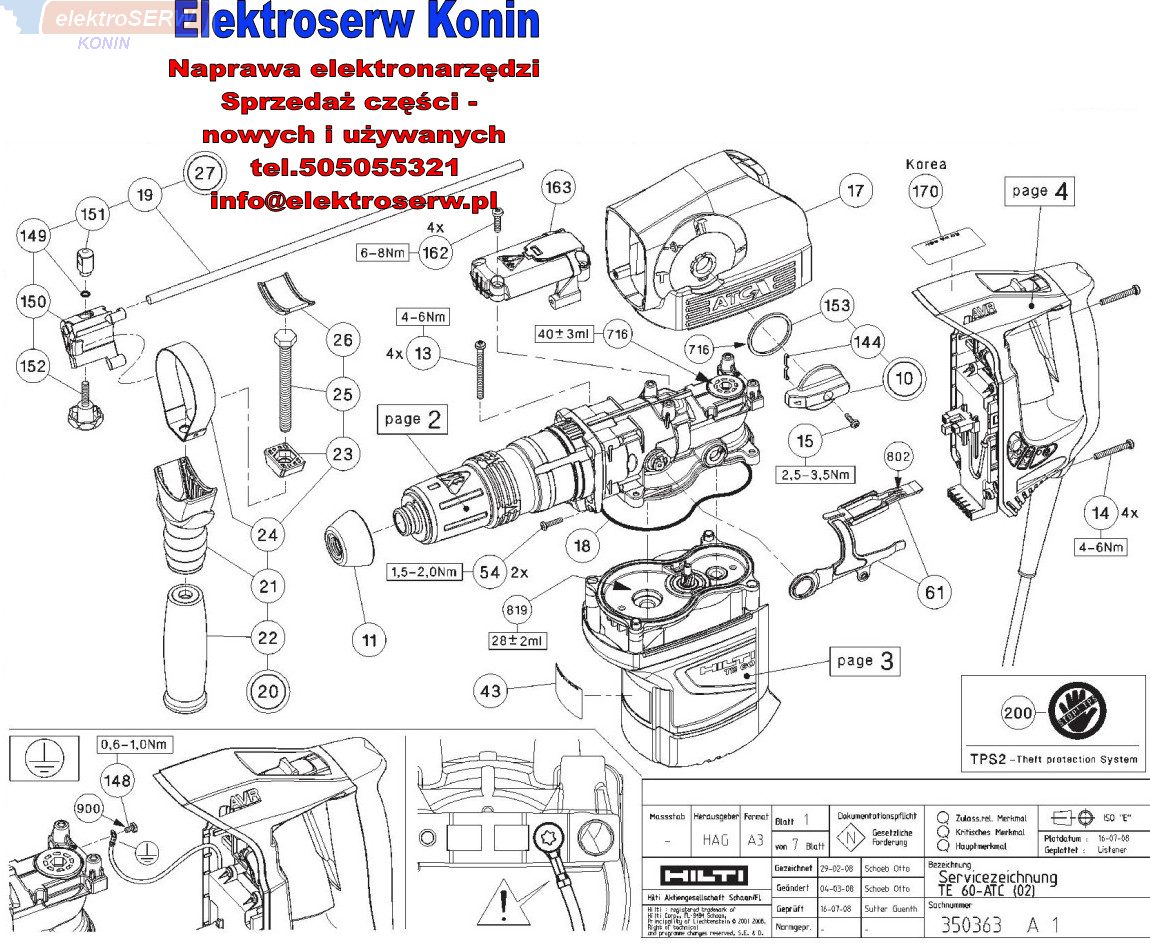

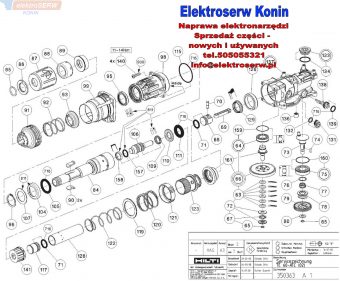

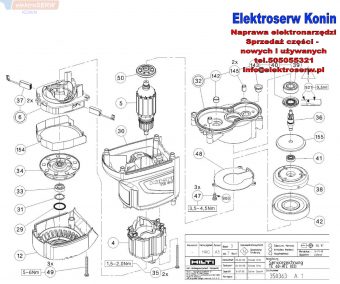

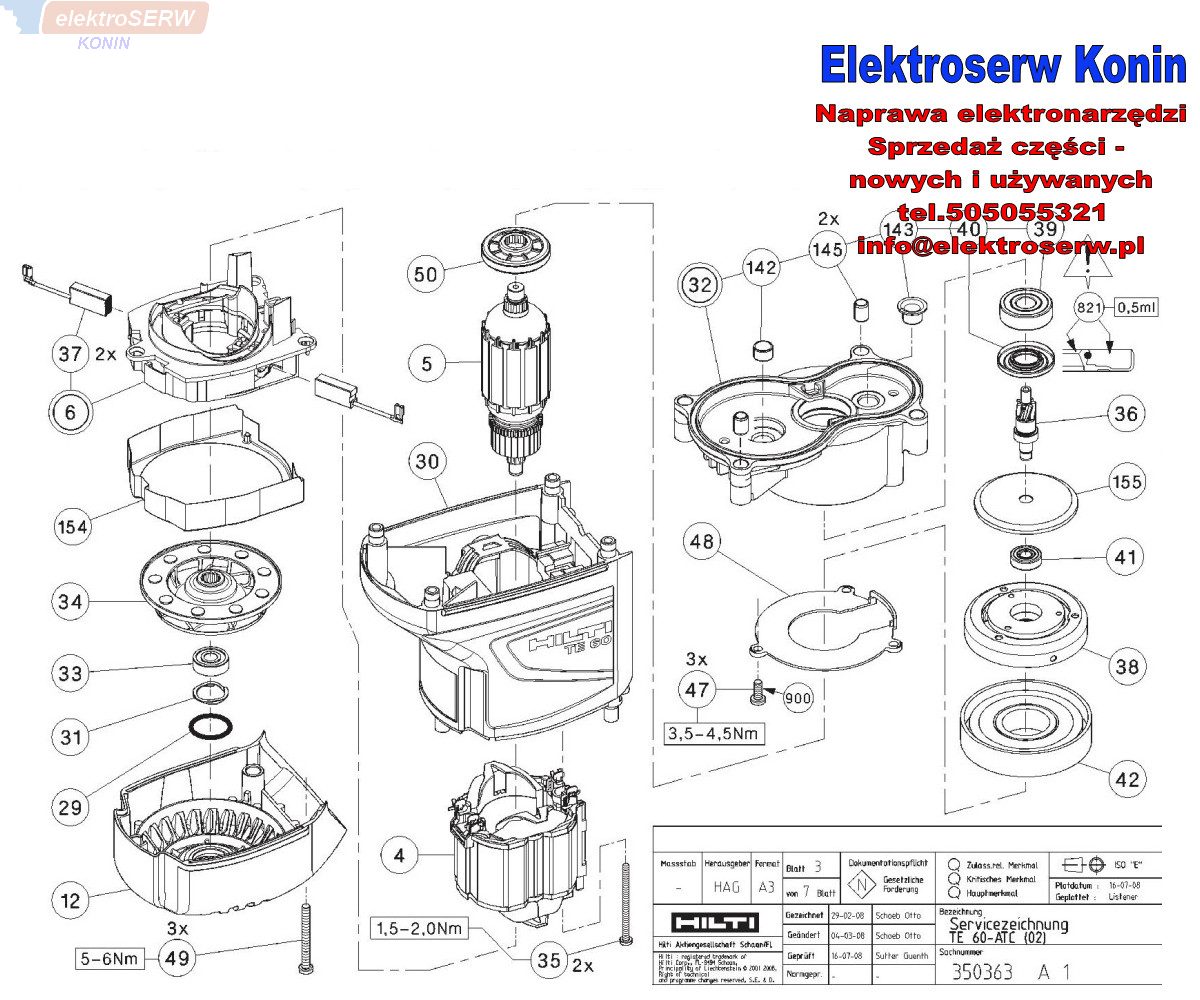

Przy zapytaniu o dostępność i cenę prosimy podać pozycję
na schemacie lub nr katalogowy części.
| Pozycja na schemacie | Nr katalogowy | Nazwa Części | Ilość sztuk |
| 4 | 365460 | Stator 220V-240V packed | 1 |
| 5 | 365463 | Rotor 220V-240V packed | 1 |
| 6 | 366151 | Brush holder 220V/240V assy | 1 |
| 7 | 393991 | Electronics ATC 110V-240V packed | 1 |
| 8 | 330179 | Protective sleeve DM10 | 1 |
| 9 | 202757 | Supply cord GB 230V | 1 |
| 10 | 389968 | Setting lever assy | 1 |
| 11 | 330166 | Cap | 1 |
| 12 | 366189 | Housing end cap ATC | 1 |
| 13 | 366280 | Torx-soc re scr 5X55 T25 black | 4 |
| 14 | 76438 | Plastite screw 45 5X35 T25 black | 4 |
| 15 | 268094 | Torx-soc re scr 4X14 T20 black | 1 |
| 17 | 392611 | Casing printed | 1 |
| 18 | 366279 | Seal | 1 |
| 19 | 72320 | Depth gauge 8x385 | 1 |
| 20 | 330083 | Side handle assy | 1 |
| 21 | 330084 | Side handle upper | 1 |
| 22 | 330086 | Side handle lower | 1 |
| 23 | 330088 | Pressure piece | 1 |
| 24 | 330089 | Clamping band | 1 |
| 25 | 330090 | Hexagon screw M10X100 black | 1 |
| 26 | 330492 | Segment | 1 |
| 27 | 366489 | Holder assy | 1 |
| 29 | 206145 | O-ring 21,3X2,4 | 1 |
| 30 | 393264 | Motor housing printed | 1 |
| 31 | 234227 | Compression spring 21,65x5,4 | 1 |
| 32 | 366164 | Bearing plate ATC assy | 1 |
| 33 | 366158 | Ball bearing 8X22X7 | 1 |
| 34 | 366187 | Cooling fan | 1 |
| 35 | 277993 | Int hexalob remf scr 4X55 | 2 |
| 36 | 366173 | Pinion ATC mach | 1 |
| 37 | 366126 | Carbon brush 7x12,5x26 220V-240V | 2 |
| 38 | 366179 | Washer assy | 1 |
| 39 | 366168 | Ball bearing 12X32X10 | 1 |
| 40 | 366494 | Rotary shaft seal 14,8x35x4 | 1 |
| 41 | 366193 | Ball bearing 7X19X6 | 1 |
| 42 | 366178 | Electromagnet | 1 |
| 43 | 364215 | Rating plate TE 60-ATC 230V GB | 1 |
| 44 | 72417 | Conductor end sleeve | 2 |
| 45 | 392914 | Grip unit | 1 |
| 46 | 330177 | Clamp | 1 |
| 47 | 202188 | Torx-soc ov screw M5X12 T25 blac | 3 |
| 48 | 366191 | Clamping ring | 1 |
| 49 | 237764 | Torx-soc re scr 5X45 T25 black | 3 |
| 50 | 366185 | Insulating washer | 1 |
| 51 | 392913 | Switch | 1 |
| 52 | 366306 | Receptacle assy | 1 |
| 53 | 202264 | Torx-soc pl scr 45 3X12 T10 black | 6 |
| 54 | 207960 | Torx-soc re scr 4X18 T15 black | 5 |
| 55 | 208991 | Switch PF Poti assy | 1 |
| 56 | 330018 | Grip cover | 1 |
| 57 | 345505 | Cable harness | 1 |
| 59 | 366318 | Cover | 1 |
| 60 | 366303 | Feeler | 1 |
| 61 | 392545 | Setting rod assy | 1 |
| 63 | 366272 | Disc spring 20X10,2X0,5 | 6 |
| 64 | 366227 | Ball bearing 20X37X9 | 1 |
| 65 | 206305 | O-ring 8X1 | 2 |
| 66 | 393989 | Safety clutch servicing set | 1 |
| 67 | 366269 | Needle bearing AXK1024 | 1 |
| 68 | 366225 | Drive piston | 1 |
| 69 | 366228 | Conrod | 1 |
| 70 | 202193 | Dowel pin 7X23 | 1 |
| 71 | 366293 | O-ring 20,22X3,53 | 2 |
| 72 | 366268 | Washer 10X24X1 | 2 |
| 73 | 366477 | Eccentric | 1 |
| 74 | 366528 | Feather key A4X4X12 | 1 |
| 75 | 366260 | Ball bearing 20X42X12 | 1 |
| 76 | 76581 | Retaining ring SW20 | 1 |
| 77 | 366273 | Compression spring 1,0X20,5X8,8 | 1 |
| 78 | 366478 | Coupling | 1 |
| 79 | 366479 | Toothed gear Z=41 | 1 |
| 80 | 366136 | Shim ring 10X19X1 | 1 |
| 84 | 366242 | Chuck Y | 1 |
| 85 | 330170 | Retaining ring | 1 |
| 86 | 330051 | Washer | 1 |
| 87 | 330050 | Cover cap | 1 |
| 88 | 366138 | Absorber | 1 |
| 89 | 330048 | Ring | 1 |
| 90 | 345238 | Pawl MIM | 2 |
| 91 | 366264 | Cap | 1 |
| 92 | 330080 | Compression spring 2X40X49,3 | 1 |
| 93 | 366255 | Spring guide | 1 |
| 95 | 366256 | Rotary shaft seal 32X42X7 | 1 |
| 96 | 366282 | Circlip AV32 | 1 |
| 98 | 366529 | Flange SERVICE assy | 1 |
| 99 | 392612 | Grip section | 1 |
| 104 | 366249 | Cage | 1 |
| 105 | 366250 | Absorber 45X32X5 | 1 |
| 106 | 365466 | Ram TE 60, TE 60-ATC packed | 1 |
| 107 | 366295 | Washer 48X32,1X1,5 | 1 |
| 109 | 233656 | Sealing ring 18,4X25,4X5,4 | 1 |
| 110 | 366236 | Washer 37,6X18,5X5 | 1 |
| 111 | 366239 | O-ring 20X9,5 | 1 |
| 115 | 366290 | O-ring 56X2 | 1 |
| 117 | 38827 | Striker piston packed | 1 |
| 119 | 366237 | Washer 60X45X2,5 | 1 |
| 120 | 366229 | Compression spring 2,5x48,5x44 | 1 |
| 121 | 366234 | Coupling ring | 1 |
| 122 | 366230 | Compression spring | 1 |
| 123 | 366238 | Coupling | 1 |
| 126 | 366232 | Bearing bushing | 1 |
| 128 | 366356 | Guide tube | 1 |
| 129 | 366259 | Ring | 1 |
| 131 | 366275 | Eccentric | 1 |
| 132 | 330091 | O-ring 12X2 | 1 |
| 133 | 234236 | Screw plug assy | 1 |
| 134 | 74157 | O-ring 24X2 | 1 |
| 136 | 366231 | Needle bearing NK6/10 | 1 |
| 137 | 365457 | Gear housing SERVICE-ATC assy | 1 |
| 138 | 366276 | Eccentric | 1 |
| 139 | 366319 | O-ring 14,6X2,4 | 1 |
| 140 | 233637 | Torx-soc ov screw M6X25 T30 blac | 4 |
| 141 | 366355 | Centering ring | 1 |
| 142 | 366170 | Bearing bushing | 1 |
| 143 | 366171 | Bearing bushing | 1 |
| 144 | 366289 | Spring | 1 |
| 145 | 366209 | Centering bushing 9/6,4X11,8 | 2 |
| 149 | 277896 | O-ring 5X1,5 | 1 |
| 150 | 366483 | Pressure piece assy | 1 |
| 151 | 366485 | Nut | 1 |
| 152 | 366486 | Star knob | 1 |
| 153 | 366163 | Seal FILZ | 1 |
| 154 | 366488 | Brush cap | 1 |
| 155 | 366176 | Drive ring | 1 |
| 157 | 366161 | O-ring | 1 |
| 158 | 366162 | Sealing ring | 1 |
| 159 | 366038 | O-ring 33,5x1 | 1 |
| 160 | 366578 | O-ring 37,5x1,25 | 1 |
| 161 | 365575 | Bevel pinion packed | 1 |
| 162 | 26372 | Taptite screw M5X20 T25 black | 4 |
| 163 | 392551 | Oscillating plate assy | 1 |
| 716 | 280101 | Oil Kluebersinth GH 6-80 5L | 1 |
| 802 | 87726 | Grease 400G OPTI LT2 | 1 |
| 811 | 203086 | Grease 50 ML | 1 |
| 819 | 320560 | Grease 1KG ALN1001/0 | 1 |
| 821 | 234280 | Grease 1KG THERMOPL. 2TML | 1 |
| 900 | 59299 | Adhesive LOCTITE 222 250CCM | 1 |
