Hilti części zamienne do młota udarowego TE 72 72381

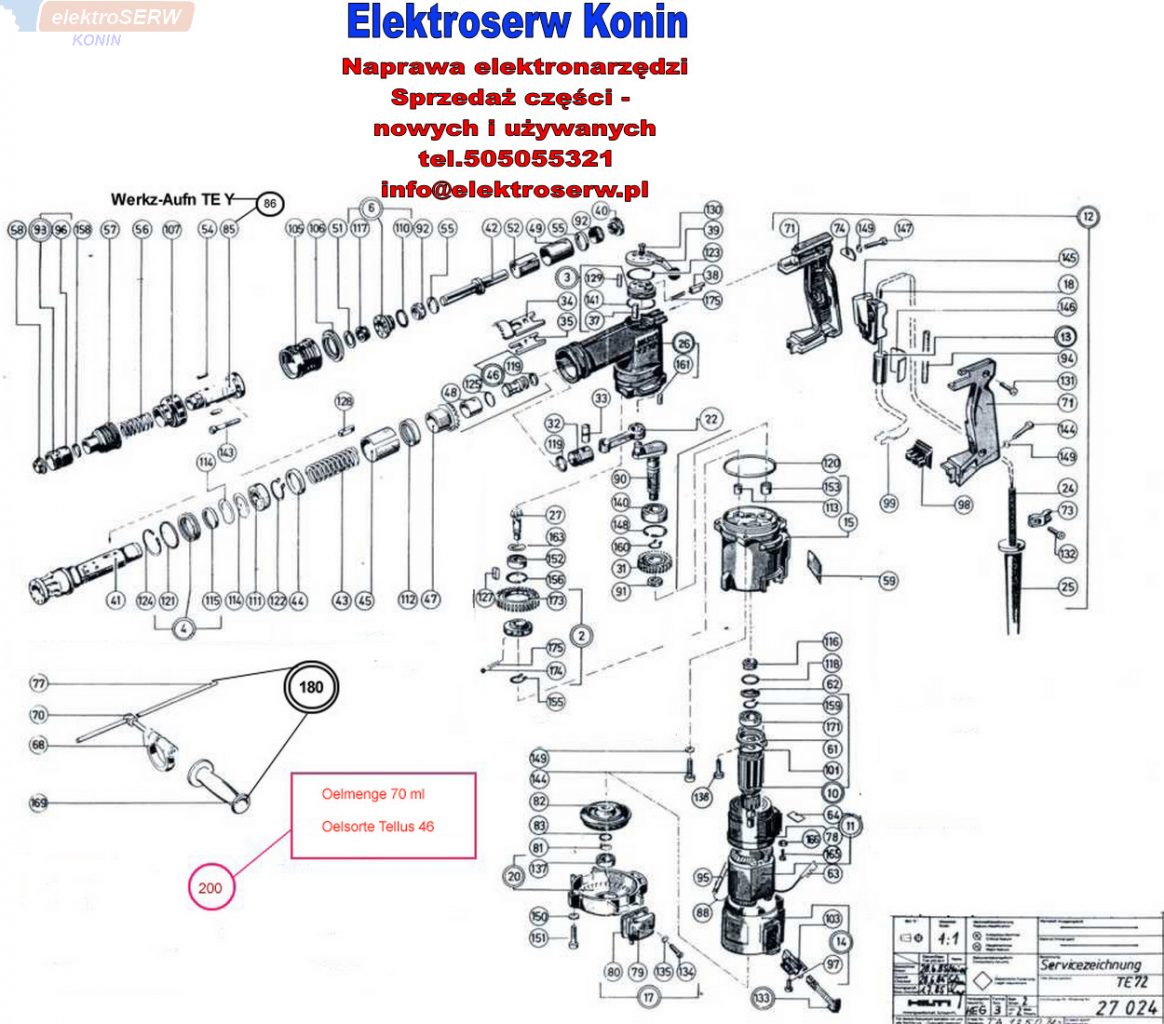

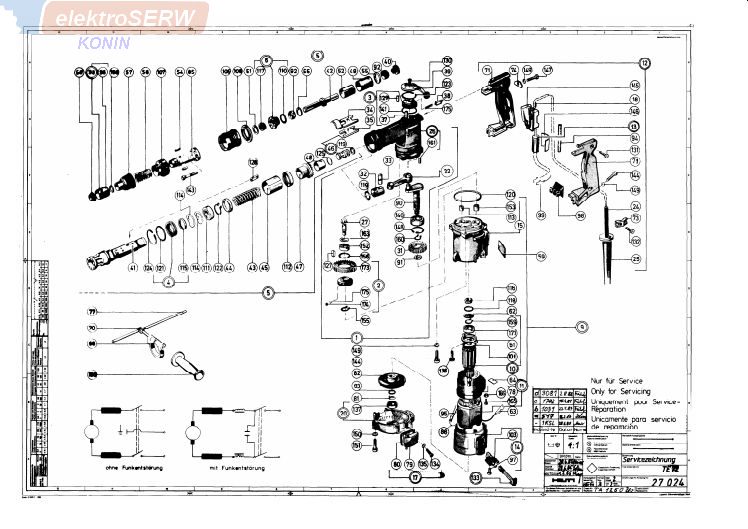

Spis części zamiennych do młota
TE 72 72381
Przy zapytaniu o dostępność i cenę prosimy podać pozycję
na schemacie lub nr katalogowy części.
| Pozycja na schemacie | Nr katalogowy | Nazwa Części | Ilość sztuk |
| 1 | 72351 | gearing | 1 |
| 2 | 72602 | clutch gear assy | 1 |
| 3 | 72603 | setting cam | 1 |
| 4 | 72685 | seal.ring assy | 1 |
| 5 | 72300 | cylinder assy | 1 |
| 6 | 72324 | flange assy | 1 |
| 9 | 72371 | motor 115V assy | 1 |
| 10 | 72344 | rotor 115V assy | 1 |
| 11 | 72367 | stator+ins. 115V | 1 |
| 12 | 72599 | grip 115V assy | 1 |
| 14 | 72558 | brush holder assy | 1 |
| 15 | 72335 | motor housing assy | 1 |
| 17 | 72334 | brush cap | 2 |
| 18 | 71483 | conductor end A1-6 | 4 |
| 20 | 72332 | housing endcap assy | 1 |
| 22 | 72052 | conrod | 1 |
| 24 | 70253 | supply cord USA assy | 1 |
| 25 | 72402 | protective sleeve | 1 |
| 26 | 72323 | gear housing assy | 1 |
| 27 | 72102 | bevel pinion | 1 |
| 31 | 72107 | toothed gear | 1 |
| 32 | 72109 | drive piston | 1 |
| 33 | 72053 | piston pin | 1 |
| 34 | 72111 | cylinder detent | 1 |
| 35 | 72112 | slider | 1 |
| 37 | 72114 | clevis pin | 1 |
| 38 | 72115 | detent | 1 |
| 39 | 72116 | setting lever | 1 |
| 40 | 72303 | bushing | 1 |
| 41 | 72301 | cylinder | 1 |
| 42 | 72306 | ram | 1 |
| 43 | 72121 | compression spring | 1 |
| 44 | 72122 | spacing ring | 1 |
| 45 | 72123 | spacing sleeve | 1 |
| 46 | 72341 | striker piston assy | 1 |
| 47 | 72128 | bevel gear | 1 |
| 48 | 72129 | pressure ring | 1 |
| 49 | 72304 | sleeve | 1 |
| 51 | 72308 | washer | 1 |
| 52 | 72315 | spring lock washer | 1 |
| 54 | 72139 | roller | 2 |
| 55 | 72307 | washer | 2 |
| 56 | 72141 | compression spring | 1 |
| 57 | 72143 | locking sleeve | 1 |
| 58 | 72144 | dust shield | 1 |
| 59 | 72088 | rating plate TE72 | 1 |
| 61 | 72249 | detent ring | 1 |
| 62 | 72150 | sealing washer | 1 |
| 63 | 72152 | tab terminal | 3 |
| 64 | 72153 | insulation | 1 |
| 68 | 74708 | holder | 1 |
| 70 | 74709 | clamping bolt | 1 |
| 71 | 72408 | grip USA/CDN | 1 |
| 73 | 72166 | supp.co.cl. | 1 |
| 74 | 72167 | plate | 1 |
| 77 | 72320 | depth gauge | 1 |
| 78 | 72561 | insulating unit | 1 |
| 79 | 72329 | brush cap | 2 |
| 80 | 72191 | seal | 2 |
| 81 | 72525 | shim ring 8X14X0,2 | 1 |
| 82 | 72562 | cooling fan | 1 |
| 83 | 72555 | o-ring 8X2 | 1 |
| 85 | 74871 | chuck body ERSATZTEIL | 1 |
| 88 | 72545 | flexible conductor assy | 1 |
| 90 | 72205 | crankshaft | 1 |
| 91 | 72206 | hex nut | 1 |
| 92 | 74113 | damping spring | 2 |
| 93 | 72207 | chuck cap nut | 1 |
| 94 | 72547 | protective tube | 1 |
| 95 | 72546 | heat-shrink tubing | 1 |
| 96 | 72198 | dust shield | 1 |
| 97 | 72559 | recess tapping screw ST2,9X9,5 | 8 |
| 98 | 72404 | connector housing | 2 |
| 99 | 72215 | conn.socket | 3 |
| 101 | 72296 | insulating washer | 1 |
| 103 | 72563 | brush guide | 2 |
| 105 | 72316 | sleeve | 1 |
| 106 | 72317 | supporting ring | 1 |
| 107 | 72318 | cap assy | 1 |
| 110 | 72312 | o-ring 26X2,5 | 1 |
| 111 | 72401 | ball bearing 6007 | 1 |
| 112 | 72403 | needle roller bearing 44X58X18 | 1 |
| 113 | 72405 | sinter bearing | 1 |
| 114 | 72407 | spring washer 51X61X0,5 | 2 |
| 115 | 72409 | rotary shaft seal | 1 |
| 116 | 72410 | v-ring seal V12S | 1 |
| 117 | 30278 | rotary shaft seal | 1 |
| 118 | 72414 | o-ring 26,65X2,62 | 1 |
| 119 | 72416 | o-ring 20,22X3,53 | 2 |
| 120 | 72418 | o-ring 101,2X3,53 | 1 |
| 121 | 72419 | o-ring 55,56X3,53 | 1 |
| 122 | 72421 | circlip 35X1,5 | 1 |
| 123 | 72422 | circlip 48X1,75 | 1 |
| 124 | 72423 | circlip J62X2 | 1 |
| 125 | 72425 | retaining ring WR32 | 1 |
| 127 | 72427 | feather key A4X4X16 | 1 |
| 128 | 72428 | feather key A4X4X28 | 1 |
| 129 | 72429 | dowel pin 5M6X12 | 2 |
| 130 | 72430 | recess oval head screw M6X10 | 1 |
| 131 | 72431 | recess tapping screw ST3,9X19 | 2 |
| 132 | 72432 | recess tapping screw ST3,9X16 | 2 |
| 133 | 72565 | carbon brush assy | 2 |
| 134 | 72459 | recess oval head screw M4X12 | 2 |
| 135 | 72461 | toothed lock washer V4,3 | 2 |
| 137 | 72472 | ball bearing 608-2RS | 1 |
| 138 | 72473 | taptite screw CEM4X10 | 2 |
| 140 | 70406 | ball bearing 6004 | 1 |
| 141 | 70408 | o-ring 42,52X2,62 | 1 |
| 143 | 72314 | hex skt hd cap screw M6X60 | 8 |
| 144 | 70445 | hex skt hd cap screw M6X20 | 6 |
| 145 | 72442 | switch | 1 |
| 146 | 72520 | adhesive tape | 1 |
| 147 | 70470 | hex skt hd cap screw M6X25 | 1 |
| 148 | 70480 | circlip 42X1,75 | 1 |
| 149 | 70489 | schnorr washer 6 | 7 |
| 150 | 70490 | schnorr washer 4 | 3 |
| 151 | 71402 | hex skt hd cap screw M4X16 | 3 |
| 152 | 71442 | ball bearing 6002 | 1 |
| 153 | 71447 | needle race 10X16X12 | 1 |
| 155 | 71465 | circlip 15X1 | 1 |
| 156 | 71468 | circlip 32X1,2 | 1 |
| 158 | 59651 | o-ring 26,58X3,53 | 1 |
| 159 | 8120 | circlip 14X1 | 1 |
| 160 | 59665 | circlip 20X1,2 | 1 |
| 161 | 6135 | dowel pin 5M6X24 | 1 |
| 163 | 71168 | washer | 1 |
| 165 | 72436 | recess bind head screw M5X45 | 2 |
| 166 | 11106 | hex nut M5 | 2 |
| 169 | 74599 | side handle | 1 |
| 171 | 72420 | ball bearing 6002-2RS | 1 |
| 173 | 72105 | clutch gear | 1 |
| 174 | 70402 | ball 5 IV | 15 |
| 175 | 72104 | compression spring | 15 |
