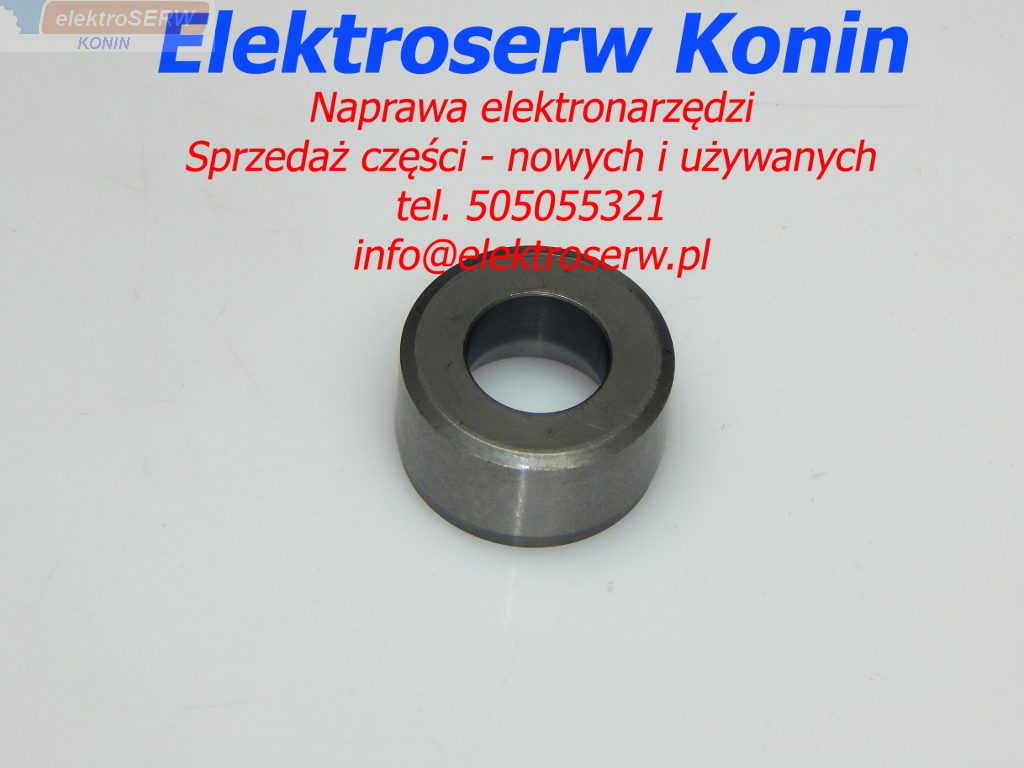

Hilti stop zderzak do TE15C 287334
Hilti - Stop , Zderzak - używany oryginalny.
Nr Katalogowy: 287334
Zastosowanie: TE15C
Posiadmy części do elektronarzędzi Hilti --prosimy pytać.

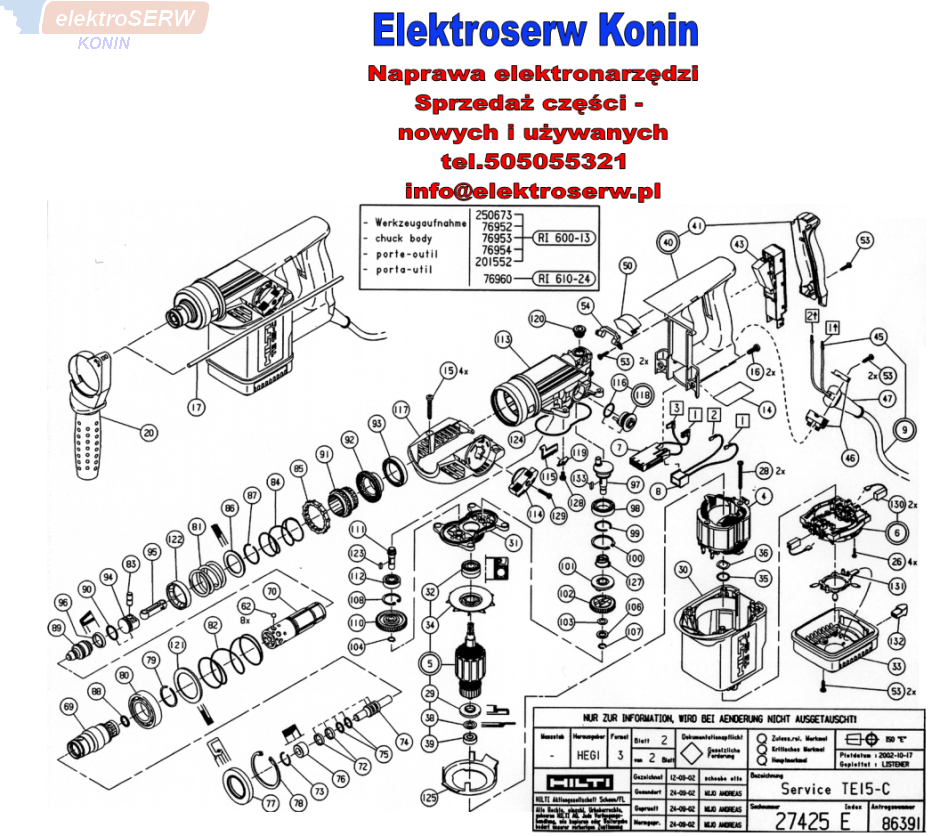

Poniżej spis części zamiennych do młotowiertarki
TE 15-C 287306
Przy zapytaniu o dostępność i cenę prosimy podać pozycję
na schemacie lub nr katalogowy części.
| Pozycja na schemacie | Nr katalogowy | Nazwa części |
| 4 | 70621 | Stator 110/115V assy |
| 5 | 287411 | Rotor 110V/120V assy |
| 6 | 76881 | Brush holder 100/115V assy |
| 7 | 76496 | Connector housing assy |
| 8 | 277139 | Capacitor 0,22 |
| 9 | 73328 | Supply cord USA/CDN |
| 14 | 287400 | Rating plate TE 15-C 120V |
| 15 | 76438 | Plastite screw 45 5X35 T25 SW |
| 16 | 76437 | Plastite screw 45 5X16 |
| 17 | 73131 | Depth gauge |
| 20 | 354585 | Side handle assy |
| 26 | 55180 | Recess tapping screw ST2,9X13 |
| 28 | 73117 | Recess tapping screw ST3,9X45 |
| 29 | 287422 | Labyrinth seal |
| 30 | 287387 | Motor housing TE 15-C |
| 31 | 287414 | Bearing plate |
| 32 | 316113 | Ball bearing 10X26X12,4 |
| 33 | 287378 | Housing endcap assy |
| 34 | 287338 | Cooling fan |
| 35 | 70473 | O-ring 13,95X2,62 |
| 36 | 201810 | Spring washer |
| 38 | 75312 | Washer |
| 39 | 73113 | Ball bearing |
| 40 | 228859 | Grip unit |
| 41 | 228808 | Grip cover |
| 43 | 71798 | Switch 100-120V |
| 45 | 71483 | Conductor end A1-6 |
| 46 | 76560 | Clamp |
| 47 | 76561 | Protective sleeve |
| 50 | 228809 | Air deflector |
| 53 | 207960 | Torx-soc re scr 4X18 |
| 54 | 76586 | Absorber |
| 62 | 17972 | Ball 7 G20 |
| 69 | 287359 | Detent sleeve |
| 70 | 287360 | Guide tube |
| 72 | 223441 | Sealing ring 14,45X16,15X3,3 |
| 73 | 76487 | Circlip 17X2 |
| 74 | 287329 | Ram |
| 75 | 223442 | O-ring 10,77X2,62-S-NBR70 |
| 76 | 287334 | Stop |
| 77 | 287374 | Rotary shaft seal 32X52X7 FORM AS |
| 78 | 213217 | Circlip 52X2 |
| 79 | 74141 | Retaining ring SW28 |
| 80 | 287373 | Ball bearing 28X52X12 |
| 81 | 287362 | Compression spring |
| 82 | 287361 | Compression spring |
| 83 | 76406 | Dowel pin 7X20 |
| 84 | 287363 | Compression spring |
| 85 | 287364 | Coupling ring |
| 86 | 287330 | Washer |
| 87 | 201095 | Retaining ring RW28 |
| 88 | 287372 | O-ring 11X3 70SH HITEC |
| 89 | 232805 | Striker piston |
| 90 | 349862 | O-ring 16,0x3,0 |
| 91 | 287335 | Coupling |
| 92 | 287345 | Bevel gear Z=55 |
| 93 | 76489 | Ball bearing 30x42x7 |
| 94 | 71882 | Drive piston assy |
| 95 | 76407 | Conrod |
| 96 | 71865 | Sealing ring |
| 97 | 287375 | Eccentric assy |
| 98 | 76452 | Ball bearing 61804 |
| 99 | 76581 | Retaining ring SW20 |
| 100 | 76488 | Circlip JV32 |
| 101 | 287333 | Coupling sleeve |
| 102 | 287332 | Toothed gear Z=33 |
| 103 | 76492 | Shim ring 14X8X0,5 |
| 104 | 70421 | Circlip 8X0,8 |
| 106 | 71863 | Supporting ring |
| 107 | 71866 | Retaining ring SW8 |
| 108 | 76582 | Circlip 24X1,2 |
| 110 | 76485 | Toothed gear Z=41 |
| 111 | 287346 | Bevel pinion Z=13 |
| 112 | 73154 | Ball bearing 9X24X7 |
| 113 | 287348 | Gear housing |
| 114 | 287354 | Setting lever assy |
| 115 | 287366 | Setting plate |
| 116 | 287379 | O-ring 17X2 70SH |
| 117 | 287349 | Casing |
| 118 | 287394 | Eccentric assy |
| 119 | 287367 | Sheet metal part |
| 120 | 71886 | Screw plug Service assy |
| 121 | 287365 | Support |
| 122 | 287331 | Cone |
| 123 | 70415 | Feather key 3X3X7.7 |
| 124 | 287328 | Seal |
| 125 | 287385 | Air deflector |
| 127 | 71820 | Compression spring 1,15X17,9X12 |
| 128 | 287384 | Torx-soc tapt scr M4X8 |
| 129 | 201238 | Torx-soc pl scr 45 4X26 |
| 130 | 71874 | Carbon brush set |
| 131 | 76885 | Reversing switch |
| 132 | 76793 | Ball knob |
| 133 | 287417 | Feather key A3X3X10 |
| 149 | 73440 | O-ring 17,12X2,62 |
| 703 | 30215 | Oil Turmopol 20HD 1L |
