Hilti wirnik do młotowiertarki TE 14 TE 15

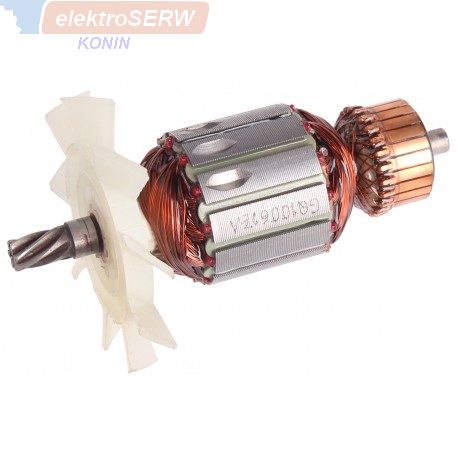

Wirnik do Hilti TE 14- zamiennik
Spis części zamiennych do młotowiertarki
TE 14 76354

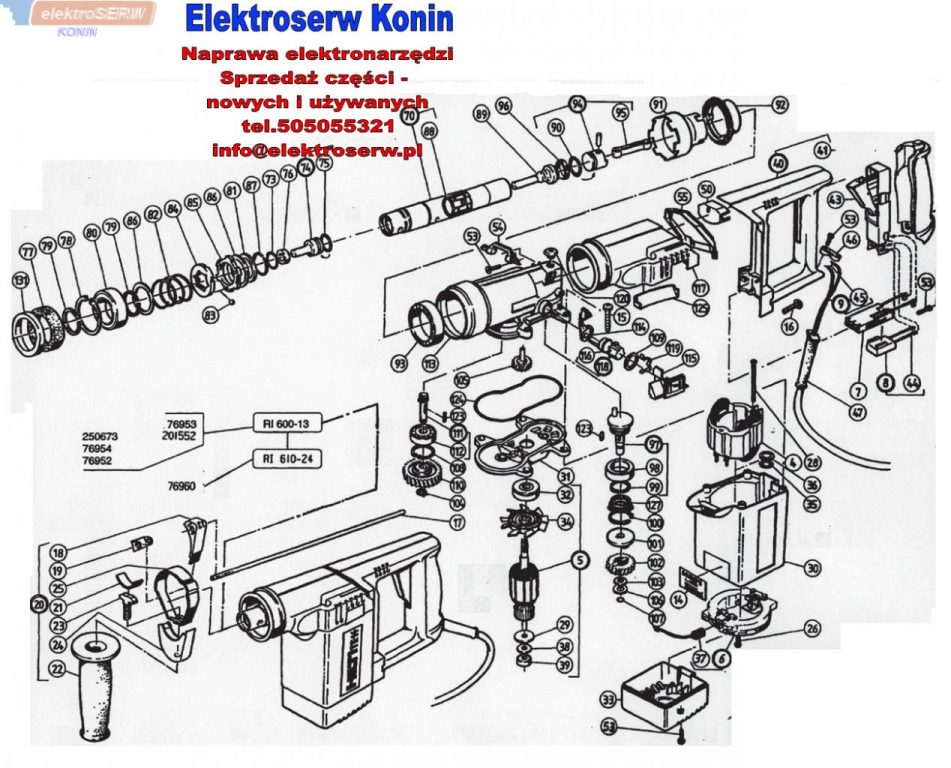

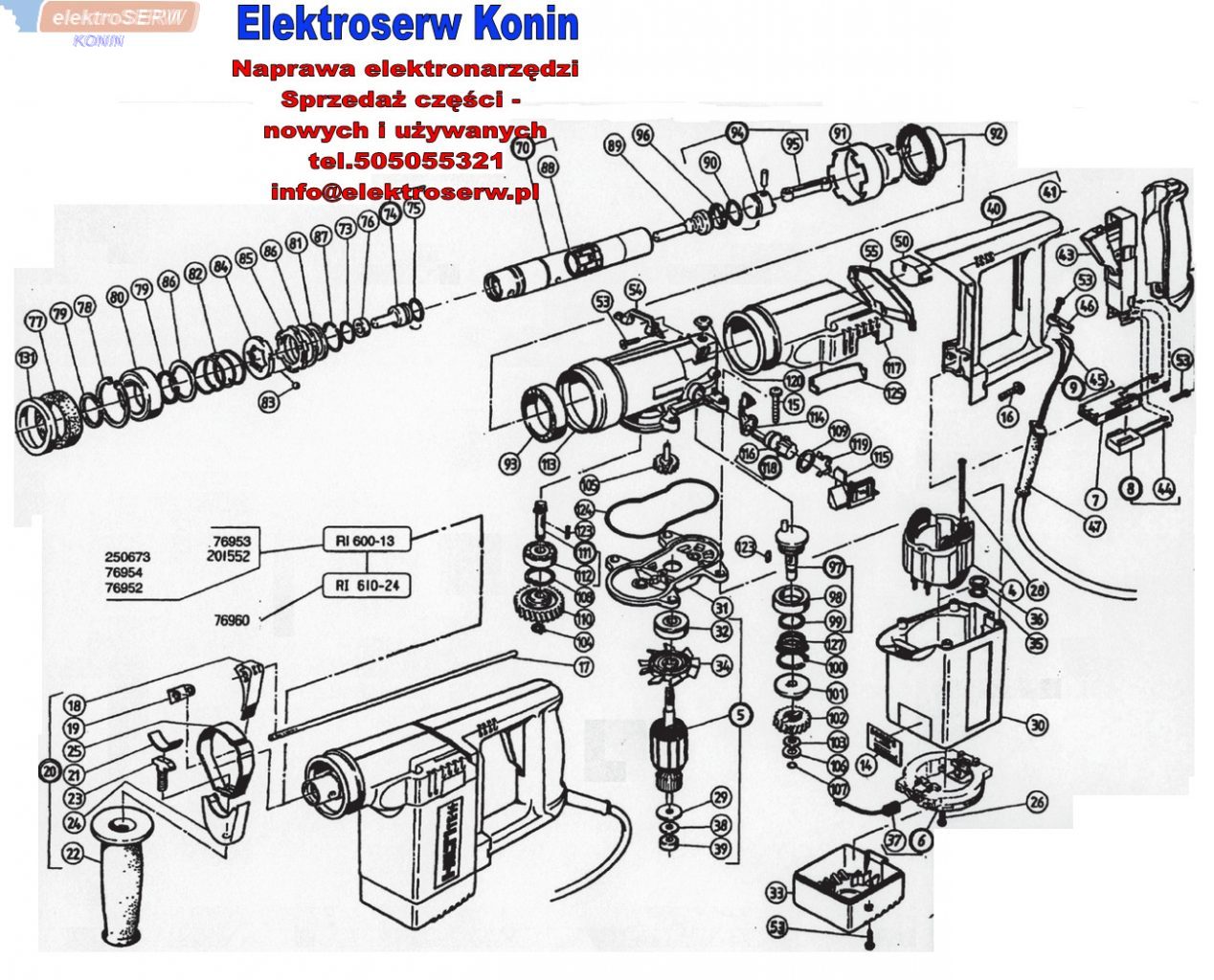

Przy zapytaniu o dostępność i cenę prosimy podać pozycję
na schemacie lub nr katalogowy części.
Pozycja na schemacie | Nr katalogowy | Nazwa Części | Ilość sztuk |
4 | 70621 | stator 110/115V assy | 1 |
5 | 71889 | rotor 110/115V assy | 1 |
6 | 76239 | brush holder 100/120V assy | 1 |
7 | 76496 | connector housing assy | 1 |
9 | 73328 | supply cord USA/CDN | 1 |
14 | 71900 | rating plate TE14 115V | 1 |
15 | 76438 | plastite screw 45 5X35 T25 SW | 4 |
16 | 76437 | plastite screw 45 5X16 | 2 |
17 | 73131 | depth gauge | 1 |
18 | 71755 | stop holder | 1 |
19 | 71754 | clamp | 1 |
20 | 76500 | side handle assy | 1 |
21 | 76597 | cover | 1 |
22 | 75225 | side handle | 1 |
23 | 75223 | t-head bolt BM8X30 | 1 |
24 | 76599 | clamping piece | 1 |
25 | 76598 | clamping band | 1 |
26 | 55180 | recess tapping screw ST2,9X13 | 4 |
28 | 73117 | recess tapping screw ST3,9X45 | 2 |
29 | 287422 | labyrinth seal | 1 |
30 | 76541 | motor housing | 1 |
31 | 71877 | bearing plate assy | 1 |
32 | 30275 | ball bearing 10X26X12,4 | 1 |
33 | 76531 | housing endcap | 1 |
34 | 76533 | fan | 1 |
35 | 70473 | o-ring 13,95X2,62 | 1 |
36 | 73121 | shim ring 13X19X0,5 | 1 |
37 | 71781 | carbon brush 100/115V assy | 2 |
38 | 75312 | washer | 1 |
39 | 73113 | ball bearing | 1 |
40 | 50552 | grip unit | 1 |
41 | 203080 | grip cover | 1 |
43 | 71798 | switch 100/115V | 1 |
44 | 71494 | conn.socket B2,8-1 | 2 |
45 | 71483 | conductor end A1-6 | 2 |
46 | 76560 | supp.co.cl. | 1 |
47 | 76561 | protective sleeve | 1 |
50 | 71905 | air deflector | 1 |
53 | 207960 | torx-soc.re.scr 4X18 | 7 |
54 | 76586 | absorber | 1 |
55 | 76587 | cover | 1 |
70 | 228918 | guide tube assy | 1 |
73 | 76487 | circlip 17X2 | 1 |
74 | 70681 | ram KPL | 1 |
75 | 201207 | o-ring 10,78X2,62 | 1 |
76 | 76478 | stop | 1 |
77 | 76491 | rotary shaft seal AS30X47X7 | 1 |
78 | 76460 | circlip J47 | 1 |
79 | 76486 | retaining ring SW30 | 2 |
80 | 76459 | ball bearing 61906 | 1 |
81 | 71864 | pressure ring | 1 |
82 | 228927 | compression spring | 1 |
83 | 71976 | ball 5-HM | 3 |
84 | 76479 | sear | 1 |
85 | 228891 | snap-lock ring | 1 |
86 | 76420 | washer 37X30.2X2.5 | 2 |
87 | 71788 | retaining ring RW30 | 1 |
88 | 76579 | o-ring 11X4 | 1 |
89 | 76408 | striker piston | 1 |
90 | 73440 | o-ring 17,12X2,62 | 1 |
91 | 76484 | coupling | 1 |
92 | 71995 | bevel gear | 1 |
93 | 76489 | ball bearing 61806 | 1 |
94 | 71882 | drive piston assy | 1 |
95 | 76407 | conrod | 1 |
96 | 71865 | seal.ring | 1 |
97 | 71879 | cam assy | 1 |
98 | 76452 | ball bearing 61804 | 1 |
99 | 76581 | retaining ring SW20 | 1 |
100 | 76488 | circlip JV32 | 1 |
101 | 71824 | coupling sleeve | 1 |
102 | 76402 | toothed gear Z=33 | 1 |
103 | 76492 | shim ring 14X8X0,5 | 1 |
104 | 70421 | circlip 8X0,8 | 1 |
105 | 76482 | toothed gear Z=17 | 1 |
106 | 71863 | supporting ring | 1 |
107 | 71866 | retaining ring SW8 | 1 |
108 | 76582 | circlip 24X1,2 | 1 |
109 | 71831 | shim ring 14X20X0,5 | 1 |
110 | 76485 | toothed gear Z=41 | 1 |
111 | 71997 | bevel pinion assy | 1 |
112 | 73154 | ball bearing 609 | 1 |
113 | 76428 | gear housing assy | 1 |
114 | 76573 | setting lever assy | 1 |
115 | 76570 | switch cover | 1 |
116 | 71830 | o-ring 10X1,3 | 1 |
117 | 76567 | casing | 1 |
118 | 71828 | eccentric pin assy | 1 |
119 | 76572 | spring | 1 |
120 | 71886 | screw plug assy | 1 |
123 | 70415 | feather key 3X3X7.7 | 2 |
124 | 71821 | seal | 1 |
125 | 71825 | air deflector | 1 |
127 | 71820 | compression spring 1,15X17,9X12 | 1 |
130 | 71874 | carbon brush assy.set | 1 |
131 | 70677 | bushing | 1 |
703 | 30215 | oil TURMOPO.20HD 1L | 1 |
811 | 203086 | grease dispenser 50 ML | 1 |
