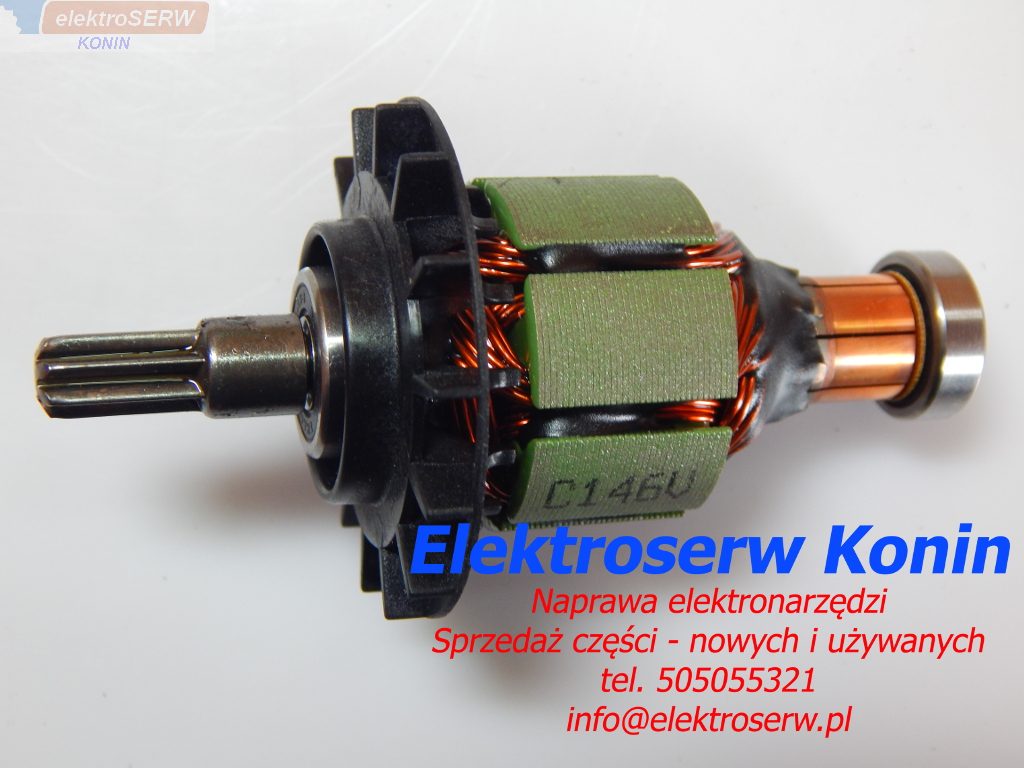

Hitachi wirnik 333550 WR18DL
Hitachi - wirnik.
Nr katalogowy :333550
Zastosowanie : WR18DL
Pozycja na schemacie - 23
| ITEM NO. |
CODE NO. | DESCRIPTION | NO. ISFD |
| 1 | 324-238 | FRONT CAP(C) | 1 |
| 2 | 324-239 | PROTECTOR (D> | 1 |
| 3 | 307-851 | TAPPING SCREW (W/SP. WASHER) O4X30 (BLACK) | |
| 4 | 324-250 | HAMMER CASE | 1 |
| 5 | 324-257 | PIN RETAINER (B) | 1 |
| 6 | 324-256 | PLUNGER (B) | 1 |
| 7 | 324-255 | ANVIL (A) ASS'Y | 1 |
| 8 | 959-154 | STEEL BALL D5.556 (10 PCS.) | |
| 9 | 324-218 | HAMMER | 1 |
| 10 | 959-148 | STEEL BALL D3.175 (10 PCS.) | 28 |
| 11 | 315-978 | WASHER (J) | 1 |
| 12 | 324-224 | HAMMER SPRING (F) | 1 |
| 13 | 316-172 | WASHER (S) | 1 |
| 14 | 324-222 | STOPPER (B) | 1 |
| 15 | 324-232 | SPINDLE | 1 |
| 16 | 321-667 | IDLE GEAR SET (2 PCS.) | |
| 17 | 324-234 | NEEDLE ROLLER (A) | |
| 18 | 320-877 | RING GEAR (C) | 1 |
| 19 | 310-911 | WASHER (E) | 1 |
| 20 | 690-1VV | BALL BEARING 6901WCMPS2L | 1 |
| 21 | 324-230 | DAMPER (A) | |
| 22 | 324-229 | INNER COVER (B) | 1 |
| 23 | 360-713 | ARMATURE AND PINION SET | 1 |
| 24 | 324-607 | SIDE YOKE (A) | 1 |
| 25 | 324-235 | MAGNET (F) ASS'Y | 1 |
| 26 | 324-228 | DUST GUARD FIN (B) | 1 |
| 27 | 324-226 | BRUSH BLOCK | 1 |
| 28 | 999-054 | CARBON BRUSH 5X6X11.5(1 PAIR) | 2 |
| 29 | 319-918 | BRUSH CAP | 2 |
| 30 | 302-086 | TAPPING SCREW (W/FLANGE) 04X20 (BLACK) | 8 |
| 31 | NAME PLATE | 1 | |
| 32 | 324-240 | HOUSING (A).(B) SET | 1 |
| 33 | 326-166 | HITACHI LABEL | 1 |
| 34 | 994-532 | MACHINE SCREW (W/SP WASHER) M3X5 | |
| 35 | 321-533 | DC-SPEED CONTROL SWITCH | 1 |
| 36 | 324-225 | PUSHING BUTTON (B) | 1 |
| 37 | 321-918 | HOOK ASS'Y (W/LIGHT) | 1 |
| 38 | 321-672 | TAPPING SCREW D2X6 | |
| 39 | 320-288 | V-LOCK NUT M5 | , |
| 40 | 306-952 | STRAP (BLACK) | |
| 41 I | LABEL (WEEE) | ||
| 42 | | 319-926 | HOOK SPRING | |
| 43 I | 320-881 | SPECIAL SCREW (A) M5 | , |
| 44 I | 9.02.326 | BATTERY EBM 1830 (EUROPE. AUS. NZL) | 2 |
| 44 | 326-241 | BATTERY EBM 1830 (USA. CAN) | 2 |
