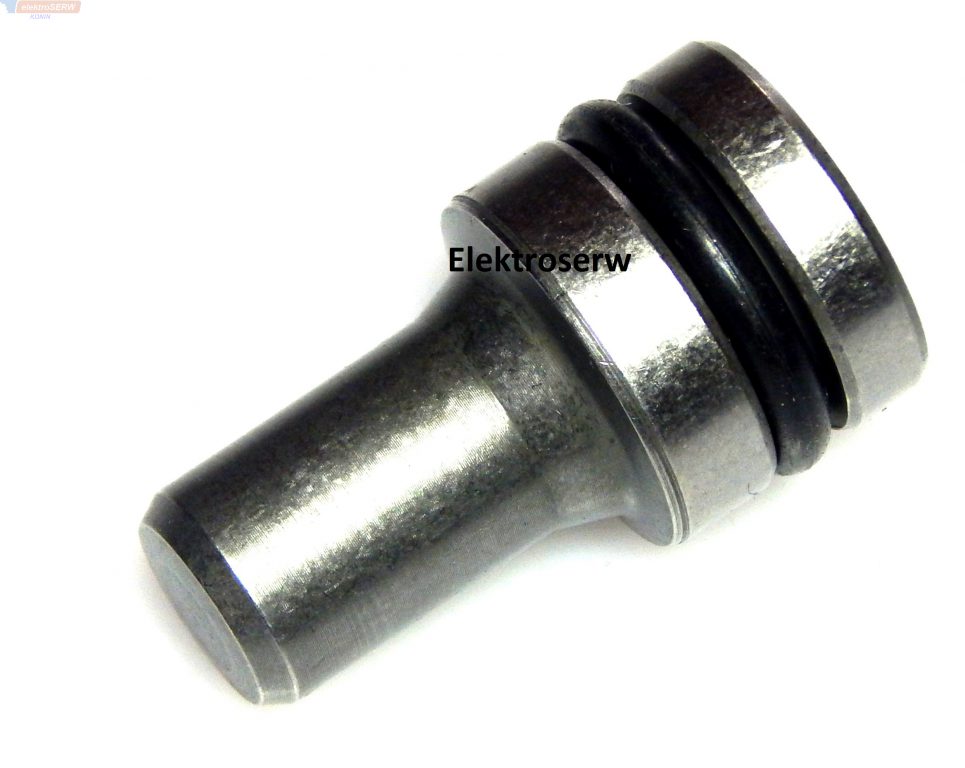

Bijak do wiertarki Hilti TE 15 TE14

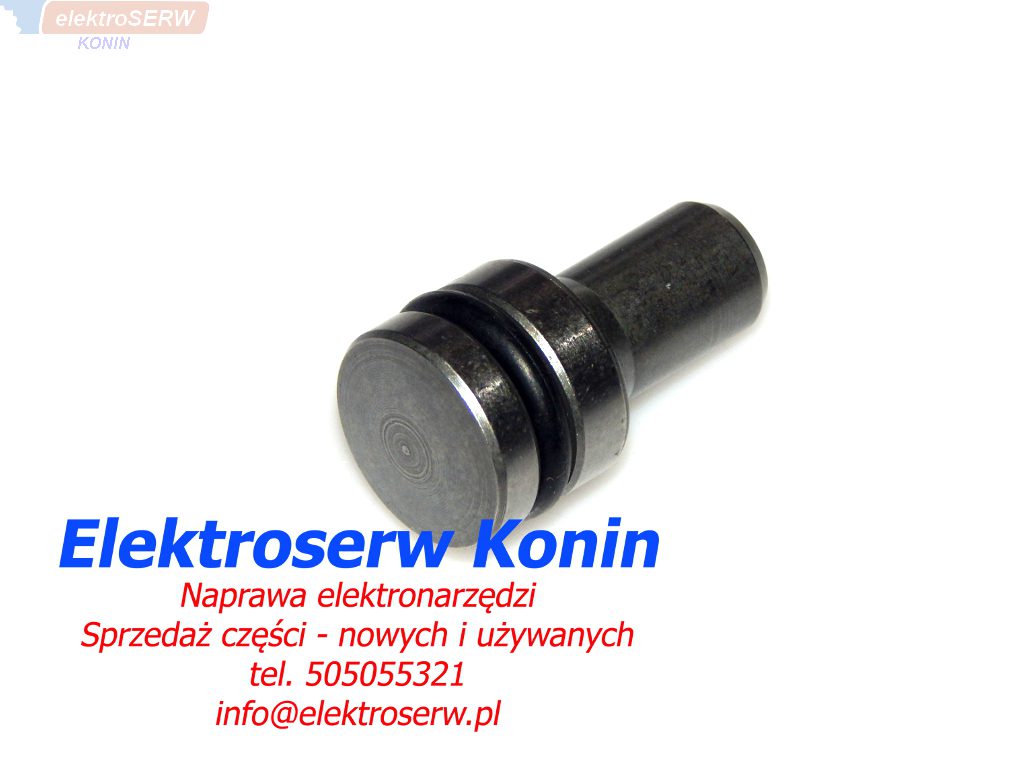

Bijak do Hilti TE 15 - nowy oryginalny
Nr. katalogowy : 70681
Spis części zamiennych do młotowiertarki 228818 TE15, TE 14
Przy zapytaniu o dostępność i cenę prosimy podać pozycję
na schemacie lub nr katalogowy części.
| Pozycja na schemacie | Nr katalogowy | Nazwa części |
| 4 | 70621 | stator 110/115V assy |
| 5 | 71889 | rotor 110/115V assy |
| 6 | 76239 | brush holder 100/120V assy |
| 7 | 76496 | connector housing assy |
| 9 | 73328 | supply cord USA/CDN |
| 14 | 228834 | rating plate TE15 115V USA |
| 15 | 76438 | plastite screw 45 5X35 T25 SW |
| 16 | 76437 | plastite screw 45 5X16 |
| 17 | 73131 | depth gauge |
| 20 | 354585 | side handle assy |
| 26 | 55180 | recess tapping screw ST2,9X13 |
| 28 | 73117 | recess tapping screw ST3,9X45 |
| 29 | 287422 | labyrinth seal |
| 30 | 228800 | motor housing TE15 |
| 31 | 71877 | bearing plate assy |
| 32 | 30275 | ball bearing 10X26X12,4 |
| 33 | 228802 | housing endcap TE15 |
| 34 | 76533 | cooling fan |
| 35 | 70473 | o-ring 13,95X2,62 |
| 36 | 73121 | shim ring 13X19X0,5 |
| 37 | 71781 | carbon brush 100/115V assy |
| 38 | 75312 | washer |
| 39 | 73113 | ball bearing |
| 40 | 228859 | grip unit |
| 41 | 228808 | grip cover |
| 43 | 71798 | switch 100/115V |
| 44 | 71494 | conn.socket B2,8-1 |
| 45 | 71483 | conductor end A1-6 |
| 46 | 76560 | supp.co.cl. |
| 47 | 76561 | protective sleeve |
| 50 | 228809 | air deflector |
| 53 | 207960 | torx-soc.re.scr 4X18 |
| 54 | 76586 | absorber |
| 70 | 228918 | guide tube assy |
| 73 | 76487 | circlip 17X2 |
| 74 | 70681 | ram KPL |
| 75 | 201207 | o-ring 10,78X2,62 |
| 76 | 76478 | stop |
| 77 | 76491 | rotary shaft seal AS30X47X7 |
| 78 | 76460 | circlip J47 |
| 79 | 76486 | retaining ring SW30 |
| 80 | 76459 | ball bearing 61906 |
| 81 | 71864 | pressure ring |
| 82 | 228927 | compression spring |
| 83 | 71976 | ball 5-HM |
| 84 | 76479 | sear |
| 85 | 228891 | snap-lock ring |
| 86 | 76420 | washer 37X30.2X2.5 |
| 87 | 71788 | retaining ring RW30 |
| 88 | 76579 | o-ring 11X4 |
| 89 | 76408 | striker piston |
| 90 | 73440 | o-ring 17,12X2,62 |
| 91 | 76484 | coupling |
| 92 | 71995 | bevel gear |
| 93 | 76489 | ball bearing 61806 |
| 94 | 71882 | drive piston assy |
| 95 | 76407 | conrod |
| 96 | 71865 | seal.ring |
| 97 | 71879 | cam assy |
| 98 | 76452 | ball bearing 61804 |
| 99 | 76581 | retaining ring SW20 |
| 100 | 76488 | circlip JV32 |
| 101 | 71824 | coupling sleeve |
| 102 | 76402 | toothed gear Z=33 |
| 103 | 76492 | shim ring 14X8X0,5 |
| 104 | 70421 | circlip 8X0,8 |
| 105 | 76482 | toothed gear Z=17 |
| 106 | 71863 | supporting ring |
| 107 | 71866 | retaining ring SW8 |
| 108 | 76582 | circlip 24X1,2 |
| 109 | 71831 | shim ring 14X20X0,5 |
| 110 | 76485 | toothed gear Z=41 |
| 111 | 71997 | bevel pinion assy |
| 112 | 73154 | ball bearing 609 |
| 113 | 76428 | gear housing assy |
| 114 | 228812 | setting lever assy |
| 115 | 228932 | switch cover |
| 116 | 71830 | o-ring 10X1,3 |
| 117 | 228803 | casing |
| 118 | 71828 | eccentric pin assy |
| 119 | 76572 | spring |
| 120 | 71886 | screw plug assy |
| 123 | 70415 | feather key 3X3X7.7 |
| 124 | 71821 | seal |
| 125 | 71825 | air deflector |
| 127 | 71820 | compression spring 1,15X17,9X12 |
| 130 | 71874 | carbon brush assy.set |
| 131 | 70677 | bushing |
| 703 | 30215 | oil TURMOPO.20HD 1L |
| 811 | 203086 | grease dispenser 50 ML |
