Hilti korbowód do TE 55 76021
Hilti - korbowód - nowy originalny
Zastosowanie : TE 24, TE 25, TE 35, TE 54, TE 55, TE 504, TE 505.
Numer katalogowy: 76021
Przy zapytaniu o dostępność i cenę prosimy podać pozycję

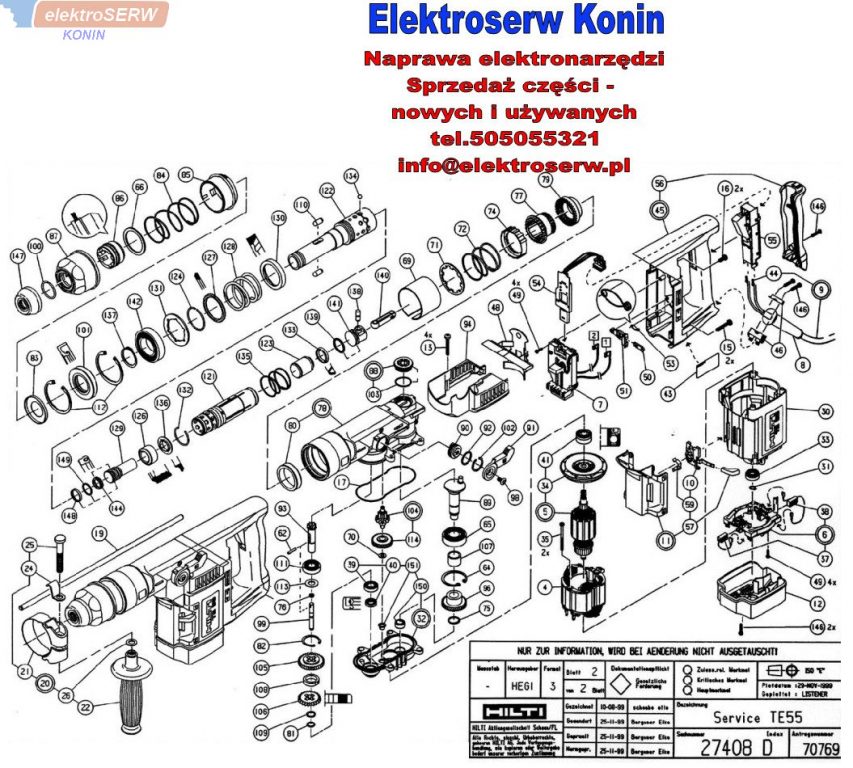

na schemacie lub nr katalogowy części.
| Pozycja na schemacie | Nr katalogowy | Nazwa Części |
| 4 | Stojan / stator | |
| 5 | wirnik / rotor | |
| 6 | szczotkotrzymacz | |
| 7 | elektronika | |
| 8 | 76561 | protective sleeve |
| 9 | 73328 | supply cord USA/CDN |
| 10 | 30067 | shifting yoke assy |
| 11 | 202225 | speed switch |
| 12 | 277079 | housing endcap |
| 13 | 76438 | plastite screw 45 5X35 T25 SW |
| 15 | 202268 | torx-soc.pl.scr.45 5X30 |
| 16 | 206264 | torx-rec.ov.screw M5X16 |
| 17 | 76240 | seal |
| 19 | 72320 | depth gauge |
| 20 | 203133 | side handle assy |
| 21 | 202162 | side handle clamp |
| 22 | 202161 | side handle |
| 24 | 202164 | hanger clamping |
| 25 | 202165 | screw M10X65 |
| 26 | 72426 | washer 10,5 |
| 30 | 202651 | motor housing TE55 |
| 31 | 70421 | circlip 8X0,8 |
| 32 | 202775 | bearing plate SERV. assy |
| 33 | 250740 | ball bearing |
| 34 | 203257 | cooling fan assy |
| 35 | 201766 | torx-soc.re.scr 4X52 |
| 37 | 71781 | szczotki |
| 38 | 202240 | szczotki |
| 39 | 76227 | ball bearing 12X24X6 |
| 40 | 76762 | rotary shaft seal 12X19X5 |
| 41 | 30275 | ball bearing 10X26X12,4 |
| 43 | 202624 | rating plate TE55 120V USA/CDN |
| 44 | 72417 | conductor end |
| 45 | 202655 | grip unit |
| 46 | 76560 | supp.co.cl. |
| 48 | 202256 | cover |
| 49 | 202264 | torx-soc.pl.scr.45 3X12 |
| 50 | 202265 | lockbutton |
| 51 | 202182 | setting lever assy |
| 53 | 76875 | spring |
| 54 | 202272 | flexible conductor assy |
| 55 | 76095 | włącznik / wyłącznik switch |
| 56 | 202657 | grip cover |
| 57 | 76286 | cap |
| 59 | 76572 | spring |
| 62 | 76756 | pin |
| 64 | 202156 | circlip 40X1,75 |
| 65 | 13777 | ball bearing 6203-2RS/VT245 |
| 66 | 202106 | washer |
| 69 | 202109 | spacing sleeve |
| 70 | 75294 | shim ring 12X6X0,9 |
| 71 | 202325 | washer |
| 72 | 202112 | compression spring |
| 74 | 202114 | coupling ring |
| 75 | 51200 | circlip |
| 76 | 76294 | seal.ring 4,47X1,78 |
| 77 | 202185 | coupling |
| 78 | 202781 | gear housing assy |
| 79 | 202184 | bevel gear |
| 80 | 202120 | bearing sleeve |
| 81 | 76791 | retaining ring SW12 |
| 82 | 76824 | circlip JV30 |
| 83 | 202123 | spring guide |
| 84 | 202124 | compression spring 2,3X44X66 |
| 85 | 202777 | sleeve |
| 86 | 206165 | locking sleeve |
| 87 | 202127 | dust shield assy |
| 88 | 234236 | screw plug assy |
| 89 | 202768 | cam |
| 90 | 202130 | cam |
| 91 | 202131 | setting lever assy |
| 92 | 70442 | o-ring 18,72X2,62 |
| 93 | 202183 | bevel pinion |
| 94 | 202134 | casing |
| 96 | 203159 | toothed gear Z=39 |
| 98 | 202187 | screw M6X8 TORX-T30 |
| 99 | 76189 | mandrel |
| 100 | 74668 | retaining ring |
| 101 | 202141 | rotary shaft seal 32X58X10 |
| 102 | 202142 | circlip JV24 |
| 103 | 74157 | o-ring 24X2 |
| 104 | 202763 | compound gear |
| 105 | 76252 | toothed gear Z=33 |
| 106 | 76253 | toothed gear Z=23 |
| 107 | 202177 | spacing sleeve |
| 108 | 76255 | ring |
| 109 | 76773 | shim ring |
| 110 | 72139 | roller |
| 111 | 202776 | ball bearing 16101-2RSR |
| 112 | 202152 | circlip 58X2 |
| 113 | 76300 | washer 12,05X22X1,5 |
| 114 | 202135 | toothed gear Z=32 |
| 121 | 202676 | guide tube |
| 122 | 202764 | chuck body |
| 123 | 202103 | striker piston |
| 124 | 202104 | retaining ring RW40 |
| 126 | 202306 | absorber |
| 127 | 202107 | pressure ring |
| 128 | 202323 | compression spring 5,3X45,8X46 |
| 129 | 203268 | ram |
| 130 | 202766 | pressure ring |
| 131 | 202178 | washer 40,3X57,6X2,5 |
| 132 | 202180 | retaining ring RB32 |
| 133 | 202067 | seal.ring |
| 134 | 223433 | ball 8 IV |
| 135 | 202115 | compression spring |
| 136 | 202307 | washer |
| 137 | 202153 | circlip 32X1,5 |
| 138 | 202193 | dowel pin 7X23 |
| 139 | 72416 | o-ring 20,22X3,53 |
| 140 | 76021 | conrod |
| 141 | 202121 | drive piston |
| 142 | 202122 | ball bearing 32X58X13 |
| 144 | 203153 | seal.ring |
| 146 | 207960 | torx-soc.re.scr 4X18 |
| 147 | 206308 | cap |
| 148 | 202171 | seal.ring |
| 149 | 202172 | o-ring 17,12X2,62 |
| 150 | 203281 | bearing sleeve 16X12X9,2 |
| 151 | 76470 | bearing sleeve 8X6X7 |
| 703 | 30215 | oil TURMOPO.20HD 1L |
| 800 | 26195 | greas 1KG ALN1001/00 |
| 811 | 203086 | grease dispenser 50 ML |
| 900 | 59299 | loctite 222 250CCM |
