Milwaukee korpus do K900K
Kod producenta: 4931375570
Kod produktu: 2921
Milwaukee obudowa przekładni - oryginalna używana
Zastosowanie: do młota 900K, 950K
Nr katalogowy : 4931375570

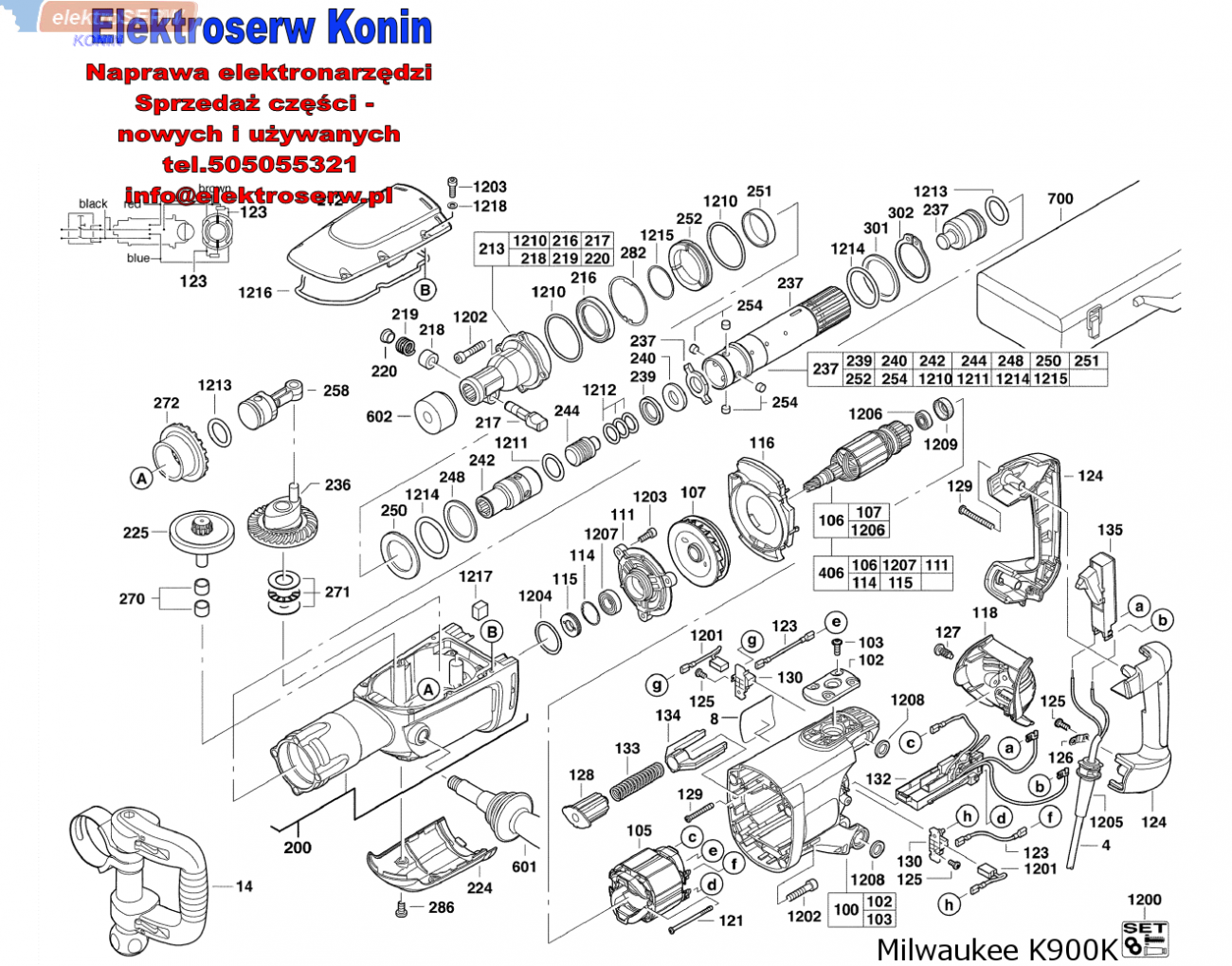

Spis pozostałych części zamiennych do młota udarowego K900K
nr katalogowy 4933375650 4000375651
Przy zapytaniu o dostępność i cenę prosimy podać pozycję
na schemacie lub nr katalogowy części.
| Pozycja na schemacie | Nr katalogowy | Opis | Ilość w narzędziu |
| 4 | 4931624585 | CONNECTION CABLE | 1 |
| 8 | 4931375656 | RATING PLATE | 1 |
| 14 | J 4931398534 | HANDLE | 1 |
| 100 | 4931375548 | MOTOR HOUSING | 1 |
| 102 | 4931375531 | SECURED WASHER | 1 |
| 103 | 4931624213 | SCREW | 4 |
| 105 | J 4931375557 | ELECTRIC FIELD | 1 |
| 106 | 4931375835 | ARMATURE | 1 |
| 107 | 4931375474 | FAN | 1 |
| 111 | 4931375488 | BEARING END PLATE | 1 |
| 114 | J 4931890311 | LOCKING RING | 1 |
| 115 | 4931375489 | SEAL RING | 1 |
| 116 | 4931375515 | AIR DEFLECTOR RING | 1 |
| 118 | 4931375535 | SERVICING LID | 1 |
| 121 | 4931339996 | SCREW | 2 |
| 123 | 4931624263 | WIRE | 2 |
| 124 | 4931375560 | PAIR HANDLE SHELLS | 1 |
| 125 | 4931624538 | SCREW | 4 |
| 126 | 4931256500 | CABLE COLLAR | 1 |
| 127 | 4931624537 | SCREW | 2 |
| 128 | 4931375477 | THRUST PIECE | 1 |
| 129 | J 4931622765 | SCREW N874101 -1 SHR C-K5X45/20 KOMBITORX | 5 |
| 130 | 4931381694 | BRUSH HOLDER | 2 |
| 132 | 4931409105 | ELECTRONIC | 1 |
| 133 | 4931375529 | PRESSURE SPRING | 1 |
| 134 | 4931375530 | TRANSITION PIECE | 1 |
| 135 | 4931375454 | SWITCH | 1 |
| 200 | 4931375570 | GEAR BOX | 1 |
| 212 | 4931409527 | GEAR BOX COVER | 1 |
| 213 | 4931375510 | TOOL ACCEPTANCE | 1 |
| 216 | 4931624205 | SEAL RING | 1 |
| 217 | 4931384430 | LATCH BAR | 1 |
| 218 | 4931379061 | SLEEVE | 1 |
| 219 | 9170032330 | SPRING | 1 |
| 220 | J 4931379039 | LATCH | 1 |
| 224 | J 4931375574 | GEAR COVER | 1 |
| 236 | 4931375379 | OBTAIN BULLETIN 0104 | 1 |
| 237 | 4931375802 | SPINDLE | 1 |
| 239 | 4931375411 | THRUST COLLAR | 1 |
| 240 | 4931375412 | BACK-PRESSURE RING | 1 |
| 242 | 4931375433 | SLEEVE | 1 |
| 244 | 4931375448 | SNAP DIE | 1 |
| 248 | 4931375416 | ATTACHMENT RING | 1 |
| 250 | 4931375418 | WASHER | 1 |
| 251 | 4931375419 | BALL RACE | 1 |
| 252 | 4931375420 | THRUST COLLAR | 1 |
| 254 | 4931375787 | DRIVER | 4 |
| 258 | 4931375380 | PISTON COMPL. | 1 |
| 271 | 4931375400 | THRUST BEARING | 1 |
| 282 | 4931624235 | RETAINING RING | 1 |
| 286 | 4931624236 | SCREW | 2 |
| 301 | 4931375509 | ATTACHMENT RING | 1 |
| 302 | 4931624203 | RETAINING RING | 1 |
| 406 | 4931375526 | ARMATURE | 1 |
| 601 | 4931375516 | HANDLE | 1 |
| 602 | 9170086960 | DUST GUARD CAP | 1 |
| 700 | 4931375502 | CARRYING CASE | 1 |
| 1200 | 4931375659 | MAINTENANCE SET | 1 |
| 1201 | 4931375556 | CARBON BRUSH SET | 1 |
| 1202 | 4931624234 | SCREW | 8 |
| 1203 | 4931624276 | SCREW D 912 M5X16 8.8SSI | 9 |
| 1204 | 4931624237 | SEAL RING | 1 |
| 1205 | 4931392174 | PROTECTING COVER | 1 |
| 1206 | 4931341741 | BALL BEARING | 1 |
| 1207 | 4931398189 | GROOVED BALL BEAR. | 1 |
| 1208 | 4931624170 | SEAL RING | 4 |
| 1209 | 4931317212 | RUBBER SLEEVE | 1 |
| 1210 | 4931624156 | SEAL RING N874701 28X5 | 2 |
| 1211 | 4931624161 | SEAL RING N874701 28X5 | 1 |
| 1212 | 4931624155 | SEAL RING N874701 28X5 | 3 |
| 1213 | 4931624158 | SEAL RING N874701 28X5 | 2 |
| 1214 | 4931624157 | SEAL RING N874701 28X5 | 2 |
| 1215 | 4931624153 | SPRING RING N874268 SW 20 | 1 |
| 1216 | 4931375506 | GASKET | 1 |
| 1217 | 4931375508 | FELT | 1 |
| 1218 | 4931603515 | SEALING WASHER | 6 |
