Hilti włącznik do wiertarki TE25
Hilti - włącznik ( używany oryginalny )
Zastosowanie: TE24, TE25

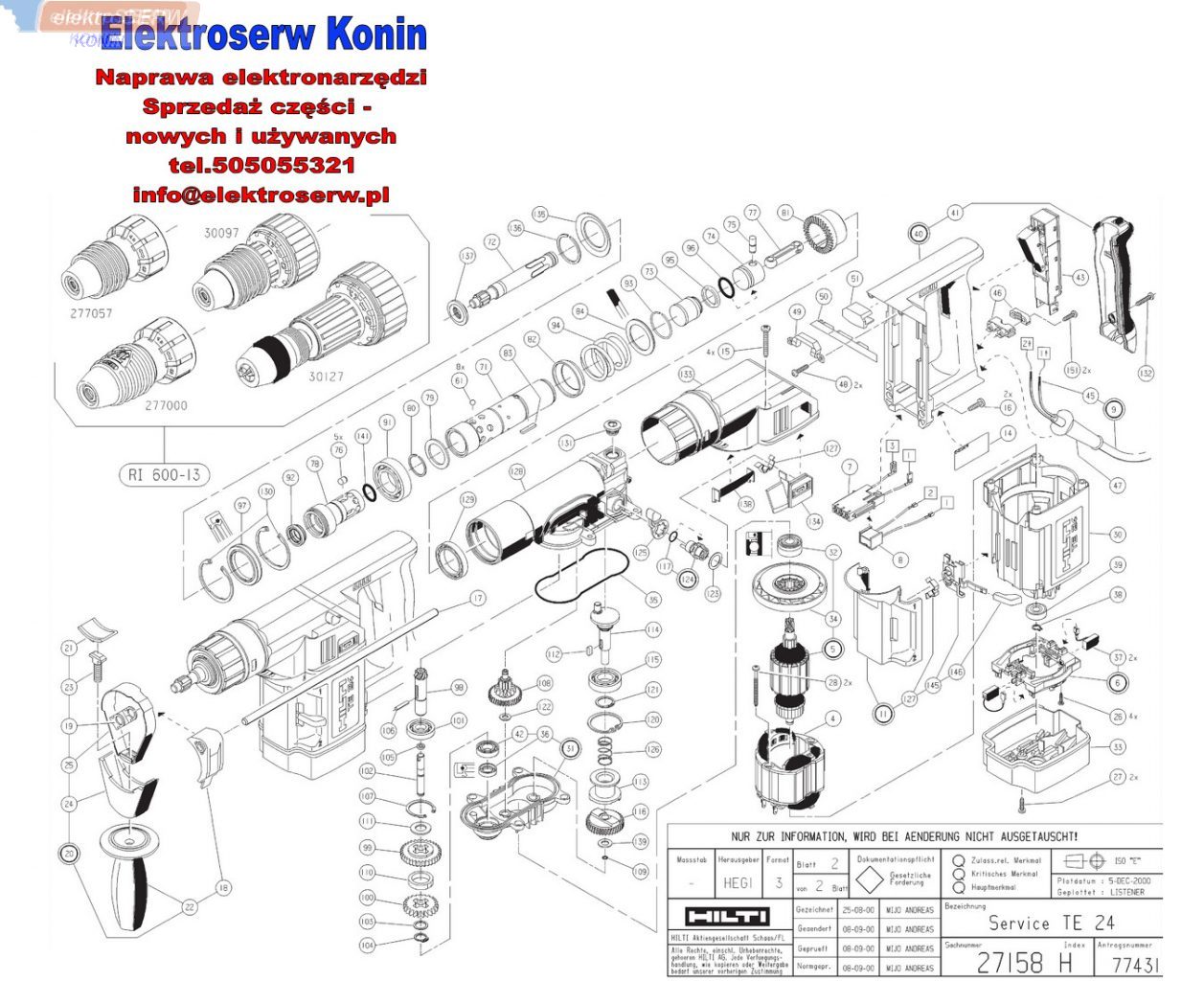

Spis części zamiennych do wiertarki TE 24 76001
Przy zapytaniu o dostępność i cenę prosimy podać pozycję
na schemacie lub nr katalogowy części.
| Pozycja na schemacie | Nr katalogowy | Nazwa Części |
| 4 | Stator / stojan / Pole | |
| 5 | 30143 | Rotor / wirnik / anker |
| 6 | 76239 | Brush holder / szczotkotrzymacz |
| 7 | 30086 | Connector housing assy |
| 8 | 277139 | Capacitor 0,22 |
| 9 | 202614 | Supply cord GB 110V |
| 11 | 76285 | Speed switch |
| 14 | 76310 | Rating plate TE 24 110V GB |
| 15 | 76438 | Plastite screw 45 5X35 T25 black |
| 16 | 76437 | Plastite screw 45 5X16 |
| 17 | 70198 | Depth gauge |
| 18 | 76334 | Stop holder |
| 19 | 76333 | Clamping bow |
| 20 | 76329 | Side handle assy |
| 21 | 76332 | Cover |
| 22 | 75225 | Side handle |
| 23 | 75223 | T-head bolt with square neck BM8X3 |
| 24 | 76331 | Clamping piece |
| 25 | 76330 | Clamping band |
| 26 | 55180 | Recess tapping screw ST2,9X13 |
| 27 | 72432 | Recess tapping screw ST3,9X16 |
| 28 | 76233 | Recess tapping screw ST3,9 X 52 |
| 30 | 76129 | Motor housing TE 24 |
| 31 | 30274 | Bearing plate assy |
| 32 | 30275 | Ball bearing 10X26X12,4 |
| 33 | 30083 | Housing end cap |
| 34 | 30081 | Cooling fan assy |
| 35 | 76240 | Seal |
| 36 | 76762 | Rotary shaft seal 12X19X5 |
| 37 | 71781 | Carbon brush 6,3x10x19 100V-120V |
| 38 | 70421 | Circlip 8X0,8 |
| 39 | 250740 | Ball bearing 8x22x7 |
| 40 | 30267 | Grip unit |
| 41 | 30266 | Grip cover |
| 42 | 76227 | Ball bearing 12X24X6 |
| 43 | 71798 | Switch 100-120V |
| 44 | 71494 | Connector socket B2,8-1 |
| 45 | 71483 | Conductor end sleeve A1-6 |
| 46 | 76560 | Clamp |
| 47 | 71753 | Protective sleeve |
| 48 | 72431 | Recess tapping screw ST3,9X19 |
| 49 | 76275 | Absorber |
| 50 | 76230 | Cover |
| 51 | 71905 | Air deflector |
| 61 | 17972 | Ball 7 G20 |
| 71 | 277060 | Cylinder |
| 72 | 277162 | Ram |
| 73 | 76277 | Striker piston |
| 74 | 76174 | Drive piston |
| 75 | 202193 | Dowel pin 7X23 |
| 76 | 277164 | Roller |
| 77 | 76021 | Conrod |
| 78 | 277072 | Coupling |
| 79 | 277071 | Shim ring 25X35X1 |
| 80 | 277059 | Retaining ring SW25X2,5 |
| 81 | 30289 | Bevel gear |
| 82 | 76180 | Cone |
| 83 | 76066 | Feather key 4X2,5X20 |
| 84 | 76183 | Washer |
| 91 | 30129 | Ball bearing 25X47X12 |
| 92 | 30278 | Rotary shaft seal |
| 93 | 76318 | Retaining ring A31 |
| 94 | 76184 | Compression spring 5,4X35,9X32,4 |
| 95 | 76296 | Sealing ring 17,5X26,35X4,20 |
| 96 | 76036 | O-ring 19,2X3 |
| 97 | 76491 | Rotary shaft seal AS30X47X7 |
| 98 | 30288 | Bevel pinion |
| 99 | 76252 | Toothed gear Z=33 |
| 100 | 76253 | Toothed gear Z=23 |
| 101 | 76737 | Ball bearing 16101 |
| 102 | 76189 | Mandrel |
| 103 | 76773 | Shim ring |
| 104 | 70416 | Circlip 12X1 |
| 105 | 76294 | Sealing ring 4,47X1,78 |
| 106 | 76756 | Dowel pin |
| 107 | 76824 | Circlip JV30 |
| 108 | 30235 | Compound gear |
| 109 | 71789 | O-ring 4X1 |
| 110 | 76255 | Ring |
| 111 | 76300 | Washer 12,05X22X1,5 |
| 112 | 76201 | Feather key A4X4X11 |
| 113 | 76193 | Coupling sleeve |
| 114 | 76194 | Eccentric |
| 115 | 75213 | Ball bearing |
| 116 | 76195 | Clutch gear Z=37 |
| 117 | 71830 | O-ring 10X1,3 |
| 120 | 30151 | Circlip JV35X1,5 |
| 121 | 73452 | Circlip AV17 |
| 122 | 75294 | Shim ring 12X6X0,9 |
| 123 | 71831 | Shim ring 14X20X0,5 |
| 124 | 76297 | Eccentric pin assy |
| 125 | 76573 | Setting lever assy |
| 126 | 76064 | Compression spring |
| 127 | 76572 | Spring |
| 128 | 30192 | Gear housing assy |
| 129 | 76489 | Ball bearing 30x42x7 |
| 130 | 76460 | Circlip J47 |
| 131 | 71886 | Screw plug Service assy |
| 132 | 74278 | Recess tapping screw ST3,9X22 |
| 133 | 76198 | Casing |
| 134 | 76273 | Switch cover |
| 135 | 30112 | Lubricant baffle |
| 136 | 76486 | Retaining ring SW30 |
| 137 | 30252 | Absorber |
| 138 | 71825 | Air deflector |
| 139 | 30060 | Washer 15X8,1X1 |
| 141 | 30082 | O-ring 15X3 |
| 145 | 30067 | Shifting yoke assy |
| 146 | 76286 | Cap |
| 150 | 71874 | Carbon brush set |
| 151 | 207960 | Torx-soc re scr 4X18 T15 black |
| 703 | 30215 | Oil Turmopol 20HD 1L |
| 811 | 203086 | Grease 50 ML |
