| Waga (w kg): | do 0,5 kg |

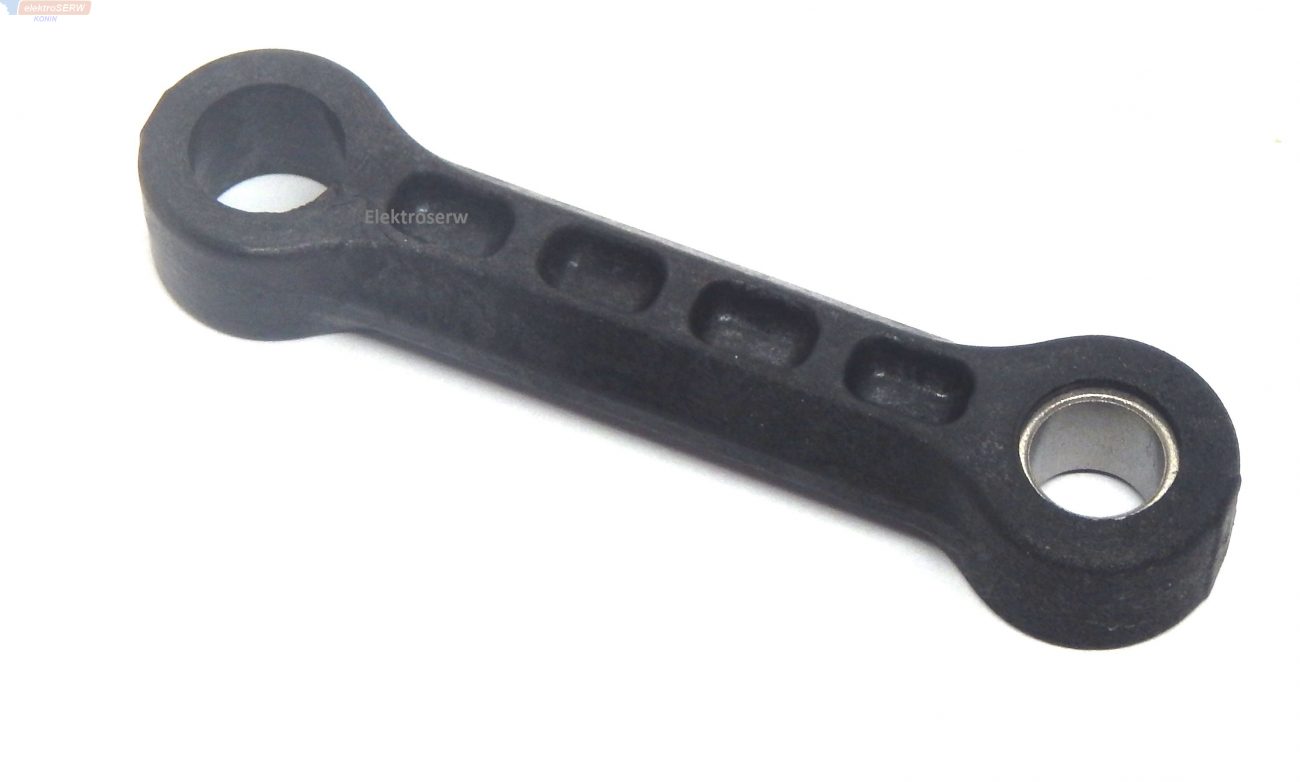

MAKITA korbowód do młota HR5211C, HR5202C
Kod producenta: 454765-0
Kod produktu: 33378
Makita - korbowód - nowy oryginalny
Nr katalogowy : 454765-0
Pozycja na schemacie nr 53
Zastosowanie : HR5211C, HR5202C
| 1 | 142411-4 | HOUSING COVER A COMPLETE | 1 | |
| 1 | C10 | 810100-6 | CAUTION LABEL | 1 |
| 2 | 286292-7 | TOOL HOLDER CAP | 1 | |
| 3 | 233948-3 | RING SPRING 25 | 1 | |
| 4 | 257367-9 | RING 28 | 1 | |
| 5 | 262172-1 | RUBBER RING 29 | 1 | |
| 6 | 454767-6 | CHUCK COVER | 1 | |
| 7 | 324752-2 | CHUCK RING | 1 | |
| 8 | 454768-4 | RELEASE COVER | 1 | |
| 9 | 310178-4 | TOOL RETAINER | 2 | |
| 10 | 346751-4 | SPRING GUIDE | 1 | |
| 11 | 234317-1 | COMPRESSION SPRING 49 | 1 | |
| 12 | 346751-4 | SPRING GUIDE | 1 | |
| 13 | 213674-0 | O-RING 60 | 1 | |
| 013-1 | 213664-3 | O RING 60 | 1 | |
| 14 | 922456-6 | HEX. SOCKET HEAD BOLT M8X35 | 4 | |
| 15 | 142408-3 | BARREL COMPLETE | 1 | |
| 15 | C10 | 213663-5 | O RING 55 | 1 |
| 15 | C20 | 213778-8 | OIL SEAL 42 | 1 |
| 15 | C30 | 214603-6 | PLANE BEARING 49 | 1 |
| 15 | C40 | 259056-2 | RING SPRING 54 | 1 |
| 16 | 454769-2 | LOCK SLEEVE | 1 | |
| 17 | 259057-0 | RING SPRING 74 | 1 | |
| 18 | 213766-5 | O-RING 78 | 1 | |
| 19 | 213789-3 | O-RING 38 | 1 | |
| 21 | 326361-3 | TOOL HOLDER A | 1 | |
| 22 | 268308-0 | PIN 9 | 4 | |
| 23 | 231989-3 | RING SPRING 46 | 1 | |
| 24 | 257353-0 | RING 49 | 1 | |
| 25 | 213779-6 | O-RING 45 | 1 | |
| 26 | 267477-4 | FLAT WASHER 60 | 1 | |
| 27 | 262171-3 | RUBBER RING 60 | 1 | |
| 28 | 267477-4 | FLAT WASHER 60 | 1 | |
| 29 | 326362-1 | TOOL HOLDER B | 1 | |
| 30 | 213783-5 | O-RING 48 | 1 | |
| 31 | 454761-8 | SLIDE SLEEVE | 1 | |
| 32 | 234318-9 | COMPRESSION SPRING 45 | 1 | |
| 33 | 213811-6 | O-RING 26.5 | 1 | |
| 033-1 | 213811-6 | O-RING 26.5 | 3 | |
| 34 | 213780-1 | FLUORIDE RING 32.5 | 1 | |
| 034-1 | 213780-1 | FLUORIDE RING 32.5 | 3 | |
| 35 | 213776-2 | X-RING 26 | 1 | |
| 36 | 326374-4 | IMPACT BOLT | 1 | |
| 036-1 | 327245-8 | IMPACT BOLT | 1 | |
| 036-2 | 327245-8 | IMPACT BOLT | 1 | |
| 37 | 257354-8 | RING 23 | 1 | |
| 38 | 262173-9 | RUBBER RING 24 | 1 | |
| 39 | 267856-6 | SHOULDER WASHER 23 | 1 | |
| 40 | 257994-2 | RETAINING RING(EXT)WR-44 | 1 | |
| 41 | 257355-6 | RING 44 | 1 | |
| 42 | 267478-2 | FLAT WASHER 44 | 1 | |
| 43 | 234319-7 | COMPRESSION SPRING 46 | 1 | |
| 44 | 267478-2 | FLAT WASHER 44 | 1 | |
| 45 | 326377-8 | STRIKER | 1 | |
| 46 | 213781-9 | O-RING 33 | 1 | |
| 47 | 332093-2 | CYLINDER 40 | 1 | |
| 48 | 213460-9 | O RING 35 | 3 | |
| 49 | 213782-7 | O-RING 30 | 1 | |
| 50 | 257820-5 | SLEEVE 9 | 1 | |
| 51 | 319097-1 | PISTON | 1 | |
| 52 | 213460-9 | O RING 35 | 1 | |
| 53 | 454765-0 | CONNECTING ROD | 1 | |
| 54 | 256548-2 | FLAT FILLISTER HEAD PIN 6 | 1 | |
| 55 | 346749-1 | LINK PLATE | 1 | |
| 56 | 313272-1 | DRIVING SLEEVE | 1 | |
| 57 | 454779-9 | GUIDE RING | 1 | |
| 58 | 227625-7 | SPIRAL BEVEL GEAR 33 | 1 | |
| 59 | 454774-9 | SPRING PLATE | 2 | |
| 60 | 233497-0 | COMPRESSION SPRING 15 | 2 | |
| 61 | 213953-6 | O RING 24 | 2 | |
| 62 | 332092-4 | PIPE 21.5 | 2 | |
| 63 | 213953-6 | O RING 24 | 2 | |
| 64 | 326375-2 | COUNTER WEIGHT | 2 | |
| 65 | 233497-0 | COMPRESSION SPRING 15 | 2 | |
| 66 | 454773-1 | HOLDER 15 | 2 | |
| 066-1 | 141E52-3 | HOLDER COMPLETE | 2 | |
| 67 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 68 | 454326-6 | CHANGE LEVER | 1 | |
| 69 | 319082-4 | CRANK CAP COVER | 1 | |
| 70 | 454770-7 | CONTROL PLATE | 1 | |
| 71 | 454771-5 | SLIDE PLATE | 1 | |
| 72 | 234284-0 | COMPRESSION SPRING 4 | 1 | |
| 73 | 454345-2 | CRANK LEVER | 1 | |
| 74 | 213262-3 | O RING 18 | 1 | |
| 75 | 424607-2 | FILTER CAP | 1 | |
| 76 | 443129-3 | FILTER | 1 | |
| 77 | 911128-8 | P.H.SCREW M4X16 WITH WR | 6 | |
| 78 | 454764-2 | CRANK CAP | 1 | |
| 79 | 424608-0 | SEAL RING B | 1 | |
| 80 | 232280-2 | LEAF SPRING | 1 | |
| 81 | 454766-8 | LINK LEVER | 1 |
