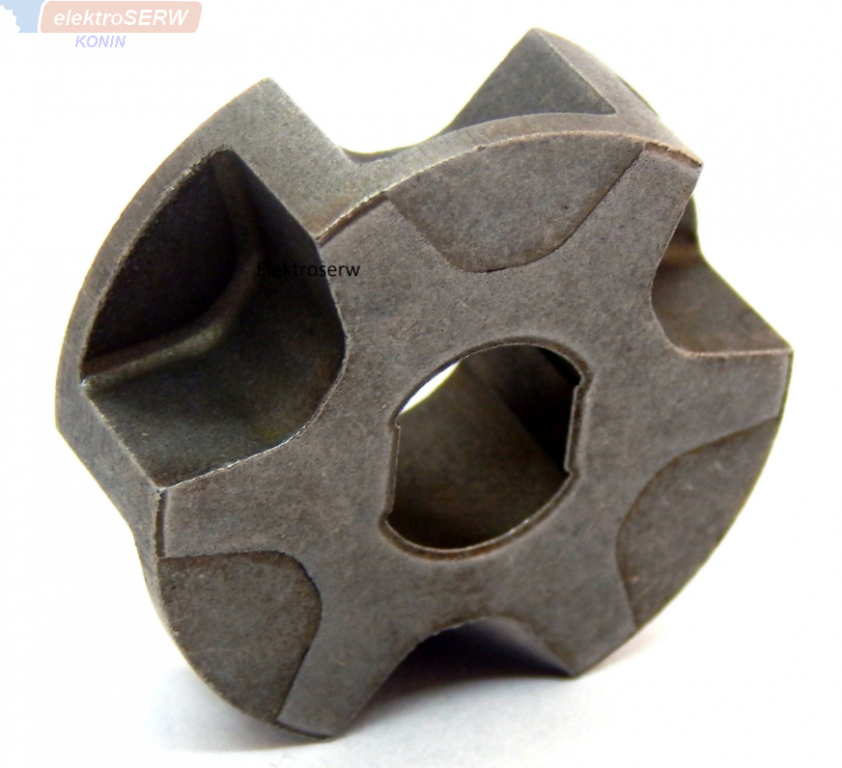

Makita -  zębatka napędowa

Nr katalogowy : 221464-7

Zastosowanie: DUC406

Pozostałe częsci ze schematu:

Item Sub Parts No. Parts Description Qty

1 459275-2 FRONT HANDLE 1

2 126832-8 TANK CAP ASSEMBLY 1

2 D10 INC. 3

3 213355-6 O-RING 25 1

003-1 213894-6 O-RING 25 1

4 266326-2 TAPPING SCREW 4X18 9

5 819S65-3 DUC406 MODEL NO. LABEL 1

6 856A53-1 DUC406 NAME PLATE 1

7 266326-2 TAPPING SCREW 4X18 2

8 183N15-7 HOUSING SET 1

8 C10 263005-3 RUBBER PIN 6 2

8 C20 424170-5 VALVE 1

8 C30 454724-4 SINTER INSERT 1

8 D10 INC. 45

9 232509-6 TORSION SPRING 10 1

10 459268-9 CATCH LEVER 1

11 651365-9 SWITCH C3JW-6BM-P 1

12 632L49-0 SWITCH UNIT 1

13 459267-1 SWITCH LEVER 1

14 632L48-2 SWITCH UNIT 1

15 140K84-3 CONTROLLER COMPLETE 1

15 C10 819R38-0 INDICATION LABEL 1

15 C20 819S81-5 SWITCH LABEL 1

17 643874-2 TERMINAL 1

18 140K81-9 CENTER CASE COMPLETE 1

18 C10 263005-3 RUBBER PIN 6 2

018-1 140V36-0 CENTER CASE COMPLETE 1

018-1 C10 263005-3 RUBBER PIN 6 2

19 643874-2 TERMINAL 1

20 856A57-3 DUC406 SERIAL NO. LABEL 1

21 911228-4 PAN HEAD SCREW M5X18 3

22 961011-9 STOP RING E-4 1

23 226884-0 WORM GEAR 1

24 459276-0 MOTOR HOUSING 1

25 210026-6 BALL BEARING 696ZZ 1

26 519576-1 ROTOR ASS'Y 1

26 D10 INC. 25

27 529420-4 STATOR ASS'Y 1

27 D10 INC. 28,29

28 210059-1 BALL BEARING 6000DDW 1

29 962105-3 RETAINING RING R-26 1

30 266326-2 TAPPING SCREW 4X18 1

31 422467-6 CAP 1

32 422451-1 OIL TUBE 3-100 1

33 142156-4 OIL PUMP COMPLETE 1

033-1 142156-4 OIL PUMP COMPLETE 1

34 422452-9 OIL TUBE 3-130 1

35 231975-4 SPRING 1

36 452666-6 NIPPLE 1

37 911118-1 PAN HEAD SCREW M4X12 2

38 459270-2 FRONT HAND GUARD RETAINER 1

39 140M05-7 FRONT HAND GUARD COMPLETE 1

39 C10 819S76-8 CAUTION LABEL 1

40 234210-9 COMPRESSION SPRING 3 1

41 313212-9 HAND GUARD GUIDE 1

42 346809-9 SPIKE BUMPER 1

43 266420-0 TAPPING SCREW 5X20 2

44 347516-7 CHAIN CATCHER 1

45 183N15-7 HOUSING SET 1

45 C10 263005-3 RUBBER PIN 6 2

45 C20 424170-5 VALVE 1

45 C30 454724-4 SINTER INSERT 1

45 D10 INC. 8

46 911228-4 PAN HEAD SCREW M5X18 3

47 422466-8 GROMET 1

48 227620-7 DRIVE GEAR 1

49 227634-6 STRAIGHT BEVEL GEAR 14 1

50 347517-5 TENSION SLIDE 1

51 327317-9 ADJUST SCREW 1

52 227496-2 STRAIGHT BEVEL GEAR 14 1

53 281222-3 HOOK 1

54 347514-1 HOOK SUPPORT 1

55 266326-2 TAPPING SCREW 4X18 4

56 140A74-6 LINK PLATE COMPLETE 1

57 232452-9 COMPRESSION SPRING 7 1

58 347515-9 BRAKE BAND COMPLETE 1

59 459273-6 HOUSING R COVER 1

61 162638-0 BRAKE DRUM COMPLETE 1

62 213060-5 O RING 10 1

63 221464-7 SPROCKET 6 1

64 961013-5 STOP RING E-7 1

65 266905-6 H.L. SOCKET HEAD BOLT M5X12 1

66 347533-7 GUIDE PLATE L 1

67 266427-6 TAPPING SCREW 4X12 1

68 347534-5 GUIDE PLATE R 1

69 162494-8 FLANGE NUT COMPLETE 1

70 136138-6 SPROCKET COVER ASS'Y 1

70 D10 INC. 67-69,71

71 459278-6 NUT COVER 1

A01 165247-4 GUIDE BAR 16 1

A01-1 165247-4 GUIDE BAR 16 1

A02 419242-9 CHAIN COVER 1

A03 196742-3 SAW CHAIN SET 1

A04 199897-3 OIL VESSEL SET 1

A05 782023-7 WRENCH 13-16 1

A06B ***DC18RD DC18RD TWO PORT FAST CHARGER 1

A06B D10 COMPO-PARTS

A07B 197280-8 BATTERY BL1850B SET 2
