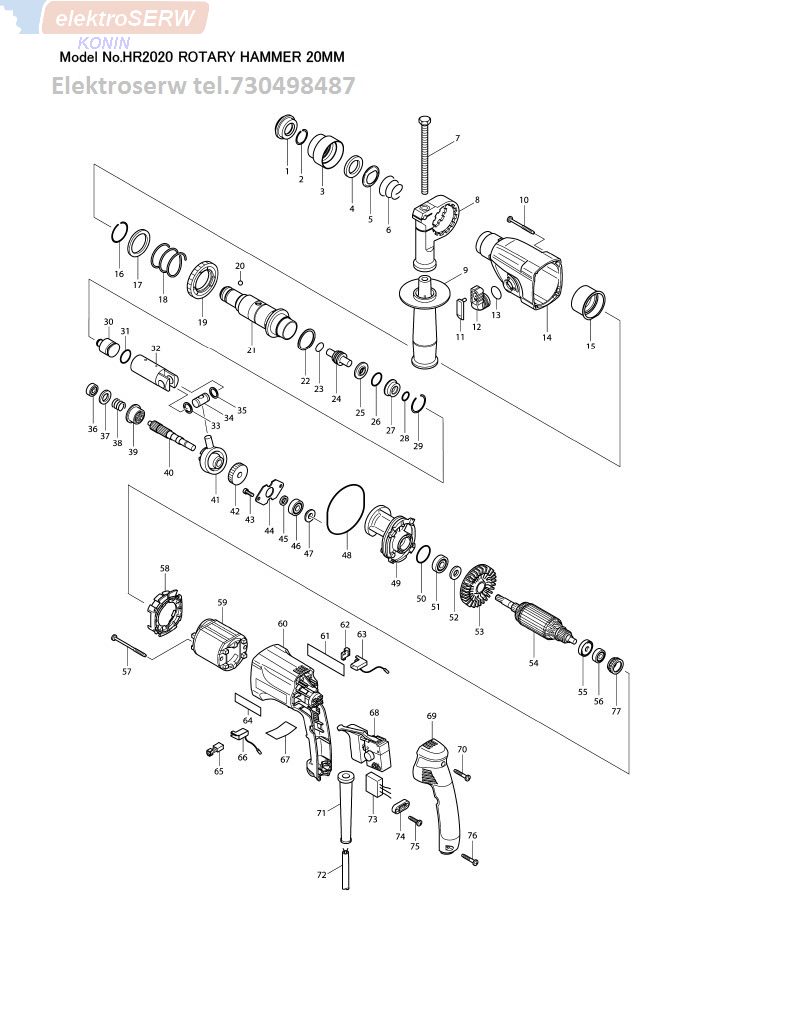

Makita HR2020 lista części



Item Sub Parts No. Parts Description Qty

1 286263-4 CAP 35 1

2 233915-8 RING SPRING 19 1

002-1 233940-9 RING SPRING 19 1

3 417629-9 CHUCK COVER 1

4 257241-1 RING 21 1

5 345187-4 GUIDE WASHER 1

6 233916-6 CONICAL COMP. SPRING 21-29 1

7 921923-8 HEX. BOLT M8X120 1

8 417630-4 GRIP BASE 1

008-1 417630-4 GRIP BASE 1

9 134943-5 GRIP 36 ASS'Y 1

9 C10 152521-9 GRIP 36 COMPLETE 1

9 D10 INC. 7,8

009-1 134943-5 GRIP 36 ASS'Y 1

009-1 C10 152521-9 GRIP 36 COMPLETE 1

009-1 D10 INC. 7,8,78

009-2 135302-6 GRIP 36 ASS'Y 1

009-2 C10 153503-4 GRIP 36 COMPLETE 1

009-2 D10 INC. 7,8,78

10 266069-6 TAPPING SCREW 4X45 4

010-1 266425-0 TAPPING SCREW 4X45 4

11 417628-1 CAP 1

12 153289-0 CHANGE LEVER COMPLETE 1

012-1 184678-8 CHANGE LEVER ASS'Y 1

012-1 C10 153289-0 CHANGE LEVER COMPLETE 1

012-1 D10 INC. 11,39

13 213278-8 O RING 17 1

14 183442-4 GEAR HOUSING SET 1

14 C10 213535-4 OIL SEAL 25 1

14 D10 INC. 15

15 153290-5 NEEDLE BEARING COMPLETE 1

16 233918-2 RING SPRING 28 1

17 267228-5 WASHER 30 1

18 233328-3 COMPRESSION SPRING 31 1

19 227019-6 SPUR GEAR 51 1

20 216022-2 STEEL BALL 7.0 1

21 153288-2 TOOL HOLDER COMPLETE 1

22 267229-3 FLAT WASHER 28 1

23 213128-7 O RING 12 1

24 324213-2 IMPACT BOLT 1

024-1 324278-4 IMPACT BOLT 1

25 324218-2 RING 9 1

26 213232-2 O RING 15 1

27 324216-6 O RING CASE 1

28 213073-6 O RING 9 1

29 233917-4 RING SPRING 28 1

30 324214-0 STRIKER 1

31 213227-5 O RING 16 1

32 317517-9 PISTON CYLINDER 1

33 267104-3 FLAT WASHER 12 1

34 324215-8 PISTON JOINT 1

35 267104-3 FLAT WASHER 12 1

36 211012-0 BALL BEARING 606ZZ 1

036-1 210028-2 BALL BEARING 606ZZ 1

37 253744-3 FLAT WASHER 12 1

38 233347-9 COMPRESSION SPRING 12 1

39 324152-6 CLUTCH CAM 1

039-1 324469-7 CLUTCH CAM 1

40 227029-3 SPUR GEAR 10 1

41 219014-0 SWASH BEARING 10 1

42 226550-9 HELICAL GEAR 26 1

43 266273-7 HEX. SOCKET HEAD BOLT M4X12 2

44 345179-3 BEARING RETAINER 1

45 267234-0 FLAT WASHER 8 1

46 211032-4 BALL BEARING 608ZZ 1

046-1 210029-0 BALL BEARING 608ZZ 1

47 324212-4 RING 8 1

48 213725-9 O RING 68 1

49 153287-4 INNER HOUSING COMPLETE 1

049-1 153611-1 INNER HOUSING COMPLETE 1

049-2 153686-0 INNER HOUSING COMPLETE 1

50 213380-7 O RING 24 1

51 210060-6 BALL BEARING 609LLU 1

52 267231-6 FLAT WASHER 9 1

53 240047-4 FAN 60 1

053-1 240084-8 FAN 60 1

54 517379-7 ARMATURE ASS'Y 230-240V 1

54 D10 INC. 51,52,53,55,56

054-1 515669-2 ARMATURE ASS'Y 240V 1

054-1 D10 INC. 51,52,53,55,56

55 681636-0 INSULATION WASHER 1

56 211021-9 BALL BEARING 607LLB 1

57 266052-3 TAPPING SCREW 4X60 2

057-1 266334-3 TAPPING SCREW 4X60 2

58 417631-2 BAFFLE PLATE 1

058-1 419201-3 BAFFLE PLATE 1

59 633488-5 FIELD 220-240V 1

60 183409-2 MOTOR HOUSING 1

60 D10 INC. 64

060-1 183951-3 MOTOR HOUSING SET 1

060-1 D10 INC. 64

060-2 418084-8 MOTOR HOUSING 1

61 853553-6 NAME PLATE HR2020 1

62 689111-0 SPACER 2

63 643988-7 BRUSH HOLDER 1

64 819063-3 MAKITA LABEL 1

65 191962-4 CARBON BRUSH CB-419 1

66 643989-5 BRUSH HOLDER 1

67 815912-2 HR2020 SERIAL NUMBER LABEL 1

067-1 815956-2 HR2020 SERIAL NUMBER LABEL 1

067-2 896718-7 HR2020 SERIAL NUMBER LABEL 1

68 650508-0 SWITCH TG813TLB-1 1

69 153285-8 HANDLE COVER COMPLETE 1

69 C10 263002-9 RUBBER PIN 4 2

70 265999-8 TAPPING SCREW 4X25 1

070-1 266374-1 TAPPING SCREW 4X25 1

71 682566-8 CORD GUARD 10 1

72 692527-0 POWER SUPPLY CORD 1.0-2-2.5 1

74 687052-4 STRAIN RELIEF 1

074-1 687124-5 STRAIN RELIEF 1

75 265995-6 TAPPING SCREW 4X18 2

075-1 266326-2 TAPPING SCREW 4X18 2

76 265999-8 TAPPING SCREW 4X25 2

076-1 266374-1 TAPPING SCREW 4X25 2

77 421494-0 RUBBER RING 19 1

78 345280-4 HEX. WASHER 1

79 267271-4 FLAT WASHER 9 1

80 345362-2 STOPPER PLATE 1

080-1 345519-5 STOPPER PLATE 1

81 233388-5 COMPRESSION SPRING 5 1

82 961011-9 STOP RING E-4 1

A01 324219-0 DEPTH GAUGE 1

A02 824650-5 PLASTIC CARRYING CASE 1

A02 C10 417724-5 LATCH 2

A02 C20 819144-3 MAKITA LOGO LABEL 1

A03 805562-1 HR2020 PLASTIC CASE LABEL 1

B01 193606-2 HAMMER SERVICE KIT 1

B01 C10 183477-5 HAMMER GREASE 30G 2

B01 D10 INC. 1,23,26,28,29,31,65

B02 195196-1 HAMMER SERVICE KIT 1

B02 C10 188088-1 HAMMER GREASE 30G 2



B02 D10 INC. 1,23,26,28,29,31,65
