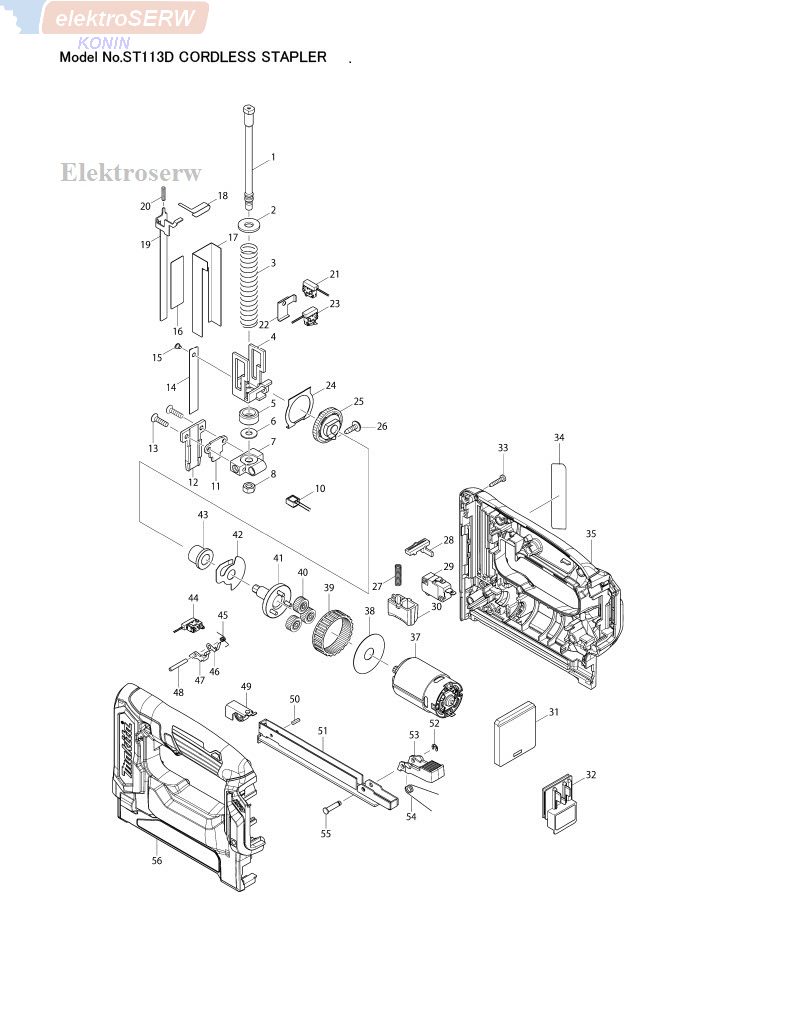

ItemSubParts No.Parts DescriptionQty1
326731-6GUIDE BOLT12
253762-1FLAT WASHER 813
232297-5COMPRESSION SPRING 1314
347023-0HAMMER15
424099-5CUSHION16
253804-1FLAT WASHER 617
319425-0HOLDER1007-1
319425-0HOLDER18
931302-2HEX. NUT M6110
620507-6LED CIRCUIT111
347037-9SET PLATE112
326738-2DRIVER GUIDE113
251487-1H.SOCKET C.S.HEAD SCREW M4X16214
347034-5DRIVER115
256318-9FLAT FILLISTER HD. PIN 4116
347038-7UPPER PLATE117
347036-1GUIDE PLATE118
232300-2LEAF SPRING119
347042-6CONTACT ARM1019-1
347316-5CONTACT ARM120
232337-9COMPRESSION SPRING 3121
632G60-2SWITCH UNIT122
347121-0SLIDE PLATE123
632G61-0SWITCH UNIT124
347040-0GEAR PLATE125
143770-9SPUR GEAR 43 COMPLETE126
266901-4TAPPING SCREW 4X14127
232299-1COMPRESSION SPRING 5128
456799-9TRIGGER LOCK129
632J09-0SWITCH UNIT1029-1
632M82-8SWITCH UNIT130
457303-7TRIGGER131
620598-7CONTROLLER132
644813-5TERMINAL133
266130-9TAPPING SCREW BIND PT 3X161034
852U41-6ST113D NAME PLATE1034-1
852U40-8ST113D NAME PLATE135
183F23-0HOUSING SET135C10263002-9RUBBER PIN 4235C20252126-6HEX. LOCK NUT M4-7235D10
INC. 56
37
629240-7DC MOTOR138
267053-4FLAT WASHER 12139
227166-3INTERNAL GEAR 69140
221961-3SPUR GEAR 27341
143777-5SPUR GEAR 7 COMPLETE142
345773-1ANTI BACK PLATE143
214059-3PLANE BEARING 10144
632G60-2SWITCH UNIT145
232298-3TORTION SPRING 3146
347041-8SLIP PLATE147
456796-5SWITCH PLATE148
256221-4PIN 3149
143780-6SPIRAL SPRING COMPLETE150
951051-5SPRING PIN 3-8151
161467-8SUB MAGAZINE152
961017-7STOP RING E-3153
456798-1LEVER154
232301-0TORSION SPRING 7155
268029-4PIN 4156
183F23-0HOUSING SET156C10263002-9RUBBER PIN 4256C20252126-6HEX. LOCK NUT M4-7256D10
INC. 35
A01
195246-2SAFETY GOGGLE1A02
266622-8+ TRUSS HEAD SCREW M4X121A02-1
251314-2+ SCREW M4X121A03
346909-5HOOK1A04
821549-5CONNECTOR PLASTIC CASE (TYPE1)1A04BC10453974-8LATCH4A05
839019-0INNER TRAY1A06B
810X04-6ST113DWYJ INDICATION LABEL1A06C
810X07-0ST113DWAJ INDICATION LABEL1A07B
810X06-2ST113DWYJ PLASTIC CASE LABEL2A07C
810X09-6ST113DWAJ PLASTIC CASE LABEL2A08
456128-6BATTERY COVER1A09
***DC10WDDC10WD BATTERY CHARGER1A09BD10
COMPO-PARTS
A10B
197393-5BATTERY BL1016 SET2A10C
197396-9
