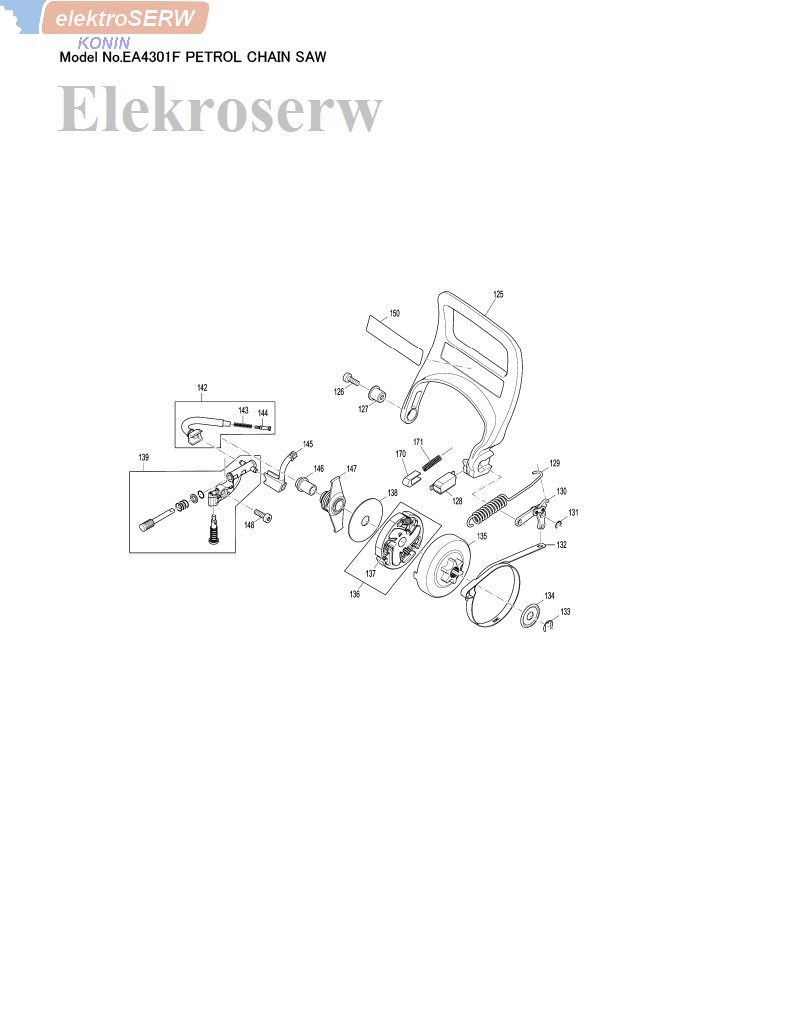

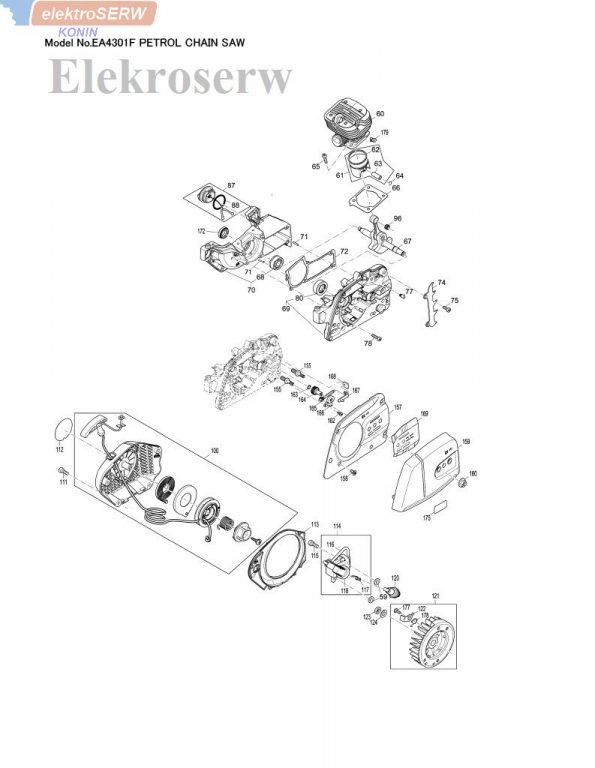

Makita  EA4301F lista części



Item Sub Parts No. Parts Description Qty

1 143341-2 FUEL TANK WELDED BLUE 1

2 456143-0 GRIP OUTER SHELL 1

3 266478-9 H.L.TAPPING SCREW 5.5X16 1

4 456142-2 CATCH LEVER 1

5 456141-4 THROTTLE LEVER 1

6 231866-9 TORSION SPRING 10 1

7 195762-4 AIR VALVE SET 1

8 424456-7 FUEL LINE 1

9 213586-7 O RING 11.5 1

10 424756-5 TUBE 2.5-118 1

11 424757-3 TUBE 3.0-93 1

12 168823-3 TANK CAP COMPLETE 1

12 D10 INC. 13

13 213080-9 O RING 29.5 1

014-1 163447-0 FUEL FILTER 1

15 852C41-8 EA4301F NAME PLATE 1

16 456140-6 TUBULAR HANDLE 1

17 456151-1 SIDE COVER MAKITA BLUE 1

18 234189-4 COMPRESSION SPRING 12 4

19 266605-8 H.L. SOCKET HEAD BOLT M5X16 4

20 266478-9 H.L.TAPPING SCREW 5.5X16 3

21 266478-9 H.L.TAPPING SCREW 5.5X16 2

22 266478-9 H.L.TAPPING SCREW 5.5X16 2

23 266478-9 H.L.TAPPING SCREW 5.5X16 2

24 346517-2 CUP WASHER 6 1

25 456135-9 INTAKE MANIFOLD 1

025-1 459832-6 INTAKE MANIFOLD 1

26 123452-9 AIR FILTER CPL.NYLON 1

27 456169-2 CARBURETOR BOTTOM 1

28 266605-8 H.L. SOCKET HEAD BOLT M5X16 1

29 266605-8 H.L. SOCKET HEAD BOLT M5X16 1

30 346926-5 CONTACT SPRING 1

030-1 347357-1 CONTACT SPRING 1

31 456139-1 CHOKE LEVER 1

32 632F41-0 SHORT-CIRCUIT CABLE 1

33 424759-9 ISOLATING TUBE 6-30 1

34 143330-7 THROTTLE LINKAGE 1

36 266478-9 H.L.TAPPING SCREW 5.5X16 1

37 266478-9 H.L.TAPPING SCREW 5.5X16 1

38 251478-2 H.L. SOCKET HEAD BOLT M4X40 2

038-1 266604-0 H.L. SOCKET HEAD BOLT M4X40 2

41 168398-2 PRIMER PUMP 1

42 424754-9 TUBE 2.5-55 1

43 424755-7 TUBE 2.5-93 1

44 346413-4 BUSH 17 1

45 424753-1 INTAKE HOSE 1

46 326675-0 CONNECTING LINK 1

046-1 325939-9 CONNECTING LINK 1

48 266605-8 H.L. SOCKET HEAD BOLT M5X16 2

49 266612-1 H.L. SOCKET HEAD BOLT M5X10 2

50 266943-8 H.L. SOCKET HEAD BOLT M5X40 1

050-1 266606-6 H.L. SOCKET HEAD BOLT M5X40 1

52 352027-9 SPARK ARRESTER SCREEN 1

54 161362-2 MUFFLER COMPLETE 1

54 D10 INC. 52

55 346304-9 GASKET 1

56 213085-9 O-RING 20 1

57 424752-3 PACKING RING 1

59 451462-9 ISOLATING WASHER 2

60 319338-5 CYLINDER D=42 1

060-1 144710-0 CYLINDER COMPLETE 1

060-1 D10 INC. 179

060-2 140L37-8 CYLINDER COMPLETE 1

060-2 D10 INC. 179

61 143332-3 PISTON 42 CPL. 1

61 D10 INC. 62,63

62 257383-1 PISTON RING 42 1

63 268339-9 PISTON PIN 9 1

64 232302-8 CIRCRIP 9 2

65 266960-8 H.L. SOCKET HEAD BOLT M5X20 4

66 346925-7 CYLINDER BASE GASKET 1

67 143329-2 CRANKSHAFT CPL. 1

067-1 140H65-9 CRANKSHAFT COMPLETE 1

68 211494-6 BALL BEARING 6201 1

068-1 211341-1 BALL BEARING 6201 1

69 143333-1 CRANKCASE CS COMPLETE BLUE 1

69 D10 INC. 71,77,80

069-1 144393-6 CRANKCASE CS COMPLETE BLUE 1

069-1 D10 INC. 71,77,80

70 143337-3 CRANKCASE MS COMPLETE BLUE 1

70 D10 INC. 68

070-1 144394-4 CRANKCASE MS COMPLETE BLUE 1

070-1 D10 INC. 68

71 258038-1 CLAMPING PIN 2

071-1 951063-8 SPRING PIN 3-16 2

72 346924-9 CRANK CASE GASKET 1

74 346301-5 SPIKE BAR 1

75 266605-8 H.L. SOCKET HEAD BOLT M5X16 2

76 456159-5 HOOD 1

77 168504-9 VENT VALVE 1

78 266960-8 H.L. SOCKET HEAD BOLT M5X20 6

79 452018-1 FUEL NIPPLE 1

80 219024-7 DEEP GROOVE BALL BEARING 1

87 168823-3 TANK CAP COMPLETE 1

87 D10 INC. 88

88 213080-9 O RING 29.5 1

89 161368-0 HOOD COMPLETE BLACK 1

89 D10 INC. 91,92,95

91 346929-9 PROTECTION FILM HOOD 1

92 456157-9 SHUTTER PLATE 1

93 456138-3 GUIDE 1

94 266605-8 H.L. SOCKET HEAD BOLT M5X16 3

95 816917-5 INDICATION LABEL 1

96 212093-7 NEEDLE CAGE 912 1

100 161365-6 STARTER COMPLETE BLUE 1

111 266605-8 H.L. SOCKET HEAD BOLT M5X16 4

112 807A60-7 EA4301F MODEL NO. LABEL 1

113 456137-5 AIR GUIDE PLATE 1

114 161357-5 IGNITION COIL COMPLETE 1

114 D10 INC. 116,117,118

115 266472-1 TORX SOCKET HEAD BOLT M5X20 2

115-1 266472-1 TORX SOCKET HEAD BOLT M5X20 2

115-2 265641-1 H.L. SOCKET HEAD BOLT M5X20 2

116 444042-8 ISOLATING TUBE 6-80 1

117 234358-7 TERMINAL SPRING 1

118 424750-7 PLUG CAP 1

120 168599-2 SPARK PLUG NGK CMR7A-5 1

121 143331-5 FLYWHEEL COMPLETE 1

121 D10 INC. 122,177,178

122 346916-8 RATCHET 2

123 264022-6 HEX. NUT M8X1 1

124 267822-3 SPRING WASHER 8 1

125 456136-7 HAND PROTECTION 1

126 266605-8 H.L. SOCKET HEAD BOLT M5X16 1

127 326596-6 BUSH 1

128 450926-0 STOPPER CASE 1

129 231870-8 TENSION SPRING 10 1

130 163500-2 LINK PLATE COMPLETE 1

131 257934-0 STOP RING E-4 1

131-1 961011-9 STOP RING E-4 1

132 346029-5 BRAKE BAND 1

133 259045-7 STOP RING E-8 1

134 267820-7 WASHER 29 1

135 143339-9 CLUTCH DRUM COMPLETE 1

135-1 143339-9 CLUTCH DRUM COMPLETE 1

136-1 123857-3 CLUTCH ASSEMBLY 1

136-1 D10 INC. 137

136-2 127443-2 CLUTCH ASSEMBLY 1

136-2 D10 INC. 137

137-1 232352-3 TENSION SPRING 6 3

137-2 232352-3 TENSION SPRING 6 3

138 267389-1 FLAT WASHER 12 1

138-1 253454-2 FLAT WASHER 12 1

139 161346-0 OIL PUMP COMPLETE 1

142 168645-1 OIL SUCTION LINE COMPLETE 1

142 D10 INC. 144,143

143 234207-8 COMPRESSION SPRING 6 1

144 452666-6 NIPPLE 1

145 424178-9 OIL TUBE 1

146 325604-0 BUSH 1

147 450956-1 PUMP DRIVE 1

148 266605-8 H.L. SOCKET HEAD BOLT M5X16 1

150 810075-9 CAUTION LABEL 1

150-1 817T83-1 CAUTION LABEL 1

150-2 818L12-9 CAUTION LABEL 1

155 266978-9 BOLT 2

157 346927-3 CHAIN BRAKE COVER 1

158 266477-1 H.L. C.S. HEAD SCREW M5X12 2

159 161440-8 SPROCKET GUARD CPL. MAKITA 1

159-1 161791-9 SPROCKET GUARD CPL. MAKITA 1

160 252145-2 COLLARED HEX NUT M8 2

160-1 264055-1 COLLARED HEX. NUT M8 2

162 251480-5 TAPPING SCREW ST3.5X9.5 1

162-1 266484-4 H.L SOCKET HEAD BOLT M5X12 1

163 213082-5 O-RING 7 1

163-1 213594-8 O RING 7 1

164 226693-7 HELICAL GEAR 18 1

164-1 227744-9 HELICAL GEAR 18 1

165 226692-9 HELICAL GEAR 11 1

165-1 227743-1 HELICAL GEAR 11 1

166 452667-4 GEAR COVER PROFESSIONAL 1

167 346300-7 TENSION SLIDE 1

167-1 347252-5 TENSION SLIDE 1

168 450929-4 GUIDE PLATE 1

168-1 452668-2 CLAMP SCREW BEDDING 1

169 346518-0 GUIDE PLATE 1

170 313212-9 HAND GUARD GUIDE 1

171 234093-7 COMPRESSION SPRING 3 1

172 213141-5 OIL SEAL 12 1

177 266626-0 H.L. TAPPING SCREW 5X12 2

178 232303-6 TORSION SPRING 13 2

179 325938-1 ANGULAR NIPPLE 1

180 266977-1 THUMB SCREW 1

300 161370-3 CARBURETOR DM24B 1

300-1 161370-3 CARBURETOR DM24B 1

300-1 C10 ZJ00000077 NOZZLE ASSEMBLY 1

300-1 C12 ZJ00000097 PUMP COVER KIT 1

300-1 C14 ZJ00000020 SCREW (PUMP COVER) 1

300-1 C16 ZJ00000026 SCREW,IDLE MIXTURE 1

300-1 C18 ZJ00000039 SCREW,MAIN MIXTURE 1

300-1 C20 ZJ00000037 STRAINER 1

300-1 C22 ZJ00000073 SPRING 1

300-1 C24 ZJ00000015 THROTTLE SHAFT ASSY 1

300-1 C26 ZJ00000012 SHAFT ASSY,CHOKE 1

300-1 C28 ZJ00000030 VALVE,THROTTLE 1

300-1 C30 ZJ00000001 SCREW 2

300-1 C32 ZJ00000036 PLUG,ACC POCKET 1

300-1 C34 ZJ00000098 THROTTLE LEVER SCREEN 1

300-1 C36 ZJ00000022 LEVER,THROTTLE 1

300-1 C38 ZJ00000023 SCREW 1

300-1 C40 ZJ00000021 COLLAR 1

300-1 C42 ZJ00000028 COVER,METERING 1

300-1 C44 ZJ00000014 SCREW (WITH SERRATION) 2

300-1 C46 ZJ00000033 WASHER 1

300-1 C48 ZJ00000031 LEVER,CHOKE 1

300-1 C50 ZJ00000099 CHOKE LEVER 1

300-1 C52 ZJ00000017 E-RING 1

300-1 C54 ZJ00000024 VALVE,CHOKE 1

300-1 C56 ZJ00000005 PLUNGER KIT 1

300-1 C58 ZJ00000032 SPRING,CHOKE RETURN 1

300-1 C60 ZJ00000040 SPRING,THROTTLE RETURN 1

300-1 D10 INC. 301-310

301 ZJ00000003 STRAINER 1

302 ZJ00000008 PIN 1

303 ZJ00000078 SPRING, METERING LEVER 1

304 ZJ00000006 LEVER 1

305 ZJ00000007 VALVE, INLET NEEDLE 1

306 ZJ00000009 SCREW (METERING LEVER PIN) 1

307 ZJ00000079 METERING CHAMBER GASKET 1

308 ZJ00000013 DIAPHRAGM ASS'Y,METERING 1

309 ZJ00000029 DIAPHRAGM, PUMP 1

310 ZJ00000016 GASKET, PUMP 1

311 ZJ00000081 REBUILT KIT 1

311 D10 INC. 301-306,312

312 ZJ00000082 GASKET&DIAPHRAGM KIT 1

312 D10 INC. 307-310

313 347438-1 COOLING PLATE 1

314 183M69-8 NYLON FILTER SET BLACK 1

314 D10 INC. 25,26,56,76,89,94,180

314-1 183M92-3 NYLON FILTER SET BLACK 1

314-1 D10 INC. 25,26,56,76,89,94,180

A01 165390-9 GUIDE BAR 18 1

A01-1 165390-9 GUIDE BAR 18 1

A02 419560-5 CHAIN PROTECTION COVER 430 1

A03 197324-4 TOOL KIT 1

A03 C10 782025-3 TORX WRENCH 1

A03 C20 782026-1 UNIVERSAL WRENCH 13/16 1

A03 C30 783012-5 SCREWDRIVER 1

A03 C40 831340-3 TOOL BAG 1

A04 197568-6 SAW CHAIN SET 1

A04-1 196214-8 SAW CHAIN 18 SET 1

A04-2 196214-8 SAW CHAIN 18 SET 1

B01 183L41-4 CYLINDER PISTON SET 1

B01 D10 INC. 59-61,17 59-61,17
