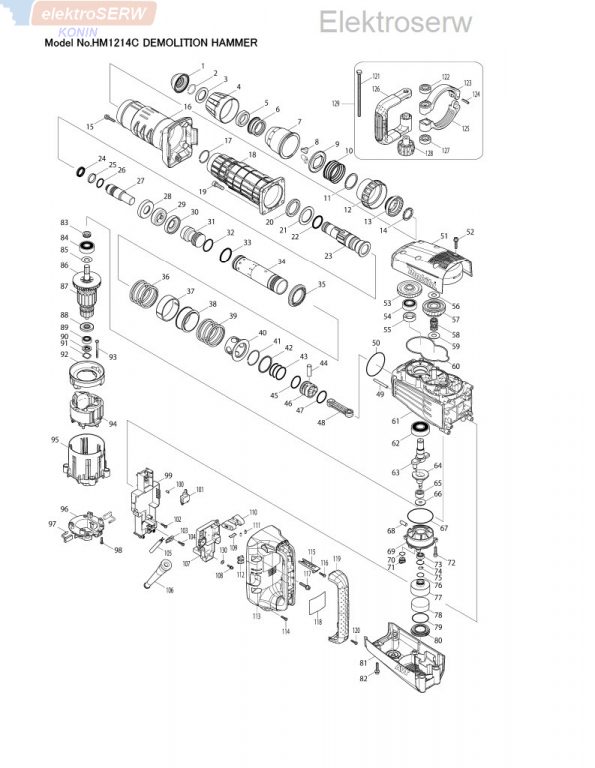

Makita HM1214C lista części



1 424165-8 TOOL HOLDER CAP 1

2 233973-4 RING SPRING 26 1

3 267386-7 FLAT WASHER 30 1

4 450894-7 CHUCK COVER 1

5 262147-0 RUBBER RING 30 1

6 324987-5 CHUCK RING 1

7 450895-5 RELEASE COVER 1

8 310279-8 TOOL RETAINER 2

9 346015-6 SPRING GUIDE 1

10 234086-4 COMPRESSION SPRING 56 1

11 961232-3 RETAINING RING WR-45 1

12 450893-9 CHANGE RING COVER 1

13 324969-7 CHANGE RING 1

14 324988-3 LOCK RING 1

15 266499-1 H.S HEAD BOLT M6X30 WITH GM 1

16 451113-4 BARREL COVER 1

17 233970-0 RING SPRING 35 1

18 158984-7 BARREL COMPLETE 1

018-1 141786-8 BARREL COMPLETE 1

19 266010-9 HEX. SOCKET HEAD BOLT M8X30 4

20 262148-8 RUBBER RING 39 1

21 267387-5 FLAT WASHER 39 1

22 213079-4 O-RING 35.5 1

23 324985-9 TOOL HOLDER 1

24 213980-3 X-RING 21 1

25 213431-6 FLUORIDE RING 28 1

26 213394-6 O RING 23 1

27 325681-2 IMPACT BOLT 1

28 324993-0 SHOULDER SLEEVE 1

29 262149-6 RUBBER RING 24 1

30 324993-0 SHOULDER SLEEVE 1

31 325680-4 STRIKER 1

32 213499-2 O-RING 31.5 1

33 213581-7 O-RING 44 1

34 331856-3 CYLINDER 40 1

35 451110-0 CYLINDER GUIDE 1

36 234107-2 COMPRESSION SPRING 58 1

37 451103-7 WEIGHT GUIDE 1

38 331854-7 COUNTER WEIGHT 1

39 234107-2 COMPRESSION SPRING 58 1

40 325661-8 SLIDE SLEEVE 1

41 231985-1 RING SPRING 43 1

42 257297-4 RING 45 1

43 213510-0 O RING 36 3

44 268121-6 PIN 12 1

45 213499-2 O-RING 31.5 1

46 450961-8 PISTON 1

47 213149-9 O RING 35 1

48 450890-5 CONNECTING ROD 1

49 268235-1 PIN 6 1

50 213754-2 O RING 71 1

51 451115-0 GEAR COVER 1

52 266499-1 H.S HEAD BOLT M6X30 WITH GM 6

53 226699-5 HELICAL GEAR 52 1

54 211256-2 BALL BEARING 6203LLB 1

054-1 211290-2 BALL BEARING 6203ZZ 1

55 213313-2 OIL SEAL 20 1

56 267166-1 FLAT WASHER 14 1

57 226155-5 GEAR COMPLETE 34-48 1

58 212159-3 NEEDLE CAGE 1412 2

59 267166-1 FLAT WASHER 14 1

60 424196-7 SEAL RING 1

61 158983-9 CRANK HOUSING COMPLETE 1

62 211327-5 BALL BEARING 6304LLU 1

63 325659-5 CRANK SHAFT 1

64 325660-0 COUNTER SHAFT 1

65 212225-6 NEEDLE BEARING 1613 1

66 325662-6 SHOULDER WASHER 8 1

67 213754-2 O RING 71 1

68 268222-0 PIN 8 1

69 158985-5 BEARING BOX COMPLETE 1

70 213176-6 O RING 14 1

71 451104-5 GREASE CAP 1

72 266087-4 HEX.BOLT M6X25 3

73 211032-4 BALL BEARING 608ZZ 1

073-1 210223-4 BALL BEARING 608ZZ 1

74 962112-6 RETAINING RING R-22 1

75 961004-6 RETAINING RING S-8 1

76 213262-3 O RING 18 1

77 451108-7 FILTER CASE 1

78 443147-1 FILTER 1

79 213569-7 O RING 45 1

80 451109-5 FILTER CASE COVER 1

81 451116-8 REAR COVER 1

82 266499-1 H.S HEAD BOLT M6X30 WITH GM 6

83 331855-5 SEALING SCREW 1

84 211249-9 BALL BEARING 6302LLU 1

85 267397-2 FLAT WASHER 15 1

86 240003-4 FAN 80 1

87 517838-1 ARMATURE ASSEMBLY 220-240V 1

87 D10 INC. 84-86,88,89

88 681642-5 INSULATION WASHER 1

89 210059-1 BALL BEARING 6000DDW 1

90 451107-9 WASHER GUIDE 1

91 267809-5 WAVE WASHER 19 1

92 451111-8 BAFFLE PLATE 1

93 266095-5 TAPPING SCREW 5X55 2

94 636303-2 FIELD 220-240V 1

95 451117-6 MOTOR HOUSING 1

96 638447-4 BRUSH HOLDER UNIT 1

096-1 632D00-2 BRUSH HOLDER UNIT 1

97 194412-8 CARBON BRUSH CB-171 1

097-1 195844-2 CARBON BRUSH CB-175 1

98 265995-6 TAPPING SCREW 4X18 4

99 158986-3 CONTROLLER COVER COMPLETE 1

099-1 158986-3 CONTROLLER COVER COMPLETE 1

100 263027-3 RUBBER PIN 4 1

101 651423-1 SWITCH 1

102 265995-6 TAPPING SCREW 4X18 2

103 687169-3 STRAIN RELIEF 1

104 265995-6 TAPPING SCREW 4X18 1

105 692637-3 POWER SUPPLY CORD 1.5-2-5.0 1

106 682560-0 CORD GUARD 10 1

107 631883-3 CONTROLLER 1

107-1 631883-3 CONTROLLER 1

107-2 620226-4 CONTROLLER 1

108 265490-6 HEX. SOCKET HEAD BOLT M4X16 2

108-1 266834-3 H.S.H.BOLT M4X18 WITH GM 2

109 232209-8 LEAF SPRING 1

110 451112-6 SLIDE LEVER 1

111 263027-3 RUBBER PIN 4 2

112 451105-3 LENS 1

113 451118-4 HANDLE 1

114 265995-6 TAPPING SCREW 4X18 1

115 451106-1 SWITCH LEVER 1

116 265995-6 TAPPING SCREW 4X18 1

117 266499-1 H.S HEAD BOLT M6X30 WITH GM 4

118 866749-0 HM1214C NAME PLATE 1

119 451119-2 HANDLE COVER 1

120 265995-6 TAPPING SCREW 4X18 2

121 265439-6 HEX. BOLT M8X150 1

122 417002-3 SIDE HANDLE CAM 1

123 318430-4 SIDE HANDLE BASE 90A 1

124 951166-8 SPRING PIN 5-24 1

125 318431-2 SIDE HANDLE BASE 90B 1

126 417003-1 SIDE HANDLE 1

127 417002-3 SIDE HANDLE CAM 1

128 252640-2 WING NUT M8 1

129 135283-4 SIDE HANDLE 90 ASSEMBLY 1

129 D10 INC. 121-128

130 941051-3 FLAT WASHER 4 2

130-1 346546-5 PLATE 2

131 442180-0 BOTH SIDE ADHESIVE TAPE 1

132 126096-4 CONTROLLER ASSEMBLY 1

132 D10 INC. 99,102,107,131

132-1 141804-2 CONTROLLER ASSEMBLY 1

132-1 D10 INC. 99,102,107,131

A01 A-80787 BULL POINT 280 SDS-MAX 1

A02 194659-4 GREASE VESSEL SET 1

A02-1 194683-7 GREASE VESSEL SET 1

A03 443122-7 CLOTH 1

A04 824882-4 PLASTIC CARRYING CASE 1

A04 C10 162271-8 LATCH 2

A05 809301-1 HM1214C PLASTIC CASE LABEL 2

B01 195114-9 HAMMER SERVICE KIT 1

B01 C10 181490-7 HAMMER GREASE 30G 2

B01 D10 INC. 1,20,22,24-26,29,32,45,



B01 D20 INC. 47,97
