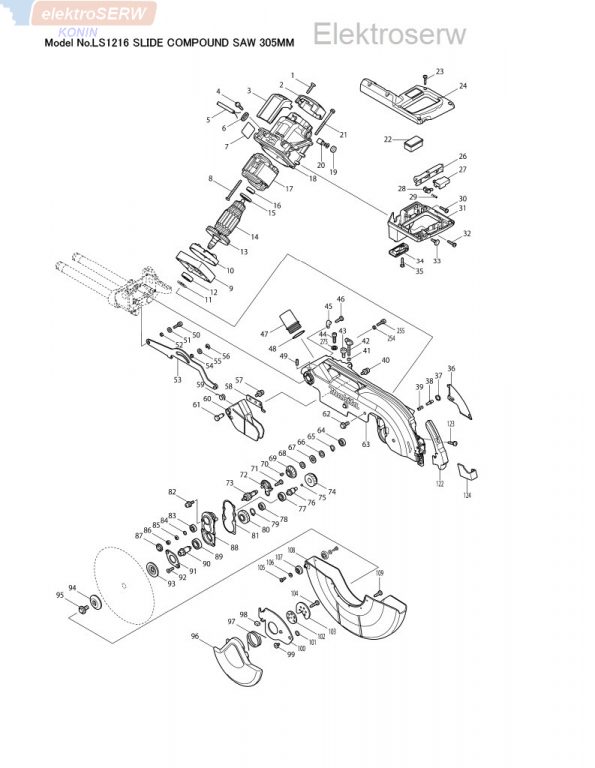

Makita LS1216 lista części



1 265995-6 TAPPING SCREW 4X18 2

2 450999-3 REAR COVER 1

3 631865-5 CONTROLLER 1

4 265995-6 TAPPING SCREW 4X18 2

5 692527-0 POWER SUPPLY CORD 1.0-2-2.5 1

6 687124-5 STRAIN RELIEF 1

7 866946-8 LS1216 NAME PLATE 1

8 266329-6 TAPPING SCREW 5X60 2

9 318471-0 MOTOR BRACKET 1

10 451194-8 BAFFLE PLATE 1

11 961057-5 RETAINING RING S-17 1

012-1 210301-0 BALL BEARING 6003DDW 1

13 240001-8 FAN 80 1

14 517844-6 ARMATURE ASSEMBLY 240V 1

14 D10 INC. 13,15,16

15 681642-5 INSULATION WASHER 1

16 210067-2 BALL BEARING 6000ZZ 1

17 599536-9 FIELD ASSEMBLY 240V 1

17 C10 654020-2 RING TERMINAL 2

17 C20 654502-4 CONNECTOR P-2 2

18 140083-9 MOTOR HOUSING COMPLETE 1

18 C10 643653-8 BRUSH HOLDER 6.5-13.5 2

19 643650-4 BRUSH HOLDER CAP 6.5-13.5 2

019-1 643650-4 BRUSH HOLDER CAP 6.5-13.5 2

20 181044-0 CARBON BRUSH CB-153 1

21 911948-0 PAN HEAD SCREW M6X80 WITH WR 4

22 451015-4 COVER 1

23 265995-6 TAPPING SCREW 4X18 6

24 450998-5 HANDLE COVER 1

26 451003-1 SWITCH LEVER 1

27 650618-3 SWITCH TG72B-1 1

28 416356-5 LOCK-OFF LEVER 1

29 231026-3 COMPRESSION SPRING 4 1

30 265995-6 TAPPING SCREW 4X18 2

31 140049-9 HANDLE COMPLETE 1

31 C10 810486-8 CAUTION LABEL 1

32 265995-6 TAPPING SCREW 4X18 2

33 451037-4 SWITCH BUTTON 1

34 451017-0 COVER HOLDER 1

034-1 457662-9 COVER HOLDER 1

35 265995-6 TAPPING SCREW 4X18 1

36 451199-8 LEAD COVER 1

37 231928-3 RING SPRING 8 1

38 256633-1 PIN 6 1

39 231240-1 COMPRESSION SPRING 7 1

40 911113-1 PAN HEAD SCREW M4X10 WITH WR 2

41 262001-8 URETHANE RING 5 1

041-1 262190-9 URETHANE RING 5 1

42 265717-4 SCREW M6X43 1

43 266488-6 HEX SOCKET HEAD BOLT M8X20 1

44 922332-4 HEX. SOCKET HEAD BOLT M6X20 1

45 687042-7 STRAIN RELIEF 1

46 266026-4 TAPPING SCREW BIND CT 4X12 1

47 419277-0 DUST NOZZLE 1

48 213460-9 O RING 35 1

49 266321-2 H.S.SET SCREW(FLAT POINT)M6X16 1

50 922331-6 HEX. SOCKET HEAD BOLT M6X20 1

51 253804-1 FLAT WASHER 6 1

52 257163-5 RING 6 1

53 140164-9 LINK PLATE COMPLETE 1

54 257163-5 RING 6 1

55 253804-1 FLAT WASHER 6 1

56 961018-5 STOP RING E-5 1

57 911113-1 PAN HEAD SCREW M4X10 WITH WR 1

58 346050-4 GUARD HOLDER 1

59 231675-6 TORSION SPRING 11 1

060-1 453635-0 GUARD 1

61 325645-6 GUARD SHAFT 1

62 265324-3 HEX. FLANGE HEAD BOLT M8X12 1

63 140152-6 BLADE CASE COMPLETE 1

63 C10 263005-3 RUBBER PIN 6 3

64 210005-4 BALL BEARING 608DDW 1

65 961052-5 RETAINING RING S-12 1

66 253744-3 FLAT WASHER 12 1

67 261104-5 RUBBER WASHER 12 1

68 253744-3 FLAT WASHER 12 1

69 227550-2 SPIRAL BEVEL GEAR 32 1

70 254001-2 WOODRUFF KEY 4 1

71 266026-4 TAPPING SCREW BIND CT 4X12 2

72 451002-3 GREASE HOLDER 1

73 227701-7 HELICAL GEAR 14 1

74 227702-5 HELICAL GEAR 27 1

75 216024-8 STEEL BALL 4 1

075-1 216049-2 STEEL BALL 4 1

76 325643-0 GEAR SHAFT 1

77 210067-2 BALL BEARING 6000ZZ 1

78 210005-4 BALL BEARING 608DDW 1

79 961055-9 RETAINING RING S-15 1

80 227703-3 HELICAL GEAR 28 1

81 442147-8 GASKET 1

82 911223-4 PAN HEAD SCREW M5X16 3

83 210005-4 BALL BEARING 608DDW 1

84 267010-2 FLAT WASHER 5 1

85 942101-7 SPRING WASHER 5 1

085-1 253427-5 SPRING WASHER 5 1

86 931202-6 HEX. NUT M5 1

87 285847-5 BEARING RETAINER 14-23 1

88 158957-0 BEARING BOX COMPLETE 1

88 C10 263002-9 RUBBER PIN 4 1

89 211236-8 BALL BEARING 6002DDW 1

90 325644-8 SPINDLE 1

91 285732-2 BEARING RETAINER 51 1

92 265034-2 + COUNTERSUNK HEAD SCREW M5X16 2

093-1 224431-1 INNER FLANGE 53 1

94 224432-9 OUTER FLANGE 53 1

95 265405-3 HEX. FLANGE HEAD BOLT M10X20 1

96 158959-6 SAFETY COVER A COMPLETE 1

97 233554-4 TORSION SPRING 45 1

98 424190-9 CUSHION 1

99 265985-9 HEX.SOCKET HEAD BOLT M6 1

100 346048-1 CENTER COVER 1

101 253932-2 WAVE WASHER 10 1

102 344539-6 CENTER WASHER 1

103 346047-3 CENTER PLATE 1

104 266034-5 TAPPING SCREW CT 4X16 1

105 266020-6 TAPPING SCREW 4X12 2

106 941051-3 FLAT WASHER 4 2

107 424193-3 ROLLER 2

108 451197-2 SAFETY COVER B 1

109 266026-4 TAPPING SCREW BIND CT 4X12 3

122 451196-4 BLADE CASE COVER 1

123 266034-5 TAPPING SCREW CT 4X16 1

124 451038-2 PROTECTOR 1

127 265026-1 + PAN HEAD SCREW M4 2

128 941102-2 FLAT WASHER 5 2

129 233267-7 COMPRESSION SPRING 7 2

130 941102-2 FLAT WASHER 5 2

131 272261-4 LEVER 45 2

132 325651-1 JOINT 2

133 253804-1 FLAT WASHER 6 2

134-1 142815-0 UPPER FENCE R COMPLETE 1

134-1 C10 810503-4 CAUTION LABEL 1

135 346058-8 GUIDE PLATE 2

136-1 318476-0 LOWER FENCE R 1

137 265783-1 THUMB SCREW M6X18 1

138-1 318411-8 GUIDE FENCE 1

139 922443-5 H.S.H.BOLT M8X25 WITH WR 4

140 256226-4 PIN 4 2

141 266264-8 H.S.SET SCREW(FLAT POINT)M5X6 2

142 265783-1 THUMB SCREW M6X18 1

143-2 318863-3 LOWER FENCE L 1

144-1 142814-2 UPPER FENCE L COMPLETE 1

144-1 C10 810503-4 CAUTION LABEL 1

145 346049-9 STOPPER ARM 1

146 253948-7 WAVE WASHER 8 1

147 253835-0 FLAT WASHER 8 1

148 251267-5 + PAN HEAD SCREW M6 1

149 451202-5 SLEEVE 17 1

150 323740-6 ROD 16 1

151 271601-3 KNOB 20 1

152 213011-8 O RING 7 1

153 322629-5 STOPPER PIN 1

154 233542-1 TORSION SPRING 40 1

155 266026-4 TAPPING SCREW BIND CT 4X12 1

156 158962-7 STOPPER LEVER COMPETE 1

156 C10 263002-9 RUBBER PIN 4 1

157-3 140976-0 FRONT ARM COMPLETE 1

158 265783-1 THUMB SCREW M6X18 1

159 231240-1 COMPRESSION SPRING 7 1

160 266034-5 TAPPING SCREW CT 4X16 1

161 140155-0 ARM COMPLETE 1

161 C10 262077-5 FELT RING 25 4

161 C20 263005-3 RUBBER PIN 6 1

161 C30 344638-4 CAP 35 3

162-1 318403-7 HOLDER 1

163 266208-8 H.S.SET SCREW(CUP POINT)M6X8 2

164 266026-4 TAPPING SCREW BIND CT 4X12 1

165 687042-7 STRAIN RELIEF 1

166 911113-1 PAN HEAD SCREW M4X10 WITH WR 1

167 252130-5 HEX. LOCK NUT M10-17 1

168 253024-7 FLAT WASHER 10 2

169 216413-7 THRUST NEEDLE CAGE 1024 1

170 451019-6 LEVER 105 1

171 265589-7 HEX BOLT M10 1

172 253024-7 FLAT WASHER 10 1

173 415208-7 RELEASE BUTTON 1

174 233031-6 COMPRESSION SPRING 12 1

175 266488-6 HEX SOCKET HEAD BOLT M8X20 1

176 318405-3 STOPPER 1

177 961052-5 RETAINING RING S-12 1

178 253744-3 FLAT WASHER 12 1

179 231646-3 TORSION SPRING 14 1

180 262158-5 RUBBER RING 9 1

181 346071-6 PLATE 1

182 266488-6 HEX SOCKET HEAD BOLT M8X20 1

183 451200-9 ARM COVER 1

184 266034-5 TAPPING SCREW CT 4X16 1

185 343678-9 POINTER 1

186 266034-5 TAPPING SCREW CT 4X16 1

187 158964-3 ARM HOLDER COMPLETE 1

187 C10 263005-3 RUBBER PIN 6 1

187 C20 816927-2 BEVEL SCALE LABEL 1

187 C30 816937-9 INDICATION LABEL 1

188 266488-6 HEX SOCKET HEAD BOLT M8X20 1

189 961011-9 STOP RING E-4 1

190 451044-7 CAM 1

191 325656-1 ROD 6 1

192 272262-2 LEVER 22 1

193 911113-1 PAN HEAD SCREW M4X10 WITH WR 1

194 234122-6 COMPRESSION SPRING 6 1

195 325865-2 LOCK PIN 8 1

196 232250-1 LEAF SPRING 1

197 325646-4 CENTER SHAFT 1

198 451039-0 POSITION PLATE 1

199 451070-6 ARM HOLDER COVER 1

200 266034-5 TAPPING SCREW CT 4X16 1

201 158967-7 SQUARE ROD COMPLETE 1

201 C10 263005-3 RUBBER PIN 6 1

202 925251-3 HEX.BOLT M5X30 2

203 266026-4 TAPPING SCREW BIND CT 4X12 6

204 451201-7 KERF BOARD 2

205 265585-5 HEX BOLT M8X45 1

206 253762-1 FLAT WASHER 8 1

207 140166-5 TURN BASE COMPLETE 1

207 C10 816930-3 INDICATION LABEL 1

208 266026-4 TAPPING SCREW BIND CT 4X12 1

209 451009-9 INDICATION PLATE 1

210 451011-2 RACK BLOCK 1

211 266385-6 TAPPING SCREW 4X14 1

212 941051-3 FLAT WASHER 4 1

213 266026-4 TAPPING SCREW BIND CT 4X12 1

214 346052-0 SLIDE LOCK PLATE 1

215 286275-7 CAP 1

216 961013-5 STOP RING E-7 1

217 313165-2 CAM 1

218 231131-6 COMPRESSION SPRING 11 1

219 267047-9 FLAT WASHER 10 1

220 273666-1 GRIP 50 1

221 318410-0 PIN HOLDER 1

222 266034-5 TAPPING SCREW CT 4X16 4

223 451010-4 LOCK LEVER 1

224 345272-3 LOCK LEVER PLATE 1

225 266034-5 TAPPING SCREW CT 4X16 2

226 266505-2 H.S. BINDING HEAD SCREW M6X14 1

228 346094-4 MITER LOCK PLATE A 1

229 234104-8 COMPRESSION SPRING 13 1

230 266306-8 SHOULDER SCREW M5 1

231 231325-3 COMPRESSION SPRING 6 1

232 256158-5 PIN 3 1

233 325695-1 LOCK PIN 6 1

234 158968-5 LINEAR BEARING BOX COMPLETE 1

235 451018-8 SPUR GEAR 43 1

236 232249-6 LEAF SPRING 1

237 266026-4 TAPPING SCREW BIND CT 4X12 1

238 922441-9 HEX. SOCKET HEAD BOLT M8X25 3

239 421845-7 FOOT 4

240 267195-4 FLAT WASHER 4 4

241 266026-4 TAPPING SCREW BIND CT 4X12 4

242-1 140054-6 BASE COMPLETE 1

242-1 D10 INC. 243,246,252

243 810495-7 CAUTION LABEL 1

246 817283-3 CAUTION LABEL 1

247 816920-6 MITER SCALE PLATE 1

248 451012-0 SLIDE PLATE 1

249 266026-4 TAPPING SCREW BIND CT 4X12 3

250 266034-5 TAPPING SCREW CT 4X16 1

251 232075-3 LEAF SPRING 1

252 817283-3 CAUTION LABEL 1

254 257785-1 SLEEVE 6 1

255 922226-3 HEX. SOCKET HEAD BOLT M5X18 1

256 216024-8 STEEL BALL 4 2

256-1 216049-2 STEEL BALL 4 2

257 253874-0 FLAT WASHER 4 1

258 266042-6 TAPPING SCREW BIND CT 4X20 1

271 140165-7 MITER LOCK PLATE B COMPLETE 1

272 256246-8 PIN 6 1

273 346096-0 PLATE 1

274 266034-5 TAPPING SCREW CT 4X16 2

275 942151-2 SPRING WASHER 6 1

275-1 253428-3 SPRING WASHER 6 1

276 266318-1 H.S.SET SCREW(FLAT POINT)M4X6 1

277 253313-0 THIN WASHER 14 1

280 424438-9 DUST FILTER 1

A01 122852-0 DUST BAG ASS'Y 1

A01 C10 410602-8 FASTENER 1

A02 122854-6 VISE ASS'Y 1

A02 C11 140037-6 VISE ARM A COMPLETE 1

A02 C16 140038-4 VISE ARM B COMPLETE 1

A02 C21 168522-7 SET PLATE 1

A02 C26 251370-2 + PAN HEAD SCREW M5 1

A02 C31 251887-5 SCREW M6X10 1

A02 C36 253744-3 FLAT WASHER 12 1

A02 C41 253804-1 FLAT WASHER 6 1

A02 C46 266026-4 TAPPING SCREW BIND CT 4X12 1

A02 C51 271328-5 KNOB 40 1

A02 C56 313163-6 RELEASE NUT R 1

A02 C61 313164-4 RELEASE NUT L 1

A02 C66 343651-9 VISE PLATE 1

A02 C71 346053-8 NUT HOLDER 1

A02 C76 346054-6 PROTECTOR 2

A02 C81 961052-5 RETAINING RING S-12 1

A03 762001-3 TRIANGULAR RULE 1

A04 265786-5 SCREW M5X16 2

A05 325673-1 HOLDER 200 2

A06 782232-8 BOX WRENCH 13 1

A07 A-94443 T.C.T.SAW BLADE 305X25.4X70T 1

E01 257060-5 RING 15.8 1

E02 651941-9 SWITCH V-15-2A5 1
