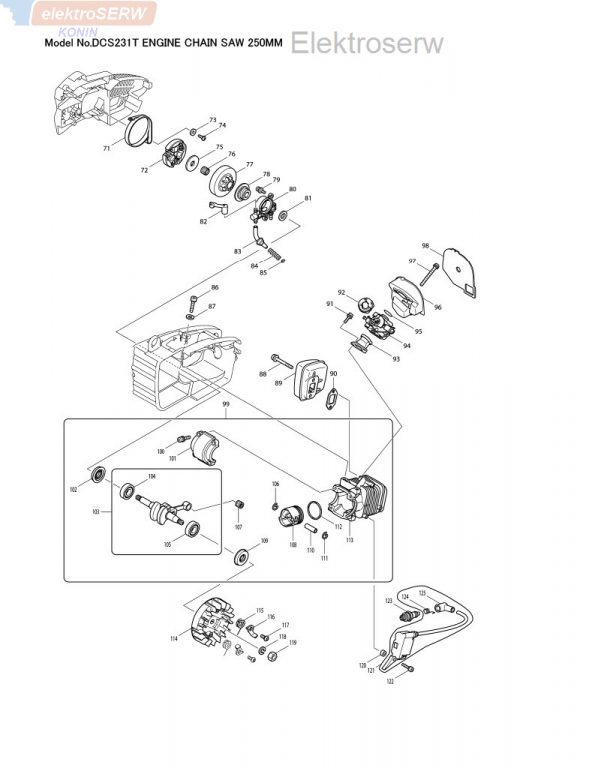

Makita DCS231T 1 lista części



Item Sub Parts No. Parts Description Qty

1 154650-4 FRONT HAND GUARD COMPLETE 1

1 D10 INC. 2

2 810075-9 CAUTION LABEL 1

3 233175-2 COMPRESSION SPRING 9 1

4 163448-8 LINKPLATE COMPLETE 1

5 231298-0 COMPRESSION SPRING 6 1

6 418715-9 HAND GUARD COVER 1

7 266020-6 TAPPING SCREW 4X12 2

8 418736-1 SPRING COVER 1

9 266020-6 TAPPING SCREW 4X12 4

10 183946-6 SPROCKET COVER SET 1

10 D10 INC. 11

010-1 183M43-6 SPROCKET COVER SET 1

010-1 D10 INC. 11

11 819221-1 MAKITA LOGO LABEL 1

12 226590-7 HELICAL GEAR 17 1

13 226534-7 HELICAL GEAR 8 1

14 324464-7 ADJUST PIN 1

15 252145-2 COLLARED HEX NUT M8 1

016-1 345653-1 CHAIN SLIDER R 1

17 266020-6 TAPPING SCREW 4X12 1

18 265995-6 TAPPING SCREW 4X18 1

19 418710-9 CHAIN CATCHER 1

020-1 345652-3 CHAIN SLIDER L 1

21 265995-6 TAPPING SCREW 4X18 1

22 418707-8 OIL PUMP COVER 1

23 421877-4 SPONGE 10 1

24 421298-0 CHECK VALVE 1

25 266007-8 TAPPING SCREW BIND PT 3X10 2

26 418734-5 TOP COVER 1

27 324477-8 DAMPER SPRING 1

28 265995-6 TAPPING SCREW 4X18 2

29 421874-0 BUFFER RUBBER 1

30 153918-5 HOUSING COMPLETE 1

31 168399-0 TANKCAP COMPLETE 2

031-1 168508-1 TANK CAP COMPLETE 2

031-1 C10 213355-6 O-RING 25 2

32 421875-8 GROMMET 1

33 168396-6 BREATHER 1

34 418700-2 BUFFLE PLATE 1

35 422036-3 TUBE 3-70 1

36 271422-3 KNOB 28 1

37 168398-2 PRIMER PUMP 1

40 265995-6 TAPPING SCREW 4X18 4

41 418696-7 TOP HANDLE COVER 1

42 163447-0 FUEL FILTER 1

042-1 163447-0 FUEL FILTER 1

043-1 168491-2 TUBE COMPLETE 1

44 418695-9 TOP HANDLE 1

45 418703-6 CLEANER CASE COVER 1

46 421872-4 AIR DUCT 1

47 418706-0 LOCKOFF LEVER 1

48 324468-9 ROD 1

49 651525-3 SWITCH SLE6A2-GG-31 1

050-1 419362-9 THROTTLE LEVER 1

51 231672-2 TORSION SPRING 11 1

52 418708-6 CHOKE LEVER 1

53 266007-8 TAPPING SCREW BIND PT 3X10 1

54 265995-6 TAPPING SCREW 4X18 1

55 421874-0 BUFFER RUBBER 1

56 418709-4 BUFFER CAP 1

57 418704-4 SIDE HANDLE 1

58 266053-1 TAPPING SCREW 4X35 1

59 125260-4 RECOILSTARTER ASS'Y 1

59 D10 INC. 60-68

60 SG00000005 SET SCREW A60701200080 1

61 SG00000004 CAM PLATE A54308180700 1

62 SG00000003 DAMPER SPRING A52408180700 1

63 SG00000001 REEL A54108100300 1

64 SG00000007 STARTER ROPE A57110860000 1

65 SG00000002 SPRING ASS'Y A20403720201 1

66 SG00000008 STARTER KNOB A5720A20000 1

67 SG00000009 ROPE STOPPER A57302611810 1

68 163450-1 STARTER CASE COMPLETE 1

69 265995-6 TAPPING SCREW 4X18 3

70 862404-2 NAME PLATE DCS231T 1

71 345454-7 BRAKE BAND 1

72 168391-6 CLUTCH COMPLETE 1

73 267195-4 FLAT WASHER 4 1

74 266020-6 TAPPING SCREW 4X12 1

75 267284-5 FLAT WASHER 8 1

76 212077-5 NEEDLE CAGE 1

77 165405-2 CLUTCHDRUM COMPLETE 1

78 221422-3 WORM GEAR 1

79 911118-1 PAN HEAD SCREW M4X12 2

80 168393-2 OIL PUMP 1

81 253758-2 FLAT WASHER 10 1

82 421873-2 CONNECTOR 1

83 421876-6 OIL TUBE 1

84 231975-4 SPRING 1

85 416274-7 CAP 1

86 922231-0 HEX. SOCKET HEAD BOLT M5X20 4

87 941101-4 FLAT WASHER 5 4

88 266354-7 FLANGE SOCKET M5X40 2

89 168392-4 EXHAUSTMUFFLER COMPLETE 1

90 418718-3 MUFFLER GASKET 1

91 922123-3 HEX. SOCKET HEAD BOLT M4X14 2

92 418717-5 THROTTLE HOLDER 1

93 421950-0 INSULATOR 1

94 168421-3 CARBURETOR 1

94 D10 INC. 126-140

95 213221-7 O RING 15 1

96 418702-8 CLEANER CASE 1

97 911268-2 PAN HEAD SCREW M5X45 2

98 443118-8 AIR FILTER 1

99 125255-7 ENGINE SHORT BLOCK 1

99 D10 INC. 100-103,106-113

100 922233-6 H.S.H.BOLT M5X20 WITH WR 4

101 183944-0 CYLINDER SET 1

101 D10 INC. 113

102 213131-8 OIL SEAL 12 1

103 153910-1 CRANKSHAFT COMPLETE 1

103 D10 INC. 104,105

104-1 210113-1 BALL BEARING 6001 1

105-1 210113-1 BALL BEARING 6001 1

106-1 233976-8 CLIP 1

107 212955-9 NEEDLE CAGE 8X11X10 1

108 317811-9 PISTON 1

109 213131-8 OIL SEAL 12 1

110 324467-1 PISTON PIN 8 1

111-1 233976-8 CLIP 1

112 324463-9 PISTON RING 2

113 183944-0 CYLINDER SET 1

113 D10 INC. 101

114 317813-5 FLYWHEEL 1

115 231671-4 TORSION SPRING 2

116 345453-9 RACHET 2

117 266342-4 HEX.SOCKET BUTTON BOLT M5X12 2

118 942201-3 SPRING WASHER 8 1

119 931403-6 HEX. NUT M8 1

120 418714-1 SPACER 2

121 125278-5 IGNITION COIL ASS'Y 1

121 D10 INC. 124,125

122 266359-7 FLANGE SOCKET M4X18 2

122-1 266437-3 HEX. SOCKET HEAD BOLT M4X16 2

123-1 168401-9 SPARK PLUG 1

124 324465-5 PLUG CAP SPRING 1

124-1 PK00000001 PLUG CAP SPRING 1

125 421878-2 PLUG CAP 1

125-1 PK00000002 PLUG CAP 1

126 WJ00096325 SCREW 4

127 WJ00021158 METERING DIAPHRAGM COVER 1

128 WJ00095586 DIAPHRAGM ASS'Y 1

129-1 442183-4 METERING DIAPHRAGM GASKET 1

130 WJ00014477 METERING LEVER PIN 1

131 WJ00016648 LEVER 1

132 WJ00983160 SPRING 1

133 WJ00096424 SCREW 1

134 WJ00008282 INLET NEEDLE VALVE 1

135 WJ00014070 INLET SCREEN 1

136 WJ00009599 PUMP DIAPHRAGM 1

137-1 442172-9 PUMP GASKET 1

138 WJ00112235 JET 1

139 WJ00016104 O RING 1

140 WJ00096364 SCREW M3X8 WITH WASHER 2

141 WJ00052903 PUMP BODY ASS'Y 1

141 D10 INC. 130-135

142 324616-0 HOSE CLAMP 1

143 941051-3 FLAT WASHER 4 2

144 942051-6 SPRING WASHER 4 2

A01 168408-5 GUIDE BAR 10 1

A01-1 168408-5 GUIDE BAR 10 1

A02 418845-6 GUIDE BAR CASE 1

A03-1 196205-9 SAW CHAIN SET 1

A04 782023-7 WRENCH 13-16 1
