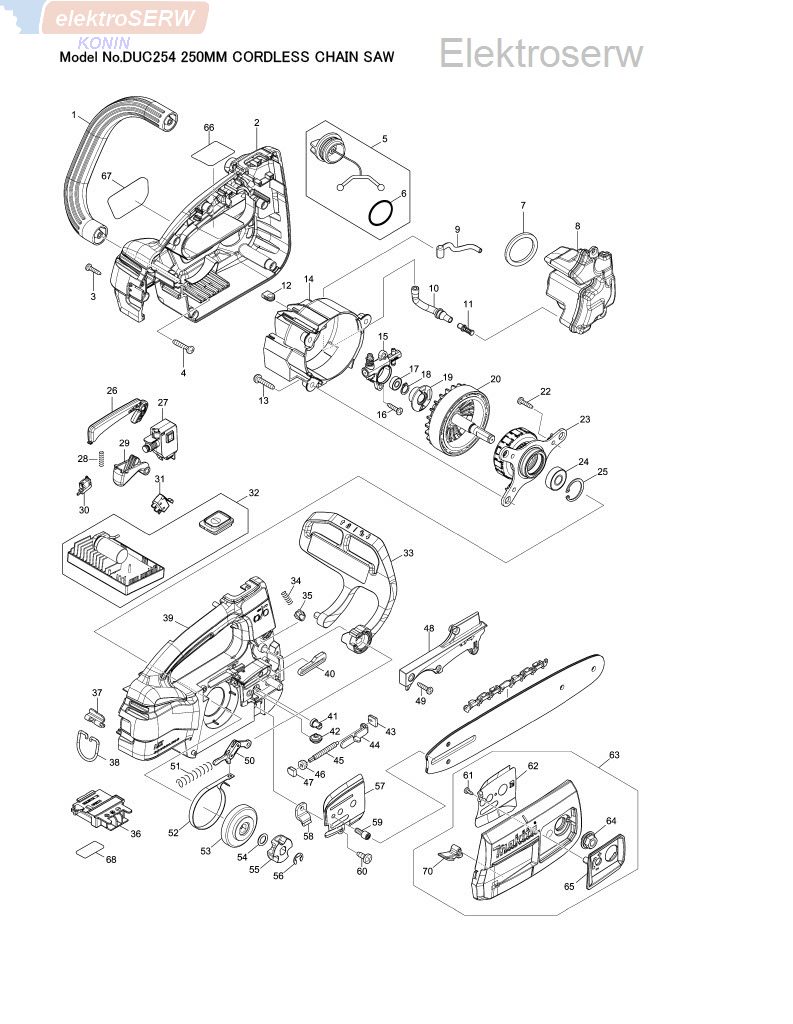

Makita DUC254 lista części

1 458490-5 SIDE HANDLE 1

2 183J27-6 HOUSING SET 1

2 C10 263005-3 RUBBER PIN 6 2

2 D10 INC. 39

3 266326-2 TAPPING SCREW 4X18 8

4 266041-8 TAPPING SCREW 5X25 2

5 168508-1 TANK CAP COMPLETE 1

5 D10 INC. 6

6 213355-6 O-RING 25 1

7 421959-2 SPONGE SEAL 1

8 140A75-4 OIL TANK COMPLETE 1

9 422271-3 CONNECTOR A 1

10 422272-1 CONNECTOR B 1

11 450437-5 FILTER 1

12 424612-9 GROMMET 1

13 266041-8 TAPPING SCREW 5X25 3

14 458489-0 MOTOR HOUSING 1

15 142857-4 OIL PUMP COMPLETE 1

16 266326-2 TAPPING SCREW 4X18 2

17 210026-6 BALL BEARING 696ZZ 1

18 961006-2 RETAINING RING S-10 1

19 221428-1 WORM GEAR 1

20 619518-6 ROTOR 1

22 266326-2 TAPPING SCREW 4X18 3

23 629378-8 STATOR COMPLETE 1

24 210059-1 BALL BEARING 6000DDW 1

25 962105-3 RETAINING RING R-26 1

26 458497-1 CATCH LEVER 1

27 651365-9 SWITCH C3JW-6BM-P 1

28 233476-8 COMPRESSION SPRING 4 1

29 458495-5 SWITCH LEVER 1

30 632L49-0 SWITCH UNIT 1

31 632L48-2 SWITCH UNIT 1

32 140A77-0 CONTROLLER COMPLETE 1

32 C10 810D46-0 SWITCH LABEL 1

032-1 140P57-6 CONTROLLER COMPLETE 1

032-1 C10 810D46-0 SWITCH LABEL 1

33 140A71-2 FRONT HAND GUARD COMPLETE 1

33 C10 816U30-5 CAUTION LABEL 1

34 232453-7 COMPRESSION SPRING 3 1

35 310879-4 HAND GUARD GUIDE 1

36 643874-2 TERMINAL 1

37 347377-5 HOOK SUPPORT 1

38 281222-3 HOOK 1

39 183J27-6 HOUSING SET 1

39 C10 263005-3 RUBBER PIN 6 2

39 D10 INC. 2

40 422270-5 GROMET 1

41 227620-7 DRIVE GEAR 1

42 227634-6 STRAIGHT BEVEL GEAR 14 1

43 455241-7 CLAMP SCREW 1

44 347376-7 TENSION SLIDE 1

044-1 347569-6 TENSION SLIDE 1

45 327120-8 ADJUST SCREW 1

46 227496-2 STRAIGHT BEVEL GEAR 14 1

47 455242-5 CLAMP SCREW 1

48 458491-3 HOUSING R COVER 1

49 266326-2 TAPPING SCREW 4X18 4

50 140A74-6 LINK PLATE COMPLETE 1

51 232452-9 COMPRESSION SPRING 7 1

051-1 232599-9 COMPRESSION SPRING 7 1

52 347372-5 BRAKE BAND 1

53 161871-1 BRAKE DRUM COMPLETE 1

54 213060-5 O RING 10 1

55 221464-7 SPROCKET 6 1

56 961013-5 STOP RING E-7 1

57 347374-1 GUIDE PLATE L 1

057-1 347567-0 GUIDE PLATE L 1

58 347373-3 CHAIN CATCHER 1

59 266905-6 H.L. SOCKET HEAD BOLT M5X12 1

60 266388-0 TAPPING SCREW 5X16 1

61 266007-8 TAPPING SCREW BIND PT 3X10 1

62 347375-9 GUIDE PLATE R 1

062-1 347568-8 GUIDE PLATE R 1

63 136010-2 SPROCKET COVER ASS'Y 1

63 D10 INC. 61,62,64,65,70

063-1 136010-2 SPROCKET COVER ASS'Y 1

063-1 D10 INC. 61,62,64,65,70,71

063-2 136036-4 SPROCKET COVER ASS'Y 1

063-2 D10 INC. 61,62,64,65,70,71

063-3 136122-1 SPROCKET COVER ASS'Y 1

063-3 D10 INC. 61,62,64,65,70,71

64 161870-3 FRANGE NUT COMPLETE 1

064-1 162494-8 FLANGE NUT COMPLETE 1

65 458499-7 NUT COVER 1

66 854G31-1 DUC254 NAME PLATE 1

67 816U21-6 DUC254 MODEL NO. LABEL 1

68 854G38-7 DUC254 SERIAL NO. LABE 1

70 422310-9 CHIP GUIDE 1

71 458493-9 SPROCKET COVER 1

071-1 459771-0 SPROCKET COVER 1

A01 161846-0 GUIDE BAR 10 1

A01-1 161846-0 GUIDE BAR 10 1

A02 458501-6 GUIDE BAR CASE 1

A03 199075-5 SAW CHAIN SET 1

A04 782023-7 WRENCH 13-16 1

A09 831304-7 ACCESSORY BAG 1
