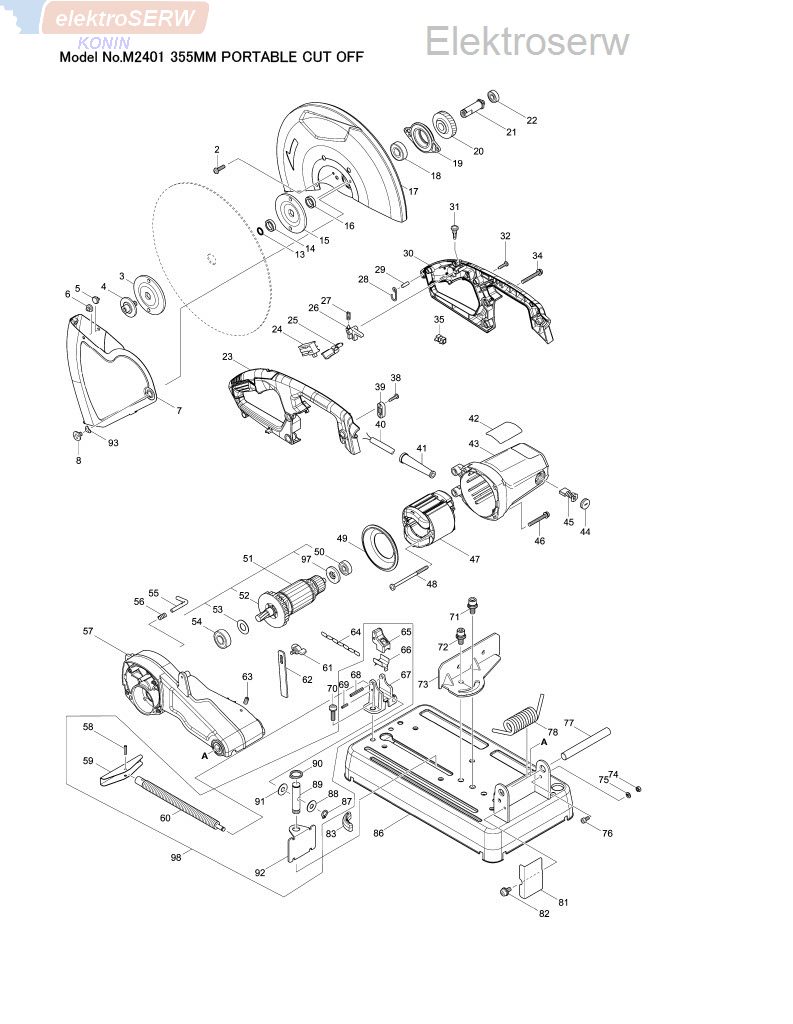

2 265122-5 PAN HEAD SCREW M5X20 4

3 224299-5 FLANGE 90 1

4 251498-6 HEX SOCKET HEAD BOLT M10X25 1

5 416771-3 PLUG 1

6 416771-3 PLUG 1

7 161529-2 SAFETY GUIDE 1

8 265121-7 + FLAT HEAD SCREW M6 1

13 213180-5 O RING 14 1

14 257255-0 RING 17 1

15 224299-5 FLANGE 90 1

16 257255-0 RING 17 1

17 161530-7 SAFETY COVER 1

18 210155-5 BALL BEARING 6203ZZ 1

19 316527-3 BEARING BOX 1

20 221462-1 HELICAL GEAR 43 1

21 326790-0 SPINDLE 1

022A 210067-2 BALL BEARING 6000ZZ 1

022-1A 210199-5 BALL BEARING 6000ZZ 1

022-1B 210199-5 BALL BEARING 6000ZZ 1

023A 183E49-6 HANDLE SET 1

23 D10 INC. 30

023B 183E50-1 HANDLE SET 1

24 651067-7 SWITCH 1

25 418141-2 SWITCH LEVER 1

26 418139-9 SWITCH LOCK 1

27 231397-8 COMPRESSION SPRING 4 1

28 281216-8 HANGER 1

29 268101-2 PIN 6 1

030A 183E49-6 HANDLE SET 1

30 D10 INC. 23

030B 183E50-1 HANDLE SET 1

31 418138-1 SWITCH BUTTON 1

32 266841-6 TAPPING SCREW 4X18 4

032-1 266326-2 TAPPING SCREW 4X18 4

34 265104-7 PAN HEAD SCREW M5X40 3

38 266841-6 TAPPING SCREW 4X18 2

038-1 266326-2 TAPPING SCREW 4X18 2

39 687124-5 STRAIN RELIEF 1

040A 692730-3 POWER SUPPLY CORD 1.0-2-2.5 1

040-1A 692519-9 POWER SUPPLY CORD 1.0-2-2.5 1

040-1B 692519-9 POWER SUPPLY CORD 1.0-2-2.5 1

041A 682540-6 CORD GUARD 9.3-90 1

041-1A 682574-9 CORD GUARD 10-90 1

041-1B 682574-9 CORD GUARD 10-90 1

42 852N80-4 M2401 NAME PLATE 1

043A 144054-8 MOTOR HOUSING COMPLETE 1

043B 144055-6 MOTOR HOUSING COMPLETE 1

043-1A 140X59-0 MOTOR HOUSING COMPLETE 1

043-1B 140X63-9 MOTOR HOUSING COMPLETE 1

44 644802-0 HOLDER CAP 2

45 191953-5 CARBON BRUSH CB-203 1

46 265104-7 PAN HEAD SCREW M5X40 4

47 593949-6 FIELD ASS'Y 240V 1

047-1 593949-6 FIELD ASS'Y 240V 1

048A 266328-8 TAPPING SCREW 5X80 2

048-1A 265A45-3 TAPPING SCREW 5X80 2

048-1B 265A45-3 TAPPING SCREW 5X80 2

49 418143-8 BAFFLE PLATE 1

50 210070-3 BALL BEARING 6200ZZ 1

51 513494-5 ARMATURE ASS'Y 240V 1

51 D10 INC. 50,52-54,97

52 240003-4 FAN 80 1

53 267274-8 FLAT WASHER 15 1

54 210156-3 BALL BEARING 6202ZZ 1

55 322665-1 STOPPER 1

56 233372-0 COMPRESSION SPRING 7 1

57 144057-2 GEAR HOUSING COMPLETE 1

57 C10 263029-9 RUBBER PIN 6 1

58 951163-4 SPRING PIN 5-20 1

59 271431-2 HANDLE 120 1

60 326802-9 VISE SCREW 1

61 265754-8 THUMB SCREW M6X12 1

62 347084-0 STOPPER PLATE 1

63 251961-9 H.S.SET SCREW(FLAT POINT)M6X10 2

64 282015-1 CHAIN 1

65 313114-9 VISE NUT 1

66 347083-2 PLATE 1

67 319474-7 SCREW GUIDE 1

68 951175-7 SPRING PIN 5-36 1

69 951110-5 SPRING PIN 4-16 1

070A 265125-9 PAN HEAD SCREW M8X30 2

070-1A 265A65-7 PAN HEAD SCREW M8X30 2

070-1B 265A65-7 PAN HEAD SCREW M8X30 2

71 251499-4 H. S. HEAD BOLT M10X25 WITH WG 1

72 251499-4 H. S. HEAD BOLT M10X25 WITH WG 1

73 345315-1 GUIDE PLATE 1

74 931302-2 HEX. NUT M6 1

075A 942151-2 SPRING WASHER 6 1

075-1A 253428-3 SPRING WASHER 6 1

075-1B 253428-3 SPRING WASHER 6 1

76 922312-0 HEX. SOCKET HEAD BOLT M6X12 1

77 326801-1 ROD 16 1

78 232325-6 TORSION SPRING 20 1

81 345313-5 SPARK GUARD 1

082A 265144-5 PAN HEAD SCREW M6X12 1

082-1A 911313-3 PAN HEAD SCREW M6X12 WITH WR 1

082-1B 911313-3 PAN HEAD SCREW M6X12 WITH WR 1

83 421834-2 CUSHION 3

86 161528-4 BASE 1

87 961004-6 RETAINING RING S-8 1

88 267257-8 FLAT WASHER 8 1

089A 256334-1 SHOULDER PIN 10-16 1

089-1A 256474-5 SHOULDER PIN 10-16 1

089-1B 256474-5 SHOULDER PIN 10-16 1

90 961056-7 RETAINING RING S-16 1

91 267257-8 FLAT WASHER 8 1

92 347085-8 VISE PLATE 1

93 253903-9 WAVE WASHER 6 1

97 681630-2 INSULATION WASHER 1

98 135841-6 VISE ASS'Y 1

98 D10 INC. 58-60,65-69,87-92

A01 783023-0 HEX. WRENCH 8 1

A02 A-89545 CUTTING WHEEL 14" 1
