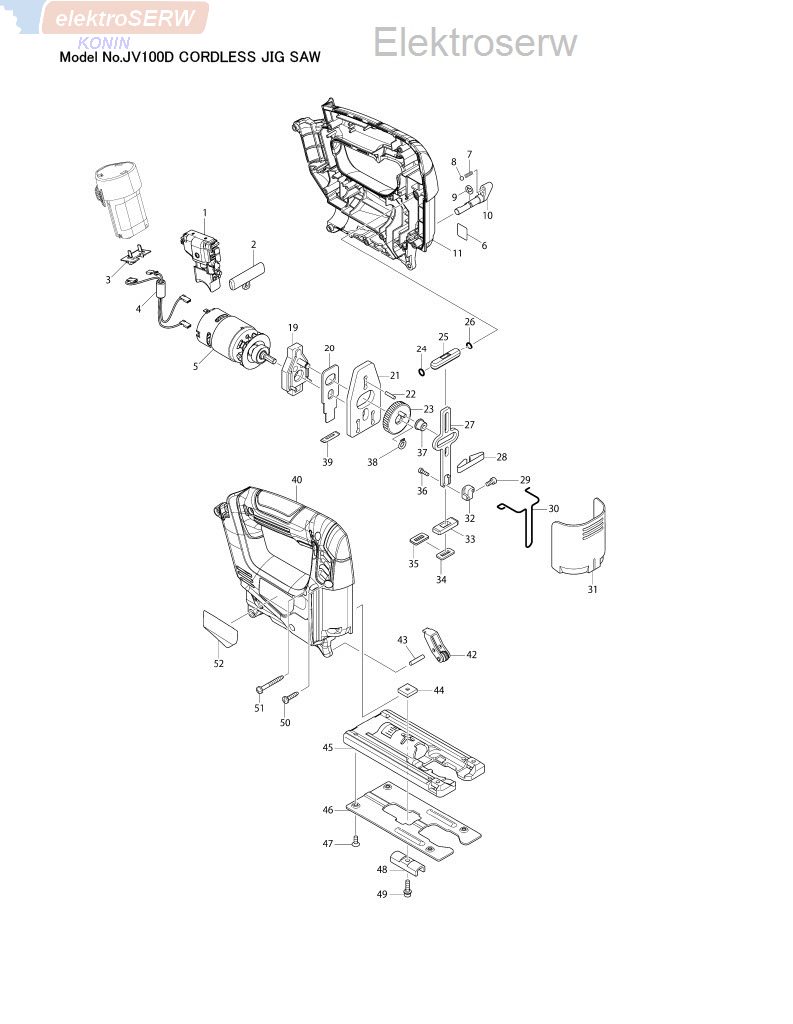

Makita JV100D lista części

1 650679-3 SWITCH C3HW-3A-M 1

2 417880-1 F/R CHANGE LEVER 1

3 643830-2 TERMINAL 1

5 629926-3 DC MOTOR 1

7 233151-6 COMPRESSION SPRING 4 1

8 216008-6 STEEL BALL 4 1

9 961011-9 STOP RING E-4 1

10 272267-2 LEVER 19 1

11 187216-5 HOUSING SET 1

11 D10 INC. 40

19 152600-3 BEARING CASE COMPLETE 1

20 344683-9 PUSH PLATE 1

21 344614-8 BALANCE PLATE 1

22 256254-9 PIN 3 1

23 153260-4 GEAR COMPLETE 1

24 213038-8 O RING 5 1

25 313082-6 SLIDER GUIDE 1

26 213038-8 O RING 5 1

27 344613-0 SLIDER 1

28 232183-0 LEAF SPRING 1

29 922107-1 HEX. SOCKET HEAD BOLT M4X8 1

30 323748-0 SAFETY WIRE 1

31 416476-5 DUST COVER 1

32 313140-8 BLADE CLAMP 1

33 313086-8 SLIDER SUPPORT 1

34 423307-1 POLY URETANE SPONGE SEAL 1

35 344686-3 SEAL PLATE 1

36 266177-3 HEX. SOCKET HEAD BOLT M3X10 2

37 257683-9 COLLAR SLEEVE 1

38 961002-0 RETAINING RING S-6 1

39 416703-0 DUST SEAL 1

40 187216-5 HOUSING SET 1

40 D10 INC. 11

42 158392-2 RETAINER COMPLETE 1

43 256117-9 PIN 4 1

44 343540-8 HOLDER 1

45 317796-9 BASE 1

46 345441-6 BASE PLATE 1

47 912107-9 COUNTERSUNK HEAD SCREW M4X8 4

048-1 344685-5 CLAMP PLATE 1

49 922128-3 HEX. SOCKET HEAD BOLT M4X16 1

50 266326-2 TAPPING SCREW 4X18 9

51 266351-3 TAPPING SCREW 4X35 1

52 896564-8 JV100D NAME PLATE 1

A01 A-85628 JIGSAW BLADE NO.B10 1

A02 783201-2 HEX. WRENCH 3 1

A03 192732-4 GUIDE RULE SET 1

A03 C10 165217-3 GUIDE RULE 1

A03 C20 323802-0 GUIDE PIN 1

A03 C30 271601-3 KNOB 20 1

A03 C40 922107-1 HEX. SOCKET HEAD BOLT M4X8 1

A04 ***DC10WA DC10WA BATTERY CHARGER 1

A05 194550-6 BATTERY BL1013 SET 2

A05-1 196066-7 BATTERY BL1013 SET 2

A06 821508-9 PLASTIC CARRYING CASE 1

A06 C10 162315-4 LATCH 2

A06 C20 452137-3 HANDLE 1

A07 890653-1 JV100DWE PLASTIC CASE LABEL 2
