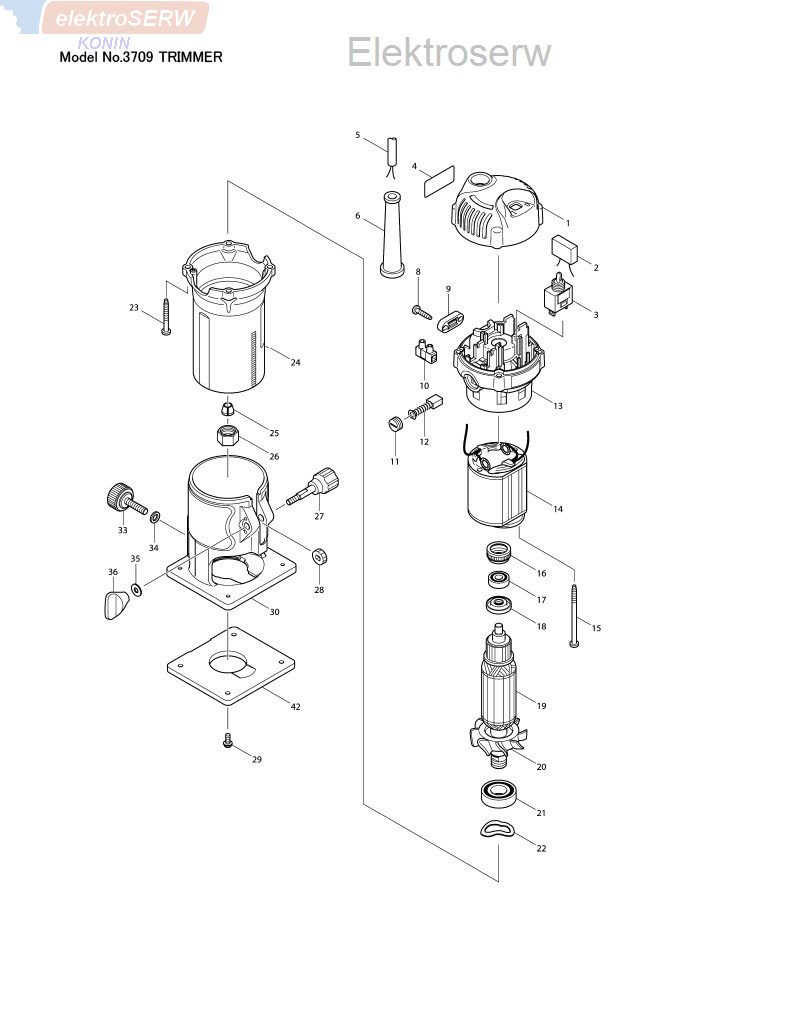

Makita 3709 lista części

1 419137-6 TOP COVER 1

3 651425-7 SWITCH STL115ADT 1

003-1 651066-9 SWITCH ST115A-TB-S1 1

4 861695-2 3709 NAME PLATE 1

5 692021-2 POWER SUPPLY CORD 1.0-2-2.5 1

6 682569-2 CORD GUARD 8-85 1

8 266326-2 TAPPING SCREW 4X18 2

9 687123-7 STRAIN RELIEF 1

11 643550-8 BRUSH HOLDER CAP 5-8 2

12 191940-4 CARBON BRUSH CB-411 1

13 154669-3 BRACKET COMPLETE 1

13 C10 643455-2 BRUSH HOLDER 6X9 2

013-1 140L18-2 BRACKET COMPLETE 1

013-1 C10 643455-2 BRUSH HOLDER 6X9 2

14 590019-2 FIELD ASS'Y 240V 1

14 C10 654100-4 RING TERMINAL 2

14 C20 654501-6 CONNECTOR P-1.25 2

014-1 590087-5 FIELD ASSY 240V 1

014-1 C10 654100-4 RING TERMINAL 2

014-1 C20 654501-6 CONNECTOR P-1.25 2

15 266340-8 TAPPING SCREW 4X65 2

16 421494-0 RUBBER RING 19 1

17 210034-7 BALL BEARING 607LLB 1

018-1 681668-7 INSULATION WASHER 1

19 515634-1 ARMATURE ASS'Y 240V 1

19 D10 INC. 17,18,20,21

20 241667-7 FAN 52 1

021-2 211489-9 BALL BEARING 6002LLUX 1

22 267785-3 WAVE WASHER 23 1

23 266351-3 TAPPING SCREW 4X35 4

24 154668-5 MOTOR HOUSING COMPLETE 1

24 C10 816817-9 SCALE LABEL 1

25 763663-0 COLLET CONE 6.35 1

26 763661-4 COLLET NUT 6 1

27 265771-8 THUMB SCREW M5X33 1

28 226217-9 SPUR GEAR 16 1

29 265142-9 + PAN HEAD SCREW M4X10 4

30 419138-4 BASE 1

33 265763-7 THUMB SCREW M6X25 1

34 941151-9 FLAT WASHER 6 1

35 941101-4 FLAT WASHER 5 1

36 252652-5 THUMB NUT M5 1

42 410585-2 BASE PROTECTOR 1

A01 122703-7 TRIMMER GUIDE ASS'Y 1

A01 C10 251471-6 - FLAT HEAD SCREW M5 1

A01 C20 265135-6 + COUNTERSUNK HEAD SCREW M4X10 1

A01 C30 265763-7 THUMB SCREW M6X25 1

A01 C40 265764-5 THUMB SCREW M6 1

A01 C50 317788-8 GUIDE HOLDER 1

A01 C60 324378-0 ROLLER 11 1

A01 C71 341136-9 HOOK 1

A01 C80 941151-9 FLAT WASHER 6 1

A02 122704-5 STRAIGHT GUIDE ASS'Y 1

A02 C10 252649-4 THUMB NUT M6 1

A02 C20 266339-3 CAP SQUARE NECK BOLT M6X20 1

A02 C31 343593-7 GUIDE PLATE 1

A03-1 343577-5 TEMPLET GUIDE 10 1

A04 781036-5 WRENCH 10 1

A05 781037-3 WRENCH 17 1

A06 418647-0 CHIP DEFLECTOR 1

A07 733238-9 STRAIGHT BIT 6E 1
