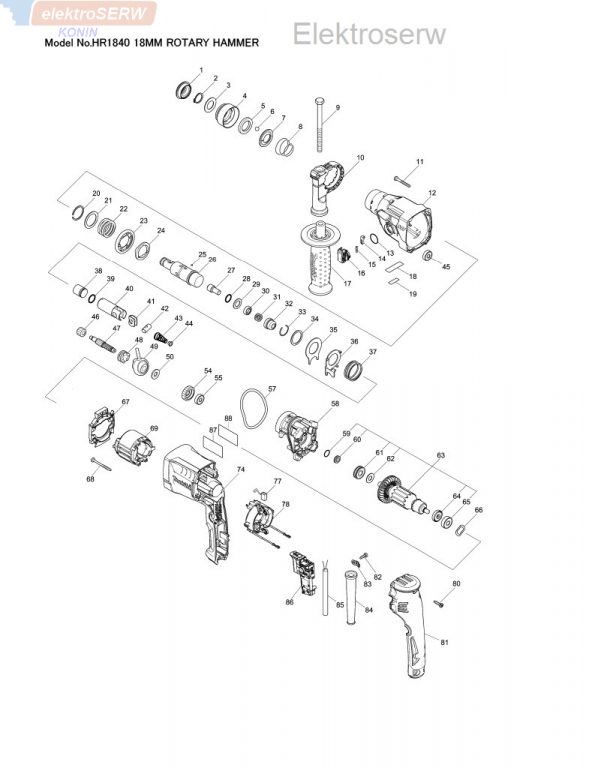

Makita  HR1840  lista części

1 286037-3 CAP 34 1

2 961057-5 RETAINING RING S-17 1

3 253377-4 FLAT WASHER 17 1

4 457214-6 CHUCK COVER 1

5 257416-2 RING 21 1

6 216022-2 STEEL BALL 7.0 2

7 346177-0 GUIDE WASHER 1

8 232347-6 CONICAL COMP. SPRING 21-29 1

9 921923-8 HEX. BOLT M8X120 1

10 417911-6 GRIP BASE 1

11 266053-1 TAPPING SCREW 4X35 4

12 144272-8 GEAR HOUSING COMPLETE 1

12 C10 213636-8 OIL SEAL 25 1

12 C20 211375-4 BALL BEARING 6805LLB 1

13 213278-8 O RING 17 1

14 161568-2 LOCK BUTTON COMPLETE 1

15 232344-2 COMPRESSION SPRING 3 1

16 161569-0 CHANGE LEVER COMPLETE 1

17 158057-6 GRIP 36 COMPLETE 1

17 C10 931402-8 HEX. NUT M8 1

18 457356-6 PLATE 1

19 853K43-5 HR1840 SERIAL NO. LABEL 1

20 961135-1 RETAINING(EXT) WR-25 1

020-1 347555-7 SPIRAL RETAINING RING 25 1

21 267304-5 FLAT WASHER 25 1

22 232360-4 COMPRESSION SPRING 25 1

23 221494-8 SPUR GEAR 44 1

24 327039-1 DRIVING FLANGE 1

25 216019-1 STEEL BALL 3 3

26 326886-7 TOOL HOLDER 1

27 326887-5 IMPACT BOLT 1

28 213117-2 O RING 11 1

29 253380-5 FLAT WASHER 13 1

30 326888-3 RING 10 1

31 232357-3 COMPRESSION SPRING 10A 1

32 327038-3 CUP SLEEVE 1

33 233942-5 RING SPRING 22 1

34 267175-0 FLAT WASHER 24 1

35 345681-6 JOINT PLATE 1

36 347128-6 CHANGE PLATE 1

37 233458-0 COMPRESSION SPRING 32 1

38 326889-1 STRIKER 1

39 213832-8 O-RING 13 1

40 326890-6 PISTON CYLINDER 1

41 347127-8 GUIDE PLATE 1

42 324612-8 PISTON JOINT 1

43 232361-2 CONICAL COMP. SPRING 6-13 1

44 347130-9 SPRING GUIDE 1

45 211016-2 BALL BEARING 626LLB 1

46 221495-6 SPUR GEAR 12 1

47 326892-2 CAM SHAFT 1

48 326891-4 CLUCTH CAM 1

49 219029-7 SWASH BEARING 9 1

50 253383-9 FLAT WASHER 9 1

54 221496-4 HELICAL GEAR 23 1

55 211016-2 BALL BEARING 626LLB 1

57 213833-6 O-RING 60 1

58 144270-2 INNER HOUSING COMPLETE 1

59 213118-0 O RING 12 1

60 326893-0 RING 9 1

61 210162-8 BALL BEARING 609LLU 1

62 267231-6 FLAT WASHER 9 1

63 513989-8 ARMATURE ASS'Y 240V 1

63 D10 INC. 59-62,64,65

64 681670-0 INSULATION WASHER 1

65 210023-2 BALL BEARING 627DDW 1

66 267804-5 WAVE WASHER 15 1

67 457351-6 BUFFLE PLATE B 1

68 266069-6 TAPPING SCREW 4X45 2

69 633994-0 FIELD 1

74 457353-2 MOTOR HOUSING B 1

77 194722-3 CARBON BRUSH CB-459 1

78 632K41-0 BRUSH HOLDER UNIT 1

80 266326-2 TAPPING SCREW 4X18 3

81 457354-0 HANDLE COVER 1

82 266385-6 TAPPING SCREW 4X14 1

83 687682-1 STRAIN RELIEF 1

84 682566-8 CORD GUARD 10 1

85 692502-6 POWER SUPPLY CORD 1.0-2-4.0 1

86 651087-1 SWITCH 1

87 853K39-6 HR1840 NAME PLATE 1

88 813E00-9 CLEAR LABEL 1

A01 415486-9 DEPTH GAUGE 1

A02 821706-5 PLASTIC CARRYING CASE 1

A02 C10 162315-4 LATCH 2

A02 C20 324679-6 SHAFT 1

A02 C30 457340-1 HANDLE 1

A03 813D89-1 HR1840 PLASTIC CASE LABEL 1
