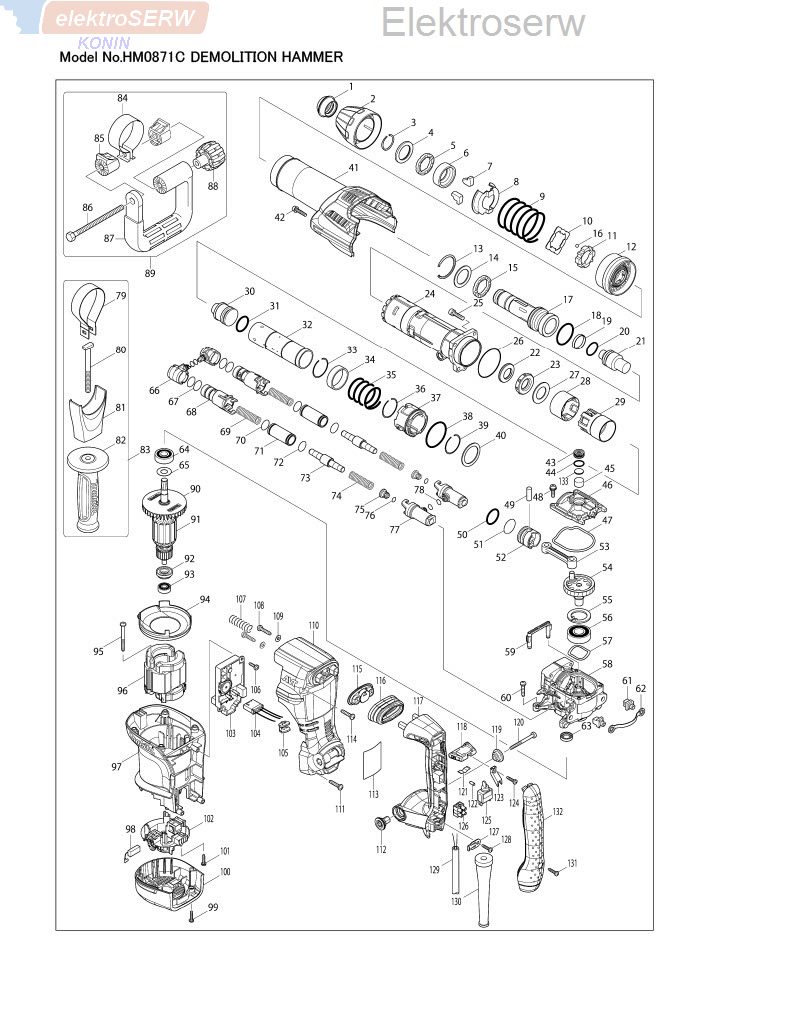

Makita HM0871C lista części



1 286287-0 TOOL HOLDER CAP 1

2 451432-8 CHUCK COVER 1

3 231984-3 RING SPRING 25 1

4 267272-2 FLAT WASHER 28 1

5 424261-2 RUBBER RING 28 1

6 331659-5 CHUCK RING 1

7 310108-5 TOOL RETAINER 2

008-1 346677-0 SPRING GUIDE 1

9 233387-7 COMPRESSION SPRING 52 1

10 346141-1 PLATE 1

11 310145-9 LOCK RING 1

12 451433-6 CHANGE RING 1

13 257960-9 RETAINING RING(INT) ROUND R-42 1

14 267273-0 FLAT WASHER 29 1

15 424261-2 RUBBER RING 28 1

16 216002-8 STEEL BALL 4.8 4

17 324387-9 TOOL HOLDER 1

18 213527-3 O RING 38 1

19 213431-6 FLUORIDE RING 28 1

20 213394-6 O RING 23 1

21 324389-5 IMPACT BOLT 1

22 325732-1 RING 20 1

23 424245-0 RUBBER RING 20 1

24 318511-4 BARREL 1

25 922341-3 HEX. SOCKET HEAD BOLT M6X25 4

26 213656-2 O RING 53 1

27 267407-5 FLAT WASHER 23 1

28 451639-6 GUIDE RING 1

29 450098-1 SLIDE SLEEVE 1

30 324388-7 STRIKER 1

31 213958-6 O RING 24 1

32 331658-7 CYLINDER 32 1

33 233927-1 RING SPRING 34 1

34 331660-0 RING 36 1

35 233386-9 COMPRESSION SPRING 37 1

36 233927-1 RING SPRING 34 1

37 318510-6 CYLINDER GUIDE 1

38 213611-4 O RING 46 1

39 233927-1 RING SPRING 34 1

40 267079-6 FLAT WASHER 34 1

41 451443-3 HOUSING COVER 1

42 922243-3 HEX. SOCKET HEAD BOLT M5X25 1

042-1 922243-3 HEX. SOCKET HEAD BOLT M5X25 1

43 419988-7 FILTER CAP 1

44 213218-6 O RING 16 1

45 443129-3 FILTER 1

46 451434-4 CRANK CAP 1

47 424244-2 SEAL RING 1

48 911233-1 PAN HEAD SCREW M5X20 4

49 268104-6 PIN 8 1

50 213958-6 O RING 24 1

51 213432-4 O RING 26 1

52 418349-8 PISTON 1

53 418350-3 CONNECTING ROD 1

54 325734-7 CRANK SHAFT 17.5 1

55 962157-4 RETAINING RING R-40 1

056-1 211490-4 BALL BEARING 6203LLU 1

57 267825-7 WAVE WASHER 30 1

58 140204-3 CRANK HOUSING COMPLETE 1

59 451429-7 AIR PIPE 1

60 266041-8 TAPPING SCREW 5X25 4

61 419008-7 FIX GUIDE 2

62 423400-1 CUSHION PLATE 1

063-1 213678-2 OIL SEAL 12 1

64 211106-1 BALL BEARING 6201LLB 1

65 253759-0 FLAT WASHER 12 1

066-1 455791-2 PIPE HOLDER SUPPORT 2

67 213275-4 O RING 18 4

68 451436-0 PIPE HOLDER B 2

69 234134-9 COMPRESSION SPRING 12 2

70 213275-4 O RING 18 2

71 324572-4 PIPE 16 2

72 213275-4 O RING 18 2

73 325733-9 COUNTER WEIGHT 2

74 234134-9 COMPRESSION SPRING 12 2

75 419011-8 SPRING GUIDE 2

76 213030-4 O RING 8 2

77 451435-2 PIPE HOLDER A 2

78 213030-4 O RING 8 4

79 346140-3 GRIP SPRING 70 1

80 266522-2 SQUARE BOLT M8X95 1

81 418363-4 SIDE GRIP BASE 60 1

82 158131-0 GRIP 36 COMPLETE 1

83 135332-7 GRIP 36 ASSEMBLY 1

83 D10 INC. 79-82

90 240119-5 FAN 76 1

91 513793-5 ARMATURE ASSEMBLY 220-240V 1

91 D10 INC. 90,92,93

92 681650-6 INSULATION WASHER 1

93 210005-4 BALL BEARING 608DDW 1

94 451438-6 BAFFLE PLATE 1

95 266095-5 TAPPING SCREW 5X55 2

96 625764-1 FIELD 240V 1

97 451423-9 MOTOR HOUSING 1

98 194160-9 CARBON BRUSH CB-350 1

99 265995-6 TAPPING SCREW 4X18 2

100 451442-5 REAR COVER 1

101 265995-6 TAPPING SCREW 4X18 4

102 638674-3 BRUSH HOLDER UNIT 1

103 631932-6 CONTROLLER 1

104 638675-1 LEAD UNIT 1

105 451428-9 LENS 1

106-1 266901-4 TAPPING SCREW 4X14 2

107 233434-4 COMPRESSION SPRING 11 1

108 266041-8 TAPPING SCREW 5X25 2

109 267066-5 FLAT WASHER 5 2

110 451447-5 HANDLE BASE 1

111 266041-8 TAPPING SCREW 5X25 2

112 451431-0 HANDLE RETAINER 1

113-1 814H67-8 HM0871C NAME PLATE 1

114 266041-8 TAPPING SCREW 5X25 2

115 451437-8 DUST COVER SUPPORT 1

116 424247-6 DUST COVER 1

117 140205-1 HANDLE COMPLETE 1

118 451439-4 SLIDE LEVER 1

119 450352-3 SHOULDER SLEEVE 6 1

120 266095-5 TAPPING SCREW 5X55 1

121 232209-8 LEAF SPRING 1

122 263027-3 RUBBER PIN 4 1

123 451427-1 SWITCH LEVER 1

124 265995-6 TAPPING SCREW 4X18 1

125 651418-4 SWITCH ST115A-40 1

126 654531-7 TERMINAL BLOCK 2P 1

127 687169-3 STRAIN RELIEF 1

128 265995-6 TAPPING SCREW 4X18 1

129 692637-3 POWER SUPPLY CORD 1.5-2-5.0 1

130 682560-0 CORD GUARD 10 1

131 265995-6 TAPPING SCREW 4X18 1

132 451445-9 HANDLE COVER 1

133 423411-6 RUBBER PLATE 1

A01 194683-7 GREASE VESSEL SET 1

A02 443122-7 CLOTH 1

A03 824904-0 PLASTIC CARRYING CASE 1

A03 C10 162271-8 LATCH 2

A03 C20 450990-1 HANDLE 1

A03 C30 325809-2 SHAFT 1

A04-1 801G01-1 HM0871C PLASTIC CASE LABEL 2

B01 195113-1 HAMMER SERVICE KIT 1

B01 C10 181490-7 HAMMER GREASE 30G 1

B01 D10 INC. 1,3,7,19,20,31,50,51,98

E03 801G22-3 CLEAR LABEL 1
