Lista części do akumulatorowej piły taśmowej DPB181
Kod producenta: MAKITA DPB181 lista części
Kod produktu: 33591

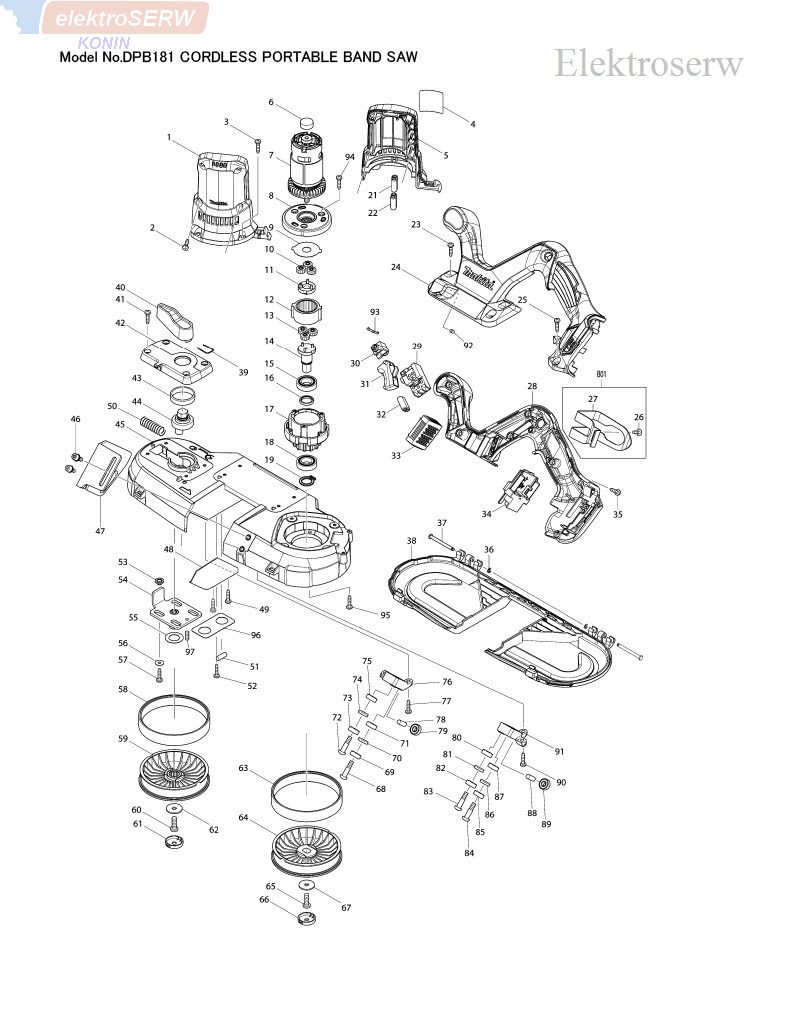

Makita DPB181 lista części:
| 1 | 187711-5 | MOTOR HOUSING SET | 1 | 46 | 922218-2 | H.S.H.BOLT M5X14 WITH WR | 2 | |||
| 1 | D10 | INC. 5 | 47 | 346728-9 | STOPPER PLATE | 1 | ||||
| 001-1 | 187711-5 | MOTOR HOUSING SET | 1 | 48 | 346729-7 | PLATE | 1 | |||
| 001-1 | D10 | INC. 5 | 49 | 266326-2 | TAPPING SCREW 4X18 | 2 | ||||
| 2 | 266326-2 | TAPPING SCREW 4X18 | 4 | 049-1 | 265A48-7 | TAPPING SCREW 4X18 | 2 | |||
| 002-1 | 265A48-7 | TAPPING SCREW 4X18 | 4 | 50 | 234313-9 | COMPRESSION SPRING 9 | 1 | |||
| 3 | 266326-2 | TAPPING SCREW 4X18 | 4 | 51 | 256033-5 | PIN 6 | 1 | |||
| 003-1 | 265A48-7 | TAPPING SCREW 4X18 | 4 | 52 | 266326-2 | TAPPING SCREW 4X18 | 1 | |||
| 4 | 814X89-4 | DPB181 NAME PLATE | 1 | 052-1 | 265A48-7 | TAPPING SCREW 4X18 | 1 | |||
| 004-1 | 814X89-4 | DPB181 NAME PLATE | 1 | 53 | 343494-9 | SLEEVE 5 | 4 | |||
| 5 | 187711-5 | MOTOR HOUSING SET | 1 | 54 | 165738-5 | SLIDE PLATE | 1 | |||
| 5 | D10 | INC. 1 | 55 | 267164-5 | FLAT WASHER 15 | 1 | ||||
| 005-1 | 187711-5 | MOTOR HOUSING SET | 1 | 56 | 253874-0 | FLAT WASHER 4 | 4 | |||
| 005-1 | D10 | INC. 1 | 57 | 266326-2 | TAPPING SCREW 4X18 | 4 | ||||
| 6 | 421940-3 | CAP | 1 | 057-1 | 265A48-7 | TAPPING SCREW 4X18 | 4 | |||
| 7 | 629994-6 | DC MOTOR | 1 | 058-1 | 424589-8 | RUBBER TIRE | 1 | |||
| 8 | 454650-7 | GEAR HOUSING COVER | 1 | 59 | 142358-2 | WHEEL COMPLETE B | 1 | |||
| 9 | 267855-8 | LOCK WASHER | 1 | 60 | 265484-1 | HEX. SOCKET HEAD BOLT M6X17 | 1 | |||
| 10 | 227331-4 | SPUR GEAR 14 | 3 | 61 | 454730-9 | CAP | 1 | |||
| 11 | 142355-8 | SPUR GEAR 7 COMPLETE | 1 | 62 | 253010-8 | FLAT WASHER 6 | 1 | |||
| 011-1 | 144386-3 | SPUR GEAR 7 COMPLETE | 1 | 063-1 | 424589-8 | RUBBER TIRE | 1 | |||
| 12 | 227332-2 | INTERNAL GEAR 36 | 1 | 64 | 142357-4 | WHEEL COMPLETE A | 1 | |||
| 13 | 227331-4 | SPUR GEAR 14 | 3 | 65 | 265484-1 | HEX. SOCKET HEAD BOLT M6X17 | 1 | |||
| 14 | 142356-6 | SPINDLE COMPLETE | 1 | 66 | 454730-9 | CAP | 1 | |||
| 15 | 211242-3 | BALL BEARING 6902ZZ | 1 | 67 | 253010-8 | FLAT WASHER 6 | 1 | |||
| 16 | 257348-3 | RING 15 | 1 | 68 | 251337-0 | + PAN HEAD SCREW M5 | 1 | |||
| 017-1 | 455790-4 | GEAR HOUSING | 1 | 69 | 210033-9 | BALL BEARING 696ZZ | 1 | |||
| 18 | 211242-3 | BALL BEARING 6902ZZ | 1 | 70 | 941152-7 | FLAT WASHER 6 | 1 | |||
| 19 | 961055-9 | RETAINING RING S-15 | 1 | 71 | 210033-9 | BALL BEARING 696ZZ | 1 | |||
| 23 | 266326-2 | TAPPING SCREW 4X18 | 4 | 72 | 251337-0 | + PAN HEAD SCREW M5 | 1 | |||
| 023-1 | 265A48-7 | TAPPING SCREW 4X18 | 4 | 73 | 210033-9 | BALL BEARING 696ZZ | 1 | |||
| 24 | 187762-8 | HANDLE SET | 1 | 74 | 941152-7 | FLAT WASHER 6 | 1 | |||
| 24 | C10 | 252126-6 | HEX. LOCK NUT M4-7 | 2 | 75 | 210033-9 | BALL BEARING 696ZZ | 1 | ||
| 24 | C20 | 263005-3 | RUBBER PIN 6 | 2 | 076-1 | 319400-6 | UPPER HOLDER 42 | 1 | ||
| 24 | D10 | INC. 28 | 77 | 266326-2 | TAPPING SCREW 4X18 | 2 | ||||
| 25 | 266326-2 | TAPPING SCREW 4X18 | 2 | 077-1 | 265A48-7 | TAPPING SCREW 4X18 | 2 | |||
| 025-1 | 265A48-7 | TAPPING SCREW 4X18 | 2 | 78 | 256033-5 | PIN 6 | 1 | |||
| 28 | 187762-8 | HANDLE SET | 1 | 79 | 210033-9 | BALL BEARING 696ZZ | 1 | |||
| 28 | C10 | 252126-6 | HEX. LOCK NUT M4-7 | 2 | 80 | 210033-9 | BALL BEARING 696ZZ | 1 | ||
| 28 | C20 | 263005-3 | RUBBER PIN 6 | 2 | 81 | 941152-7 | FLAT WASHER 6 | 1 | ||
| 28 | D10 | INC. 24 | 82 | 210033-9 | BALL BEARING 696ZZ | 1 | ||||
| 29 | 650705-8 | SWITCH TG73BDS-1 | 1 | 83 | 251337-0 | + PAN HEAD SCREW M5 | 1 | |||
| 30 | 419504-5 | LOCK OFF BUTTON | 1 | 84 | 251337-0 | + PAN HEAD SCREW M5 | 1 | |||
| 31 | 454651-5 | SWITCH LEVER | 1 | 85 | 210033-9 | BALL BEARING 696ZZ | 1 | |||
| 033-1 | 632C03-0 | CONTROLLER UNIT | 1 | 86 | 941152-7 | FLAT WASHER 6 | 1 | |||
| 033-1 | C10 | 654199-9 | RECEPTACLE | 1 | 87 | 210033-9 | BALL BEARING 696ZZ | 1 | ||
| 033-2 | 632L42-4 | CONTROLLER UNIT | 1 | 88 | 256033-5 | PIN 6 | 1 | |||
| 033-2 | C10 | 654199-9 | RECEPTACLE | 1 | 89 | 210033-9 | BALL BEARING 696ZZ | 1 | ||
| 033-2 | C11 | 654208-4 | RECEPTACLE | 1 | 90 | 266326-2 | TAPPING SCREW 4X18 | 2 | ||
| 033-2 | C20 | 654069-2 | RECEPTACLE | 1 | 090-1 | 265A48-7 | TAPPING SCREW 4X18 | 2 | ||
| 34 | 643899-6 | TERMINAL | 1 | 91 | 319074-3 | LOWER HOLDER 42 | 1 | |||
| 35 | 266326-2 | TAPPING SCREW 4X18 | 7 | 92 | 263002-9 | RUBBER PIN 4 | 1 | |||
| 035-1 | 265A48-7 | TAPPING SCREW 4X18 | 7 | 93 | 232201-4 | LEAF SPRING | 1 | |||
| 39 | 231955-0 | RING SPRING 12 | 1 | 94 | 266326-2 | TAPPING SCREW 4X18 | 3 | |||
| 40 | 272230-5 | LEVER 54 | 1 | 094-1 | 265A48-7 | TAPPING SCREW 4X18 | 3 | |||
| 41 | 266326-2 | TAPPING SCREW 4X18 | 4 | 95 | 266326-2 | TAPPING SCREW 4X18 | 3 | |||
| 041-1 | 265A48-7 | TAPPING SCREW 4X18 | 4 | 095-1 | 265A48-7 | TAPPING SCREW 4X18 | 3 | |||
| 42 | 454614-1 | LEVER HOLDER | 1 | 96 | 346798-8 | PROTECTION PLATE | 1 | |||
| 43 | 214408-4 | PLANE BEARING 30 | 1 | 97 | 266213-5 | H.S.SET SCREW(FLAT POINT)M5X12 | 1 | |||
| 44 | 326351-6 | LEVER SHAFT | 1 | A01 | 783202-0 | HEX. WRENCH 4 | 1 | |||
| 045-2 | 144143-9 | FRAME COMPLETE | 1 | A02 | 196658-2 | BAND SAW BLADE | 1 | |||
| 045-2 | C10 | 424736-1 | SPONGE | 1 | A02-1 | B-40559 | PORTABLE BANDSAW BLADE 18TPI |
