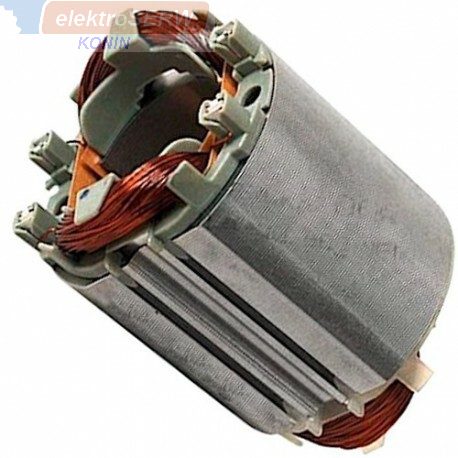

Makita stojan do wiertarki DP4010
Kod producenta: 633528-9
Kod produktu: 33603
* Makita - stojan - nowy oryginalny
Producent: Makita
Kod producenta: 633528-9
Pozycja na schemacie: 36 ( DP4010 )
Zastosowanie do wiertarki
Makita: DP4010, HP2050, HP2051, HP2051F

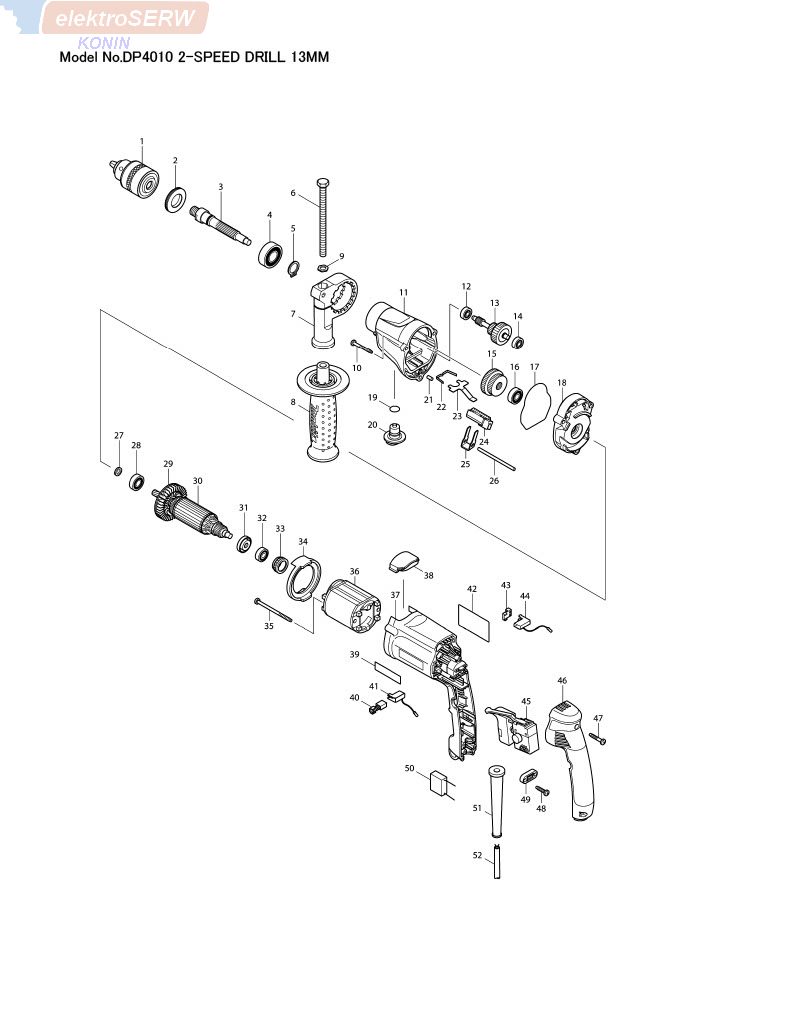

Spis części od DP4010:
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 193067-6 | DRILL CHUCK & KEY SET | 1 | |
| 1 | C10 | 763430-3 | CHUCK KEY S13 | 1 |
| 2 | 285806-9 | BEARING RETAINER 19-36 | 1 | |
| 3 | 324835-8 | SPINDLE | 1 | |
| 4 | 211206-7 | BALL BEARING 6202LLB | 1 | |
| 5 | 961055-9 | RETAINING RING S-15 | 1 | |
| 6 | 921923-8 | HEX. BOLT M8X120 | 1 | |
| 7 | 417630-4 | GRIP BASE | 1 | |
| 008-1 | 153503-4 | GRIP 36 COMPLETE | 1 | |
| 9 | 345280-4 | HEX. WASHER | 1 | |
| 10 | 266351-3 | TAPPING SCREW 4X35 | 3 | |
| 11 | 318187-7 | GEAR HOUSING | 1 | |
| 12 | 210028-2 | BALL BEARING 606ZZ | 1 | |
| 13 | 153622-6 | GEAR COMPLETE | 1 | |
| 14 | 210028-2 | BALL BEARING 606ZZ | 1 | |
| 15 | 227030-8 | SPUR GEAR 29-37 | 1 | |
| 16 | 210029-0 | BALL BEARING 608ZZ | 1 | |
| 17 | 421810-6 | SEAL RING | 1 | |
| 18 | 158412-2 | GEAR HOUSING COVER COMPLETE | 1 | |
| 18 | C10 | 263002-9 | RUBBER PIN 4 | 1 |
| 19 | 213122-9 | O RING 12 | 1 | |
| 20 | 417805-5 | CHANGE LEVER B | 1 | |
| 21 | 256251-5 | PIN 4 | 1 | |
| 22 | 232143-2 | LEAF SPRING | 1 | |
| 23 | 345225-2 | LOCK PLATE | 1 | |
| 24 | 417804-7 | RACK 12 | 1 | |
| 25 | 345223-6 | CHANGE PLATE B | 1 | |
| 26 | 268092-7 | PIN 4 | 1 | |
| 27 | 262087-2 | RING 8 | 1 | |
| 027-1 | 257857-2 | RING 8 | 1 | |
| 28 | 210005-4 | BALL BEARING 608DDW | 1 | |
| 29 | 241881-5 | FAN 52 | 1 | |
| 30 | 517414-1 | ARMATURE ASS'Y 220-240V | 1 | |
| 30 | D10 | INC. 27,28,29,31,32 | ||
| 31 | 681636-0 | INSULATION WASHER | 1 | |
| 32 | 211021-9 | BALL BEARING 607LLB | 1 | |
| 33 | 421494-0 | RUBBER RING 19 | 1 | |
| 34 | 417803-9 | BAFFLE PLATE | 1 | |
| 35 | 266340-8 | TAPPING SCREW 4X65 | 2 | |
| 36 | 633528-9 | FIELD 220-240V | 1 | |
| 37 | 417807-1 | MOTOR HOUSING | 1 | |
| 38 | 450179-1 | CAP | 1 | |
| 40 | 191962-4 | CARBON BRUSH CB-419 | 1 | |
| 41 | 643989-5 | BRUSH HOLDER | 1 | |
| 42 | 864024-8 | DP4010 NAME PLATE | 1 | |
| 43 | 689111-0 | SPACER | 2 | |
| 44 | 643988-7 | BRUSH HOLDER | 1 | |
| 45 | 650524-2 | SWITCH TG813ALB-2 | 1 | |
| 46 | 153284-0 | HANDLE COVER COMPLETE | 1 | |
| 46 | C10 | 263002-9 | RUBBER PIN 4 | 2 |
| 47 | 266374-1 | TAPPING SCREW 4X25 | 3 | |
| 48 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 49 | 687123-7 | STRAIN RELIEF | 1 | |
| 51 | 682559-5 | CORD GUARD 8 | 1 | |
| 52 | 692021-2 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | |
| A01 | 324219-0 | DEPTH GAUGE | 1 | |
| A02 | 410102-8 | KEY HOLDER | 1 | |
| A03 | 763430-3 | CHUCK KEY S13 | 1 |
