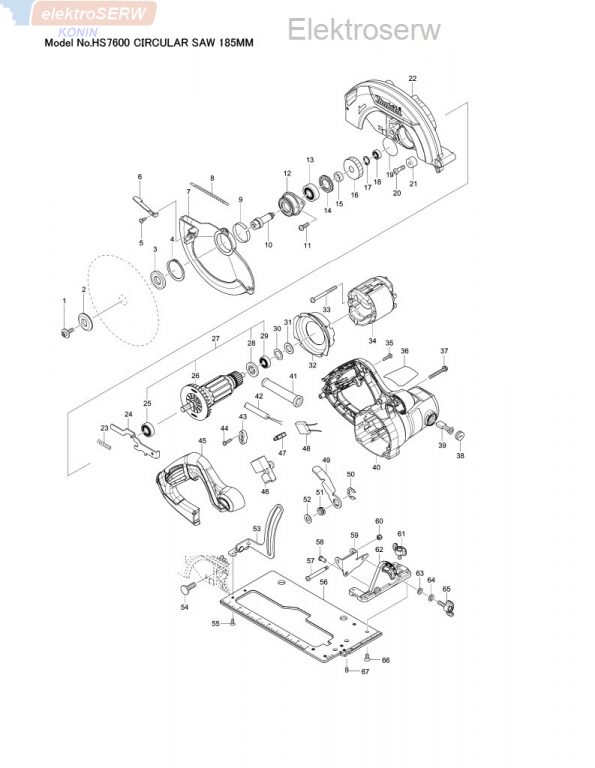

Makita schemat i lista części do pilarki tarczowej HS 7601 7600
* Spis części do HS7600:
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 266024-8 | HEX. SOCKET HEAD BOLT M6X20 | 1 | |
| 2 | 224409-4 | OUTER FLANGE 35 | 1 | |
| 3 | 224473-5 | INNER FLANGE 35 | 1 | |
| 003-1 | 224593-5 | INNER FLANGE 35 | 1 | |
| 4 | 961155-5 | RETAINING RING S-38 | 1 | |
| 5 | 266398-7 | TAPPING SCREW BIND CT 4X12 | 1 | |
| 6 | 345931-9 | LEVER PLATE | 1 | |
| 7 | 319188-8 | SAFETY COVER | 1 | |
| 8 | 231887-1 | TENSION SPRING 4 | 1 | |
| 9 | 345391-5 | THICKNESS RING | 1 | |
| 10 | 326444-9 | SPINDLE | 1 | |
| 11 | 911226-8 | PAN HEAD SCREW M5X18 | 2 | |
| 12 | 319088-2 | BEARING BOX | 1 | |
| 13 | 211129-9 | BALL BEARING 6201DDW | 1 | |
| 14 | 285852-2 | BEARING RETAINER 19-33 | 1 | |
| 15 | 257173-2 | RING 12 | 1 | |
| 16 | 227793-6 | HELICAL GEAR 38 | 1 | |
| 17 | 961052-5 | RETAINING RING S-12 | 1 | |
| 18 | 210028-2 | BALL BEARING 606ZZ | 1 | |
| 19 | 213512-6 | O RING 39 | 1 | |
| 20 | 265117-8 | +PAN HEAD SCREW M6X20 | 1 | |
| 21 | 262556-3 | RUBBER SLEEVE 6 | 1 | |
| 22 | 142796-8 | BLADE CASE COMPLETE | 1 | |
| 22 | C10 | 213445-5 | O-RING 26 | 1 |
| 22 | C11 | 213821-3 | O-RING 26 | 1 |
| 23 | 233117-6 | COMPRESSION SPRING 6 | 1 | |
| 24 | 345317-7 | SHAFT LOCK | 1 | |
| 25 | 210059-1 | BALL BEARING 6000DDW | 1 | |
| 26 | 240064-4 | FAN 70 | 1 | |
| 27 | 513909-2 | ARMATURE ASS'Y 240V | 1 | |
| 27 | D10 | INC. 25,26,28,29 | ||
| 28 | 681644-1 | INSULATION WASHER | 1 | |
| 29 | 210005-4 | BALL BEARING 608DDW | 1 | |
| 30 | 253192-6 | FLAT WASHER 14 | 1 | |
| 31 | 261103-7 | RUBBER WASHER 13 | 1 | |
| 32 | 455354-4 | BAFFLE PLATE | 1 | |
| 33 | 266329-6 | TAPPING SCREW 5X60 | 2 | |
| 34 | 594644-1 | FIELD ASS'Y 240V | 1 | |
| 34 | C10 | 654020-2 | RING TERMINAL | 2 |
| 34 | C20 | 654501-6 | CONNECTOR P-1.25 | 2 |
| 35 | 266326-2 | TAPPING SCREW 4X18 | 5 | |
| 36 | 850H04-8 | HS7600 NAME PLATE | 1 | |
| 37 | 265104-7 | PAN HEAD SCREW M5X40 | 3 | |
| 38 | 643750-0 | BRUSH HOLDER CAP 7-11 | 2 | |
| 39 | 191963-2 | CARBON BRUSH CB-303 | 1 | |
| 40 | 142872-8 | MOTOR HOUSING COMPLETE | 1 | |
| 40 | C10 | 643708-9 | BRUSH HOLDER 5-11 | 2 |
| 41 | 682503-2 | CORD GUARD 8-90 | 1 | |
| 42 | 692021-2 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | |
| 43 | 687123-7 | STRAIN RELIEF | 1 | |
| 44 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 45 | 455353-6 | HANDLE COVER | 1 | |
| 46 | 651284-9 | SWITCH SGEL115CDY-6 | 1 | |
| 49 | 346311-2 | LEVER PLATE | 1 | |
| 50 | 257953-6 | BOW STOP RING E-12 | 1 | |
| 51 | 252199-9 | HEX. NUT M8-13 | 1 | |
| 52 | 941201-0 | FLAT WASHER 8 | 1 | |
| 53 | 163546-8 | DEPTH GUIDE COMPLETE | 1 | |
| 54 | 266396-1 | FLATHEAD SQUARENECKBOLT M8X24 | 1 | |
| 55 | 912107-9 | COUNTERSUNK HEAD SCREW M4X8 | 2 | |
| 055-1 | 265085-5 | + COUNTERSUNK HEAD SCREW M4X8 | 2 | |
| 56 | 346839-0 | BASE | 1 | |
| 57 | 265118-6 | + PAN HEAD SCREW M5 | 1 | |
| 58 | 256480-0 | SHOULDER PIN 6-7 | 1 | |
| 59 | 345368-0 | ANGULAR GUIDE | 1 | |
| 60 | 252103-8 | HEX. LOCK NUT M5-8 | 1 | |
| 61 | 265765-3 | THUMB SCREW M6X21 | 1 | |
| 62 | 317031-5 | ANGULAR PLATE | 1 | |
| 63 | 941151-9 | FLAT WASHER 6 | 1 | |
| 64 | 942151-2 | SPRING WASHER 6 | 1 | |
| 064-1 | 253428-3 | SPRING WASHER 6 | 1 | |
| 65 | 265765-3 | THUMB SCREW M6X21 | 1 | |
| 66 | 912212-2 | COUNTERSUNK HEAD SCREW M5X12 | 5 | |
| 67 | 266436-5 | H.S.SET SCREW(FLAT POINT)M5X8 | 2 | |
| A01 | 783217-7 | HEX. WRENCH 5 | 1 | |
| A02 | 164095-8 | GUIDE RULE | 1 | |
| A03 | A-80628 | T.C.T.SAW BLADE 185X40TX20 | 1 |
