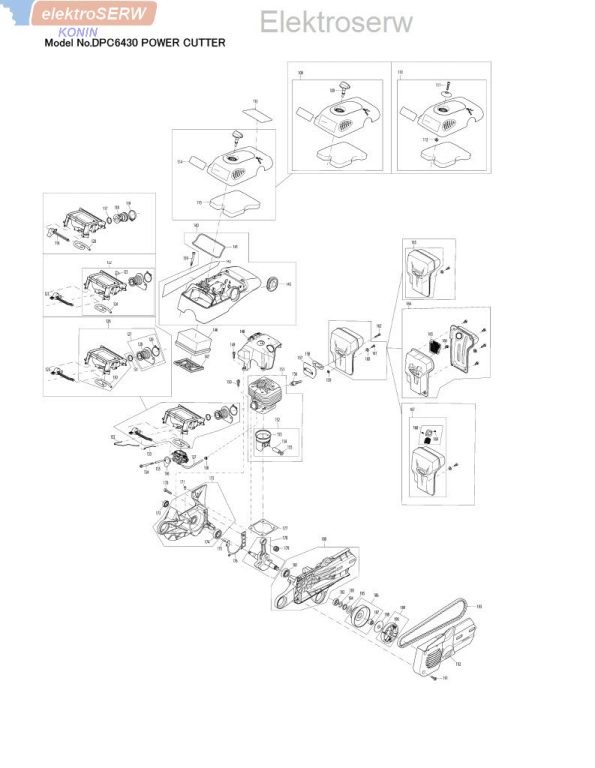

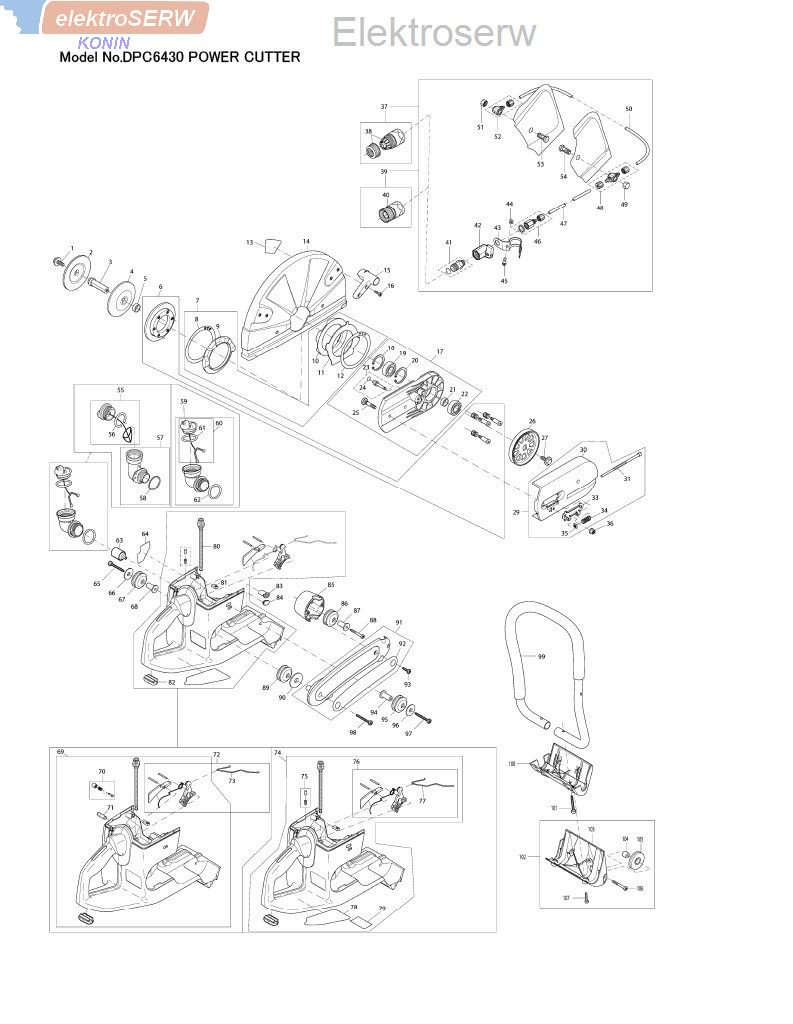

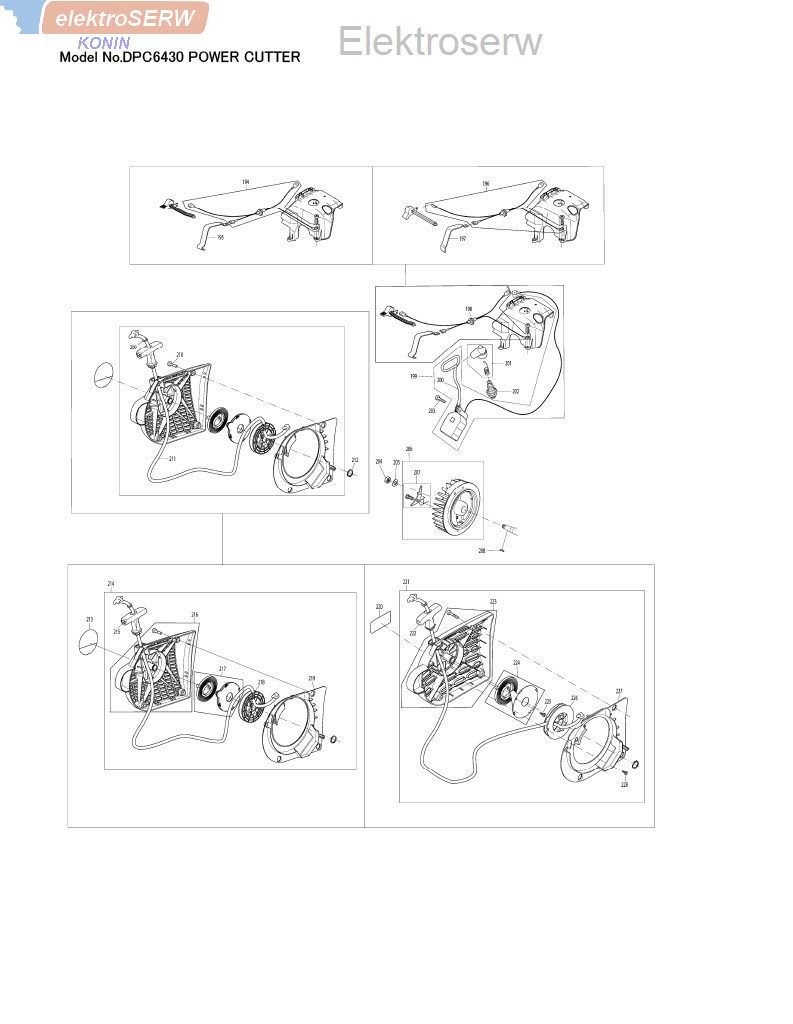

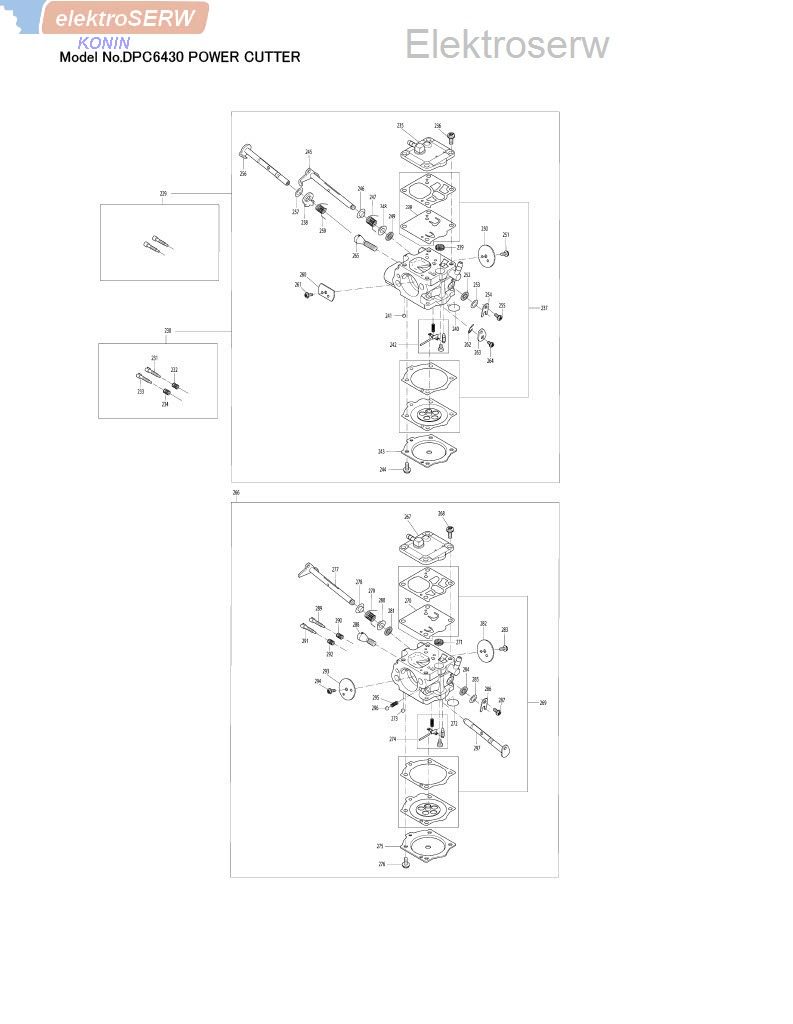

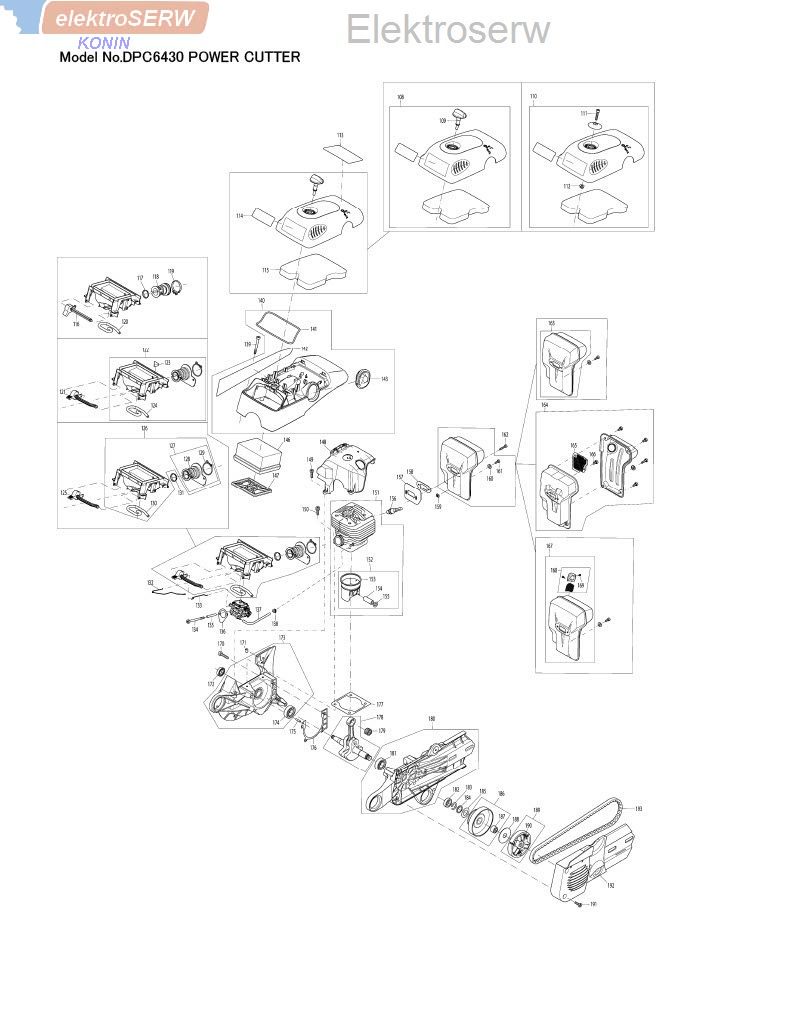

* Makita schemat i lista części  do przecinarki spalinowej DPC6430



pozycja na schemacie, nr katalogowy produktu, opis, ilość:

1; 994290250 HEX BOLT W/WASHER M8X25  1

2; 326228020 FLANG  1

003A; 394228101 SPNDLE SHAFT 20MM  1

003B; 394228130 SPNDLE SHAFT 22.2MM (7/8")  1

003C; 394228111 SPNDLE SHAFT 25.4MM (1")  1

4; 326228020 FLANG  1

5; 394228022 SPACER  1

6; 394342211 PRESSURE RING CPL.  1

7; 957342011 PROT.HOOD MOUNTING,CPL  1

8; 394342180 SLIDING DISC  1

9; 965404920 RUBBER RING INT.  1

10; 965404900 RUBBER RING EXT.  1

11; 394342160 IMPACT PLATE  1

12; 394342180 SLIDING DISC  1

13; 980114972 SAFETY LABEL 300MM/20MM  1

013A_; 980115557 SAFETY LABEL 300MM/25.4MM  1

14; 325341611 HOOD  1

15; 326341301 GRIP FOR PROTECTIVE HOOD  1

16; 908605165 H.L SOCKET HEAD BOLT M5X16  2

016-1; 266725-8 H.L.SOCKET HEAD BOLT M5X16  2

17; 394211740 CUTTING DEVICE ASSY.  1

18; 929240180 RETAINING RING  1

19; 960102176 BALL BEARING  1

20; 929240180 RETAINING RING  1

21; 394228022 SPACER  1

22; 960102176 BALL BEARING  1

23; 394342190 BOLT CPL.  1

24; 963209020 PACKING RING  1

25; 394211091 TIGHTEN LOCKING BOLT M8  2

26; 394221050 V-BELT PULLEY  1

27; 994290250 HEX BOLT W/WASHER M8X25  1

29; 395211640 COVER CPL.  1

30; 395211620 COVER  1

31; 394213032 TENSION SCREW  1

33; 394213021 METAL SHEET  1

34; 394342120 PURESSURE SPRING  1

35; 921906004 SQUARE NUT M6  1

36; 923208004 HEX. FLANGE NUT M8(BAR NUT)  2

036-1; 252145-2 COLLARED HEX NUT M8  2

37; 394365102 WATER ATTACHMENT KIT  1

38; 964802273 COUPLING SLEEVE STOP  1

41; 964802282 HOSE CONNECTOR  1

42; 964802291 SHUT OFF COCK  1

43; 394365163 CLAMP  1

44; 921906004 SQUARE NUT M6  1

45; 909006145 H.L SOCKET HEAD BOLT M6X14  1

045-1; 266950-1 H.L.SOCKET HEAD BOLT M6X14  1

46; 964802410 CONNECTING PIECE  1

47; 964802322 HOSE  1

48; 964802332 CONNECTING PIECE T  1

49; 964802362 CAP NUT  1

50; 964802322 HOSE  1

51; 964802362 CAP NUT  1

52; 964802342 CONNECTING PIECE L  1

53; 964802352 NOZZLE BANJO BOLT  1

54; 964802352 NOZZLE BANJO BOLT  1

55; 10114091 TANK CAP CPL.,FUEL  1

56; 963230031 O-RING  1

57; 10114081 ANGLAR UNION ASSY.  1

58; 963230031 O-RING  1

59; 395114300 TANK CAP WITH ELBOW UNION  1

60; 181114202 TANK CAP CPL.  1

060-1; 168507-3 TANK CAP COMPLETE  1

61; 963229036 PACKING RING  1

061-1; 213080-9 O RING 29.5  1

62; 963229036 PACKING RING  1

062-1; 213080-9 O RING 29.5  1

63; 10114010 SUCTION HEAD(FUEL)  1

63; 10114020 REP.KIT, FILTER(FELT ELEMENT)  1

063-1; 163499-1 SUCTION HEAD  1

65; 913455454 H.L.TAPPING SCREW 5,5X45  1

66; 900005078 WASHER  1

67; 965403535 RUBBER BUFFER  1

68; 394114281 AXLE  1

69; 394114605 TANK CPL. BLUE  1

70; 957117030 HALF-THROTTLE LOCK, CPL.  1

71; 10175050 AIR VALVE CPL.  1

72; 957117020 THROTTLE MACHANISM, CPL.  1

73; 394117011 THROTTLE LINKAGE  1

74; 395114603 TANK CPL. BLUE  1

75; 170175010 AIR VALVE COMPLETE  1

76; 957117040 THROTTLE MECHANISM, CPL.  1

77; 395117011 THROTTLE LINKAGE  1

78; 980115699 LABEL START  1

80; 965404913 FUEL LINE  1

81; 394114101 SQUARE NUT M5  4

82; 394114070 RUBBER FOOT  1

83; 170118031 CARBURETOR ADJUSTING GUIDE H/L  1

083-1; 424709-4 ADJUST GUIDE  1

85; 394114051 POT  1

085-1; 395310020 POT  1

86; 965403535 RUBBER BUFFER  1

87; 394114281 AXLE  1

88; 908305405 H.L. SOCKET HEAD BOLT M5X40  1

088-1; 266943-8 H.L. SOCKET HEAD BOLT M5X40  1

89; 965403535 RUBBER BUFFER  1

90; 900005076 WASHER  1

91; 394114661 BRACKET  1

091-1; 395310600 BRACKET  1

92; 980115215 LABEL  1

93; 913455204 H.L.TAPPING SCREW 5.5X20  2

093-1; 266475-5 H.L.TAPPING SCREW 5.5X20  2

94; 394114281 AXLE  1

95; 965403535 RUBBER BUFFER  1

96; 900005078 WASHER  1

97; 913455454 H.L.TAPPING SCREW 5,5X45  1

98; 913455454 H.L.TAPPING SCREW 5,5X45  1

99; 394310101 TUBULAR HANDLE  1

100; 395250020 FOOT  1

101; 913455454 H.L.TAPPING SCREW 5,5X45  2

102; 394114272 FOOT WITH ROLLER SET  1

103; 394114251 FOOT  1

104; 394114240 BUSHING  2

105; 394114230 ROLLER  2

106; 908006356 H.L SOCKET HEAD BOLT M6X35  2

107; 908905165 H.L SOCKET HEAD BOLT M5X16  4

108; 395118122 COVER ASSY.  1

109; 395118010 FIXING  1

114; 980114999 LABEL  1

115; 395173081 PREFILTER  1

116; 394150030 CHOKE SHAFT  1

117; 24131032 INSERT FOR CARB. INSULATOR  1

118; 394131101 CARBURETOR INSULATOR  1

119; 965603050 CARBURETOR INSULATOR CLAMP  1

120; 395171025 TUBE(L=1M)  1

121; 957395001 CONTACT SPRING FOR ENGINE STOP  1

122; 395171072 CONNECTING MUFF CPL.  1

123; 395173030 FOAM INSERT  1

124; 395171022 TUBE(L=1M)  1

125; 957395001 CONTACT SPRING FOR ENGINE STOP  1

126; 395171072 CONNECTING MUFF CPL.  1

127; 394131210 CARBURETOR INSULATOR SET  1

128; 394131200 CARBURETOR INSULATOR  1

129; 38131070 CARBURETOR INSULATOR CLAMP  1

129-1; 233625-7 SPRING CLAMP  1

130; 395171025 TUBE(L=1M)  1

131; 24131032 INSERT FOR CARB. INSULATOR  1

132; 395117011 THROTTLE LINKAGE  1

133; 394150042 CHOKE LINKAGE  1

134; 908204555 H.L. SOCKET HEAD BOLT M4X55  2

134-1; 266944-6 H.L. SOCKET HEAD BOLT M4X55  2

135; 970502050 INSULATION TUBE 4 L=1M  1

136; 965518120 GASKET  1

137; 965452382 OIL RESISTANT HOSE D=3MM L=1M  1

138; 965401016 SEMI-CYLINDRICAL GROMMET  1

138-1; 424696-7 RUBBER GROMMET  1

139; 908605505 H.L SOCKET HEAD BOLT M5X50  4

139-1; 266941-2 H.L. SOCKET HEAD BOLT M5X50  4

140; 395118093 ENGINE HOOD CPL.  1

141; 395118021 PACKING RING  1

142; 980115870 LABEL  1

143; 395118050 RUBBER CAP FOR DECOMP VALVE  1

146; 395173011 AIR FILTER  1

147; 395173021 INNER FILTER  1

148; 395131041 COOLING HOOD  1

149; 909005155 H.L.SOKET HEAD BOLT M5X15  3

149-1; 266940-4 H.L. SOCKET HEAD BOLT M5X15  3

150; 908805235 H.L. SOCKET HEAD BOLT M5X23  4

150-1; 266473-9 H.L. SOCKET HEAD BOLT M5X23  4

151; 327130140 CYLINDER & PISTON SET  1

152; 325132035 PISTON,PISTON RING & PIN SET  1

153; 325132050 PISTON RING 47MM  1

154; 119132030 PISTON PIN  1

154-1; 257840-9 PISTON PIN  1

155; 119132060 CIRCLIP 12  2

156; 395118071 DECOMPRESSION VALVE  1

157; 395174110 HEAT INSULATION PLATE  1

158; 395174120 MUFFLER GASKET  1

158-1; 346876-4 MUFFLER GASKET  1

159; 38111060 SQUARE NUT M5  1

159-1; 264108-6 SQUARE NUT M5  1

160; 928405000 SPRING WASHER 5  1

160-1; 267821-5 SPRING WASHER 5  1

161; 908005125 H.L. SOCKET HEAD BOLT M5X12  1

161-1; 266946-2 H.L. SOCKET HEAD BOLT M5X12  1

162; 908405205 H.L SOCKET HEAD BOLT M5X20  2

162-1; 266960-8 H.L. SOCKET HEAD BOLT M5X20  2

163; 394174401 MUFFLER  1

170; 908005305 H.L. SOCKET HEAD BOLT M5X30  5

170-1; 266945-4 H.L. SOCKET HEAD BOLT M5X30  5

171; 965402870 RUBBER PLATE  1

172; 962900052 OIL SEAL  1

172-1; 213814-0 RADIAL RING  1

173; 326111731 CRANKCASE CPL. LEFT SIDE  1

174; 960102152 BALL BEARING 6202  1

174-1; 211154-0 BALL BEARING 6202  1

175; 936430160 PIN 3X16  2

175-1; 258038-1 CLAMPING PIN  2

176; 965531111 CRANKCASE GASKET  1

177; 965531160 CYLINDER GASKET  1

177-1; 346873-0 GASKET  1

178; 394120011 CRANKSHAFT CPL.  1

179; 962210121 NEEDLE CAGE  1

179-1; 212133-1 PISTON PIN BEARING 12X16X13  1

180; 326111740 CRANKCASE CPL. RIGHT SIDE  1

181; 960102152 BALL BEARING 6202  1

181-1; 211154-0 BALL BEARING 6202  1

182; 962900052 OIL SEAL  1

182-1; 213814-0 RADIAL RING  1

183; 930916160 SPRING RING  1

183-1; 234366-8 SNAP RING A 16  1

184; 394245010 STOP RING  1

184-1; 346872-2 STOP RING  1

185; 394182020 GUIDE DISC  1

186; 394223025 CLUTCH DRUM ASSY.  1

187; 962300017 NEEDLE BEARING  1

188; 1182042 DISC  1

188-1; 267389-1 FLAT WASHER 12  1

189; 10180024 CLUTCH ASSY.  1

189-1; 123305-2 CLUTCH, CPL  1

190; 24184021 TENSION SPRING  3

190-1; 232352-3 TENSION SPRING 6  3

191; 908605145 H.L. SOCKET HEAD BOLT M5X14  3

191-1; 266947-0 H.L. SOCKET HEAD BOLT M5X14  3

192; 395213670 COVER  1

193; 965300470 V-BELT  1

194; 965605511 LEAD WIRE WITH GROMMET SET  1

195; 957395001 CONTACT SPRING FOR ENGINE STOP  1

196; 965605510 LEAD WIRE WITH GROMMET SET  1

197; 394146013 CONTACT SPRING FOR ENGINE STOP  1

198; 965401016 SEMI-CYLINDRICAL GROMMET  1

198-1; 424696-7 RUBBER GROMMET  1

199; 394143030 CDI IGNITION COIL ASSY  1

200; 970310200 IGNITION CABLE L=1M  1

201; 957604260 PLUG CAP COMPLETE  1

202; 168648-5 SPARK PLUG (BPMR7A)  1

203; 908605205 H.L. SOCKET HEAD BOLT M5X20  2

203-1; 266942-0 H.L. SOCKET HEAD BOLT M5X20  2

204; 920208024 HEX. NUT M8X1(FINE THREAD)  1

204-1; 264107-8 HEXAGONAL NUT M8  1

205; 926208001 SPRING WASHER 8  1

205-1; 267822-3 SPRING WASHER 8  1

206; 394141090 FLYWHEEL ASSY.  1

207; 31166010 STARTER RATCHET SET(2PCS EACH)  1

208; 939630370 KEY  1

209; 928405000 SPRING WASHER 5  1

209-1; 267821-5 SPRING WASHER 5  1

210; 908605205 H.L. SOCKET HEAD BOLT M5X20  4

210-1; 266942-0 H.L. SOCKET HEAD BOLT M5X20  4

211; 394164020 STARTER ROPE BLACK 4MM X 1M  1

211A_; 122164010 STARTER ROPE 4MM L=1M  1

212; 929314100 ROUND S TYPE RETAINING RING 14  1

213; 980115760 MAKITA LOGO LABEL  1

214; 395160600 STARTER ASSY. BLUE  1

215; 181164010 STARTER GRIP  1

216; 395160630 HOUSING  1

217; 181163050 REWIND SPRING IN HOUSING  1

217-1; 140587-1 REWIND SPRING COMPLETE  1

218; 395162020 CABLE DRUM CPL.  1

219; 395118170 AIR GUIDE PLATE  1

220; 980115214 MAKITA LOGO LABEL  1

221; 394112642 STARTER ASSY. BLUE  1

222; 1161020 STARTER GRIP  1

223; 394112621 STARTER HOUSING BLUE  1

224; 394163020 REWIND SPRING IN HOUSING  1

225; 915135100 TAPPING SCREW 3.5X9.5  1

225-1; 266150-3 TAPPING SCREW BT 3.5X9.5  1

226; 394162040 STARTER ROPE DRUM  1

227; 394112141 AIR GUIDE PLATE  1

228; 915135100 TAPPING SCREW 3.5X9.5  2

228-1; 266150-3 TAPPING SCREW BT 3.5X9.5  2

230; 395151015 CARBURETOR WJ-126C  1

231; 394151470 IDLE ADJUSTMENT SCREW L  1

232; 21151480 SPRING  1

233; 1151450 MAIN ADJUSTMENT SCREW  1

234; 21151480 SPRING  1

235; 394151160 PUMP COVER COMPLETE  1

236; 144150170 SCREW  4

237; 957151180 SET DIAPHRAGM / GASKETS  1

238; 394151150 PUMP DIAPHRAGM  1

239; 21151180 SCREEN  1

240; 394151040 COVER DISC  1

241; 394151510 LOCKING BALL  1

242; 957151191 CONTROL PARTS  1

243; 395151120 DIAPHRAGM COVER  1

244; 378151220 SCREW  4

245; 395151130 THROTTLE SHAFT  1

246; 394151315 BUSHING  1

247; 395151150 TORSION SPRING  1

248; 394151315 BUSHING  1

249; 394151330 PACKING RING  1

250; 394151320 THROTTLE SHUTTER  1

251; 394151660 SCREW  1

252; 394151330 PACKING RING  1

253; 394151400 DISC  1

254; 108151350 SHAFT CLIP  1

255; 378151220 SCREW  1

256; 395151170 CHOKE SHAFT  1

257; 170151290 WASHER  1

258; 395151110 FAST IDLE LEVER  1

259; 395151190 TORSION SPRING  1

260; 395151265 CHOKE SHUTTER  1

261; 394151660 SCREW  1

262; 119151350 SHAFT CLIP  1

263; 395151180 CHOKE LEVER  1

264; 394151660 SCREW  1

265; 395151140 IDLE STOP SCREW  1

266; 395151050 CARBURETOR WJ-123  1

267; 394151160 PUMP COVER COMPLETE  1

268; 144150170 SCREW  4

269; 957151180 SET DIAPHRAGM / GASKETS  1

270; 394151150 PUMP DIAPHRAGM  1

271; 21151180 SCREEN  1

272; 394151040 COVER DISC  1

273; 394151510 LOCKING BALL  1

274; 957151191 CONTROL PARTS  1

275; 395151120 DIAPHRAGM COVER  1

276; 378151220 SCREW  4

277; 394151300 THROTTLE SHAFT  1

278; 394151315 BUSHING  1

279; 394151310 SPRING  1

280; 394151315 BUSHING  1

281; 394151330 PACKING RING  1

282; 394151320 THROTTLE SHUTTER  1

283; 394151650 SCREW  1

284; 394151330 PACKING RING  1

285; 394151400 DISC  1

286; 108151350 SHAFT CLIP  1

287; 378151220 SCREW  1

288; 394151570 IDLE STOP SCREW(S)  1

289; 394151470 IDLE ADJUSTMENT SCREW L  1

290; 21151480 SPRING  1

291; 1151450 MAIN ADJUSTMENT SCREW  1

292; 21151480 SPRING  1

293; 395151260 CHOKE SHUTTER  1

294; 394151660 SCREW  1

295; 118151160 LOCKING SPRING  1

296; 118151170 LOCKING BALL  1

297; 394151250 CHOKE SHAFT  1

A01; 394228121 ADAPTER RING 20MM > 25.4MM  1

A02; 966121150 ABRASIVE CUT-OFF WHEEL STEEL  1

A02A_; 966121120 ABRASIVE CUT-OFF WHEEL STONE  1

A04; 957004006 TOOLS CPL.  1

A05; 950004002 PLASTIC BAG  1

A05-1; 831340-3 TOOL BAG  1

A06; 941719140 UNIVERSAL WRENCH 13/19  1

A06-1; 782028-7 UNIVERSAL WRENCH 13-19  1

A07; 940827000 HEXALOBULAR ANGLED DRIVER T27  1

A07-1; 782025-3 TORX WRENCH  1

A08; 944340001 SCREW DRIVER  1

A08-1; 783012-5 SCREWDRIVER  1

A30; 957802600 PRESSURISED WATER TANK  1

A31; 957963200 GASKET SET  1

A32; 394365180 CONNECTING REDUCER  1

A33; 964802250 HOSE CLIP  1

A34; 964802250 HOSE CLIP  1
