* Makita śruba mocująca nóż tnący M8x25 do elektrycznej kosiarki ELM3320-ELM4120

nowa oryginalna

( HEX. BOLT M8X25 / śruba mocująca )

• Producent: Makita
• Kod producenta: YA00000827
• Pozycja na schemacie: nr 92 - ELM3320

Zastosowanie

elektryczna kosiarka do trawy

• ELM3320
• ELM3720
• ELM4120
• ELM4121

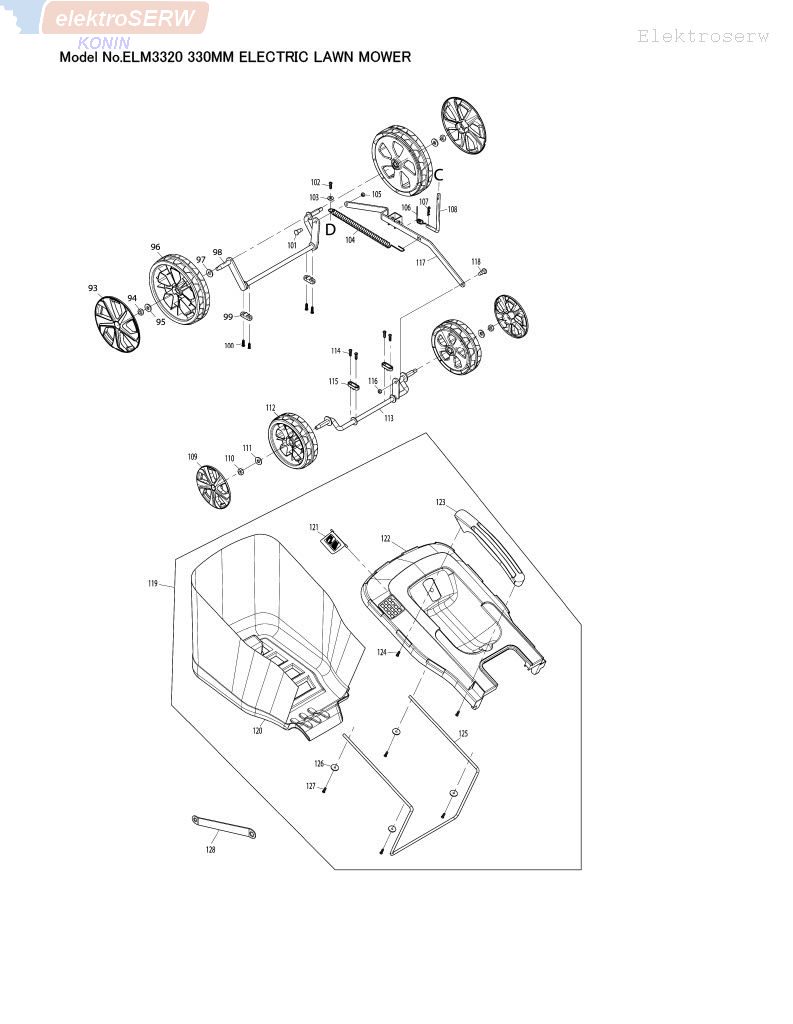

Lista części do ELM3320

pozycja na schemacie, nr katalogowy, opis produktu, ilość:

1; YA00000783  UPPER HANDLE BAR ASSY;  1

2; YA00001163  SPONGE GRIP;  1

3; YA00000784  SWITCH LEVER;  1

4; YA00000765  SWITCH BOX RIGHT;  1

5; YA00000786  SWITCH BOX CLAMP SPASER;  1

6; YA00000766  SWITCH LINK BUTTON;  1

7; YA00000767  COMPRESSION SPRING 16.8;  1

8; YA00000768  SWITCH LEVER END CAP RIGHT;  1

9; 652024721  SELF DRILLING SCREW 3.5X10;  1

10; YA00000769  SWITCH TORSION SPRING 21;  1

11; YA00000778  SELF TAPPING SCREW ST4X16;  2

12; YA00000780  CORD CLAMP;  1

13; YA00000771  POWER SUPPLY CORD ASSY;  1

14; YA00000778  SELF TAPPING SCREW ST4X16;  2

15; YA00000780  CORD CLAMP;  1

16; YA00000773  POWER SUPPLY CORD ASSY (EURO);  1

17; YA00000781  INDICATOR LENZ;  1

18; YA00000772  SWITCH;  1

19; 652023811  CABLE HANGER;  1

20; YA00000786  SWITCH BOX CLAMP SPASER;  1

21; YA00000782  SWITCH BOX LEFT;  1

22; YA00000778  SELF TAPPING SCREW ST4X16;  6

23; 652023795  SPRING BOX RIGHT;  1

24; YA00000787  LEVER BOX CLAMP SPASER;  1

25; 652024721  SELF DRILLING SCREW 3.5X10;  1

26; 652023794  SWITCH LEVER END LEFT;  1

27; YA00000737  TORSION SPRING;  1

28; YA00000787  LEVER BOX CLAMP SPASER;  1

29; 652023793  SPRING BOX LEFT;  1

30; YA00000778  SELF TAPPING SCREW ST4X16;  1

31; YA00000785  SELF TAPPING SCREW ST4X25;  1

32; YA00000799  CABLE CLIP;  1

33; YA00000801  TENSI0N LEVER ASSY;  2

34; YA00000802  HEX.FRANGE CAP NUT M6;  2

35; YA00001166  PIPE END CAP;  2

36; YA00001167  LOWER HANDLE;  2

37; YA00000803  M8 KNOB;  2

38; YA00000420  WASHER;  2

39; YA00000804  ANGLE ADJUSTMENT JOINT UPPER;  2

40; YA00000806  SELF TAPPING SCREW ST5X20;  4

41; YA00000805  ANGLE ADJUSTMENT JOINT LOWER R;  1

42; YA00000807  HEX BOLT M8X65;  2

43; YA00000808  ANGLE ADJUSTMENT JOINT LOWER L;  1

44; YA00000858  EXTENSION LINE CABLE;  1

45; YA00000832  REAR FLAP BULE;  1

46; YA00000830  REAR FLAP HINGE ROD;  1

47; YA00000831  REAR FLAP TORSION SPRING 7.7;  1

48; YA00000821  SELF TAPPING SCREW ST4X16;  2

49; YA00000838  HOUSING ASSY BULE;  1

50; YA00000834  TOP COVER;  1

51; YA00000841  SPONGE CUSHION;  1

52; YA00000398  SUNK SCREW 5*14;  2

53; YA00000835  HEIGHT ADJUSTER STOP PLATE;  1

54; YA00000836  STOP PLATE RUBBER SHEET;  1

55; YA00000837  NYLON INSERT HEX LOCK NUT M5;  2

56; YA00000840  SPONGE CUSHION;  1

57; YA00000821  SELF TAPPING SCREW ST4X16;  2

58; YA00000821  SELF TAPPING SCREW ST4X16;  2

59; YA00000820  SELF TAPPING SCREW ST5X16;  4

60; YA00000848  HIGHT ADJUST GRIP;  1

61; YA00000849  PAN HEAD SCREW M4X10;  1

62; YA00001164  MOTOR ASSY (230V);  1

63; YA00000813  SELF TAPPING SCREW ST4X10;  4

64; YA00000814  CARBON BRUSH 2PICS SET;  1

65; YA00001174  CABLE TIE;  3

66; YA00001173  HEAT SHRINKABLE TUBE;  2

67; YA00001172  LEAD WIRE SET;  1

68; YA00001169  MOTOR FLAME & PULLEY ASSY;  1

69; YA00000806  SELF TAPPING SCREW ST5X20;  4

70; YA00001168  POLY LIBBED BELT;  1

71; YA00000821  SELF TAPPING SCREW ST4X16;  2

72; YA00000780  CORD CLAMP;  1

73; YA00000857  SPONGE CUSHION;  1

74; YA00000819  SPONGE CUSHION;  1

75; YA00000818  DECK;  1

76; YA00000819  SPONGE CUSHION;  1

77; YA00000841  SPONGE CUSHION;  1

78; YA00000806  SELF TAPPING SCREW ST5X20;  4

79; YA00000822  GRASS INTAKE UNDER PLATE;  1

80; YA00000820  SELF TAPPING SCREW ST5X16;  2

81; YA00000823  UNDER BRACE RIGHT;  1

82; YA00000820  SELF TAPPING SCREW ST5X16;  3

83; YA00000824  AIR INTAKE BOARD RIGHT;  1

84; YA00000820  SELF TAPPING SCREW ST5X16;  1

85; YA00000846  UNDER BRACE LEFT;  1

86; YA00000820  SELF TAPPING SCREW ST5X16;  3

87; YA00000847  AIR INTAKE BOARD LEFT;  1

88; YA00000820  SELF TAPPING SCREW ST5X16;  1

89; YA00000825  INNER FLANGE 45;  1

90; YA00000731  BLADE 33;  1

090-1; YA00000745  BLADE 330 SET;  1

91; YA00000826  CLAMP WASHER 8;  1

92; YA00000827  HEX. BOLT M8X25;  1

93; YA00000809  WHEEL CAP 6 INCH;  2

94; 652023843  NYLON INSERT HEX. LOCK NUT M8;  2

95; YA00000420  WASHER;  2

96; YA00000810  WHEEL 7INCH;  2

97; YA00000856  SPEASER WASHER 10;  1

98; YA00000812  REAR AXLE;  1

99; YA00000811  AXLE RETAINER;  2

100; YA00000820  SELF TAPPING SCREW ST5X16;  4

101; YA00000843  STEPPED HEX BOLT M6X16;  1

102; YA00000820  SELF TAPPING SCREW ST5X16;  1

103; YA00000845  WASHER 5;  1

104; YA00000844  TENSION SPRING 11;  1

105; YA00000627  SELF-LOCKING NUTS M6;  1

106; YA00000852  TORSION SPRING 8;  1

107; YA00000851  R PIN 7;  1

108; YA00000850  HIGHT ADJUST LEVER;  1

109; YA00000853  WHEEL CAP 4.5 INCH;  2

110; 652023843  NYLON INSERT HEX. LOCK NUT M8;  2

111; YA00000420  WASHER;  2

112; YA00000854  WHEEL 5.5INCH;  2

113; YA00000855  FRONT AXLE;  1

114; YA00000820  SELF TAPPING SCREW ST5X16;  4

115; YA00000811  AXLE RETAINER;  2

116; YA00000627  SELF-LOCKING NUTS M6;  1

117; YA00000842  CONNECTING ROD;  1

118; YA00000843  STEPPED HEX BOLT M6X16;  1

119; YA00001156  GRASS BOX ASSY(MAKITA);  1

120; YA00000789  GRASS CATCH SIDE CLOSS SET MAK;  1

121; YA00000791  GRASS CATCHER INDICATOR BLUE;  1

122; YA00000793  GRASS CATCHER UPPER BORAD;  1

123; YA00000795  GRIP;  1

124; YA00000794  SELF TAPPING SCREW ST4X14;  2

125; YA00000797  GRASS CATCHER FRAME;  1

126; YA00000796  WASHER 4;  4

127; YA00000794  SELF TAPPING SCREW ST4X14;  4

128; YA00000798  SPANNER 10-13;  1
