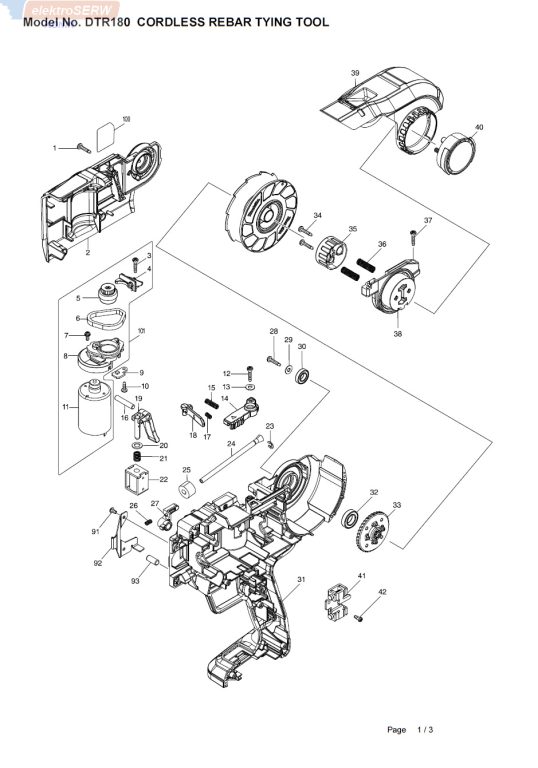

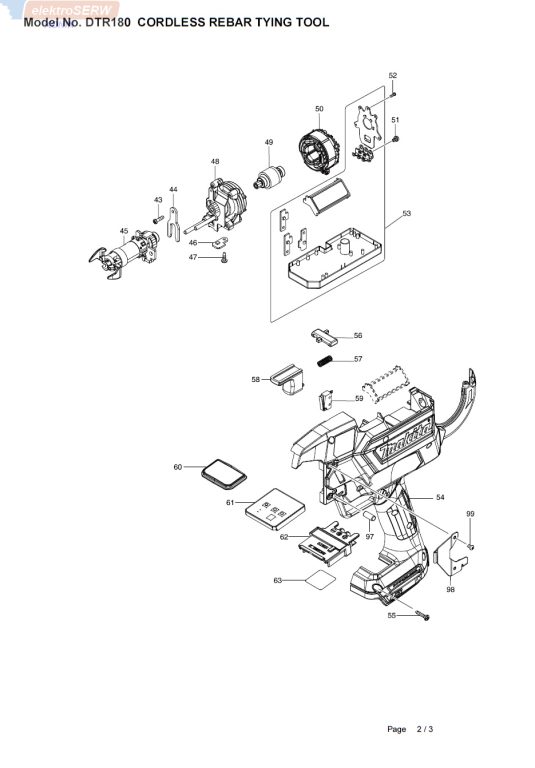

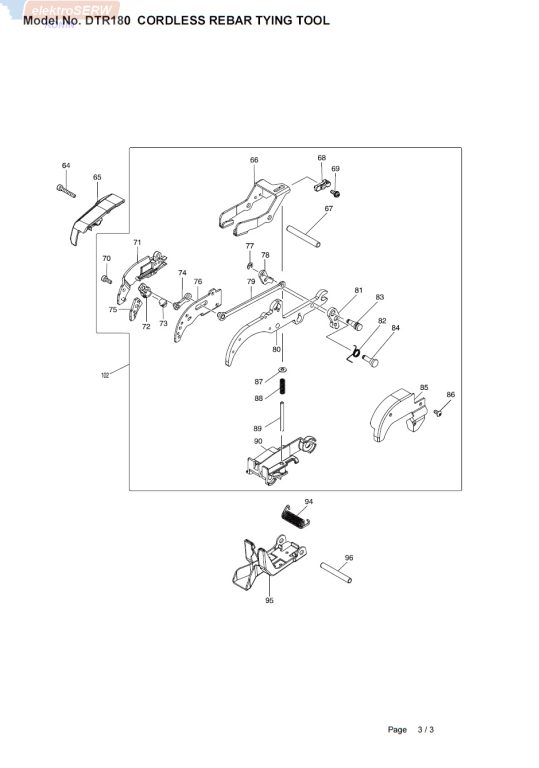

* Spis części od DTR180

Pozycja, nr katalogowy, opis, ilość:

1; 266130-9; TAPPING SCREW BIND PT 3X16; 4

2; 140B66-1; HOUSING COVER COMPLETE; 1

2; 817A35-8; INDICATION LABEL A; 1

2; 817A42-1; CAUTION LABEL A; 1

2; 817A44-7; CAUTION LABEL B; 1

002-1; 140J78-2; HOUSING COVER COMPLETE; 1

002-1; 817A35-8; INDICATION LABEL A; 1

002-1; 817A42-1; CAUTION LABEL A; 1

002-1; 817A44-7; CAUTION LABEL B; 1

002-2; 140V64-5; HOUSING COVER COMPLETE; 1

002-2; 817A35-8; INDICATION LABEL A; 1

002-2; 817A42-1; CAUTION LABEL A; 1

002-2; 817A44-7; CAUTION LABEL B; 1

3; 266130-9; TAPPING SCREW BIND PT 3X16; 1

4; 310864-7; WIRE GUIDE A; 1

5; 135968-2; SPUR GEAR 30A ASSEMBLY; 1

6; 422247-0; SPONGE SHEET A; 1

7; 911008-8; PAN HEAD SCREW M3X8; 2

8; 458222-0; MOTOR BASE; 1

9; 620913-5; SENSOR CIRCUIT; 1

10; 266007-8; TAPPING SCREW BIND PT 3X10; 1

11; 629346-1; DC MOTOR; 1

12; 266130-9; TAPPING SCREW BIND PT 3X16; 1

13; 941051-3; FLAT WASHER 4; 1

14; 135969-0; RELEASE LEVER ASSY; 1

15; 232443-0; COMPRESSION SPRING 3; 1

16; 256098-7; PIN 5; 1

17; 232442-2; COMPRESSION SPRING 3; 1

18; 458223-8; LOCK LEVER; 1

19; 140A85-1; BRAKE ARM COMPLETE; 1

20; 941152-7; FLAT WASHER 6; 1

21; 232446-4; COMPRESSION SPRING 7; 1

22; 679032-4; SOLENOID; 1

23; 961011-9; STOP RING E-4; 1

24; 327112-7; WIRE GUIDE PIPE; 1

024-1; 140L14-0; WIRE GUIDE PIPE COMPLETE; 1

25; 422249-6; SPONGE SHEET B; 1

26; 232442-2; COMPRESSION SPRING 3; 1

27; 144901-3; MAGNET ARM CCOMPLETE; 1

28; 266130-9; TAPPING SCREW BIND PT 3X16; 1

29; 941051-3; FLAT WASHER 4; 1

30; 211478-4; BALL BEARING 689; 1

31; 183J56-9; HOUSING SET; 1

31; 263005-3; RUBBER PIN 6; 2

31; 252126-6; HEX. LOCK NUT M4-7; 2

31; 931002-4; HEX. NUT M3; 2

31; 817A46-3; CAUTION LABEL C; 1

32; 211136-2; BALL BEARING 6801LLB; 1

33; 144904-7; MAGNET WHEEL COMPLETE; 1

033-1; 140H97-6; MAGNET WHEEL COMPLETE; 1

34; 266130-9; TAPPING SCREW BIND PT 3X16; 2

35; 319665-0; REEL BEARING; 1

035-1; 319822-0; REEL BEARING; 1

36; 231294-8; COMPRESSION SPRING 6; 2

37; 266130-9; TAPPING SCREW BIND PT 3X16; 2

38; 458225-4; REEL BASE; 1

39; 458216-5; REEL COVER; 1

40; 458221-2; REEL BEARING CAM; 1

41; 126743-7; STOPPER ASSEMBLY; 1

42; 265199-0; =+ PAN HEAD SCREW M3X8; 2

43; 911017-7; PAN HEAD SCREW M3X12; 1

44; 310866-3; BEARING RTAINER; 1

45; 140B72-6; MAIN SLEEVE COMPLETE; 1

045-1; 140J49-9; MAIN SLEEVE COMPLETE; 1

46; 620913-5; SENSOR CIRCUIT; 1

47; 266007-8; TAPPING SCREW BIND PT 3X10; 1

48; 126838-6; GEAR ASSEMBLY; 1

49; 619520-9; ROTOR; 1

50; 629343-7; STATOR; 1

51; 652069-6; FLAT HEAD SCREW M3X6; 3

52; 266490-9; TAPPING SCREW PT 2X6; 3

53; 140B68-7; MAIN CONTROLLER COMPLETE; 1

53; 817A37-4; INDICATION LABEL B; 1

54; 183J56-9; HOUSING SET; 1

54; 263005-3; RUBBER PIN 6; 2

54; 252126-6; HEX. LOCK NUT M4-7; 2

54; 931002-4; HEX. NUT M3; 2

54; 817A46-3; CAUTION LABEL C; 1

55; 266130-9; TAPPING SCREW BIND PT 3X16; 11

56; 458219-9; TRIGGER LOCK; 1

57; 234037-7; COMPRESSION SPRING 5; 1

58; 458220-4; TRIGGER; 1

59; 632L94-5; SWITCH UNIT; 1

60; 140B67-9; SWITCH PLATE COMPLETE; 1

60; 817A39-0; INDICATION LABEL C; 1

61; 620924-0; SWITCH CIRCUIT; 1

62; 643860-3; TERMINAL; 1

63; 854L26-4; DTR180 SERIAL NO. LABEL; 1

64; 265633-0; HEX SOCKET HEAD BOLT M3X20; 1

65; 458217-3; CONTACT PLATE COVER; 1

66; 347331-9; CONTACT PLATE; 1

67; 256573-3; PIN 5; 1

68; 144903-9; MAGNET BASE B COMPLETE; 1

69; 911008-8; PAN HEAD SCREW M3X8; 1

70; 265634-8; HEX SOCKET HEAD BOLT M3X8; 1

71; 140C95-0; WIRE GUIDE B COMPLETE; 1

72; 310815-0; CUTTER B; 1

73; 310814-2; CUTTER A; 1

74; 161872-9; LINK ARM A COMPLETE; 1

75; 347328-8; TOP PLATE; 1

76; 347326-2; GUIDE PLATE A; 1

77; 961017-7; STOP RING E-3; 2

78; 347330-1; PULL PLATE; 1

078-1; 347720-8; PULL PLATE; 1

79; 161873-7; LINK ARM B COMPLETE; 1

80; 347370-9; GUIDE ARM A; 1

81; 347329-6; PUSH PLATE; 1

82; 232445-6; TORSION SPRING 7; 1

83; 256400-4; SHOULDER PIN 4; 1

84; 256399-3; SHOULDER PIN 4; 1

85; 347327-0; GUIDE PLATE B; 1

86; 265635-6; H.S.BUTTON HEAD SCREW M3X6; 2

87; 941001-8; FLAT WASHER 3; 1

88; 232444-8; COMPRESSION SPRING 4; 1

89; 256390-1; PIN 3; 1

90; 458226-2; LEAD HOLDER; 1

91; 265635-6; H.S.BUTTON HEAD SCREW M3X6; 2

92; 347333-5; SIDE PLATE R; 1

93; 263040-1; RUBBER PIN 6; 1

94; 232448-0; TORSION SPRING 6; 1

95; 161867-2; CURL GUIDE COMPLETE; 1

96; 256573-3; PIN 5; 1

97; 263040-1; RUBBER PIN 6; 1

98; 347332-7; SIDE PLATE L; 1

99; 265635-6; H.S.BUTTON HEAD SCREW M3X6; 2

100; 854L20-6; DTR180 NAME PLATE; 1

101; 135999-1; DC MOTOR ASSY; 1

102; 135998-3; GUIDE ARM ASS'Y; 1

102-1; 136184-9; GUIDE ARM ASSY; 1

103; 232508-8; COMPRESSION SPRING 10; 1

A01; 251314-2; =+ SCREW M4X12; 1

A02; 346449-3; HOOK; 1

A03; 783208-8; HEX. WRENCH 2.5; 1

A04B; 821552-6; CONNECTOR PLASTIC CASE (TYPE4); 1

A04B; 453974-8; LATCH; 4

A04-1B; 140S63-9; CONNECTOR P.CASE (TYPE4) COMP.; 1

A04-1B; 453974-8; LATCH; 4

A04-1B; 8008X6-2; CAUTION LABEL; 1

A05B; 839735-4; INNER TRAY; 1

A05-1B; 835W33-2; INNER TRAY; 1

A06B; 817D09-7; DTR180ZJ INDICATION LABEL; 1

A07B; 817D10-2; DTR180ZJ PLASTIC CASE LABEL; 2

A09; 162755-6; NYLON BRUSH; 1
