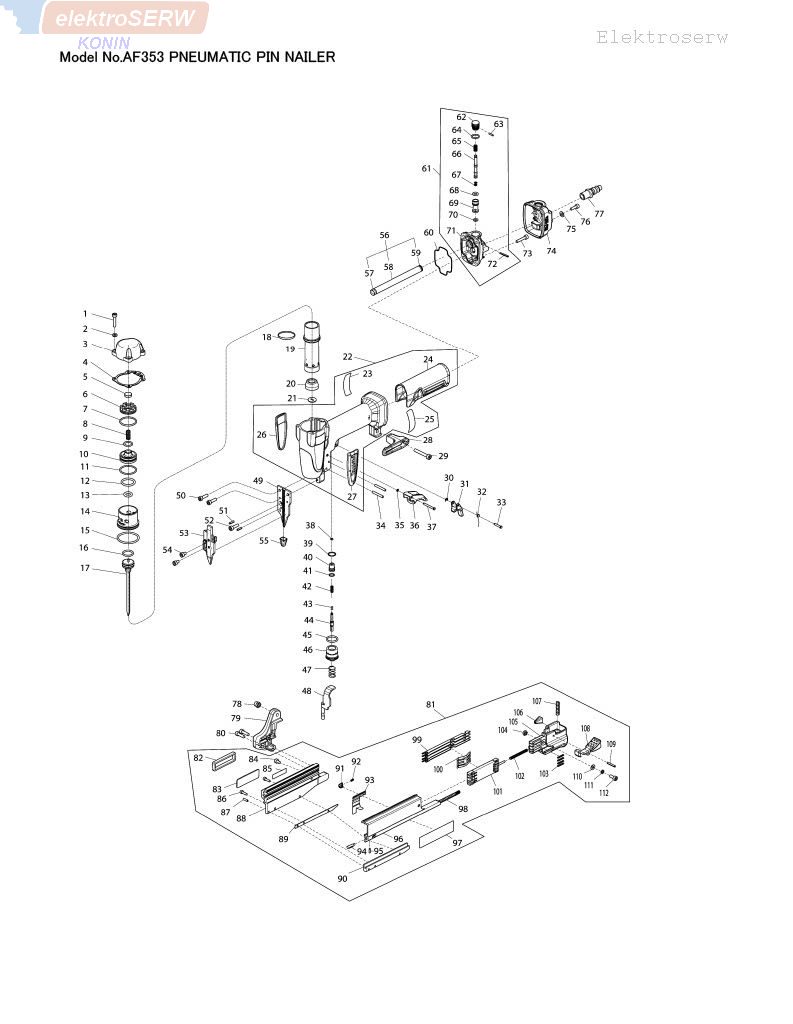

* Lista części do AF353

pozycja na schemacie, nr katalogowy, opis produktu, ilość:

1; HY00000530  HEX.SOCKETHEADBOLTM4X20;  4

2; HY00000070  FLAT WASHER4;  4

3; HY00000544  TOPCAP;  1

4; HY00000578  TOPCAPGASCKET;  1

5; HY00000581  CUSHIONV;  1

6; HY00000594  HEADVALVEGUIDE;  1

007-1; HY00000417  ORING25;  1

8; HY00000626  COMPRESSIONSPRING5;  1

9; HY00000010  O-RING 12;  1

10; HY00000593  HEADVALVE;  1

011-1; HY00000417  ORING25;  1

12; HY00000406  ORING19;  1

13; HY00000415  ORING8.5;  1

14; HY00000555  CYLINDERSEPARATER;  1

15; HY00000418  ORING32.5;  1

016-2; HY00000413  ORING15.5;  1

017-1; HY00000549  DRIVERCOMPLETE;  1

018-1; HY00000416  ORING23.5;  1

19; HY00000600  CYLINDER;  1

20; HY00000547  FRONTCUSHION;  1

21; HY00000484  FRONTSEAL;  1

22; HY00000773  HOUSING COMPLETE;  1

23; HY00000774  AF353 NAME PLATE;  1

24; HY00000556  GRIP;  1

25; HY00000105  CAUTION LABEL;  1

26; HY00000425  HOUSINGBUMPERR;  1

27; HY00000424  HOUSINGBUMPERL;  1

28; HY00000062  HOOK;  1

29; HY00000075  HEX.SOCKET HEAD BOLT M5X30;  1

30; HY00000064  STOP RING (EXT) E-2.5;  1

31; HY00000435  LOCKLEVER;  1

32; HY00000617  TORSIONSPRING3;  1

33; HY00000638  PIN3;  1

34; HY00000682  SPRINGPIN3-25;  2

35; HY00000411  ORING2;  1

36; HY00000434  TRIGGER;  1

37; HY00000595  PIN3;  1

38; HY00000411  ORING2;  1

39; HY00000420  ORING; 1

40; HY00000598  TRIGGERVALVEGUIDE;  1

41; HY00000419  ORING;  1

42; HY00000548  COMPRESSIONSPRING4;  1

43; HY00000037  O-RING 3;  2

44; HY00000516  TRIGGERVALVESTEM; 1

45; HY00000010  O-RING 12;  1

46; HY00000597  TRIGGERVALVECASE;  1

047-1; HY00000705  COMPRESSION SPRING 10;  1

48; HY00000438  LINK;  1

49; HY00000604  DRIVERGUIDE;  1

50; HY00000681  HEX.SOCKETHEADBOLTM4X14;  2

51; HY00000680  SPRINGPIN2.5-10;  2

52; HY00000681  HEX.SOCKETHEADBOLTM4X14;  1

53; HY00000534  DRIVERGUIDECOVER;  1

54; HY00000071  HEX.SOCKET HEAD BOLT M4X6;  2

55; HY00000561  NOSEADAPTER;  1

56; HY00000568  PIPECOMPLETE;  1

57; HY00000398  ORING6.5;  1

58; HY00000572  PIPE;  1

59; HY00000398  ORING6.5;  1

60; HY00000579  SEALRING;  1

61; HY00000764  AIR DUSTER COMPLETE;  1

62; HY00000573  DUSTERBUTTON;  1

63; HY00000046  PIN 2-10;  1

64; HY00000414  RING10.5;  1

65; HY00000591  COMPRESSIONSPRING5;  1

66; HY00000513  VALVESTEM;  1

67; HY00000037  O-RING 3;  2

68; HY00000399  ORING8.5;  1

69; HY00000599  VALVEGUIDE;  1

70; HY00000397  ORING5;  1

71; HY00000765  INLET CAP;  1

72; HY00000054  SPRING PIN 2.5-18;  1

073-1; HY00000530  HEX.SOCKETHEADBOLTM4X20;  4

74; HY00000431  INLETCAPCOVER;  1

75; HY00000532  FLATWASHER4;  2

76; HY00000647  HEX.SOCKETHEADBOLTM4X12;  2

77; HY00000082  ONE TOUCH JOINT;  1

78; HY00000073  HEX.LOCK NUT M5;  1

79; HY00000542  JOINT;  1

80; HY00000681  HEX.SOCKETHEADBOLTM4X14;  2

81; HY00000766  MAGAZINE COMPLETE;  1

82; HY00000574  CASE;  1

83; HY00000576  DOUBLESIDEDTAPE;  1

84; HY00000071  HEX.SOCKET HEAD BOLT M4X6;  1

86; HY00000683  HEX.SOCKETHEADBOLTM3X10;  2

87; HY00000680  SPRINGPIN2.5-10;  1

88; HY00000483  MAGAZINE;  1

89; HY00000620  SPACER;  1

90; HY00000485  LOWERRAIL;  1

91; HY00000571  STOPPER;  1

92; HY00000445  COMPRESSIONSPRING3;  1

93; HY00000489  PUSHER;  1

94; HY00000492  PIN5;  1

95; HY00000684  SPRINGPIN2.5-8;  1

96; HY00000478  SLIDEDOOR;  1

97; HY00000767  CAUTION LABEL;  1

98; HY00000614  COMPRESSIONSPRING4;  1

99; HY00000623  NAILSTOPPER;  4

100; HY00000619  LEAFSPRING;  1

101; HY00000622  NAILGUIDEHOLDER;  1

102; HY00000615  COMPRESSIONSPRING4;  1

103; HY00000613  COMPRESSIONSPRING3;  4

104; HY00000646  HEX.NUTM4;  1

105; HY00000501  SLIDEDOORCAP;  1

106; HY00000561  NOSEADAPTER;  1

107; HY00000612  COMPRESSIONSPRING6;  1

108; HY00000504  LEVER;  1

109; HY00000685  SPRINGPIN3-18;  1

110; HY00000532  FLATWASHER4;  1

111; HY00000161  SPRING WASHER 4;  1

112; HY00000001  HEX.SOCKET HEAD BOLT M4X10;  1

A01; HY00000700  BLOW MOULD CASE;  1

A02; HY00000772  COLOR SLEEVE;  1

A03; HY00000704  MASTER CARTON;  1

A04; HY00000394  GOGGLES;  1

A05; HY00000395  S3 ALLEN WRENCH;  1

A06; HY00000396  OIL;  1

A06-1; 181434-7  OIL SUPPLY 30CC;  1
