BOSCH części od młotowiertarki GBH 2-28 D
Części zamienne nowe i używane - prosimy pytać.
Ceny z reguły to koszt (w zależności od stanu technicznego oraz wizualnego) 50% wartości nowych - części używane -sprawne -sprzedajemy tylko takie, które nadają się do zamontowania.
Na części używane, po montażu w naszym serwisie dajemy 6 miesięczną gwarancję (nie dotyczy elementów naturalnie zużywających się -komutatory,szczotki,uchwyty narzędzia)

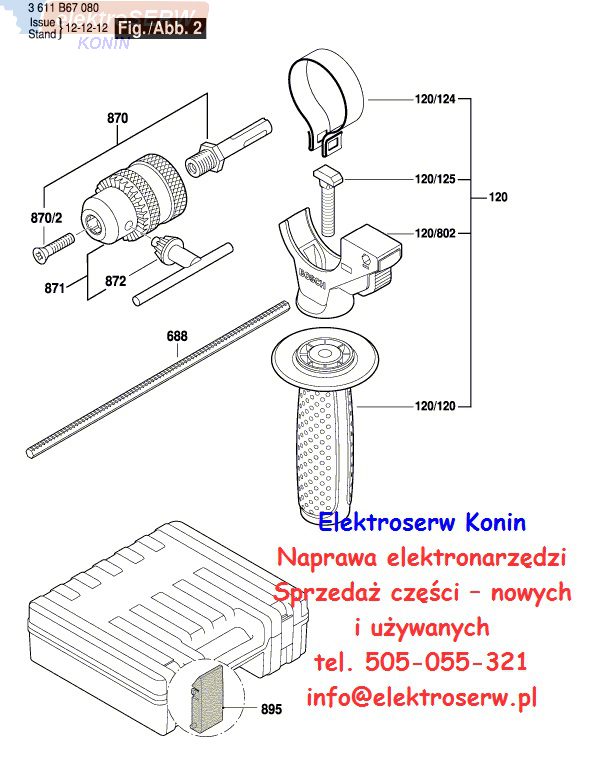

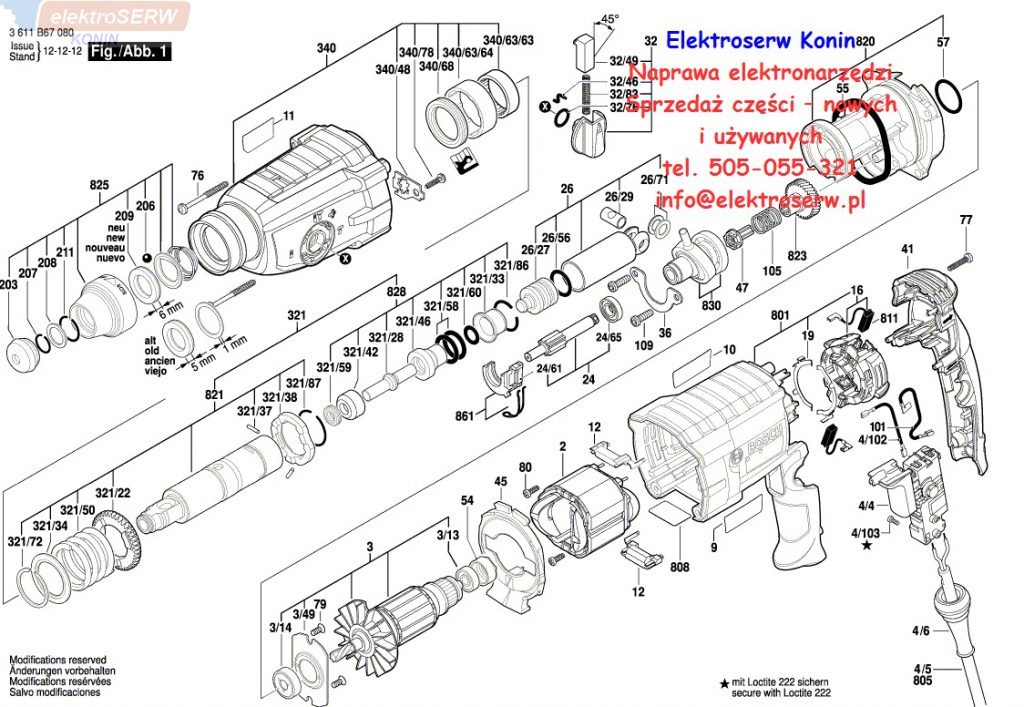

Poz. | Numer katalogowy | Opis | Description | Beschreibung | Déscription | Ilość |
2 | 1614220208 | Stojan 230V | Field 230V | Polschuh 230V | Épanouissement Polaire 230V | 1 |
3 | 1614010262 | Twornik 230V | Armature 230V | Anker 230V | Induit 230V | 1 |
3/13 | 1610905032 | Łożysko Kulkowe Zwykłe 7x19x6 | groove ball bearing 7x19x6 | Rillenkugellager 7x19x6 | Roulement A Billes Rigide 7x19x6 | 1 |
3/14 | 1610905048 | Łożysko Kulkowe Zwykłe 9x24x7 | groove ball bearing 9x24x7 | Rillenkugellager 9x24x7 | Roulement A Billes Rigide 9x24x7 | 1 |
3/49 | 1615700044 | POKRYWA ŁOŻYSKA | End Shield | Lagerschild | Palier | 1 |
4/4 | 1617200532 | Wyłącznik | Switch | Schalter | Commutateur | 1 |
4/6 | 1600703034 | Końcówka Ø7,3-Ø8,6x66 MM | Grommet Ø7,3-Ø8,6x66 MM | Tülle Ø7,3-Ø8,6x66 MM | Manchon Ø7,3-Ø8,6x66 MM | 1 |
4/102 | 1614449015 | PRZEWÓD ŁĄCZĄCY | Connecting Cable | Verbindungsleitung | Cable De Connexion | 1 |
4/103 | 1613435034 | Wkręt O Socz. Łbie Stożk. 3x10 ST | Lens Head Screw 3x10 ST | Linsenkopfschraube 3x10 ST | Vis A Tete Bombee 3x10 ST | 1 |
9 | 1611110Z98 | Tabliczka Firmy GBH 2-28 D | Manufacturer's nameplate GBH 2-28 D | Firmenschild GBH 2-28 D | Plaque De Marque GBH 2-28 D | 1 |
10 | 1611110Z99 | Tabliczka Firmy GBH 2-28 D | Manufacturer's nameplate GBH 2-28 D | Firmenschild GBH 2-28 D | Plaque De Marque GBH 2-28 D | 1 |
11 | 1611110W02 | TABLICZKA INFORMACYJNA | Reference Plate | Hinweisschild | Plaquette Indicatrice | 1 |
12 | 1614465012 | MODUŁ ADAPTERA | Adapter module | Adaptermodul | Module Adaptateur | 2 |
16 | 1614336093 | Płytka Szczotkowa | Brush Plate | Bürstenplatte | Couronne Porte-Balais | 1 |
19 | 1611329024 | STYK | Switch Contact | Schaltkontakt | Contact De Branchement | 2 |
24 | 16170006EJ | Wał Zębaty | Toothed Shaft | Zahnwelle | Arbre Dentele | 1 |
24/61 | 1615820097 | EL. STERUJĄCY | Switching Element | Schaltstück | Element De Commutation | 1 |
24/65 | 1610905016 | Łożysko Kulkowe Zwykłe | groove ball bearing | Rillenkugellager | Roulement A Billes Rigide | 1 |
26 | 16170006A5 | TŁOK | Hammer Piston | Hammerkolben | Piston De Marteau | 1 |
26/27 | 1610311019 | BIJAK | Striker | Schläger | Frappeur | 1 |
26/29 | 1613105020 | Trzpień Tłoka | Piston Pin | Kolbenbolzen | Axe De Piston | 1 |
26/56 | 1610210121 | Pierścień Samouszczeln. 17,0x3,0 MM ZIELONY | O-Ring 17,0x3,0 MM GREEN | O-Ring 17,0x3,0 MM GRUEN | Joint torique 17,0x3,0 MM VERT | 1 |
26/71 | 1610100016 | Tarcza Prowadząca | Guide Disc | Führungsscheibe | Disque De Guidage | 2 |
32 | 1612026037 | Pokrętło CZARNY | Clamp Handle BLACK | Knebelgriff SCHWARZ | Manette NOIR | 1 |
32/46 | 1614690002 | Kołek Zabierakowy | Driver Pin | Mitnehmerstift | Tenon D’entrainement | 1 |
32/49 | 1612026035 | Przycisk CZERWONY | Switch Button RED | Schalterknopf ROT | Bouton De Commande ROUGE | 1 |
32/76 | 1610210046 | Pierścień Samouszczeln. 10,5x2,7 MM | O-Ring 10,5x2,7 MM | O-Ring 10,5x2,7 MM | Joint torique 10,5x2,7 MM | 1 |
32/83 | 1614611006 | SPRĘŻYNA DOCISKOWA | Compression Spring | Druckfeder | Ressort De Compression | 1 |
36 | 1615808106 | Wspornik Łożyska | Bearing Holder | Lagerhalter | Support Pour Palier | 1 |
41 | 1615500428 | Pokrywa Obudowy | Housing Cover | Gehäusedeckel | Couvercle De Carter | 1 |
45 | 1610522015 | Pierścień Kier. Powietrza | Air-Deflector Ring | Luftleitring | Deflecteur D’air | 1 |
47 | 1616312010 | Element Przełączający | Control Element | Schaltelement | Element De Commutation | 1 |
54 | 1610502016 | TULEJA GUMOWA | Rubber Bushing | Gummibuchse | Douille Caoutchouc | 1 |
55 | 1610290104 | Pierścień Samouszczeln. 59,5x5,0 MM | O-Ring 59,5x5,0 MM | O-Ring 59,5x5,0 MM | Joint torique 59,5x5,0 MM | 1 |
57 | 1610210208 | Pierścień Samouszczeln. 24,0x2,0 MM | O-Ring 24,0x2,0 MM | O-Ring 24,0x2,0 MM | Joint torique 24,0x2,0 MM | 1 |
76 | 160343000A | Śruba Do Gwint. Bezwiórk. | Thread-forming tap. Screw | Gewindefurchschraube | Vis autotaradeuse p. défo | 4 |
77 | 2603490024 | Wkręt Soczewkowy Torx 4x25 | Torx Oval-Head Screw 4x25 | Torx-Linsenschraube 4x25 | Vis A Tete Bombee Torx 4x25 | 3 |
79 | 1613435042 | Śruba Do Gwint. Bezwiórk. | Thread-forming tap. Screw | Gewindefurchschraube | Vis autotaradeuse p. défo | 4 |
80 | 1613435043 | Śruba | Screw | Schraube | Vis | 2 |
101 | 1614449014 | PRZEWÓD ŁĄCZĄCY | Connecting Cable | Verbindungsleitung | Cable De Connexion | 1 |
105 | 1614643027 | SPRĘŻYNA DOCISKOWA | Compression Spring | Druckfeder | Ressort De Compression | 1 |
109 | 1613435029 | Śruba Do Gwint. Bezwiórk. | Thread-forming tap. Screw | Gewindefurchschraube | Vis autotaradeuse p. défo | 2 |
120 | 160202508X | UCHWYT DODATKOWY | Auxiliary Handle | Zusatzhandgriff | Poignee Auxiliaire | 1 |
120/120 | 1612025058 | UCHWYT DODATKOWY M8 CZARNY | Auxiliary Handle | Zusatzhandgriff | Poignee Auxiliaire | 1 |
120/124 | 1611316021 | Taśma Zawiesz. Z Naciąg. Ø50 MM | Clamping Band Ø50 MM | Spannband Ø50 MM | Collier De Serrage Ø50 MM | 1 |
120/125 | 1613490002 | NITOWKRĘT M8x40 MM | T-Head Bolt M8x40 MM | Hammerschraube M8x40 MM | Vis A Tete Rectangulaire M8x40 MM | 1 |
120/802 | 1617000475 | UCHWYT ZACISKOWY | Support clamp | Klemmhalter | Support De Fixation | 1 |
203 | 1610508047 | Kołpak Ochronny | Protective Cap | Schutzkappe | Bouchon de protection | 1 |
206 | 1613230003 | Kula Ø7,3 MM | Ball Ø7,3 MM | Kugel Ø7,3 MM | Bille Ø7,3 MM | 1 |
207 | 1614601027 | Pierścień Sprężysty | Retaining ring | Sprengring | Anneau élastique | 1 |
208 | 1610101629 | Tarcza Ustalająca | Retaining Washer | Haltescheibe | Rondelle D’arret | 1 |
209 | 1610102638 | Podkładka Oporowa | Friction Washer | Anlaufscheibe | Rondelle De Friction | 1 |
211 | 2916540012 | Pierścień Sprężysty DIN 7993-A22 | Retaining ring DIN 7993-A22 | Sprengring DIN 7993-A22 | Anneau élastique DIN 7993-A22 | 1 |
321 | 16170006CA | Uchwyt Narzędzia | Toolholder | Werkzeughalter | Porte-Outil | 1 |
321/22 | 1616312004 | KOŁO ZĘBATE CZOŁOWE | Cylindrical Gear | Stirnrad | Roue Cylindrique | 1 |
321/28 | 1613124098 | IGLICA | Striker Pin | Schlagbolzen | Percuteur | 1 |
321/33 | 1610590020 | Tuleja Wspornika | Holding Jacket | Aufnahmehülse | Douille De Positionnemen | 1 |
321/34 | 1610190067 | Tarcza Oporowa | Supporting Disc | Stützscheibe | Rondelle D’appui | 1 |
321/37 | 1613100019 | KOŁEK WALCOWY DIN6325-2,5x12-RIKO | Straight Pin DIN6325-2,5x12-RIKO | Zylinderstift DIN6325-2,5x12-RIKO | Goupille Cylindrique DIN6325-2,5x12-RIKO | 3 |
321/38 | 1600A008AG | Płytka Ryglująca | Catch Disk | Rastscheibe | Rondelle D’arret | 1 |
321/42 | 1610102084 | Pierścień Rozruchowy | Thrust Ring | Anlaufring | Bague Antifriction | 1 |
321/46 | 1610390068 | TULEJA PROWADZĄCA | Guide Bushing | Führungsbuchse | Douille De Guidage | 1 |
321/50 | 1614615008 | SPRĘŻYNA DOCISKOWA | Compression Spring | Druckfeder | Ressort De Compression | 1 |
321/58 | 1610210105 | Pierścień Samouszczeln. 18,0x3,5 MM | O-Ring 18,0x3,5 MM | O-Ring 18,0x3,5 MM | Joint torique 18,0x3,5 MM | 2 |
321/59 | 1600A009VC | USZCZELKA | Shaft Seal | Wellendichtring | Joint A Lèvres | 1 |
321/60 | 1610210209 | Pierścień Samouszczeln. 9,5x3,5 MM | O-Ring 9,5x3,5 MM | O-Ring 9,5x3,5 MM | Joint torique 9,5x3,5 MM | 1 |
321/72 | 1604601027 | Pierścień Sprężysty | Retaining ring | Sprengring | Anneau élastique | 1 |
321/86 | 1614601034 | Pierścień Sprężysty | Retaining ring | Sprengring | Anneau élastique | 1 |
321/87 | 1604601028 | Pierścień Sprężysty A22 DIN 7993 | Retaining ring A22 DIN 7993 | Sprengring A22 DIN 7993 | Anneau élastique A22 DIN 7993 | 1 |
340 | 16170006CU | OBUDOWA PRZEKŁADNI | Gear Housing | Getriebegehäuse | Carter D’engrenages | 1 |
340/48 | 1611098008 | Blacha Zabezpieczająca | Tab Washer | Sicherungsblech | Frein D’ecrou | 1 |
340/63/63 | 1610910063 | Tuleja Igłowa Ø30xØ37x12 MM | Needle bearing Ø30xØ37x12 MM | Nadelhülse Ø30xØ37x12 MM | Douille à aiguilles Ø30xØ37x12 MM | 1 |
340/63/64 | 1610390069 | TULEJA | Bushing | Buchse | Douille | 1 |
340/68 | 1610283036 | PIERŚCIEN USZCZELNIAJĄCY | Rotary shaft lip seal | Radial-Wellendichtring | Bague D’etancheite | 1 |
340/78 | 2603490022 | Wkręt Soczewkowy Torx 4x16 | Screw 4x16 | Schraube 4x16 | Vis 4x16 | 3 |
688 | 1613001009 | Ogran. Miernika Głębok. SW 6x210 MM | Depth-Gauge SW 6x210 MM | Tiefenanschlag SW 6x210 MM | Butee De Profondeur SW 6x210 MM | 1 |
801 | 16170006BS | Kadłub Silnika | Motor Housing | Motorgehäuse | Carter De Moteur | 1 |
805 | 1607000392 | Przewód Zasil. Sieciowy EU 4,15m 2 x 1,0mm H07 RN-F | Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F | Netzanschlussleitung EU 4,15m 2 x 1,0mm H07 RN-F | Câble d alimentation EU 4,15m 2 x 1,0mm H07 RN-F | 1 |
808 | 1601106035 | TABLICZKA ZNAMIONOWA 26x42 MM | Nameplate | Typschild | Plaque signalétique | 1 |
811 | 1617000525 | Zestaw Szczotek Węglowych | Carbon-Brush Set | Kohlebürstensatz | Jeu De Balais | 1 |
820 | 16170006BT | KOŁNIERZ POŚREDNI | Intermediate Flange | Zwischenflansch | Bride Intermediaire | 1 |
821 | 16170006C9 | UCHWYT NARZĘDZIA | Tool Holding Fixture | Werkzeugaufnahme | Porte Outil | 1 |
823 | 16170006BW | TULEJA ZĘBATA | Gear Sleeve | Zahnhülse | Douille Dentee | 1 |
825 | 16170006CB | UCHWYT NARZĘDZIA | Tool Holding Fixture | Werkzeugaufnahme | Porte Outil | 1 |
828 | 1617000697 | IGLICA | Striker Pin | Schlagbolzen | Percuteur | 1 |
830 | 16170006CT | Łożysko Napędowe | Drive bearing | Antriebslager | Palier d’entraînement | 1 |
861 | 1615820097 | EL. STERUJĄCY | Switching Element | Schaltstück | Element De Commutation | 1 |
870 | 1613523011 | UCHWYT WIERTARSKI 1/2", SDS-Plus | Drill Chuck Shank 1/2", SDS-Plus | Bohrfutterschaft 1/2", SDS-Plus | Tige De Mandrin 1/2", SDS-Plus | 1 |
870/2 | 2603421207 | WKRĘT Z ŁBEM STOŻK. PŁAS. M6x27-KØ11 GWINT LEWY | Countersunk-Head Screw M6x27-KØ11 LEFTHAND THREADS | Senkschraube M6x27-KØ11 LINKSGEWINDE | Vis à tête fraisée M6x27-KØ11 FILET À GAUCHE | 1 |
871 | 1608571069 | UCHWYT WIERTARSKI Ø1,5-13 MM, 1/2" | Chuck Ø1,5-13 MM, 1/2" | Bohrfutter Ø1,5-13 MM, 1/2" | Mandrin Ø1,5-13 MM, 1/2" | 1 |
872 | 2607950007 | KLUCZ DO UCHWYTU ZĘBATEGO SG2 | Chuck Wrench SG2 | Bohrfutterschlüssel SG2 | Cle De Mandrin SG2 | 1 |
895 | 1615438409 | ZAMKNIĘCIE dla 1 615 438 486+...358+...367 | Lock for 1 615 438 486+...358+...367 | Verschluss für 1 615 438 486+...358+...367 | Fermeture pour 1 615 438 486+…358+…367 | 1 |
