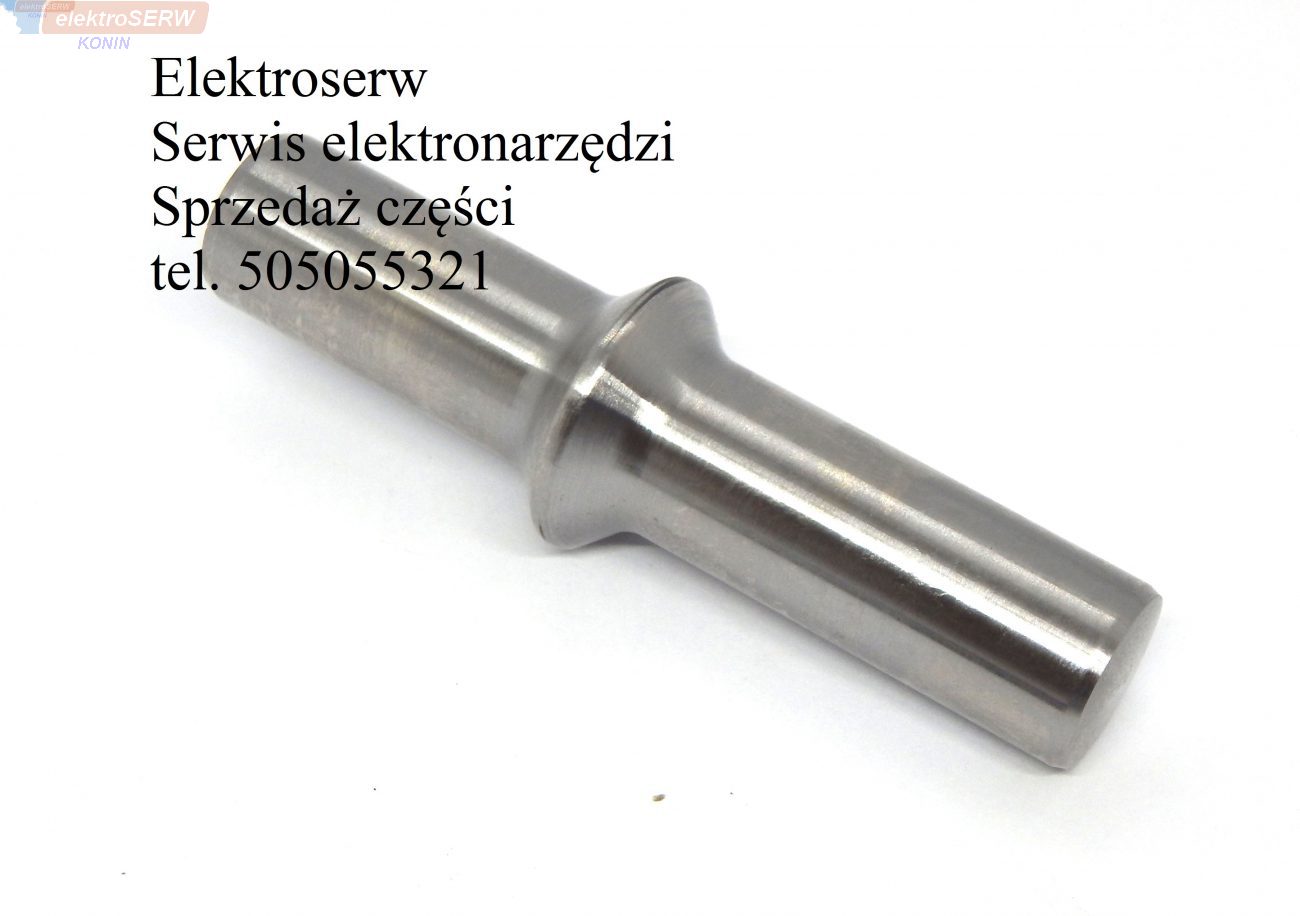

Hilti bijak do TE 1000
Hilti - bijak - nowy oryginalny
Zastosowanie: TE 1000

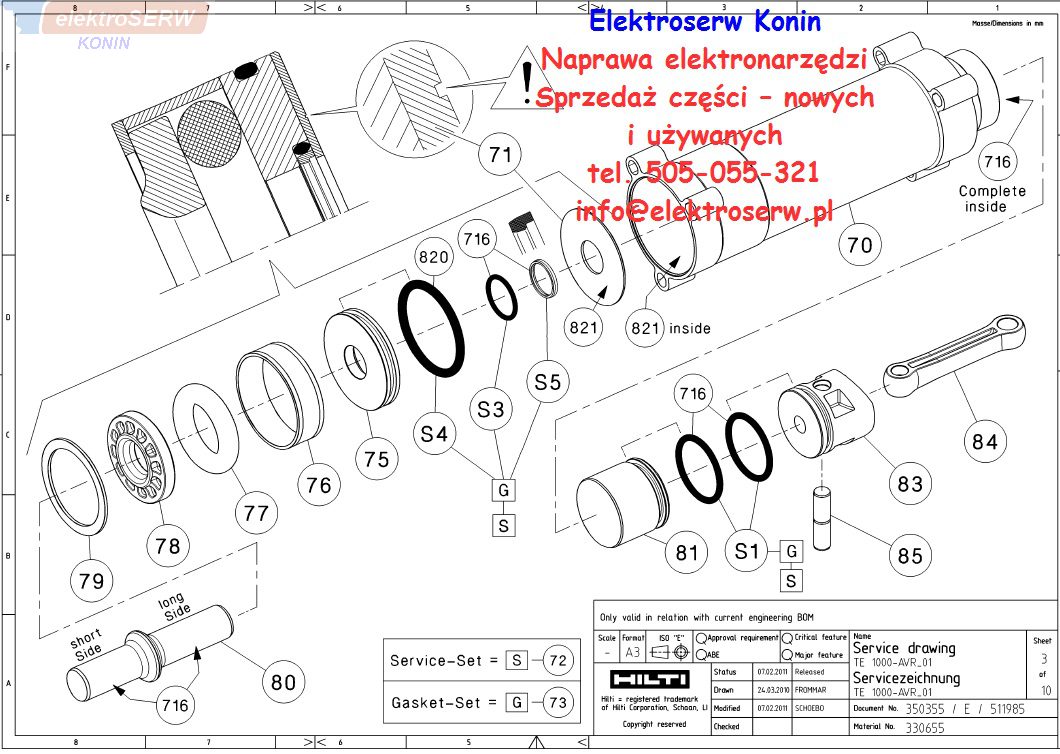

Pozycja na schemacie nr 80

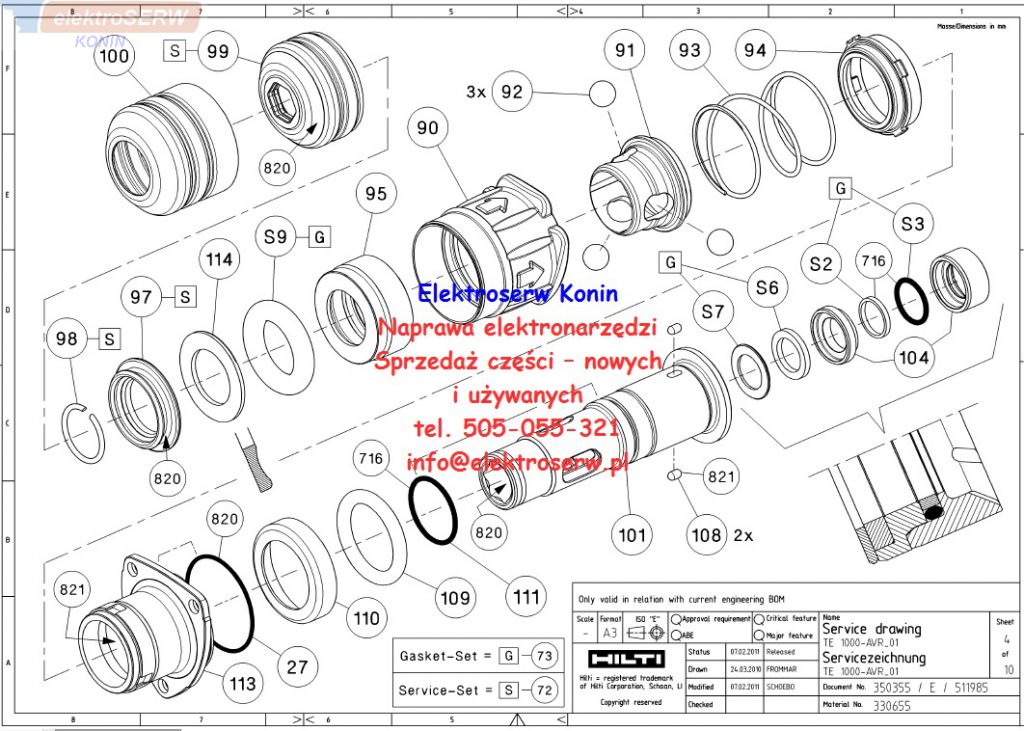

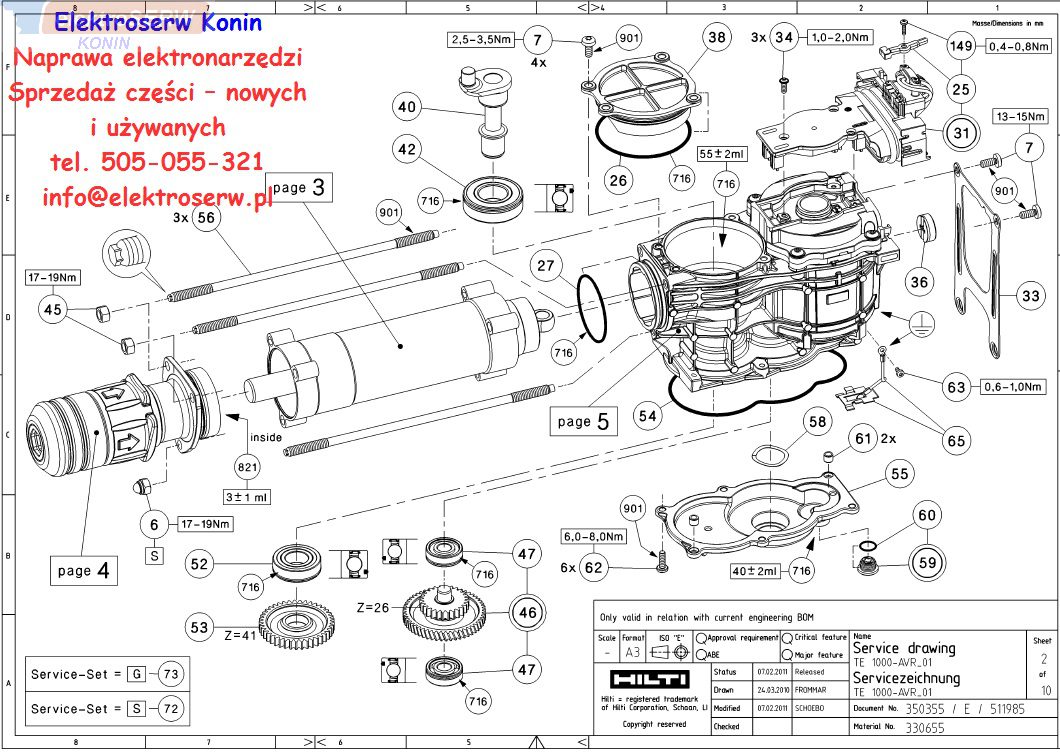

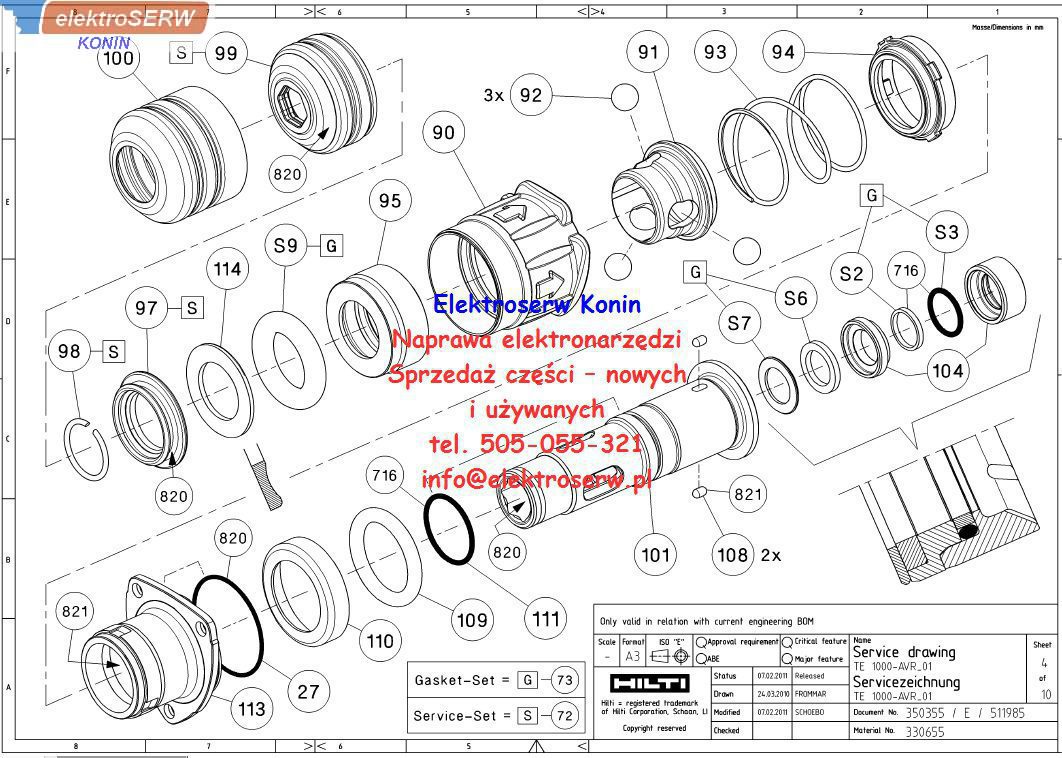

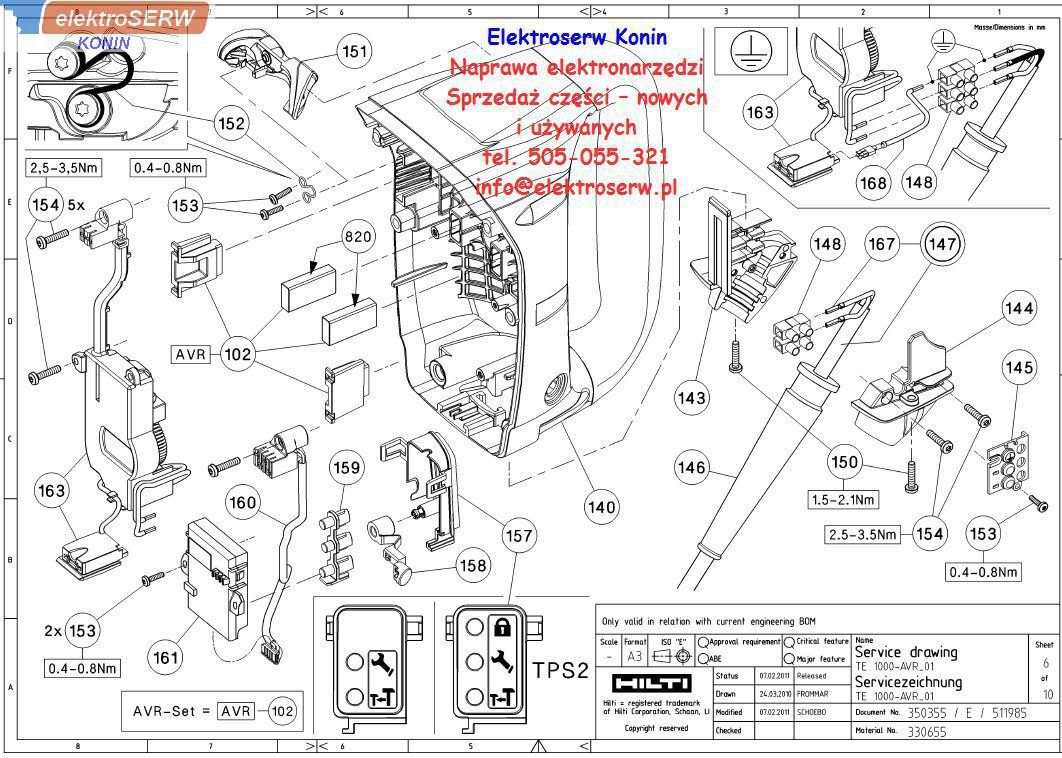

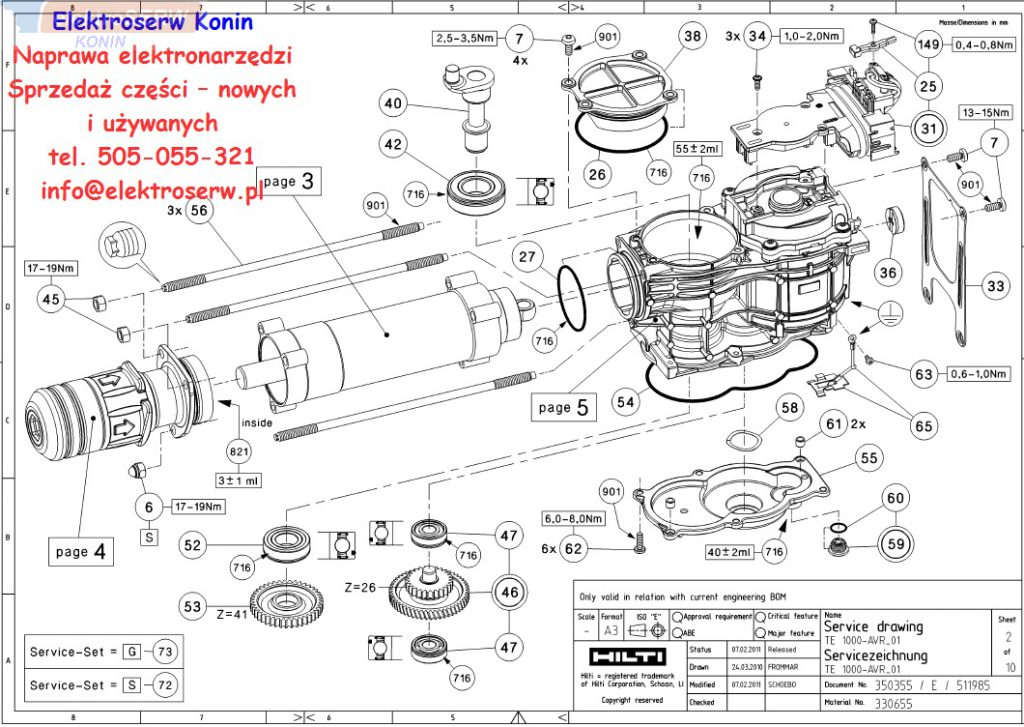

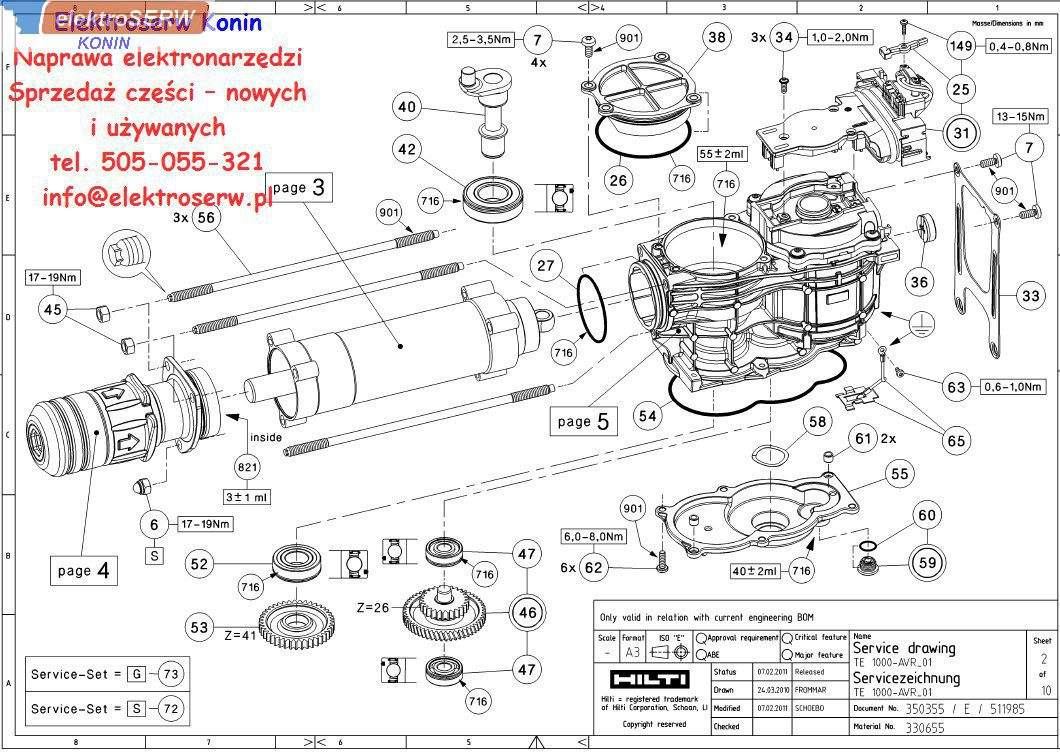

HILTI TE 1000 części zamienne
Prosimy o podanie pozycji na schemacie w celu dokonania wyceny.
Posiadamy części do Hilti - do większości modeli - starych i nowych.

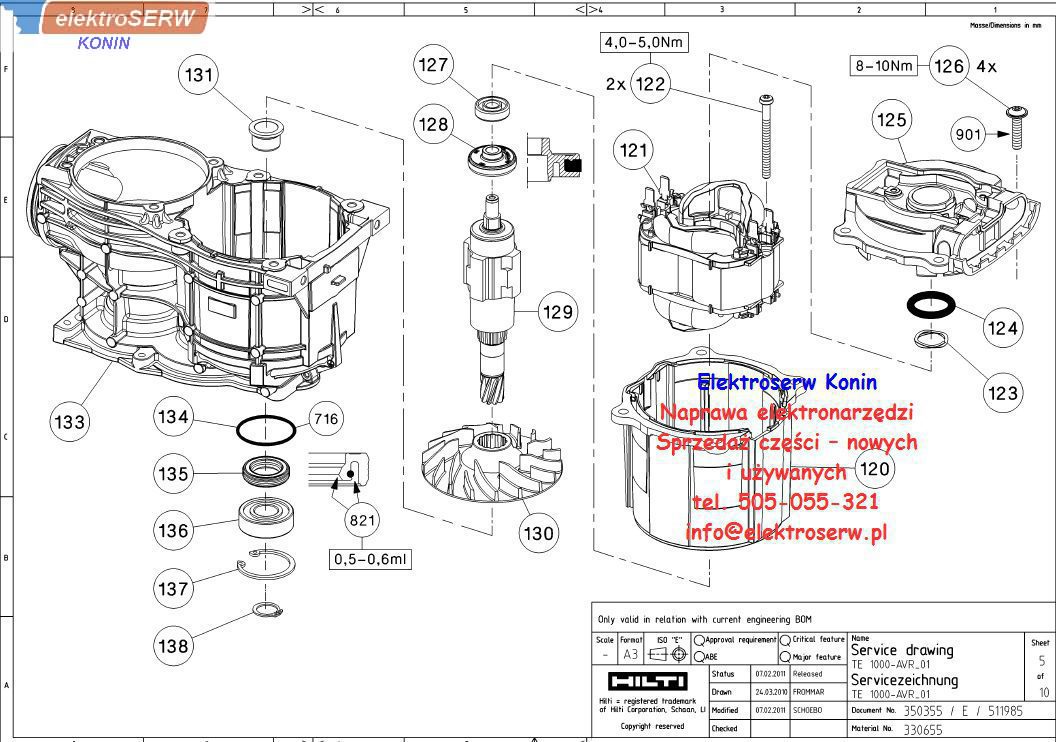

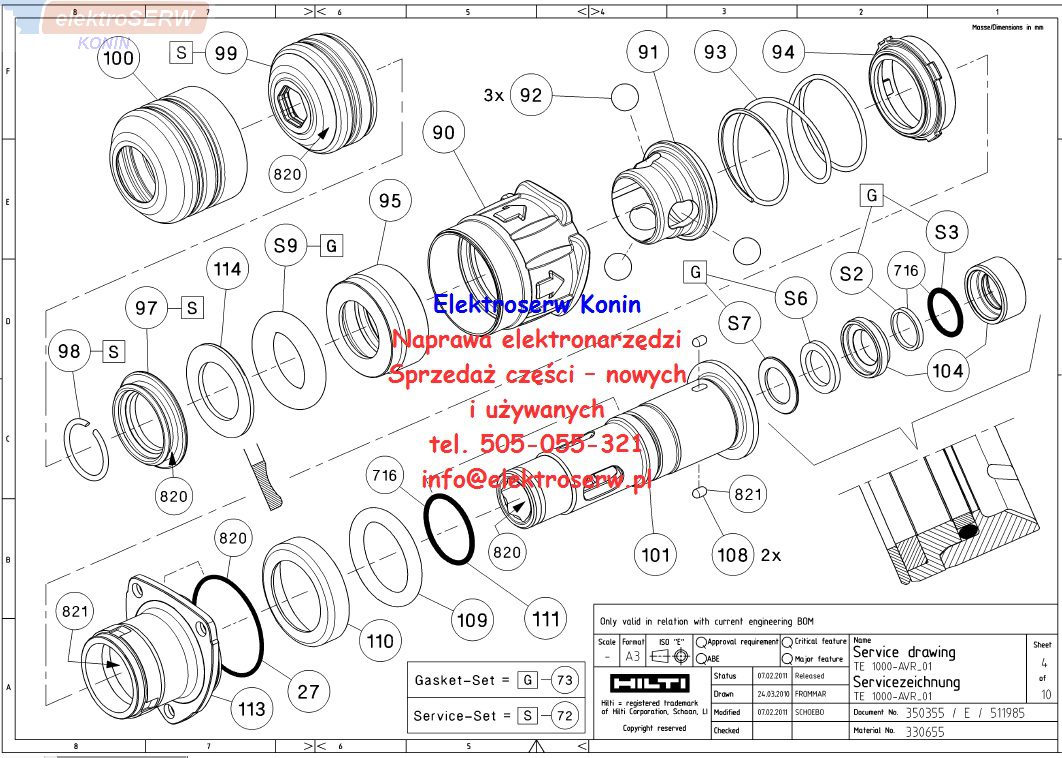

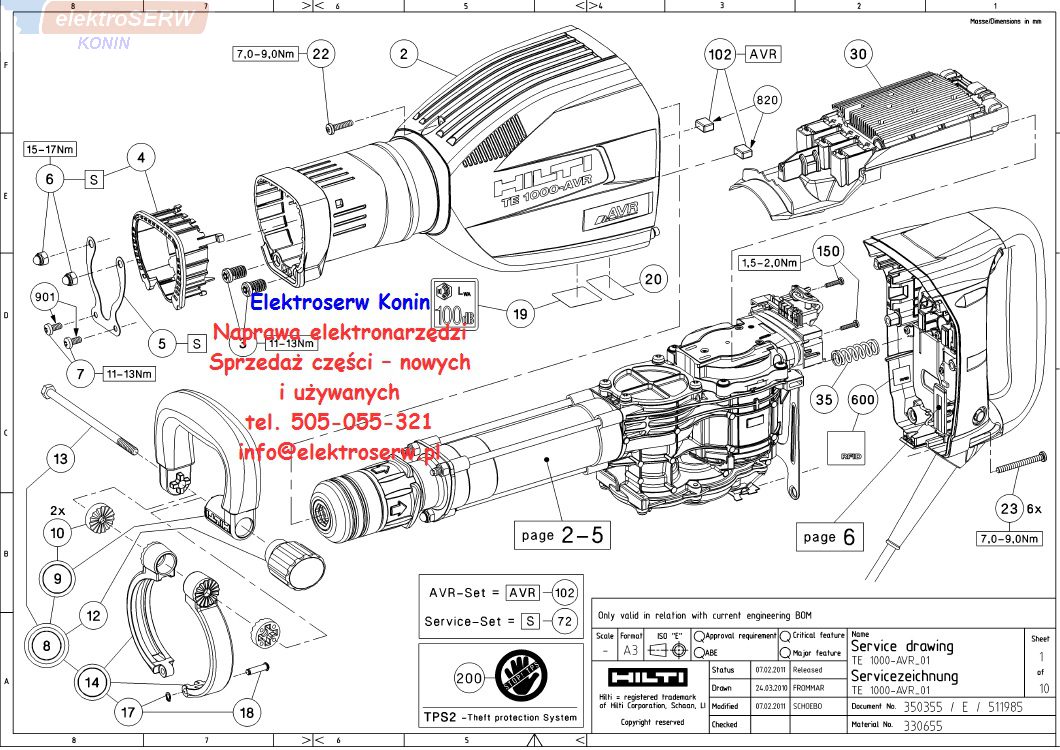

Spis części zamiennych:
| Pozycja na schemacie | Numer katalogowy | Ilość w maszynie | Nazwa |
| 2 | 330899 | 1 | Casing TE 1000-AVR printed / KORPUS / OBUDOWA |
| 3 | 330892 | 2 | Banjo bolt |
| 4 | 330889 | 1 | Adapter piece / ADAPTER |
| 5 | 330921 | 1 | Articulating arm front / PRZEGUB PRZEDNI |
| 6 | 330803 | 3 | Cap nut M8 / |
| 7 | 330944 | 8 | Int hexalob b'hd screw M6x14 MK black / ŚRUBA SZEŚCIOKONTNA |
| 8 | 393990 | 1 | Chiselling handle assy / uCHWYT RĄCZKI |
| 9 | 234297 | 1 | Grip unit / UCHWYT |
| 10 | 233547 | 2 | Snap-lock ring 1 / PIERŚCIEŃ BLOKADY |
| 12 | 233549 | 1 | Twist grip assy / SUWAK MOCUJĄCY |
| 13 | 233548 | 1 | Hexagon bolt M8X160 black 8.8, |
| 14 | 330656 | 1 | Chiselling handle clamp assy |
| 17 | 208268 | 1 | Circlip 6X0,7 FEDERSTAHL / PIERŚCIEŃ OCHRONNY |
| 18 | 234210 | 1 | Clevis pin |
| 19 | 218324 | 1 | Adhesive label 100 dB |
| 20 | 359714 | 1 | Rating plate TE 1000-AVR 230V GB |
| 22 | 281684 | 1 | Torx-soc re scr SN65 6X25 T30 |
| 23 | 330943 | 6 | Torx-soc re scr SN65 6X55 T30 |
| 25 | 355034 | 1 | Lever / DRĄŻEK |
| 26 | 330696 | 1 | O-ring 75,0x2,5 70 SHORE |
| 27 | 330930 | 1 | O-ring 56X2 FPM 70 GRUEN |
| 30 | 402673 | 1 | Electronics TE1000 220-240V packed / ELEKTRONIKA |
| 31 | 429304 | 1 | Electrical assembly set packed |
| 33 | 330664 | 1 | Articulating arm rear / RAMIĘ PRZEGŁUBOWE |
| 34 | 345448 | 3 | Torx-soc re scr 4x12 T20 black |
| 35 | 330806 | 1 | Spring |
| 36 | 330807 | 1 | Spring support |
| 38 | 330662 | 1 | Lid |
| 40 | 355500 | 1 | Eccentric mach / MIMOŚRÓD |
| 42 | 330691 | 1 | Ball bearing 25x52x15 / ŁOŻYSKO |
| 45 | 330989 | 2 | Hexagon nut M8 |
| 46 | 402672 | 1 | Gear spindle TE 1000 packed |
| 47 | 330706 | 2 | Ball bearing 12x32x10 |
| 52 | 366260 | 1 | Ball bearing 20X42X12 |
| 53 | 330668 | 1 | Toothed gear Z=41 |
| 54 | 330695 | 1 | Seal |
| 55 | 330834 | 1 | Bearing cover finpt / SOŁONA POKRYWY ŁOŻYSKA |
| 56 | 330705 | 3 | Pull rod / CIĘGŁO |
| 58 | 330800 | 1 | Spring washer |
| 59 | 71886 | 1 | Screw plug assy |
| 60 | 73455 | 1 | O-ring 11,5X1,5 NBR 70 |
| 61 | 345156 | 2 | Centering bushing / TULEJA CENTRUJĄCA |
| 62 | 206291 | 6 | Torx-soc ov screw M5X16 MK T25 black |
| 63 | 201495 | 1 | Torx-soc tapt scr M3,5X5,5 T15 |
| 65 | 250530 | 1 | Flexible conductor ESD/PE assy |
| 70 | 321736 | 1 | Guide tube TE 1000 packed |
| 71 | 402668 | 1 | Sealing washer packed / PODKŁADKA USZCZELNIAJĄCA |
| 72 | 321740 | 1 | Servicing set TE 1000 / ZESTAW NAPRAWCZY |
| 73 | 406896 | 1 | Gasket set TE 1000/TE 1500 / USZCZELNIACZ |
| 75 | 402667 | 1 | Centering disc packed |
| 76 | 330844 | 1 | Spacing sleeve / TULEJA DYSTANSOWA |
| 77 | 330992 | 1 | O-ring 32x12 HNBR 70 |
| 78 | 330764 | 1 | Absorber ring |
| 79 | 330810 | 1 | Distance washer / PODKŁADKA DYSTANSOWA |
| 80 | 321557 | 1 | Ram TE 1000 packed |
| 81 | 321558 | 1 | Striker piston TE 1000 packed |
| 83 | 330596 | 1 | Drive piston / TŁOK NAPĘDOWY |
| 84 | 330633 | 1 | Conrod |
| 85 | 330598 | 1 | Piston pin |
| 90 | 330804 | 1 | Cap |
| 91 | 330864 | 1 | Sleeve |
| 92 | 234026 | 3 | Ball 15 III WÄLZLAGERSTAHL |
| 93 | 234058 | 1 | Compression spring / SPRĘŻYNA NACISKOWA |
| 94 | 330856 | 1 | Guide ring / PODKŁADKA PROWADZĄCA |
| 95 | 330972 | 1 | Lock / BLOKADA |
| 97 | 200350 | 1 | Detent ring |
| 98 | 200342 | 1 | Retaining ring |
| 99 | 413689 | 1 | Dust shield 2T packed |
| 100 | 330961 | 1 | Protective cap |
| 101 | 321559 | 1 | Chuck TE 1000/1500 packed |
| 102 | 321739 | 1 | Absorber AVR kit |
| 104 | 402666 | 1 | Seal holder assy packed |
| 108 | 70123 | 2 | Roller |
| 109 | 343379 | 1 | O-ring 42X8 |
| 110 | 330842 | 1 | Cage |
| 111 | 330855 | 1 | O-ring 36x2,5 |
| 113 | 368933 | 1 | Flange S packed |
| 114 | 200351 | 1 | Supporting ring |
| 120 | 234356 | 1 | Motor housing TE 1000 / OBUDOWA SILNIKA |
| 121 | 321708 | 1 | Stator TE 1000 packed / STOJAN |
| 122 | 366280 | 2 | Torx-soc re scr SN65 5X55 T25 |
| 123 | 234227 | 1 | Compression spring 21,65x5,4 |
| 124 | 206145 | 1 | O-ring 21,3X2,4 N-NBR70 |
| 125 | 234361 | 1 | Bearing cover |
| 126 | 393892 | 4 | Torx-soc ov screw M6x25 MK T30 black |
| 127 | 250740 | 1 | Ball bearing 8x22x7 |
| 128 | 411651 | 1 | Insulating washer SR |
| 129 | 321709 | 1 | Rotor TE 1000 packed |
| 130 | 355405 | 1 | Cooling fan |
| 131 | 341388 | 1 | |
| 133 | 321717 | 1 | |
| 134 | 70446 | 1 | |
| 135 | 234126 | 1 | |
| 136 | 234199 | 1 | |
| 137 | 51090 | 1 | |
| 138 | 71465 | 1 | |
| 140 | 275169 | 1 | |
| 143 | 364059 | 1 | |
| 144 | 364060 | 1 | |
| 145 | 365226 | 1 | |
| 146 | 330179 | 1 | |
| 147 | 359704 | 1 | |
| 148 | 330332 | 1 | |
| 150 | 207960 | 4 | |
| 151 | 393762 | 1 | |
| 152 | 393763 | 1 | |
| 153 | 360151 | 5 | |
| 154 | 206379 | 7 | Torx-soc re scr 4X18 T15 |
| 157 | 330906 | 1 | Cover MMI, Service, LR printed |
| 158 | 330927 | 1 | Feeler assy |
| 159 | 275153 | 1 | Lightguide |
| 160 | 364061 | 1 | Cable harness MMI assy |
| 161 | 321712 | 1 | Electronics MMI SR packed |
| 163 | 402715 | 1 | Electronics Netzfilter 220-240V packed / ELEKTRONIKA |
| 167 | 44269 | 2 | Conductor end sleeve B1,8 |
| 600 | 430817 | 1 | Label RFID |
| 716 | 280101 | 1 | Oil Kluebersinth GH 6-80 5L |
| 820 | 326195 | 1 | Grease 1KG WSP5000 |
| 821 | 234280 | 1 | Grease 1KG THERMOPL. 2TML |
| 822 | 203086 | 1 | Grease 50 ML |
| 901 | 3994 | 1 | Adhesive LOCTITE 243 50CCM |
