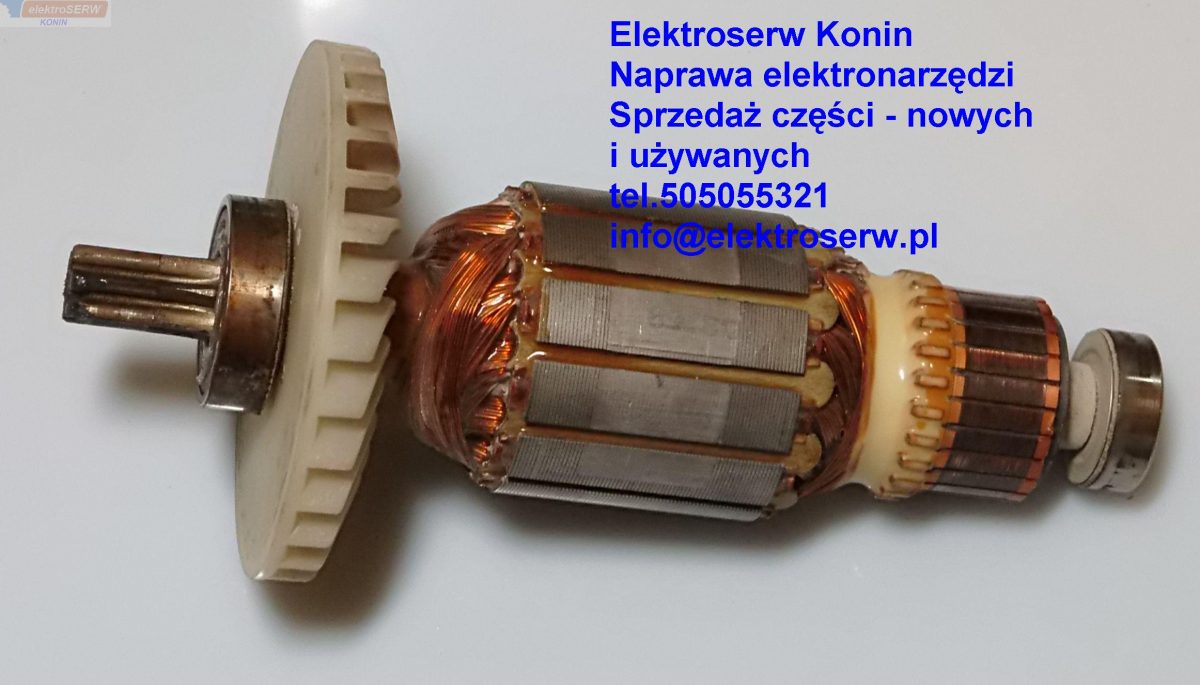

Hitachi wirnik 360768E DH30PC2
Hitachi - wirnik
Zastosowanie : DH30PC2
Nr katalogowy 360768E - podana cena dotyczy wirnika używanego
Cena nowego 250zł - dostępny - dostawa 4 dni robocze
Cena oryginalnego używanego 140zł - brak

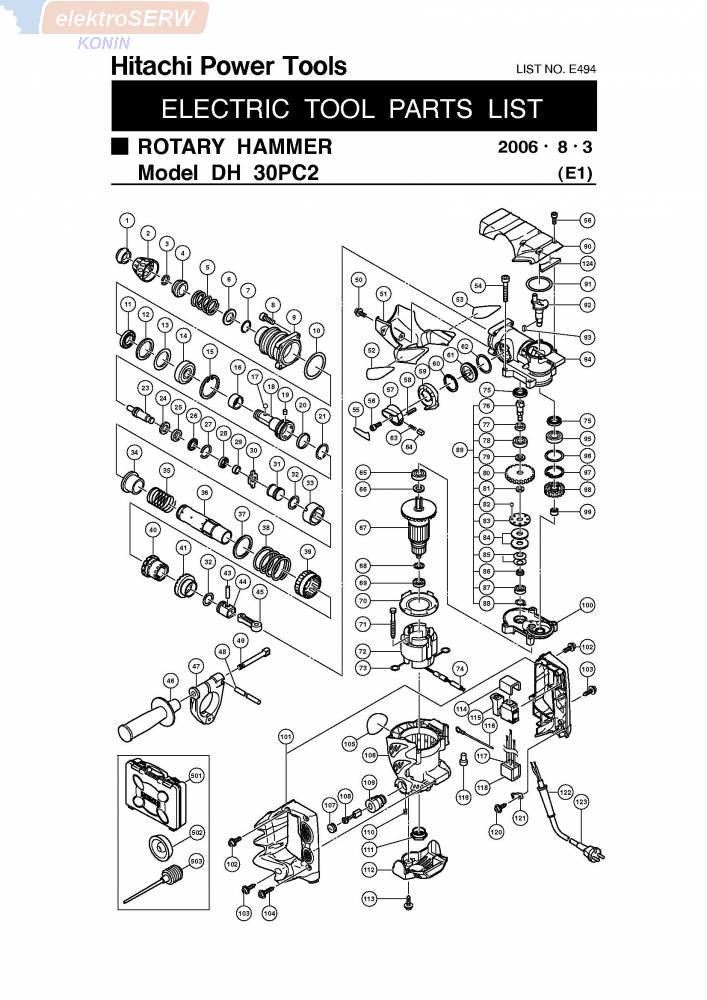

Poniżej lista części.
| ITEM NO. | CODE NO. | DESCRIPTION | NO. USED |
| 1 | 323-078 | FRONT CAP | 1 |
| 2 | 323-077 | GRIP | 1 |
| 3 | 306-340 | STOPPER RING | 1 |
| 4 | 323-076 | BALL HOLDER | 1 |
| 5 | 323-075 | RETAINER SPRING | 1 |
| 6 | 325-668 | WASHER (D) | 1 |
| 7 | 306-993 | RETAINING RING | 1 |
| 8 | 321-313 | SEAL LOCK HEX. SOCKET HD. BOLT M6X22 | 4 |
| 9 | 325-651 | CYLINDER CASE | 1 |
| 10 | 980-744 | O-RING (S-55) | 1 |
| 11 | 320-324 | OIL SEAL | 1 |
| 12 | 320-325 | DAMPER (B) | 1 |
| 13 | 320-326 | DAMPER WASHER (B) | 1 |
| 14 | 326-304 | BALL BEARING 6005DDCMPS2L | 1 |
| 15 | 948-227 | RETAINING RING FOR D47 HOLE | 1 |
| 16 | 325-667 | SLEEVE | 1 |
| 17 | 959-156 | STEEL BALL D7.0 (10 PCS.) | 2 |
| 18 | 325-652 | RETAINER SLEEVE | 1 |
| 19 | 325-658 | NEEDLE PIN | 4 |
| 20 | 326-301 | SLEEVE (C) | 1 |
| 21 | 313-420 | RETAINING RING D38 | 1 |
| 23 | 325-653 | SECOND HAMMER | 1 |
| 24 | 323-059 | DAMPER WASHER | 1 |
| 25 | 323-060 | DAMPER | 1 |
| 26 | 323-061 | DAMPER HOLDER | 1 |
| 27 | 323-062 | STOPPER RING | 1 |
| 28 | 326-302 | DAMPER HOLDER (B) | 1 |
| 29 | 326-303 | DAMPER (C) | 1 |
| 30 | 326-300 | SLIDE RING | 1 |
| 31 | 325-660 | STRIKER | 1 |
| 32 | 319-577 | O-RING (I.D 19.2) | 2 |
| 33 | 325-656 | SLIDE SLEEVE (B) | 1 |
| 34 | 325-655 | SLIDE SLEEVE (A) | 1 |
| 35 | 325-664 | CLUTCH SPRING | 1 |
| 36 | 325-654 | CYLINDER | 1 |
| 37 | 325-661 | WASHER (C) | 1 |
| 38 | 325-662 | LOCK SPRING | 1 |
| 39 | 325-663 | LOCK SLEEVE | 1 |
| 40 | 325-665 | CLUTCH | 1 |
| 41 | 325-666 | BEVEL GEAR | 1 |
| 43 | 319-581 | PISTON PIN | 1 |
| 44 | 319-580 | PISTON | 1 |
| 45 | 319-585 | CONNECTING ROD | 1 |
| 46 | 313-078 | SIDE HANDLE | 1 |
| 47 | 325-672 | HANDLE HOLDER | 1 |
| 48 | 320-973 | STOPPER ROD | 1 |
| 49 | 313-080 | HANDLE BOLT | 1 |
| 50 | 998-471 | HEX. SOCKET HD. BOLT (W/FLANGE) M5X12 | 1 |
| 51 | 325-677 | HOOD | 1 |
| 52 | HITACHI LABEL | 1 | |
| 53 | HITACHI LABEL | 1 | |
| 54 | 986-940 | SEAL LOCK HEX. SOCKET HD. BOLT M6X45 | 4 |
| 55 | 321-867 | LEVER LABEL | 1 |
| 56 | 983-162 | SEAL LOCK HEX. SOCKET HD. BOLT M4X12 | 5 |
| 57 | 321-309 | CHANGE LEVER | 1 |
| 58 | 321-312 | PIN D2X10 | 1 |
| 59 | 325-671 | LEVER HOLDER | 1 |
| 60 | 948-391 | RETAINING RING FOR D40 HOLE | 1 |
| 61 | 325-670 | LEVER SHAFT | 1 |
| 62 | 980-948 | O-RING | 1 |
| 63 | 321-310 | LEVER SPRING | 1 |
| 64 | 321-311 | PUSHING BUTTON | 1 |
| 65 | 600-1DD | BALL BEARING 6001DDCMPS2L | 1 |
| 66 | 971-736 | WASHER (B) | 1 |
| 67 | 360-768C | ARMATURE 110V | 1 |
| 67 | 360-768U | ARMATURE ASS'Y 120V | 1 |
| 67 | 360-768E | ARMATURE 220V-230V | 1 |
| 67 | 360-768F | ARMATURE 240V | 1 |
| 68 | 982-631 | WASHER (A) | 1 |
| 69 | 608-VVM | BALL BEARING 608VVC2PS2L | 1 |
| 70 | 323-083 | FAN GUIDE | 1 |
| 71 | 953-121 | HEX. HD. TAPPING SCREW D5X50 | 2 |
| 72 | 340-672C | STATOR ASS'Y 110V | 1 |
| 72 | 340-672K | STATOR ASS'Y 110V | 1 |
| 72 | 340-672G | STATOR ASS'Y 120V | 1 |
| 72 | 340-672E | STATOR ASS'Y 220V-230V | 1 |
| 72 | 340-672H | STATOR ASS'Y 220V-230V | 1 |
| 72 | 340-672J | STATOR ASS'Y 240V | 1 |
| 72 | 340-672F | STATOR ASS'Y 240V | 1 |
| 73 | 930-703 | BRUSH TERMINAL | 2 |
| 74 | 321-322 | VINYL TUBE | 1 |
| 75 | 981-851 | OIL SEAL (B) | 2 |
| 76 | 325-647 | BEVEL PINION | 1 |
| 77 | 325-648 | COLLAR | 1 |
| 78 | 600-1DD | BALL BEARING 6001DDCMPS2L | 1 |
| 79 | 992-503 | WASHER | 1 |
| 80 | 325-649 | SECOND GEAR | 1 |
| 81 | 971-087 | STOPPER WASHER | 1 |
| 82 | 959-155 | STEEL BALL D3.97 (10 PCS.) | 8 |
| 83 | 992-916 | CLUTCH PLATE | 1 |
| 84 | 992-926 | SPRING PLATE | 2 |
| 85 | 980-877 | BELLEVILLE SPRING | 2 |
| 86 | 325-650 | BUSHING | 1 |
| 87 | 608-VVM | BALL BEARING 608VVC2PS2L | 1 |
| 88 | 940-079 | RETAINING RING FOR D8 SHAFT | 1 |
| 89 | 325-646 | SLIP CLUTCH ASS'Y | 1 |
| 90 | 325-669 | CRANK CASE COVER | 1 |
| 91 | 980-715 | O-RING (S-48) | 1 |
| 92 | 325-644 | CRANK SHAFT | 1 |
| 93 | 944-109 | FEATHER KEY 3X3X8 | 1 |
| 94 | 325-643 | CRANK CASE | 1 |
| 95 | 600-2DD | BALL BEARING 6002DDCMPS2L | 1 |
| 96 | 872-767 | O-RING (S-32) | 1 |
| 97 | 948-001 | RETAINING RING FOR D32 HOLE | 1 |
| 98 | 325-645 | FIRST GEAR | 1 |
| 99 | 939-299 | NEEDLE BEARING (M661) | 1 |
| 100 | 325-674 | GEAR COVER | 1 |
| 101 | 325-680 | HANDLE (A).(B) SET | 1 |
| 102 | 994-192 | HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 | 2 |
| 103 | 302-089 | TAPPING SCREW (W/FLANGE) D5X20 (BLACK) | 2 |
| 104 | 307-028 | TAPPING SCREW (W/FLANGE) D4X25 (BLACK) | 3 |
| 105 | NAME PLATE | 1 | |
| 106 | 325-673 | HOUSING ASS'Y | 1 |
| 107 | 945-161 | BRUSH CAP | 2 |
| 108 | 999-073 | CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) | 2 |
| 109 | 958-900 | BRUSH HOLDER | 2 |
| 110 | 938-477 | HEX. SOCKET SET SCREW M5X8 | 2 |
| 111 | 310-111 | BEARING BUSHING (B) | 1 |
| 112 | 323-085 | TAIL COVER | 1 |
| 113 | 307-811 | TAPPING SCREW (W/FLANGE) D4X16 (BLACK) | 2 |
| 114 | 317-492 | SUPPORT (B) | 1 |
| 115 | 325-675 | SWITCH (2P PILLAR TYPE) | 1 |
| 116 | 994-190 | INTERNAL WIRE | 1 |
| 117 | 994-273 | NOISE SUPPRESSOR | 1 |
| 118 | 317-492 | SUPPORT (B) | 1 |
| 119 | 959-140 | CONNECTOR 50091 (10 PCS.) | 1 |
| 120 | 984-750 | TAPPING SCREW (W/FLANGE) D4X16 | 2 |
| 121 | 960-266 | CORD CLIP | 1 |
| 122 | 953-327 | CORD ARMOR D8.8 | 1 |
| 122 | 938-051 | CORD ARMOR D10.1 | 1 |
| 123 | 500-390Z | CORD | 1 |
| 123 | 500-249Z | CORD | 1 |
| 123 | 500-439Z | CORD | 1 |
| 123 | 500-424Z | CORD | 1 |
| 123 | 500-235Z | CORD | 1 |
| 123 | 500-447Z | CORD | 1 |
| 123 | 500-239Z | CORD | 1 |
| 123 | 500-391Z | CORD | 1 |
| 123 | 500-454Z | CORD | 1 |
| 123 |
