Hitachi włącznik do szlifierki G23U2 G18SH2 G23SF2

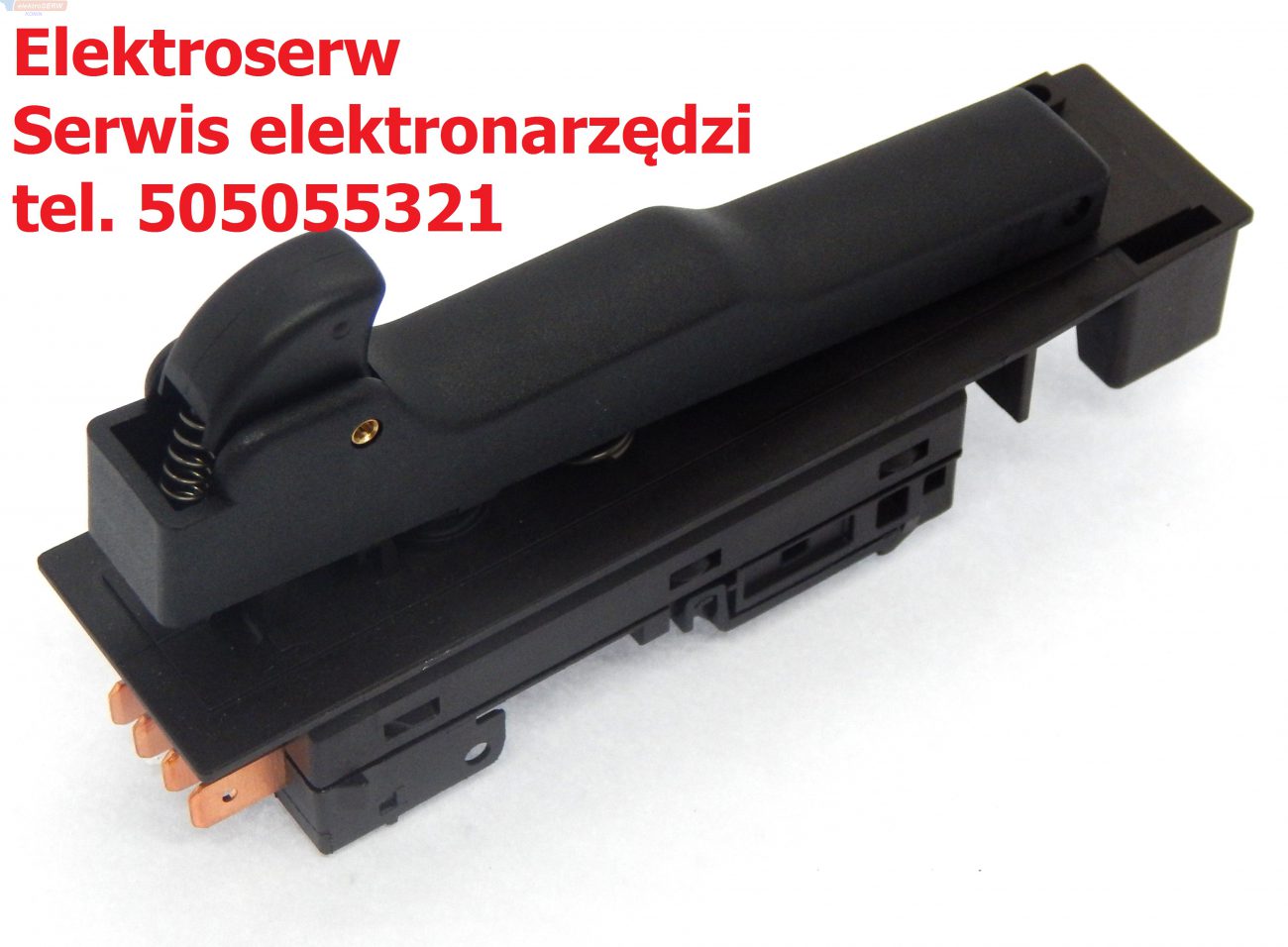

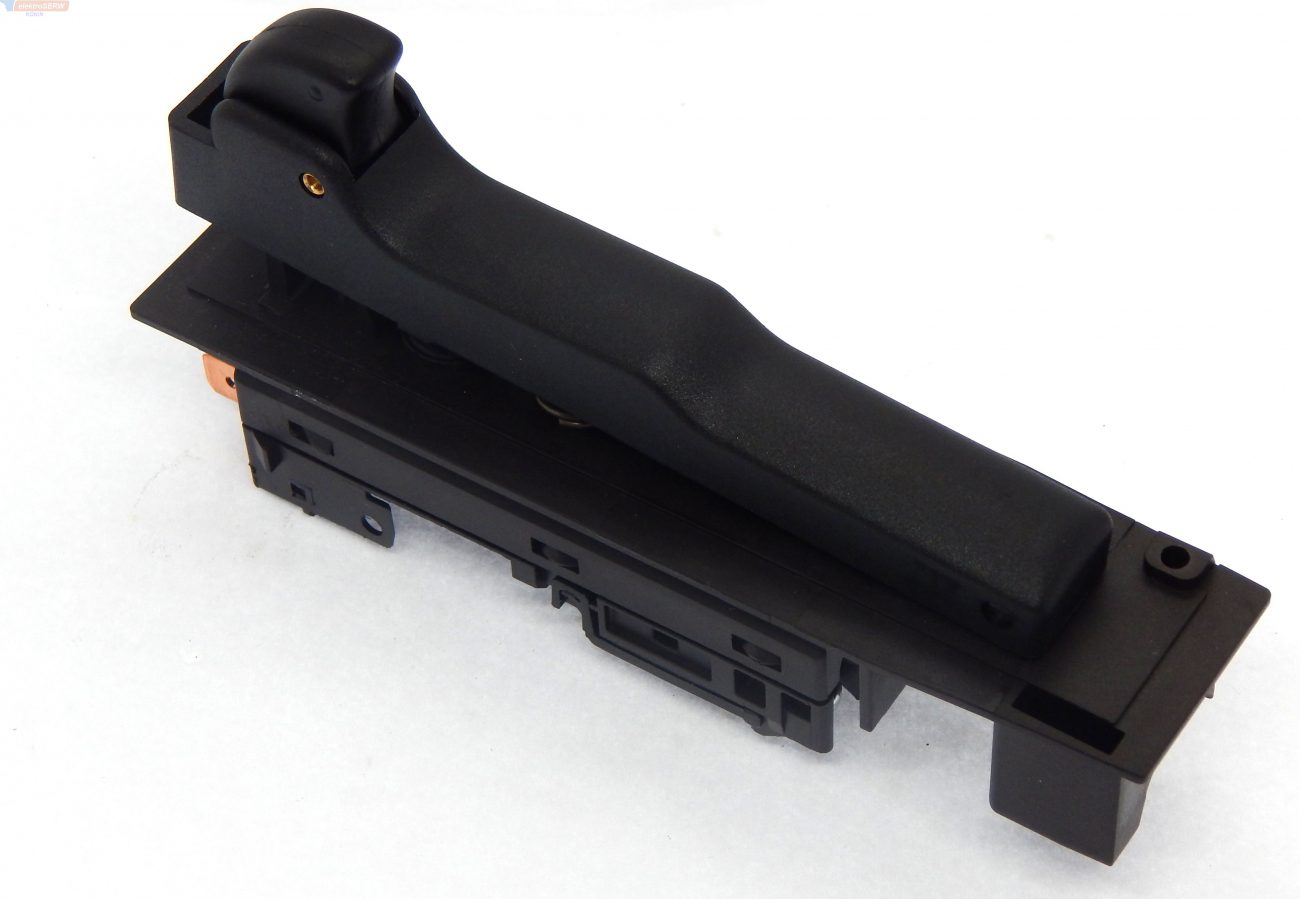

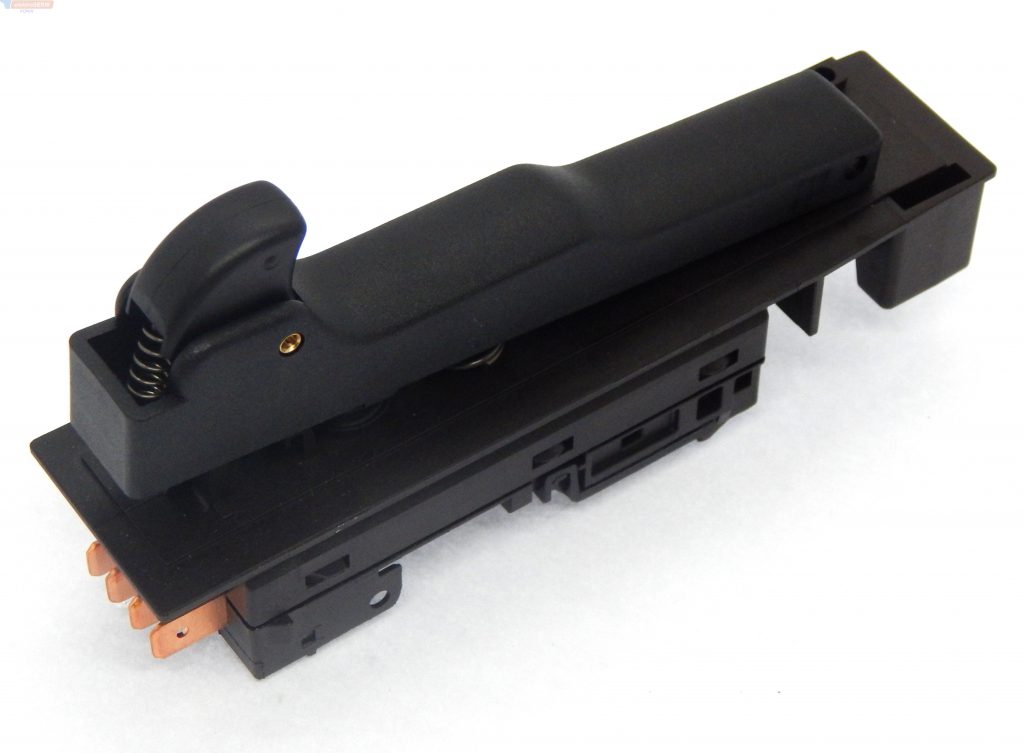

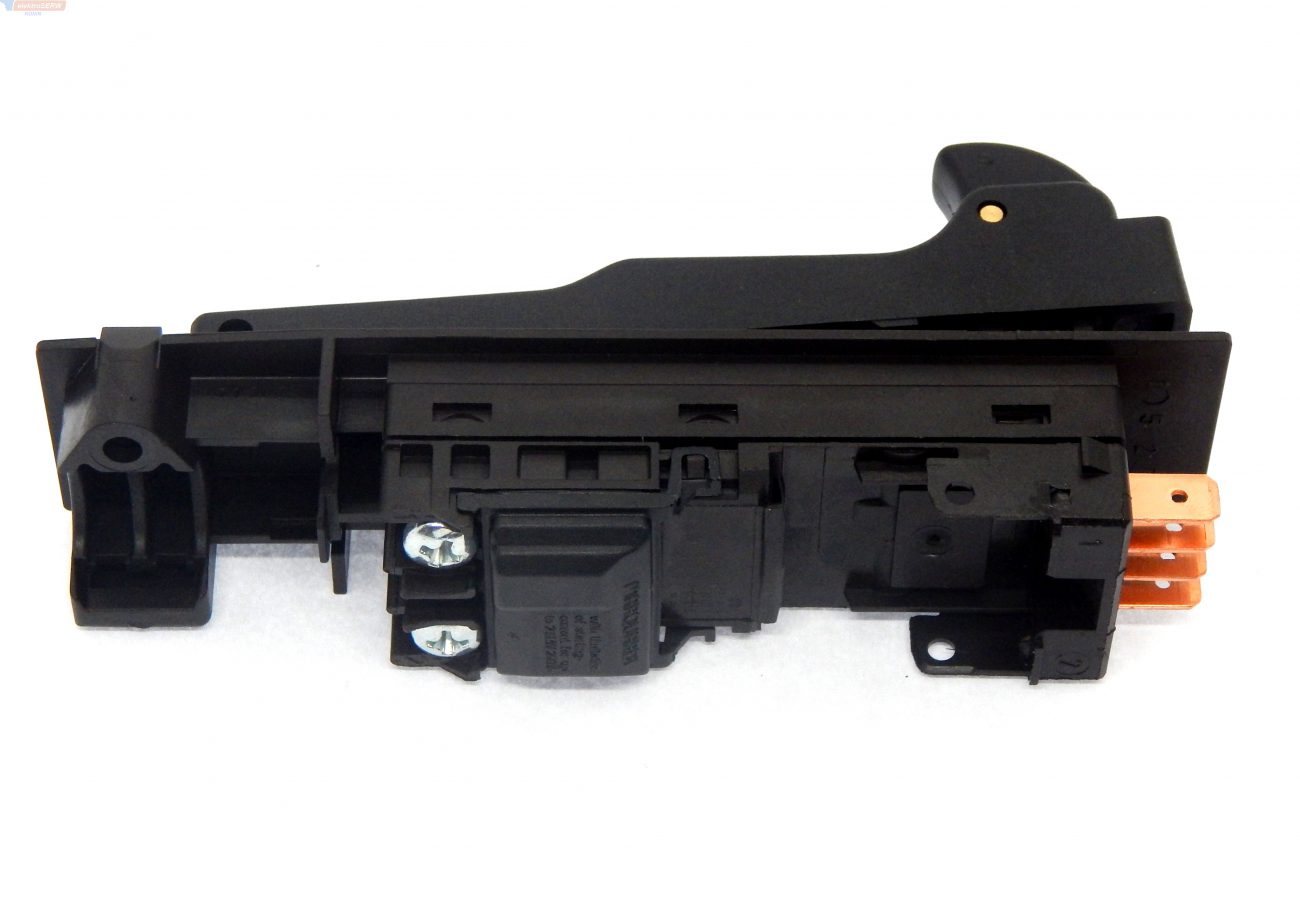

Włącznik do szlifierki Hitachi - nowy
Zastosowanie do dużych szlifierek: G23U2, G18SH2, G23SF2.
Nr katalogowy oryginalnego włącznika : 320235
Poniżej spis pozostałych części do wyżej wymienionych narzędzi.
Przy zapytaniu o dostępność i cenę prosimy podać
pozycję na schemacie lub nr katalogowy części.

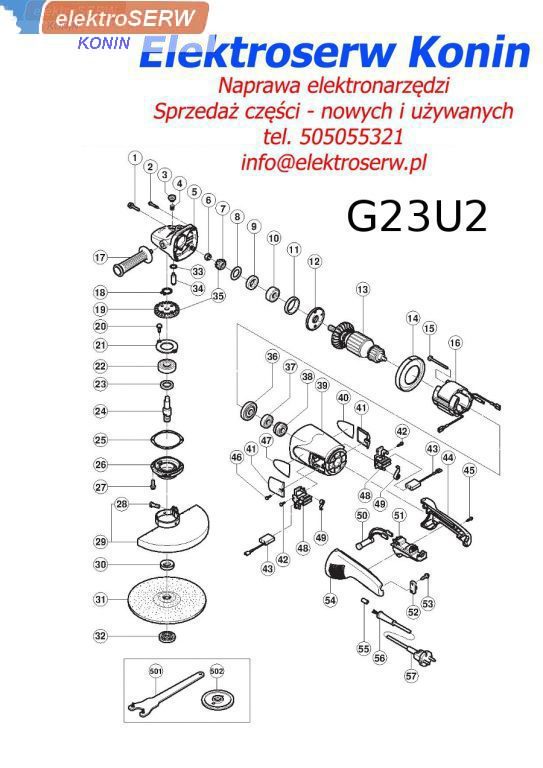

G23U2
| Pozycja na shcmeacie | Nr katalogowy | Opis | Ilość |
| 1 | 315-636 | SEAL LOCK SCREW (W/SP.WASHER)M5X14 (BLACK) | 2 |
| 2 | 301-654 | TAPPING SCREW (W/FLANGE) D5X35 | 4 |
| 3 | 306-888 | PUSHING BUTTON | 1 |
| 4 | 320-219 | SPRING | 1 |
| 5 | 320-217 | GEAR COVER ASS'Y | 1 |
| 6 | 320-226 | SPECIAL NUT M10 | 1 |
| 7 | 320-225 | PINION | 1 |
| 8 | 320-221 | SEAL WASHER | 1 |
| 9 | 320-222 | FELT PACKING | 1 |
| 10 | 630-1DD | BALL BEARING 6301DDCMPS2L | 1 |
| 11 | 994-208 | RUBBER RING (B) | 1 |
| 12 | 320-220 | BEARING COVER (A) | 1 |
| 13 | 360-558E | ARMATURE 220V-240V | 1 |
| 14 | 320-215 | FAN GUIDE | 1 |
| 15 | 961-501 | HEX. HD. TAPPING SCREW D5X60 | 2 |
| 16 | 340-501E | STATOR 220V-230V | 1 |
| 16 | 340-501F | STATOR 240V | 1 |
| 17 | 937-981 | SIDE HANDLE FOR M14 | 1 |
| 18 | 939-542 | RETAINING RING FOR D12 SHAFT (10 PCS.) | 1 |
| 19 | 320-224 | GEAR | 1 |
| 20 | 949-236 | MACHINE SCREW M5X10 (10 PCS.) | 2 |
| 21 | 320-229 | BEARING COVER (B) | 1 |
| 22 | 630-2DD | BALL BEARING 6302DDCMPS2L | 1 |
| 23 | 990-852 | FELT PACKING (B) | 1 |
| 24 | 320-234 | SPINDLE | 1 |
| 25 | 320-228 | SEAL PLATE | 1 |
| 26 | 320-227 | PACKING GLAND | 1 |
| 27 | 994-192 | HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 | 4 |
| 28 | 306-887 | BOLT M8X22 | 1 |
| 29 | 306-120 | WHEEL GUARD ASS'Y | 1 |
| 30 | 937-907Z | WHEEL WASHER (A) | 1 |
| 30 | 937-908Z | WHEEL WASHER (B) | 1 |
| 31 | 316-825 | D. C. WHEELS 230MM A24R (25 PCS.) | 1 |
| 32 | 937-909Z | WHEEL NUT M14X2 | 1 |
| 33 | 320-218 | O-RING | 1 |
| 34 | 306-890 | LOCK PIN | 1 |
| 35 | 320-223 | GEAR AND PINION ASS'Y | 1 |
| 36 | 320-216 | DUST SEAL | 1 |
| 37 | 600-0VV | BALL BEARING 6000VVCMPS2L | 1 |
| 38 | 320-244 | BEARING BUSHING | 1 |
| 39 | 320-214 | HOUSING ASS'Y | 1 |
| 40 | NAME PLATE | 1 | |
| 41 | 320-232 | BRUSH COVER | 2 |
| 42 | 305-812 | TAPPING SCREW (W/FLANGE) D4X16 (BLACK) | 2 |
| 43 | 999-061 | CARBON BRUSH 7X17X22.5 (1 PAIR) | 1 |
| 43 | 999-089 | CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) | 1 |
| 44 | 320-231 | HANDLE (B) | 1 |
| 45 | 305-812 | TAPPING SCREW (W/FLANGE) D4X16 (BLACK) | 4 |
| 46 | 305-812 | TAPPING SCREW (W/FLANGE) D4X16 (BLACK) | 2 |
| 47 | HITACHI LABEL | 1 | |
| 48 | 320-233 | BRUSH HOLDER | 2 |
| 49 | 320-245 | SPRING | 2 |
| 50 | 320-236 | RESISTOR | 1 |
| 51 | 320-235 | SWITCH (2P PILLAR TYPE) W/SAFETY LOCK | 1 |
| 51 | 320-371 | SWITCH (2P PILLAR TYPE) W/SAFETY LOCK | 1 |
| 52 | 960-266 | CORD CLIP | 1 |
| 53 | 984-750 | TAPPING SCREW (W/FLANGE) D4X16 | 2 |
| 54 | 320-230 | HANDLE (A) | 1 |
| 55 | 981-373 | TUBE (D) | 2 |
| 56 | 940-778 | CORD ARMOR D10.7 | 1 |
| 56 | 958-049 | CORD ARMOR D8.2 | 1 |
| 57 | 500-247Z | CORD | 1 |
| 57 | 500-248Z | CORD | 1 |
| 57 | 500-439Z | CORD | 1 |

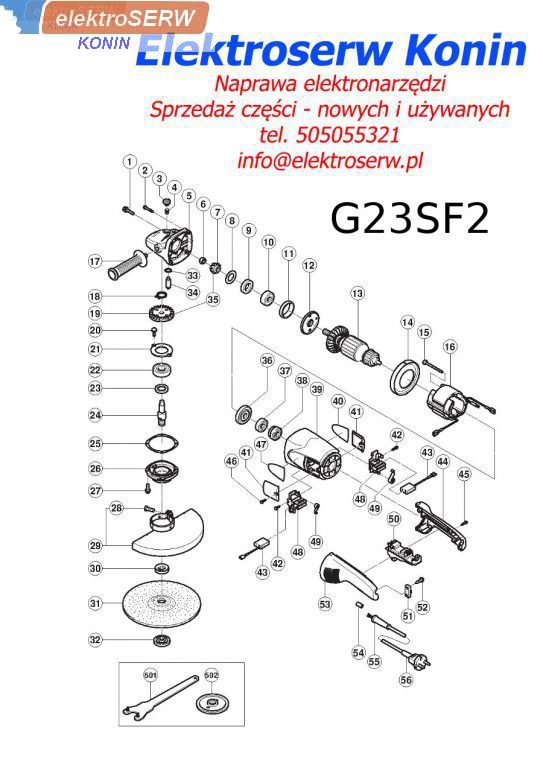

G23SF2
|
Pozycja na schemacie |
Nr katalogowy | Opis | Ilość |
| 1 | 315-636 | SEAL LOCK SCREW (W/SP.WASHER)M5X14(BLACK) | 2 |
| 2 | 301-654 | TAPPING SCREW (W/FLANGE) D5X35 | 4 |
| 3 | 306-888 | PUSHING BUTTON | 1 |
| 4 | 320-219 | SPRING | 1 |
| 5 | 320-217 | GEAR COVER ASS'Y | 1 |
| 6 | 320-226 | SPECIAL NUT M10 | 1 |
| 7 | 320-225 | PINION | 1 |
| 8 | 320-221 | SEAL WASHER | 1 |
| 9 | 320-222 | FELT PACKING | 1 |
| 10 | 630-1DD | BALL BEARING 6301DDCMPS2L | 1 |
| 11 | 994-208 | RUBBER RING (B) | 1 |
| 12 | 320-220 | BEARING COVER (A) | 1 |
| 13 | 360-558C | ARMATURE 110V | 1 |
| 13 | 360-558E | ARMATURE 220V-240V | 1 |
| 14 | 320-215 | FAN GUIDE | 1 |
| 15 | 961-501 | HEX. HD. TAPPING SCREW D5X60 | 2 |
| 16 | 340-501C | STATOR 110V | 1 |
| 16 | 340-501E | STATOR 220V-230V | 1 |
| 16 | 340-501F | STATOR 240V | 1 |
| 17 | 937-981 | SIDE HANDLE FOR M14 | 1 |
| 18 | 939-542 | RETAINING RING FOR D12 SHAFT (10 PCS.) | 1 |
| 19 | 320-224 | GEAR | 1 |
| 20 | 949-236 | MACHINE SCREW M5X10 (10 PCS.) | 2 |
| 21 | 320-229 | BEARING COVER (B) | 1 |
| 22 | 630-2DD | BALL BEARING 6302DDCMPS2L | 1 |
| 23 | 990-852 | FELT PACKING (B) | 1 |
| 24 | 320-234 | SPINDLE | 1 |
| 25 | 320-228 | SEAL PLATE | 1 |
| 26 | 320-227 | PACKING GLAND | 1 |
| 27 | 994-192 | HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 | 4 |
| 28 | 306-887 | BOLT M8X22 | 1 |
| 29 | 306-120 | WHEEL GUARD ASS'Y | 1 |
| 30 | 937-907Z | WHEEL WASHER (A) | 1 |
| 30 | 310-337 | SUPER WASHER | 1 |
| 30 | 937-908Z | WHEEL WASHER (B) | 1 |
| 31 | 316-825 | D. C. WHEELS 230MM A24R (25 PCS.) | 1 |
| 32 | 937-909Z | WHEEL NUT M14X2 | 1 |
| 33 | 320-218 | O-RING | 1 |
| 34 | 306-890 | LOCK PIN | 1 |
| 35 | 320-223 | GEAR AND PINION ASS'Y | 1 |
| 36 | 320-216 | DUST SEAL | 1 |
| 37 | 600-0VV | BALL BEARING 6000VVCMPS2L | 1 |
| 38 | 320-244 | BEARING BUSHING | 1 |
| 39 | 320-214 | HOUSING ASS'Y | 1 |
| 40 | NAME PLATE | 1 | |
| 41 | 320-232 | BRUSH COVER | 2 |
| 42 | 305-812 | TAPPING SCREW (W/FLANGE) D4X16 (BLACK) | 2 |
| 43 | 999-061 | CARBON BRUSH 7X17X22.5 (1 PAIR) | 1 |
| 43 | 999-089 | CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) | 1 |
| 44 | 320-231 | HANDLE (B) | 1 |
| 45 | 305-812 | TAPPING SCREW (W/FLANGE) D4X16 (BLACK) | 4 |
| 46 | 305-812 | TAPPING SCREW (W/FLANGE) D4X16 (BLACK) | 2 |
| 47 | HITACHI LABEL | 1 | |
| 48 | 320-233 | BRUSH HOLDER | 2 |
| 49 | 320-245 | SPRING | 2 |
| 50 | 320-238 | SWITCH (2P PILLAR TYPE) W/SAFETY LOCK | 1 |
| 50 | 320-239 | SWITCH (2P PILLAR TYPE) W/SAFETY LOCK | 1 |
| 51 | 960-266 | CORD CLIP | 1 |
| 52 | 984-750 | TAPPING SCREW (W/FLANGE) D4X16 | 2 |
| 53 | 320-230 | HANDLE (A) | 1 |
| 54 | 981-373 | TUBE (D) | 2 |
| 55 | 940-778 | CORD ARMOR D10.7 | 1 |
| 55 | 958-049 | CORD ARMOR D8.2 | 1 |
| 56 | 500-247Z | CORD | 1 |
| 56 | 500-245Z | CORD | 1 |
| 56 | 500-439Z | CORD | 1 |
| 56 | 500-450Z | CORD | 1 |
| 56 | 500-246Z | CORD | 1 |
| 56 | 500-438Z | CORD | 1 |

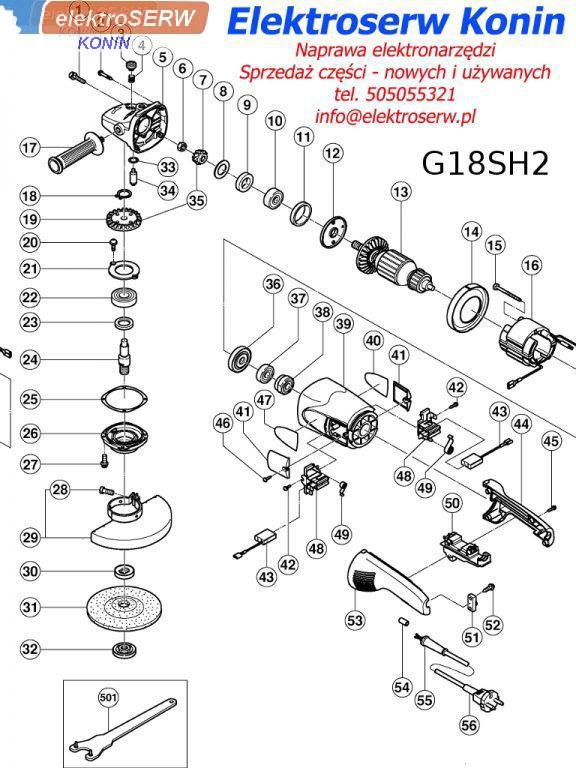

G18SH2
| Pozycja na schemacie | Nr katalogowy | Opis | Ilość |
| 1 | 315-636 | SEAL LOCK SCREW (W/SP.WASHER)M5X14(BLACK) | 2 |
| 2 | 301-654 | TAPPING SCREW (W/FLANGE) D5X35 | 4 |
| 3 | 306-888 | PUSHING BUTTON | 1 |
| 4 | 320-219 | SPRING | 1 |
| 5 | 320-217 | GEAR COVER ASS'Y | 1 |
| 6 | 320-226 | SPECIAL NUT M10 | 1 |
| 7 | 320-243 | PINION | 1 |
| 8 | 320-221 | SEAL WASHER | 1 |
| 9 | 320-222 | FELT PACKING | 1 |
| 10 | 630-1DD | BALL BEARING 6301DDCMPS2L | 1 |
| 11 | 994-208 | RUBBER RING (B) | 1 |
| 12 | 320-220 | BEARING COVER (A) | 1 |
| 13 | 360-558E | ARMATURE 220V-240V | 1 |
| 14 | 320-215 | FAN GUIDE | 1 |
| 15 | 961-501 | HEX. HD. TAPPING SCREW D5X60 | 2 |
| 16 | 340-501E | STATOR 220V-230V | 1 |
| 17 | 937-981 | SIDE HANDLE FOR M14 | 1 |
| 18 | 939-542 | RETAINING RING FOR D12 SHAFT (10 PCS.) | 1 |
| 19 | 320-242 | GEAR | 1 |
| 20 | 949-236 | MACHINE SCREW M5X10 (10 PCS.) | 2 |
| 21 | 320-229 | BEARING COVER (B) | 1 |
| 22 | 630-2DD | BALL BEARING 6302DDCMPS2L | 1 |
| 23 | 990-852 | FELT PACKING (B) | 1 |
| 24 | 320-234 | SPINDLE | 1 |
| 25 | 320-228 | SEAL PLATE | 1 |
| 26 | 320-227 | PACKING GLAND | 1 |
| 27 | 994-192 | HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 | 4 |
| 28 | 306-887 | BOLT M8X22 | 1 |
| 29 | 306-124 | WHEEL GUARD ASS'Y | 1 |
| 30 | 937-907Z | WHEEL WASHER (A) | 1 |
| 31 | 316-824 | D. C. WHEELS 180MM A24R (25 PCS.) | 1 |
| 32 | 937-909Z | WHEEL NUT M14X2 | 1 |
| 33 | 320-218 | O-RING | 1 |
| 34 | 306-890 | LOCK PIN | 1 |
| 35 | 320-241 | GEAR ASS'Y | 1 |
| 36 | 320-216 | DUST SEAL | 1 |
| 37 | 600-0VV | BALL BEARING 6000VVCMPS2L | 1 |
| 38 | 320-244 | BEARING BUSHING | 1 |
| 39 | 320-214 | HOUSING ASS'Y | 1 |
| 40 | NAME PLATE | 1 | |
| 41 | 320-232 | BRUSH COVER | 2 |
| 42 | 305-812 | TAPPING SCREW (W/FLANGE) D4X16 (BLACK) | 2 |
| 43 | 999-089 | CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) | 1 |
| 43 | 999-061 | CARBON BRUSH 7X17X22.5 (1 PAIR) | 1 |
| 44 | 320-231 | HANDLE (B) | 1 |
| 45 | 305-812 | TAPPING SCREW (W/FLANGE) D4X16 (BLACK) | 4 |
| 46 | 305-812 | TAPPING SCREW (W/FLANGE) D4X16 (BLACK) | 2 |
| 47 | HITACHI LABEL | 1 | |
| 48 | 320-233 | BRUSH HOLDER | 2 |
| 49 | 320-245 | SPRING | 2 |
| 50 | 320-239 | SWITCH (2P PILLAR TYPE) W/SAFETY LOCK | 1 |
| 51 | 960-266 | CORD CLIP | 1 |
| 52 | 984-750 | TAPPING SCREW (W/FLANGE) D4X16 | 2 |
| 53 | 320-230 | HANDLE (A) | 1 |
| 54 | 981-373 | TUBE (D) | 2 |
| 55 | 940-778 | CORD ARMOR D10.7 | 1 |
| 56 | 500-214Z | CORD | 1 |
| 56 | 500-247Z | CORD | 1 |
