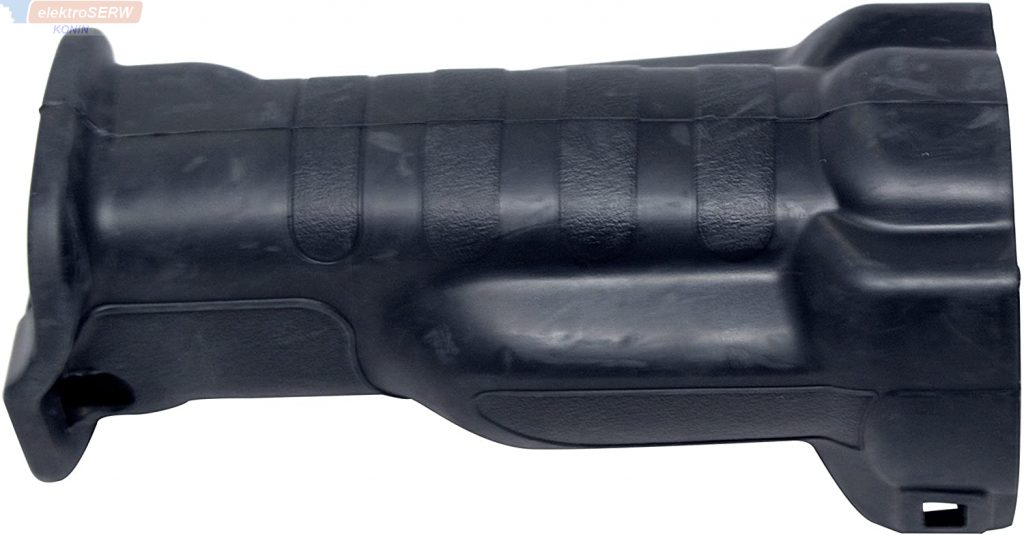

Makita JR3050 T pokrywa izolacyjna do piły posuwowej pilarka 421892-8
Makita - pokrywa izolacyjna- nowa oryginalna
Zastosowanie: JR3050T
Pozycja na schemacie nr 2
Nr katalogowy: 421892-8
Spis części:
|
tem
|
Sub | Parts No. | Parts Description |
| 1 | 163451-9 | SHOE | |
| 2 | 421892-8 | INSULATION COVER | |
| 003-1 | 424147-0 | PROTECTOR | |
| 004-1 | 257952-8 | RETAINING RING (EXT) 18 | |
| 004-2 | 257430-8 | RETAINING RING(EXT)18 | |
| 005-2 | 310285-3 | DRIVING SLEEVE | |
| 005-3 | 310658-0 | DRIVING SLEEVE | |
| 006-1 | 256492-3 | SHOULDER PIN 5 | |
| 006-2 | 256569-4 | SHOULDER PIN 5 | |
| 7 | 233345-3 | COMPRESSION SPRING 6 | |
| 007-1 | 234381-2 | COMPRESSION SPRING 6 | |
| 8 | 268094-3 | PIN 3 | |
| 009-1 | 331720-8 | GUIDE SLEEVE | |
| 009-2 | 327043-0 | GUIDE SLEEVE | |
| 10 | 256158-5 | PIN 3 | |
| 11 | 417791-0 | DRIVING SLEEVE GUIDE | |
| 12 | 418311-3 | SLEEVE | |
| 13 | 345214-7 | PUSH PLATE | |
| 14 | 233025-1 | COMPRESSION SPRING 2 | |
| 015-1 | 231687-9 | TORSION SPRING 17 | |
| 16 | 213151-2 | OIL SEAL 14 | |
| 17 | 213174-0 | X RING 14 | |
| 18 | 154499-2 | GEAR HOUSING COVER COMPLETE | |
| 18 | D10 | INC. 16,17 | |
| 19 | 418806-6 | CAP | |
| 20 | 911258-5 | PAN HEAD SCREW M5X35 | |
| 21 | 911243-8 | PAN HEAD SCREW M5X25 | |
| 22 | 232221-8 | LEAF SPRING A | |
| 23 | 162236-0 | SHIFT BUTTON | |
| 24 | 421893-6 | SEAL RING | |
| 25 | 345480-6 | SLIDE PLATE | |
| 26 | 214169-6 | PLANE BEARING 14 | |
| 27 | 341462-6 | PLATE | |
| 28 | 911225-0 | PAN HEAD SCREW M5X16 | |
| 029-2 | 168405-1 | SLIDER | |
| 029-3 | 168405-1 | SLIDER | |
| 029-4 | 161384-2 | SLIDER | |
| 30 | 214169-6 | PLANE BEARING 14 | |
| 31 | 341462-6 | PLATE | |
| 32 | 911225-0 | PAN HEAD SCREW M5X16 | |
| 33 | 265148-7 | TORX SOCKET HEAD SCREW M5X14 | |
| 34 | 345478-3 | GEAR PLATE | |
| 35 | 265148-7 | TORX SOCKET HEAD SCREW M5X14 | |
| 36 | 345478-3 | GEAR PLATE | |
| 037-1 | 212959-1 | NEEDLE BEARING 708 | |
| 038-1 | 125283-2 | GEAR ASS'Y | |
| 038-1 | C10 | 154476-4 | GEAR COMPLETE |
| 038-1 | D10 | INC. 40 | |
| 39 | 267290-0 | FLAT WASHER 18 | |
| 40 | 212115-3 | NEEDLE BEARING 1216 | |
| 41 | 232222-6 | LEAF SPRING B | |
| 42 | 345479-1 | SHOE GUIDE | |
| 043-1 | 265165-7 | TORXSOCKET C.S.HEADSCREW M6X16 | |
| 044-1 | 266373-3 | TAPPING SCREW 5X35 | |
| 45 | 861094-8 | NAME PLATE JR3050T | |
| 046-1 | 265530-0 | HEX.SOCKET HEAD BOLT M5X8 | |
| 47 | 154497-6 | GEAR HOUSING COMPLETE | |
| 48 | 961052-5 | RETAINING RING S-12 | |
| 49 | 210102-6 | BALL BEARING 6001DDW | |
| 50 | 285718-6 | BEARING RETAINER | |
| 51 | 241863-7 | FAN 70 | |
| 52 | 513598-3 | ARMATURE ASS'Y 220-240V | |
| 52 | D10 | INC. 51,53,54 | |
| 53 | 681644-1 | INSULATION WASHER | |
| 54 | 210029-0 | BALL BEARING 608ZZ | |
| 55 | 418805-8 | BAFFLE PLATE | |
| 56 | 525713-7 | FIELD ASS'Y 220-240V | |
| 56 | C10 | 654020-2 | RING TERMINAL |
| 56 | C20 | 654501-6 | CONNECTOR P-1.25 |
| 057-2 | 266056-5 | TAPPING SCREW 5X45 | |
| 59 | 191963-2 | CARBON BRUSH CB-303 | |
| 60 | 643750-0 | BRUSH HOLDER CAP 7-11 | |
| 61 | 154498-4 | MOTOR HOUSING COMPLETE | |
| 61 | C10 | 643708-9 | BRUSH HOLDER 5-11 |
| 64 | 183920-4 | HANDLE SET | |
| 64 | D10 | INC. 72 | |
| 65 | 650543-8 | SWITCH TG843TB-1 | |
| 68 | 687063-9 | CORD CLAMP | |
| 068-1 | 687123-7 | STRAIN RELIEF | |
| 69 | 265995-6 | TAPPING SCREW 4X18 | |
| 70 | 682572-3 | CORD GUARD 8 | |
| 71 | 692021-2 | POWER SUPPLY CORD 1.0-2-2.5 | |
| 72 | 183920-4 | HANDLE SET | |
| 72 | D10 | INC. 64 | |
| 73 | 265995-6 | TAPPING SCREW 4X18 | |
| 74 | 125523-8 | GEAR HOUSING COVER ASSEMBLY | |
| 74 | D10 | INC. 3-15,18,19,22,23,25-32 | |
| 074-1 | 126913-8 | GEAR HOUSING COVER ASSEMBLY | |
| 074-1 | D10 | INC. 3-15,18,19,22,23,25-32 | |
| 074-2 | 127404-2 | GEAR HOUSING COVER ASSEMBLY | |
| 074-2 | D10 | INC. 3-15,18,19,22,23,25-32 | |
| A01-2 | 821621-3 | PLASTIC CARRYING CASE | |
| A01-2 | C10 | 162315-4 | LATCH |
| A02 | 792003-5 | RECIPRO SAW BLADE SET |
