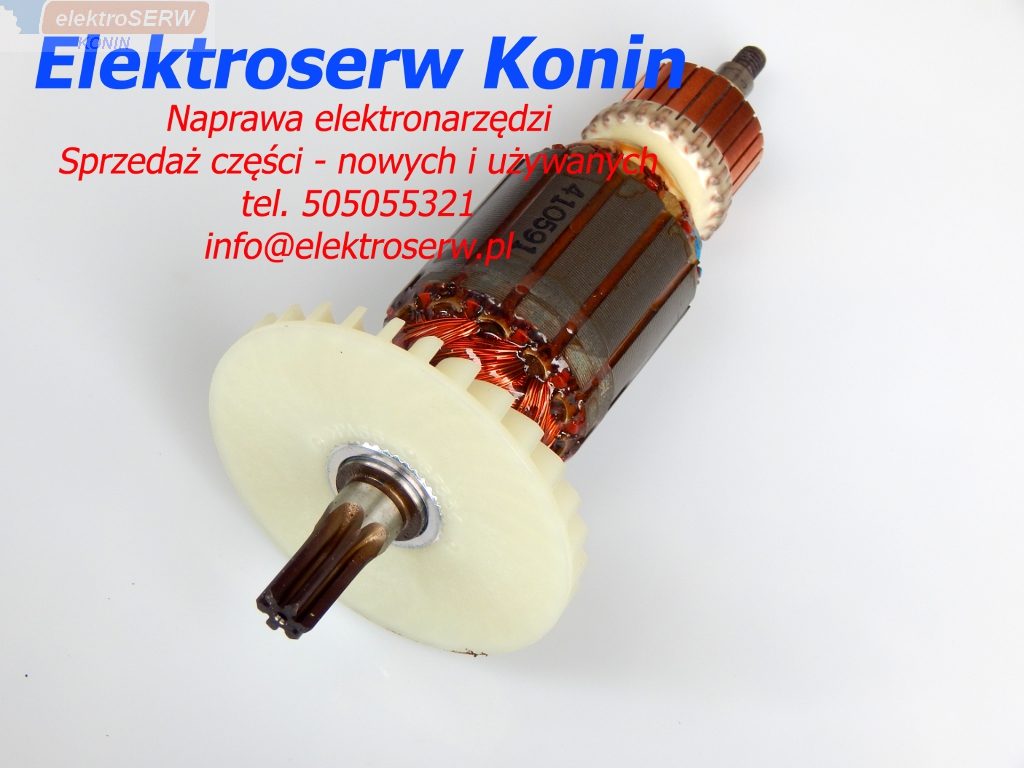

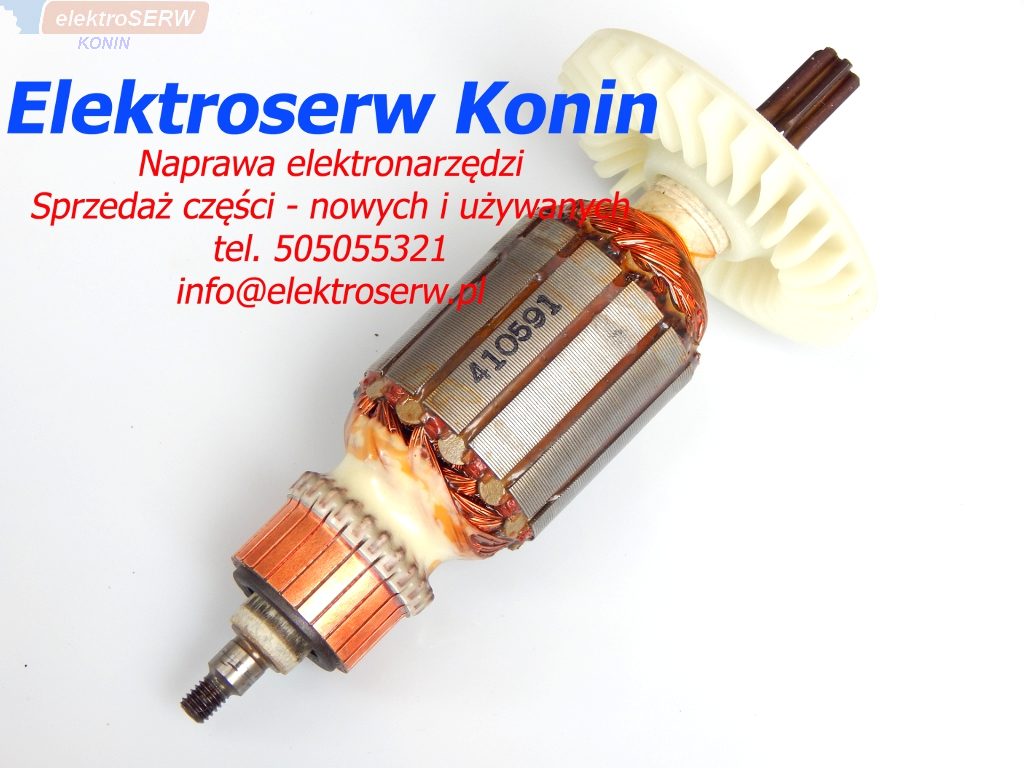

Hitachi wirnik do młota DH40MRY DH40MR
Hitachi - wirnik - nowy oryginalny.
Nr katalogowy : 360-591E
Zastosowanie: DH40MRY, DH40MR, DH40SR, DH40FR

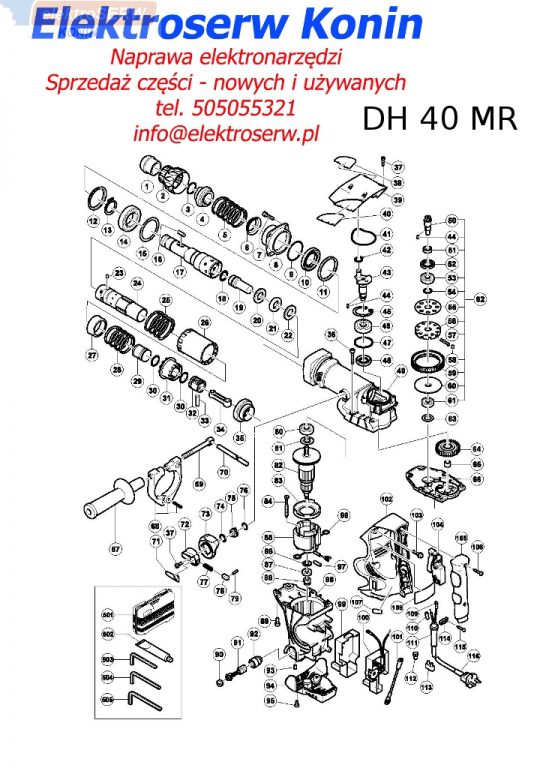

Poniżej spis pozostałych części do DH40MR
| Pozycja na schemacie | Nr katalogowy | Opis | Sztuk | |
| 1 | 321-306 | FRONT CAP | 1 | |
| 2 | 321-305 | GRIP | 1 | |
| 3 | 318-590 | STOPPER RING | 1 | |
| 4 | 321-304 | NEEDLE HOLDER | 1 | |
| 5 | 321-303 | RETAINER SPRING | 1 | |
| 6 | 321-302 | SPRING HOLDER (A) | 1 | |
| 7 | 981-942 | SEAL LOCK HEX. SOCKET HD. BOLT M6X25 | 4 | |
| 8 | 321-300 | FRONT COVER | 1 | |
| 9 | 956-996 | O-RING (1AS-60) | 1 | |
| 10 | 321-301 | OIL SEAL | 1 | |
| 11 | 981-859 | URETHANE RING | 1 | |
| 12 | 315-868 | URETHANE RING HOLDER | 1 | |
| 13 | 948-131 | RETAINING RING FOR D35 SHAFT | 1 | |
| 14 | 600-7DD | BALL BEARING 6007DDUAV2S | 1 | |
| 15 | 321-297 | BEARING WASHER | 1 | |
| 16 | 313-421 | NEEDLE ROLLER D8X20 | 1 | |
| 17 | 321-286 | RETAINER SLEEVE | 2 | |
| 18 | 313-396 | O-RING (C) | 1 | |
| 19 | 321-287 | SECOND HAMMER | 1 | |
| 20 | 321-288 | DAMPER WASHER | 1 | |
| 21 | 321-289 | DAMPER | 1 | |
| 22 | 321-290 | DAMPER HOLDER | 1 | |
| 23 | 313-057 | NEEDLE PIN D6X6 | 4 | |
| 24 | 321-291 | CYLINDER | 1 | |
| 25 | 321-298 | LOCK SPRING | 1 | |
| 26 | 321-299 | LOCK SLEEVE | 1 | |
| 27 | 321-293 | SPRING HOLDER (B) | 1 | |
| 28 | 321-294 | CLUTCH SPRING | 1 | |
| 29 | 321-292 | STRIKER | 1 | |
| 30 | 986-104 | O-RING | 2 | |
| 31 | 321-295 | CLUTCH | 1 | |
| 32 | 321-284 | PISTON | 1 | |
| 33 | 980-708 | PISTON PIN | 1 | |
| 34 | 321-285 | CONNECTING ROD | 1 | |
| 35 | 321-296 | BEVEL GEAR | 1 | |
| 36 | 986-940 | SEAL LOCK HEX. SOCKET HD. BOLT M6X45 | 4 | |
| 37 | 983-162 | SEAL LOCK HEX. SOCKET HD. BOLT M4X12 | 5 | |
| 38 | HITACHI LABEL | 1 | ||
| 39 | 321-315 | CRANK COVER | 1 | |
| 40 | HITACHI LABEL | 1 | ||
| 41 | 321-314 | RUBBER SEAL | 1 | |
| 42 | 939-540 | RETAINING RING FOR D10 SHAFT (10 PCS.) | 1 | |
| 43 | 321-275 | CRANK SHAFT | 1 | |
| 44 | 944-109 | FEATHER KEY 3X3X8 | 2 | |
| 45 | 948-391 | RETAINING RING FOR D40 HOLE | 1 | |
| 46 | 620-3DD | BALL BEARING 6203DDCMPS2L | 1 | |
| 47 | 996-363 | O-RING (S-40) | 1 | |
| 48 | 321-274 | OIL SEAL (B) | 1 | |
| 49 | 321-273 | CYLINDER CRANK CASE | 1 | |
| 50 | 321-278 | BEVEL PINION | 1 | |
| 51 | 321-279 | COLLAR | 1 | |
| 52 | 313-050 | OIL SEAL (A) | 1 | |
| 53 | 600-2DD | BALL BEARING 6002DDCMPS2L | 1 | |
| 54 | 313-058 | WASHER | 1 | |
| 55 | 313-053 | WASHER (A) | 1 | |
| 56 | 321-281 | GEAR HOLDER | 1 | |
| 57 | 321-282 | SPRING (C) | 10 | |
| 58 | 320-343 | NEEDLE | 10 | |
| 59 | 321-280 | SECOND GEAR | 1 | |
| 60 | 321-283 | SPACER | 1 | |
| 61 | 629-VVM | BALL BEARING 629VVC2PS2L | 1 | |
| 62 | 321-277 | SLIP CLUTCH ASS'Y | 1 | |
| 63 | 944-525 | BEARING WASHER (C) | 1 | |
| 64 | 321-276 | FIRST GEAR | 1 | |
| 65 | 939-299 | NEEDLE BEARING (M661) | 1 | |
| 66 | 321-319 | GEAR COVER | 1 | |
| 67 | 313-078 | SIDE HANDLE | 1 | |
| 68 | 313-079 | HANDLE HOLDER | 1 | |
| 69 | 313-080 | HANDLE BOLT | 1 | |
| 70 | 971-786 | STOPPER ROD | 1 | |
| 71 | LEVER LABEL | 1 | ||
| 72 | 321-309 | CHANGE LEVER | 1 | |
| 73 | 321-308 | LEVER HOLDER | 1 | |
| 74 | 311-229 | RETAINING RING FOR D20 HOLE | 1 | |
| 75 | 321-307 | LEVER SHAFT | 1 | |
| 76 | 873-095 | O-RING (P-16) | 1 | |
| 77 | 321-310 | LEVER SPRING | 1 | |
| 78 | 321-311 | PUSHING BUTTON | 1 | |
| 79 | 321-312 | PIN D2X10 | 1 | |
| 80 | 620-1DD | BALL BEARING 6201DDCMPS2L | 1 | |
| 81 | 302-429 | DUST WASHER (B) | 1 | |
| 82 | 360-591U | ARMATURE ASS'Y 110V-120V | 1 | |
| 82 | 360-591E | ARMATURE 220V-230V | 1 | |
| 82 | 360-591F | ARMATURE 240V | 1 | |
| 83 | 321-320 | FAN GUIDE | 1 | |
| 84 | 953-174 | HEX. HD. TAPPING SCREW D5X55 | 2 | |
| 85 | 340-542C | STATOR ASS'Y 110V | 1 | |
| 85 | 340-542G | STATOR ASS'Y 120V | 1 | |
| 85 | 340-542E | STATOR ASS'Y 220V-230V | 1 | |
| 85 | 340-542H | STATOR ASS'Y 220V | 1 | |
| 85 | 340-542F | STATOR ASS'Y 240V | 1 | |
| 86 | 982-631 | WASHER (A) | 1 | |
| 87 | 608-VVM | BALL BEARING 608VVC2PS2L | 1 | |
| 88 | 318-721 | MAGNET | 1 | |
| 89 | 321-313 | SEAL LOCK HEX. SOCKET HD. BOLT M6X22 | 2 | |
| 90 | 935-829 | BRUSH CAP | 2 | |
| 91 | 999-073 | CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) | 2 | |
| 91 | 999-043 | CARBON BRUSH (1 PAIR) | 2 | |
| 92 | 971-001 | BRUSH HOLDER | 2 | |
| 93 | 938-477 | HEX. SOCKET SET SCREW M5X8 | 2 | |
| 94 | 321-321 | TAIL COVER | 1 | |
| 95 | 877-839 | SEAL LOCK HEX. SOCKET HD. BOLT M5X10 | 2 | |
| 96 | 930-703 | BRUSH TERMINAL | 2 | |
| 97 | 321-322 | VINYL TUBE | 1 | |
| 98 | 321-318 | HOUSING ASS'Y | 1 | |
| 99 | 321-317 | CASE (B) | 1 | |
| 100 | 321-326 | CONTROLLER CIRCUIT 110V | 1 | |
| 100 | 321-328 | CONTROLLER CIRCUIT 120V | 1 | |
| 100 | 321-327 | CONTROLLER CIRCUIT 220V-240V | 1 | |
| 101 | 317-113 | INTERNAL WIRE | 1 | |
| 102 | 321-323 | HANDLE | 1 | |
| 103 | 998-485 | HEX. SOCKET HD. BOLT (W/FLANGE) M5X14 | 6 | |
| 104 | 313-093 | SWITCH (C) (2P SCREW TYPE W/O LOCK) | 1 | |
| 105 | 321-324 | HANDLE COVER | 1 | |
| 106 | 301-653 | TAPPING SCREW (W/FLANGE) D4X20 (BLACK) | 2 | |
| 107 | SDS MAX LABEL | 1 | ||
| 108 | NAME PLATE | 1 | ||
| 109 | 980-063 | TERMINAL | 1 | |
| 109 | 930-804 | TERMINAL M4.0 (10 PCS.) | 1 | |
| 110 | 981-373 | TUBE (D) | 2 | |
| 111 | 958-049 | CORD ARMOR D8.2 | 1 | |
| 111 | 940-778 | CORD ARMOR D10.7 | 1 | |
| 112 | 959-141 | CONNECTOR 50092 (10 PCS.) | 1 | |
| 113 | 938-307 | PILLAR TERMINAL | 1 | |
| 114 | 960-266 | CORD CLIP | 1 | |
| 114 | 981-987Z | CORD CLIP | 1 | |
| 115 | 984-750 | TAPPING SCREW (W/FLANGE) D4X16 | 2 | |
| 116 | 500-390Z | CORD | 1 | |
| 116 | 500-446Z | CORD | 1 | |
| 116 | 500-454Z | CORD | 1 | |
| 116 | 500-435Z | CORD | 1 | |
| 116 | 500-391Z | CORD | 1 | |
| 116 | 500-408Z | CORD | 1 | |
| 116 | 500-439Z | CORD | 1 | |
| 116 | 500-434Z | CORD | 1 |

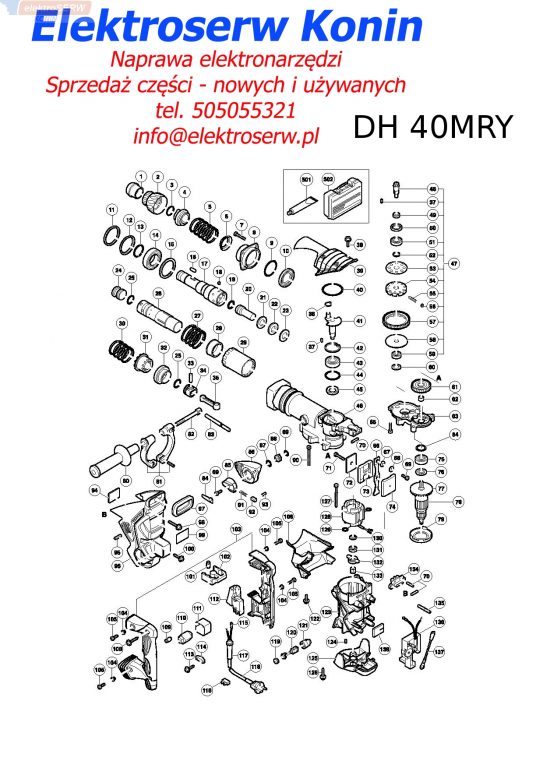

Poniżej spis pozostalych części do DH40 MRY
| ITEM NO. | CODE NO. | DESCRIPTION | NO. USED | |
| 1 | 321-306 | FRONT CAP | 1 | |
| 2 | 321-305 | GRIP | 1 | |
| 3 | 318-590 | STOPPER RING | 1 | |
| 4 | 321-304 | NEEDLE HOLDER | 1 | |
| 5 | 321-303 | RETAINER SPRING | 1 | |
| 6 | 321-302 | SPRING HOLDER (A) | 1 | |
| 7 | 981-942 | SEAL LOCK HEX. SOCKET HD. BOLT M6X25 | 4 | |
| 8 | 321-300 | FRONT COVER | 1 | |
| 9 | 956-996 | O-RING (1AS-60) | 1 | |
| 10 | 321-301 | OIL SEAL | 1 | |
| 11 | 325-229 | RUBBER RING | 1 | |
| 12 | 315-868 | URETHANE RING HOLDER | 1 | |
| 13 | 320-850 | RETAINING RING D35 | 1 | |
| 14 | 600-7DD | BALL BEARING 6007DDUAV2S | 1 | |
| 15 | 321-297 | BEARING WASHER | 1 | |
| 16 | 313-421 | NEEDLE ROLLER D8X20 | 2 | |
| 17 | 321-286 | RETAINER SLEEVE | 1 | |
| 18 | 313-057 | NEEDLE PIN D6X6 | 4 | |
| 19 | 313-396 | O-RING (C) | 1 | |
| 20 | 326-371 | SECOND HAMMER | 1 | |
| 21 | 321-288 | DAMPER WASHER | 1 | |
| 22 | 321-289 | DAMPER | 1 | |
| 23 | 321-290 | DAMPER HOLDER | 1 | |
| 24 | 326-373 | STRIKER | 1 | |
| 25 | 986-104 | O-RING | 2 | |
| 26 | 326-372 | CYLINDER | 1 | |
| 27 | 326-470 | LOCK SPRING | 1 | |
| 28 | 321-293 | SPRING HOLDER (B) | 1 | |
| 29 | 321-299 | LOCK SLEEVE | 1 | |
| 30 | 326-469 | CLUTCH SPRING | 1 | |
| 31 | 321-295 | CLUTCH | 1 | |
| 32 | 321-296 | BEVEL GEAR | 1 | |
| 33 | 980-708 | PISTON PIN | 1 | |
| 34 | 326-369 | PISTON | 1 | |
| 35 | 326-370 | CONNECTING ROD | 1 | |
| 36 | 939-540 | RETAINING RING FOR D10 SHAFT (10 PCS.) | 1 | |
| 37 | 944-109 | FEATHER KEY 3X3X8 | 2 | |
| 38 | 994-192 | HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 | 4 | |
| 39 | 326-473 | CRANK COVER | 1 | |
| 40 | 317-119 | O-RING (S-56) | 1 | |
| 41 | 326-468 | CRANK SHAFT | 1 | |
| 42 | 948-391 | RETAINING RING FOR D40 HOLE | 1 | |
| 43 | 620-3DD | BALL BEARING 6203DDCMPS2L | 1 | |
| 44 | 996-363 | O-RING (S-40) | 1 | |
| 45 | 321-274 | OIL SEAL (B) | 1 | |
| 46 | 326-467 | CYLINDER CRANK CASE | 1 | |
| 47 | 321-277 | SLIP CLUTCH ASS'Y | 1 | |
| 48 | 321-278 | BEVEL PINION | 1 | |
| 49 | 321-279 | COLLAR | 1 | |
| 50 | 313-050 | OIL SEAL (A) | 1 | |
| 51 | 600-2DD | BALL BEARING 6002DDCMPS2L | 1 | |
| 52 | 313-058 | WASHER | 1 | |
| 53 | 313-053 | WASHER (A) | 1 | |
| 54 | 321-281 | GEAR HOLDER | 1 | |
| 55 | 321-282 | SPRING (C) | 10 | |
| 56 | 320-343 | NEEDLE | 10 | |
| 57 | 321-280 | SECOND GEAR | 1 | |
| 58 | 321-283 | SPACER | 1 | |
| 59 | 629-VVM | BALL BEARING 629VVC2PS2L | 1 | |
| 60 | 944-525 | BEARING WASHER (C) | 1 | |
| 61 | 321-276 | FIRST GEAR | 1 | |
| 62 | 939-299 | NEEDLE BEARING (M661) | 1 | |
| 63 | 326-482 | GEAR COVER | 1 | |
| 64 | 872-767 | O-RING (S-32) | 1 | |
| 65 | 321-313 | SEAL LOCK HEX. SOCKET HD. BOLT M6X22 | 2 | |
| 66 | 326-374 | LEAF SPRING | 1 | |
| 67 | 326-375 | SPRING BUMPER (A) | 1 | |
| 68 | 326-477 | WASHER | 1 | |
| 69 | 983-162 | SEAL LOCK HEX. SOCKET HD. BOLT M4X12 | 2 | |
| 70 | 878-418 | NEEDLE ROLLER | 4 | |
| 71 | 991-690 | SEAL LOCK HEX. SOCKET HD. BOLT M5X12 | 1 | |
| 72 | 326-486 | RUBBER SHEET (B) | 1 | |
| 73 | 326-476 | WEIGHT (B) | 1 | |
| 74 | 326-475 | WEIGHT (A) | 1 | |
| 75 | 620-1DD | BALL BEARING 6201DDCMPS2L | 1 | |
| 76 | 302-429 | DUST WASHER (B) | 1 | |
| 77 | 321-640 | FAN | 1 | |
| 78 | 360-591U | ARMATURE ASS'Y 110V-120V | 1 | |
| 78 | 360-591E | ARMATURE ASS'Y 220V-230V | 1 | |
| 79 | 321-320 | FAN GUIDE | 1 | |
| 80 | 313-078 | SIDE HANDLE | 1 | |
| 81 | 313-079 | HANDLE HOLDER | 1 | |
| 82 | 313-080 | HANDLE BOLT | 1 | |
| 83 | 971-786 | STOPPER ROD | 1 | |
| 84 | 321-867 | LEVER LABEL | 1 | |
| 85 | 321-309 | CHANGE LEVER | 1 | |
| 86 | 326-471 | LEVER HOLDER | 1 | |
| 87 | 311-229 | RETAINING RING FOR D20 HOLE | 1 | |
| 88 | 321-307 | LEVER SHAFT | 1 | |
| 89 | 873-095 | O-RING (P-16) | 1 | |
| 90 | 986-940 | SEAL LOCK HEX. SOCKET HD. BOLT M6X45 | 4 | |
| 91 | 321-310 | LEVER SPRING | 1 | |
| 92 | 321-311 | PUSHING BUTTON | 1 | |
| 93 | 321-312 | PIN D2X10 | 1 | |
| 94 | 326-487 | RUBBER SHEET (A) | 1 | |
| 95 | 326-376 | SPRING BUMPER (B) | 1 | |
| 96 | 326-478 | BACK COVER | 1 | |
| 97 | 326-378 | BELLOWS | 1 | |
| 98 | 319-589 | HEX. SOCKET HD. BOLT (W/FLANGE) M5X35 | 2 | |
| 99 | NAME PLATE | 1 | ||
| 100 | 302-089 | TAPPING SCREW (W/FLANGE) D5X20 (BLACK) | 4 | |
| 101 | 310-124 | HANDLE DAMPER | 4 | |
| 102 | 310-123 | TRANSATORY UNIT | 1 | |
| 103 | 326-485 | HANDLE (A).(B) SET | 1 | |
| 104 | 991-711 | DISTANCE PIECE (B) | 4 | |
| 105 | 991-690 | SEAL LOCK HEX. SOCKET HD. BOLT M5X12 | 4 | |
| 106 | 326-472 | HOOD | 1 | |
| 108 | 307-028 | TAPPING SCREW (W/FLANGE) D4X25 (BLACK) | 3 | |
| 109 | 310-124 | HANDLE DAMPER | 4 | |
| 110 | 326-377 | HANDLE SHAFT | 1 | |
| 111 | 326-479 | HOLDER | 1 | |
| 112 | 990-941 | SWITCH (B) (1P SCREW TYPE) W/O LOCK | 1 | |
| 113 | 984-750 | TAPPING SCREW (W/FLANGE) D4X16 | 2 | |
| 114 | 960-266 | CORD CLIP | 1 | |
| 114 | 981-987Z | CORD CLIP | 1 | |
| 115 | 980-063 | TERMINAL | 1 | |
| 116 | 938-307 | PILLAR TERMINAL | 1 | |
| 117 | 953-327 | CORD ARMOR D8.8 | 1 | |
| 118 | 500-390Z | CORD | 1 | |
| 118 | 500-391Z | CORD | 1 | |
| 118 | 500-446Z | CORD | 1 | |
| 118 | 500-454Z | CORD | 1 | |
| 119 | 935-829 | BRUSH CAP | 2 | |
| 120 | 999-073 | CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) | 2 | |
| 121 | 971-001 | BRUSH HOLDER | 2 | |
| 122 | 998-471 | HEX. SOCKET HD. BOLT (W/FLANGE) M5X12 | 1 | |
| 123 | 326-481 | HOUSING ASS'Y | 1 | |
| 124 | 938-477 | HEX. SOCKET SET SCREW M5X8 | 2 | |
| 125 | 326-483 | TAIL COVER | 1 | |
| 126 | 302-089 | TAPPING SCREW (W/FLANGE) D5X20 (BLACK) | 2 | |
| 127 | 953-174 | HEX. HD. TAPPING SCREW D5X55 | 2 | |
| 128 | 340-680C | STATOR ASS'Y 110V | 1 | |
| 128 | 340-680E | STATOR ASS'Y 230V | 1 | |
| 129 | 930-703 | BRUSH TERMINAL | 2 | |
| 130 | 982-631 | WASHER (A) | 1 | |
| 131 | 608-VVM | BALL BEARING 608VVC2PS2L | 1 | |
| 132 | 326-484 | BEARING HOLDER | 1 | |
| 133 | 318-721 | MAGNET | 1 | |
| 134 | 326-474 | SPRING BASE | 1 | |
| 135 | 326-541 | VINYL TUBE (I.D.9.5XT0.56X85) | 1 | |
| 136 | 326-490 | CONTROLLER CIRCUIT 110V | 1 | |
| 136 | 326-491 | CONTROLLER CIRCUIT 220V-240V | 1 | |
| 137 | 326-492 | INTERNAL WIRE | 1 | |
| 138 | 326-488 | COVER (A) | 1 |
Opinie klientówPomóż innym użytkownikom podjąć decyzje o zakupie. Dodaj nową opinię
Bądź pierwszą osoba, która zrecenzuje ten produkt. Dodaj opinię.
Pliki do pobrania
Inne z tej kategorii
Tagi produktu:Hitachi oryginalny wirnik do młota DH40MRY MRY 40MRY DH40 DH40MR DH 40 MR 40MR DH40FR DH40SR anker rotor armature 360591E 360591 E 360-591 360-591E młot wyburzeniowy kujący kującego
