Hilti korbowód do młota TE 50 208554
Hilti - korobowód - npwy oryginalny
Nr katalogowy: 208554
Pozycja na schemacie nr 34

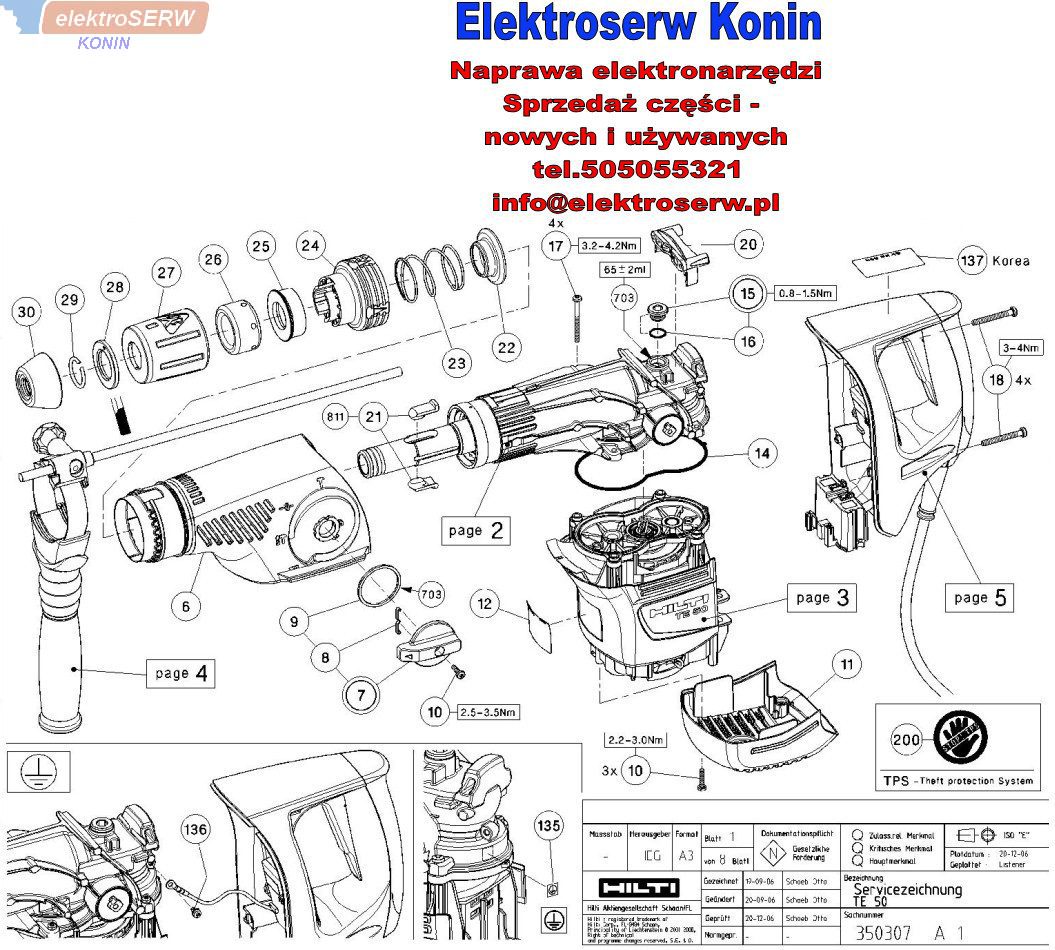

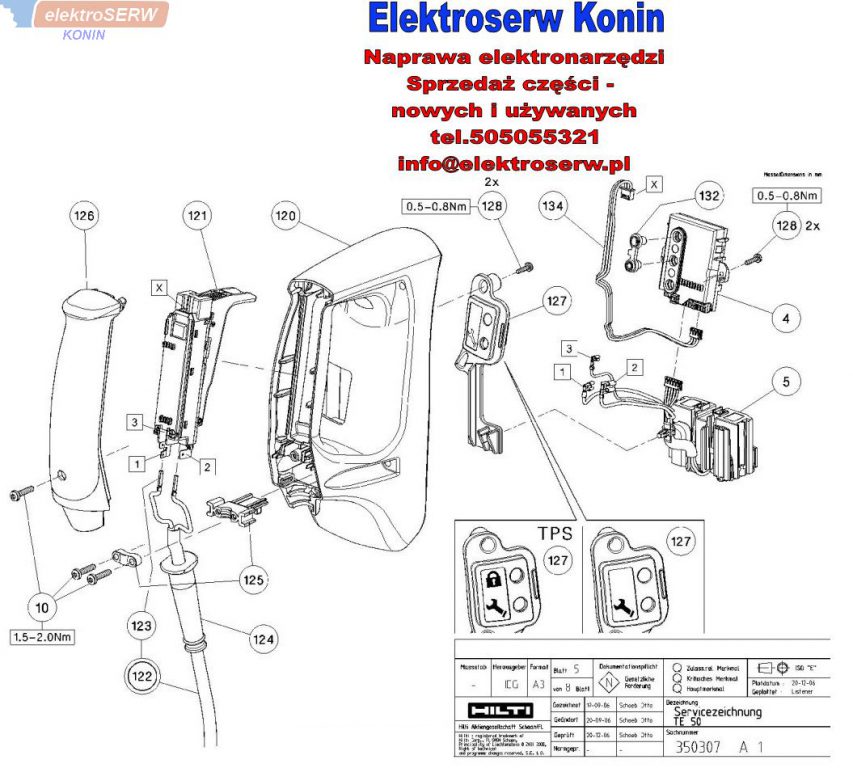

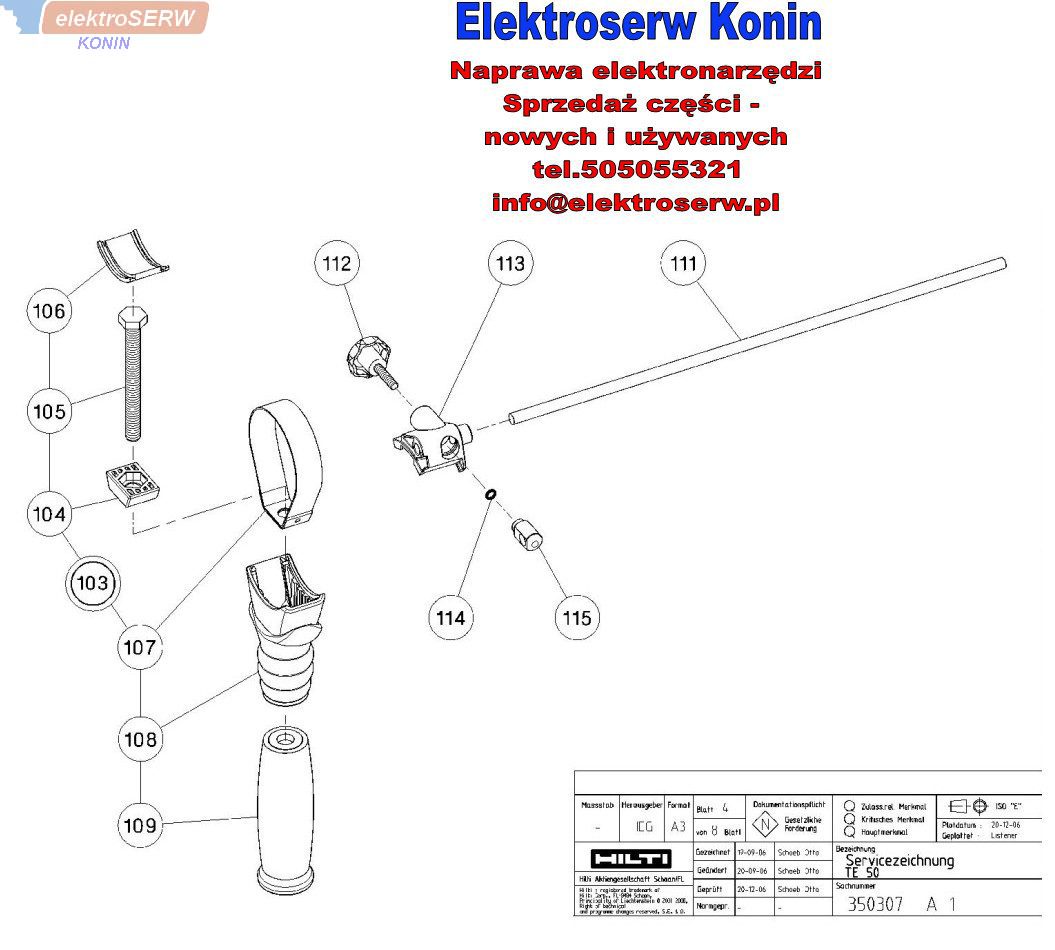

Spis części zamiennych do młotowiertarki TE 50 390470
Przy zapytaniu o dostępność i cenę prosimy podać pozycję
na schemacie lub nr katalogowy części.
| Pozycja na schemacie | Nr katalogowy | Nazwa Części |
| 1 | 241368 | Stator 110V - 120V packed |
| 2 | 241371 | Rotor 110V - 120V packed |
| 3 | 275176 | Brush holder UNI 42 7x12,5 100-120V assy |
| 6 | 389907 | Casing printed |
| 7 | 389968 | Setting lever assy |
| 8 | 366289 | Spring |
| 9 | 366163 | Seal FILZ |
| 10 | 207960 | Torx-soc re scr 4X18 T15 black |
| 11 | 208557 | Motor housing end cap |
| 12 | 390480 | Rating plate TE 50 120V USA/CDN |
| 13 | 389902 | Insert TE 50 printed |
| 14 | 208523 | Seal |
| 15 | 71886 | Screw plug Service assy |
| 16 | 73455 | O-ring 11,5X1,5 |
| 17 | 240438 | Torx-soc re scr 4X45/25T15 black |
| 18 | 347648 | Torx-soc re scr 5X40/22T25 black |
| 20 | 208843 | Bow |
| 21 | 345238 | Pawl MIM |
| 22 | 208846 | Spring guide |
| 23 | 330080 | Compression spring 2X40X49,3 |
| 24 | 366264 | Cap |
| 25 | 330048 | Ring |
| 26 | 366138 | Absorber |
| 27 | 330050 | Cover cap |
| 28 | 330051 | Washer |
| 29 | 330170 | Retaining ring |
| 30 | 330166 | Cap |
| 31 | 391398 | Gear housing assy |
| 32 | 316019 | Bearing bushing |
| 33 | 389966 | Bevel gear Z=37 |
| 34 | 208554 | Conrod |
| 35 | 76174 | Drive piston |
| 36 | 202193 | Dowel pin 7X23 |
| 37 | 209388 | O-ring 19,0x3,0 85HNBR 230738 |
| 39 | 38822 | Striker piston TE 40/TE 50 packed |
| 40 | 316178 | O-ring 25X2 |
| 41 | 209047 | Coupling sleeve |
| 42 | 208542 | Compression spring 2,0x41x33,4 |
| 43 | 76318 | Retaining ring A31 |
| 44 | 208535 | Ring |
| 45 | 209386 | Coupling ring outside |
| 46 | 209385 | Coupling ring inside |
| 47 | 208585 | Compression spring 4,7x40,6x36,0 |
| 48 | 208594 | Washer 31,1x2x41,9 |
| 49 | 208591 | Retaining ring B25 |
| 50 | 208586 | Ring Bremse |
| 51 | 208590 | O-ring 15X6 |
| 52 | 208543 | Stop Bremse |
| 54 | 38825 | Ram TE 50 packed |
| 55 | 209379 | O-ring 13,94x2,62 |
| 56 | 209378 | Sealing ring 18,85x2,93x22,25 |
| 57 | 38826 | Guide tube TE 50 packed |
| 58 | 208581 | Coupling ring |
| 59 | 208541 | Compression spring 1,5X48,8X113 |
| 60 | 208538 | Washer 30,1x2x40,9 |
| 61 | 316115 | O-ring 30X5 |
| 62 | 316117 | Supporting washer |
| 63 | 208536 | Support |
| 64 | 316045 | Ball bearing 30X55X9 |
| 65 | 316121 | Retaining ring SW30X2 |
| 66 | 74144 | Circlip J55X2R |
| 67 | 208551 | Cap assy |
| 68 | 208553 | O-ring 47X4 |
| 70 | 208555 | Setting rod |
| 71 | 208545 | Eccentric |
| 72 | 202157 | Ball bearing 17X40X12 |
| 73 | 73452 | Circlip AV17 |
| 74 | 202156 | Circlip 40X1,75 |
| 75 | 389967 | Compression spring 1,25x30x23 |
| 76 | 208548 | Coupling sleeve |
| 77 | 208547 | Toothed gear Z=47 |
| 78 | 206304 | Washer |
| 79 | 206303 | Thrust needle roller cage |
| 80 | 206305 | O-ring 8X1 |
| 81 | 208593 | Setting plate |
| 82 | 209382 | Sheet metal part |
| 83 | 287384 | Torx-soc tapt scr M4X8 T15 |
| 84 | 208582 | Bevel pinion Z=7 |
| 85 | 208845 | Feather key B 4X4X7 |
| 86 | 17973 | Ball bearing 10X26X8 |
| 87 | 74238 | Circlip 26X1,2 |
| 88 | 208549 | Toothed gear Z=51 |
| 89 | 366136 | Shim ring 10X19X1 |
| 91 | 208550 | Motor housing |
| 92 | 201239 | Int hexalob remf scr 4X75 T15 |
| 93 | 330956 | Carbon brush 7x12,5x26 100V-120V AO |
| 94 | 275083 | Air deflector |
| 95 | 208875 | Insert Gummi |
| 96 | 206210 | Ball bearing 608-2Z |
| 97 | 341146 | Insulating washer |
| 98 | 275084 | Cooling fan |
| 99 | 346291 | Ball bearing 10X26X12,4 |
| 100 | 208567 | Bearing plate assy |
| 103 | 330083 | Side handle assy |
| 104 | 330088 | Pressure piece |
| 105 | 330090 | Hexagon screw M10X100 |
| 106 | 330492 | Segment |
| 107 | 330089 | Clamping band |
| 108 | 330084 | Side handle upper |
| 109 | 330086 | Side handle lower |
| 111 | 72320 | Depth gauge |
| 112 | 366486 | Star knob |
| 113 | 208579 | Pressure piece assy |
| 114 | 277896 | O-ring 5X1,5 |
| 115 | 366485 | Nut |
| 120 | 208853 | Grip moulding ohne VR |
| 121 | 208991 | Switch PF Poti assy |
| 122 | 73328 | Supply cord USA/CDN |
| 123 | 72417 | Conductor end |
| 124 | 76561 | Protective sleeve |
| 125 | 347404 | Clamp Kombi |
| 126 | 346296 | Grip cover assy |
| 127 | 389912 | Cover ohne TPS printed |
| 128 | 366522 | Torx-soc pl scr 45 3x12 T10 black |
| 132 | 208972 | Lightguide |
| 134 | 208992 | Cable harness MMI |
| 200 | 202805 | Sticker D 30 |
| 200 | 202804 | Sticker D 50 |
| 200 | 202806 | Sticker D 15 |
| 703 | 30215 | Oil Turmopol 20HD 1L |
| 800 | 26195 | Grease 1KG ALN1001/00 |
| 811 | 203086 | Grease 50 ML |
| 819 | 320560 | Grease 1KG ALN1001/0 |
| 900 | 59299 | Adhesive LOCTITE 222 250CCM |
