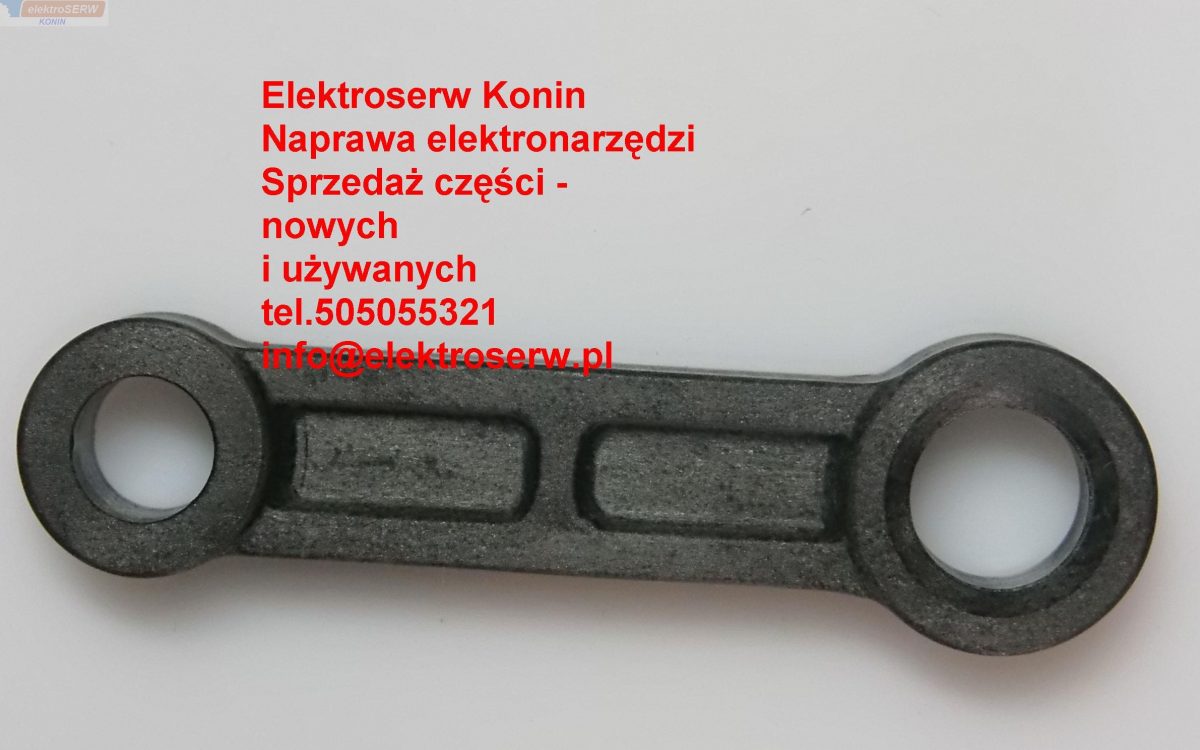

Hitachi korbowód 320-825 H45MR H45FRV
Hitachi - korbowód
Zastosowanie: H45MR,H45FRV
Nr katalogowy: 320-825

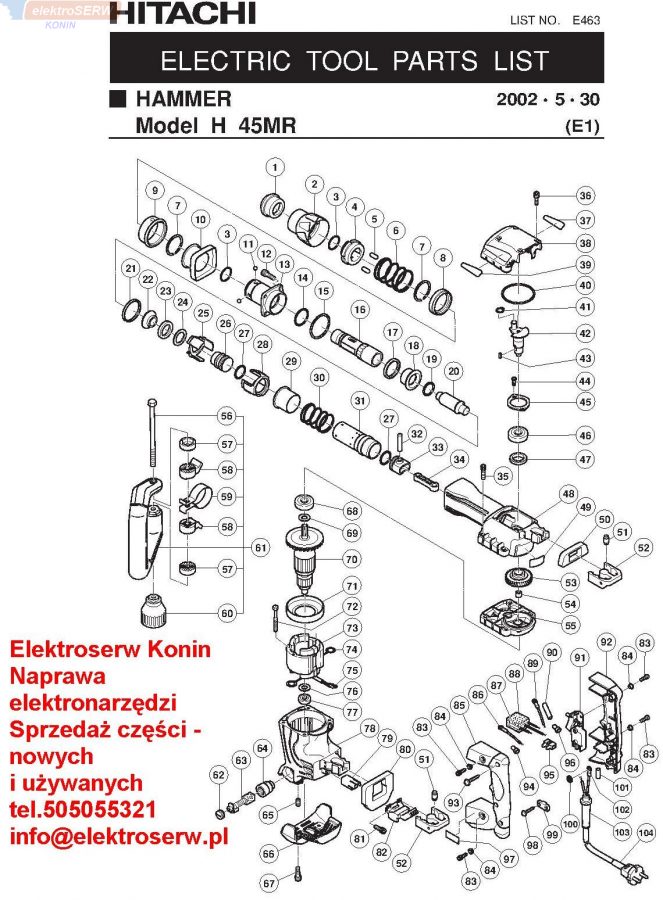

Pozycja na schemacie nr 34
H45MR
| REF: | PART NO: | DESCRIPTION: |
| 1 | 321-306 | FRONT CAP |
| 2 | 321-305 | GRIP |
| 3 | 318-590 | STOPPER RING |
| 4 | 321-304 | NEEDLE HOLDER |
| 5 | 321-303 | RETAINER SPRING |
| 6 | 321-302 | SPRING HOLDER (A) |
| 7 | 981-942 | SEAL LOCK HEX. SOCKET HD. BOLT M6X25 |
| 8 | 321-300 | FRONT COVER |
| 9 | 956-996 | O-RING (1AS-60) |
| 9A | 878-867 | O-RING (JASO2060) |
| 10 | 321-301 | OIL SEAL |
| 11 | 325-229 | RUBBER RING |
| 12 | 315-868 | URETHANE RING HOLDER |
| 13 | 948-131 | RETAINING RING FOR D35 SHAFT |
| 14 | 600-7DD | BALL BEARING 6007DDUAV2S |
| 15 | 321-297 | BEARING WASHER |
| 16 | 313-421 | NEEDLE ROLLER D8X20 |
| 17 | 324-919 | RETAINER SLEEVE |
| 18 | 324-921 | O-RING (C) |
| 19 | 324-920 | SECOND HAMMER |
| 20 | 324-922 | DAMPER WASHER |
| 21 | 324-923 | DAMPER |
| 22 | 324-924 | DAMPER HOLDER |
| 23 | 313-057 | NEEDLE PIN D6X6 |
| 24 | 324-925 | CYLINDER |
| 25 | 324-930 | LOCK SPRING |
| 26 | 324-931 | LOCK SLEEVE |
| 27 | 324-927 | SPRING HOLDER (B) |
| 28 | 324-928 | CLUTCH SPRING |
| 29 | 324-926 | STRIKER |
| 30A | 325-297 | O-RING (I.D 27.2) |
| 31 | 324-929 | CLUTCH |
| 32 | 324-917 | PISTON PIN |
| 33 | 324-915 | PISTON |
| 34 | 324-916 | CONNECTING ROD |
| 35 | 324-932 | CYLINDER CASE |
| 36 | 991-712 | HEX. SOCKET HD. BOLT (W/FLANGE) M6X25 |
| 37 | 324-933 | BEVEL GEAR |
| 38 | 321-867 | LEVER LABEL |
| 39 | 983-162 | SEAL LOCK HEX. SOCKET HD. BOLT M4X12 |
| 40 | 321-309 | CHANGE LEVER |
| 41 | 324-935 | LEVER HOLDER |
| 42 | 311-229 | RETAINING RING FOR D20 HOLE |
| 43 | 324-934 | LEVER SHAFT |
| 44 | 873-095 | O-RING (P-16) |
| 45 | 321-310 | LEVER SPRING |
| 46 | 321-311 | PUSHING BUTTON |
| 47 | 321-312 | PIN D2X10 |
| 48 | 939-540 | RETAINING RING FOR D10 SHAFT (10 PCS.) |
| 49 | 324-909 | CRANK SHAFT |
| 50 | 971-750 | FEATHER KEY 3X3X20 |
| 51 | 948-391 | RETAINING RING FOR D40 HOLE |
| 52 | 620-3DD | BALL BEARING 6203DDCMPS2L |
| 53 | 996-363 | O-RING (S-40) |
| 54 | 971-745 | OIL SEAL (A) |
| 55 | 986-940 | SEAL LOCK HEX. SOCKET HD. BOLT M6X45 |
| 56 | 994-192 | HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 |
| 57 | 324-937 | CRANK COVER |
| 58 | 324-912 | SLIP CLUTCH ASS'Y - INCLUD.59-61,63-71 |
| 59 | 944-109 | FEATHER KEY 3X3X8 |
| 60 | 324-913 | BEVEL PINION |
| 61 | 321-279 | COLLAR |
| 62 | 313-050 | OIL SEAL (A) |
| 63 | 600-2DD | BALL BEARING 6002DDCMPS2L |
| 64 | 313-058 | WASHER |
| 65 | 313-053 | WASHER (A) |
| 66 | 321-281 | GEAR HOLDER |
| 67 | 321-282 | SPRING (C) |
| 68 | 320-343 | NEEDLE |
| 69 | 324-914 | SECOND GEAR |
| 70 | 321-283 | SPACER |
| 71 | 629-VVM | BALL BEARING 629VVC2PS2L |
| 72 | 944-525 | BEARING WASHER (C) |
| 73 | 325-230 | SEAL PACKING |
| 74 | 324-944 | GEAR COVER |
| 75 | 324-947 | HANDLE |
| 77 | 324-938 | SDS MAX LABEL |
| 78 | 313-078 | SIDE HANDLE |
| 79 | 313-079 | HANDLE HOLDER |
| 80 | 980-673 | HEX. SOCKET HD. BOLT (W/FLANGE) M5X40 |
| 81 | 313-093 | SWITCH (C) (2P SCREW TYPE W/O LOCK) |
| 82 | 938-307 | PILLAR TERMINAL |
| 83 | 324-948 | HANDLE COVER |
| 84 | 301-653 | TAPPING SCREW (W/FLANGE) D4X20 (BLACK) |
| 85 | 981-373 | TUBE (D) |
| 86 | 980-063 | TERMINAL - FOR AUS |
| 86 | 930-804 | TERMINAL M4.0 (10 PCS.) |
| 87 | 960-266 | CORD CLIP |
| 87 | 981-987Z | CORD CLIP - FOR SUI |
| 88 | 984-750 | TAPPING SCREW (W/FLANGE) D4X16 |
| 89 | 953-327 | CORD ARMOR D8.8 |
| 89 | 938-051 | CORD ARMOR D10.1 |
| 90 | 500-390Z | CORD - (CORD ARMOR D10.1) |
| 90 | 500-467Z | CORD - (CORD ARMOR D10.1) FOR GBR (110V) |
| 90 | 500-446Z | CORD - (CORD ARMOR D8.8) FOR GBR (230V) |
| 90 | 500-391Z | CORD - (CORD ARMOR D10.1) FOR SUI |
| 90 | 500-434Z | CORD - (CORD ARMOR D8.8) FOR USA,CAN |
| 90 | 500-439Z | CORD - (CORD ARMOR D8.2) FOR OCEANIA |
| 90 | 500-408Z | CORD - (CORD ARMOR D8.8) FOR AUS |
| 90 | 500487Z | CORD - (CORD ARMOR D8.2) FOR BRA |
| 91 | 313-080 | HANDLE BOLT |
| 92 | 971-786 | STOPPER ROD |
| 93 | 998-471 | HEX. SOCKET HD. BOLT M5X12 |
| 94 | 324-936 | HOOD (A) |
| 96 | 324-908 | CRANK CASE |
| 97 | 324-910 | FIRST GEAR |
| 98 | 324-911 | SECOND PINION |
| 99 | 939-299 | NEEDLE BEARING (M661) |
| 100 | 961-501 | HEX. HD. TAPPING SCREW D5X60 |
| 101 | 340-646C | STATOR ASS'Y 110V - INCLUD.111 |
| 101 | 340-646G | STATOR ASS'Y 120V - INCLUD.111 |
| 101 | 340-646E | STATOR ASS'Y 230V - INCLUD.111 |
| 101 | 340-646F | STATOR ASS'Y 240V - INCLUD.111 |
| 103 | 324-943 | HOUSING ASS'Y - INCLUD.106,107 |
| 104 | 945-161 | BRUSH CAP |
| 105 | 999-071 | CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) - FOR USA |
| 106 | 962-777 | BRUSH HOLDER - SINCE 5.1987 |
| 107 | 938-477 | HEX. SOCKET SET SCREW M5X8 - SINCE 7.1988 |
| 108 | 324-946 | TAIL COVER |
| 109 | 984-508 | SEAL LOCK HEX. SOCKET HD. BOLT M5X20 |
| 110 | 321-313 | SEAL LOCK HEX. SOCKET HD. BOLT M6X22 |
| 111 | 937-623 | BRUSH TERMINAL |
| 112 | 321-322 | VINYL TUBE |
| 113 | 985-436 | DUST WASHER |
| 114 | 620-0VV | BALL BEARING 6200VVCMPS2L |
| 115 | 318-721 | MAGNET |
| 116 | 620-2DD | BALL BEARING 6202DDCMPS2L |
| 117 | 980-700 | DUST WASHER (B) |
| 118 | 318-918 | FAN |
| 119 | 360-737C | ARMATURE ASS'Y 110V - INCLUD.118 |
| 119 | 360-737U | ARMATURE ASS'Y 120V -INCLUD.113,114,116-118 |
| 119 | 360-737E | ARMATURE ASS'Y 230V - INCLUD.118 |
| 119 | 360-737F | ARMATURE ASS'Y 240V - INCLUD.118 |
| 120 | 324-945 | FAN GUIDE |
| 121 | 324-942 | CASE (B) |
| 122 | 324-940 | CONTROLLER CIRCUIT 110V |
| 122 | 324-941 | CONTROLLER CIRCUIT 120V |
| 122 | 324-939 | CONTROLLER CIRCUIT 230V-240V |
| 123 | 317-113 | INTERNAL WIRE - EXCEPT FOR SIN,USA,CAN,IND |
| 501 | 324-820 | CASE (PLASTIC) |
| 502 | 981-840 | GREASE (A) FOR HAMMER.HAMMER DRILL (30G |
| 503 | 944-458 | HEX. BAR WRENCH 4MM - FOR FRG,FRA,SWE |
| 504 | 944-459 | HEX. BAR WRENCH 5MM |
| 601 | 308-471 | GREASE FOR HAMMER.HAMMER DRILL (70G) |
| 602 | 980-927 | GREASE FOR HAMMER.HAMMER DRILL (500G) |
| 603 | 320-859 | SYRINGE (BLOW-OUT BULB TYPE) |
| 604 | 318-085 | SYRINGE (BELLOWS TYPE) |
| 605 | 313-448 | DRILL BIT (SDS MAX) D16X340 |
| 606 | 313-456 | DRILL BIT (SDS MAX) D16X540 |
| 607 | 313-449 | DRILL BIT (SDS MAX) D19X340 |
| 608 | 313-457 | DRILL BIT (SDS MAX) D19X540 |
| 609 | 313-450 | DRILL BIT (SDS MAX) D22X320 |
| 610 | 313-458 | DRILL BIT (SDS MAX) D22X520 |
| 611 | 313-451 | DRILL BIT (SDS MAX) D25X320 |
| 612 | 313-459 | DRILL BIT (SDS MAX) D25X520 |
| 613 | 313-452 | DRILL BIT (SDS MAX) D28X370 |
| 614 | 313-460 | DRILL BIT (SDS MAX) D28X570 |
| 615 | 313-453 | DRILL BIT (SDS MAX) D32X370 |
| 616 | 313-461 | DRILL BIT (SDS MAX) D32X570 |
| 617 | 313-454 | DRILL BIT (SDS MAX) D38X370 |
| 618 | 313-462 | DRILL BIT (SDS MAX) D38X570 |
| 619 | 313-455 | DRILL BIT (SDS MAX) D40X370 |
| 620 | 313-463 | DRILL BIT (SDS MAX) D40X570 |
| 621 | 944-460 | TAPER SHANK DRILL BIT D11X100 |
| 622 | 944-461 | TAPER SHANK DRILL BIT D12.3X110 |
| 623 | 993-038 | TAPER SHANK DRILL BIT D12.7X110 |
| 624 | 944-462 | TAPER SHANK DRILL BIT D14.3X110 |
| 625 | 944-500 | TAPER SHANK DRILL BIT D14.5X110 |
| 626 | 944-463 | TAPER SHANK DRILL BIT D17.5X120 |
| 627 | 313-464 | TAPER SHANK ADAPTER ASS'Y (SDS MAX) NO. - INCLUD.624 |
| 628 | 944-477 | COTTER |
| 629 | 313-465 | ADAPTER (SDS MAX) FOR SDS PLUS SHANK BI |
| 630 | 955-994 | CORE BIT 25MM |
| 631 | 955-995 | CORE BIT 29MM |
| 632 | 955-996 | CORE BIT 32MM - INCLUD.612 |
| 633 | 955-997 | GUIDE PLATE (FOR CORE BIT 32MM) |
| 634 | 955-998 | CORE BIT 35MM - INCLUD.613 |
| 635 | 955-999 | GUIDE PLATE (FOR CORE BIT 35MM) |
| 636 | 956-000 | CORE BIT 38MM - INCLUD.614 |
| 637 | 956-001 | GUIDE PLATE (FOR CORE BIT 38MM) |
| 638 | 955-154 | CORE BIT 45MM - INCLUD.615 |
| 639 | 955-166 | GUIDE PLATE (FOR CORE BIT 45MM) |
| 640 | 955-155 | CORE BIT 54MM - INCLUD.616 |
| 641 | 955-167 | GUIDE PLATE (FOR CORE BIT 54MM) |
| 642 | 956-002 | CORE BIT 64MM - INCLUD.617 |
| 643 | 956-003 | GUIDE PLATE (FOR CORE BIT 64MM) |
| 644 | 955-157 | CORE BIT 79MM - INCLUD.618 |
| 645 | 955-168 | GUIDE PLATE (FOR CORE BIT 79MM) |
| 646 | 956-004 | CORE BIT 94MM - INCLUD.619 |
| 647 | 956-005 | GUIDE PLATE (FOR CORE BIT 94MM) |
| 648 | 955-159 | CORE BIT 105MM - INCLUD.620 |
| 649 | 955-169 | GUIDE PLATE (FOR CORE BIT 105MM) |
| 650 | 313-466 | CORE BIT SHANK (B) SDS MAX D25-35 |
| 651 | 313-467 | CORE BIT SHANK (A) SDS MAX D38-150 |
| 652 | 956-009 | CENTER PIN (B) 147L FOR CORE BIT D32-35 |
| 653 | 955-165 | CENTER PIN (A) 133L FOR CORE BIT D38-15 |
| 654 | 321-813 | DRILL CHUCK 13VLD-D - INCLUD.659 |
| 655 | 313-468 | CHUCK ADAPTER (SDS MAX) |
| 656 | 303-334 | CHUCK HANDLE |
| 657 | 313-469 | CHEMICAL ANCHOR ADAPTER (SDS MAX) 12.7M |
| 658 | 313-470 | CHEMICAL ANCHOR ADAPTER (SDS MAX)19MM |
| 659 | 313-471 | BULL POINT (SDS MAX) 280L |
| 660 | 313-472 | BULL POINT (SDS MAX) 400L |
| 661 | 313-473 | COLD CHISEL (SDS MAX) 280MM |
| 662 | 313-474 | COLD CHISEL (SDS MAX) 400MM |
| 663 | 313-475 | CUTTER (SDS MAX) W50X400L |
| 664 | 313-476 | SCOOP (SDS MAX) 400L |
| 665 | 313-478 | RAMMER (SDS MAX) 150MM X 150MM |
| 666 | 313-477 | BUSHING TOOL (SDS MAX) |
| 667 | 313-479 | SHANK (SDS MAX)FOR RAMMER,BUSHING TOOL |
| 668 | 956-006 | CORE BIT 120MM - INCLUD.669 |
| 669 | 956-007 | GUIDE PLATE (FOR CORE BIT 120MM) |
