Hitachi korbowód 321-285 DH40MR DH40FR DH38M

=

Producent: HITACHI

Kod producenta: 321-285

Kod produktu: 1734

Powiadom mnie o zmianie dostępności   Zgłoś błąd w opisie

• Opis produktu
• Opinie klientów (0)

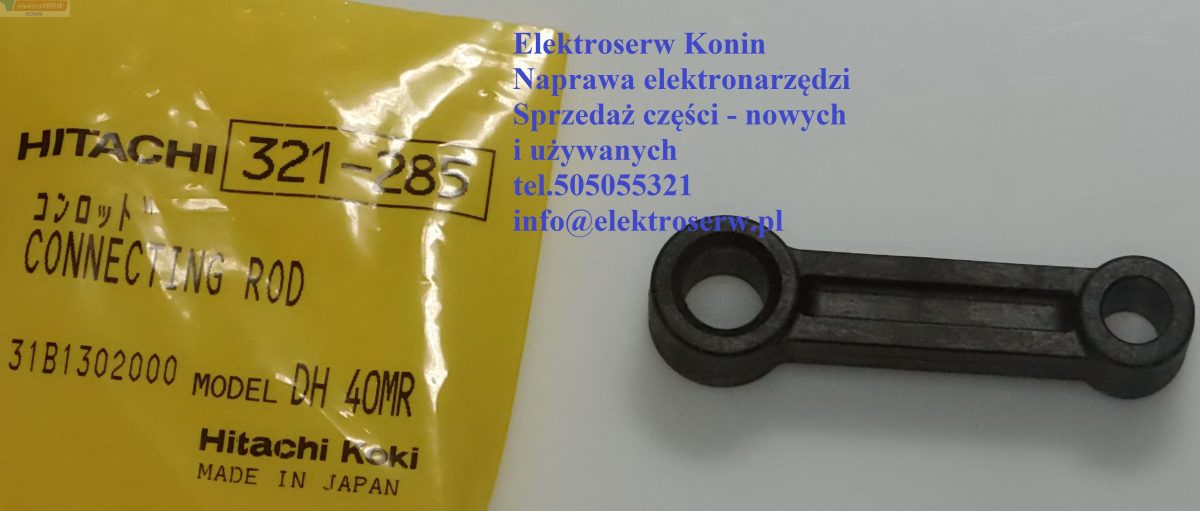

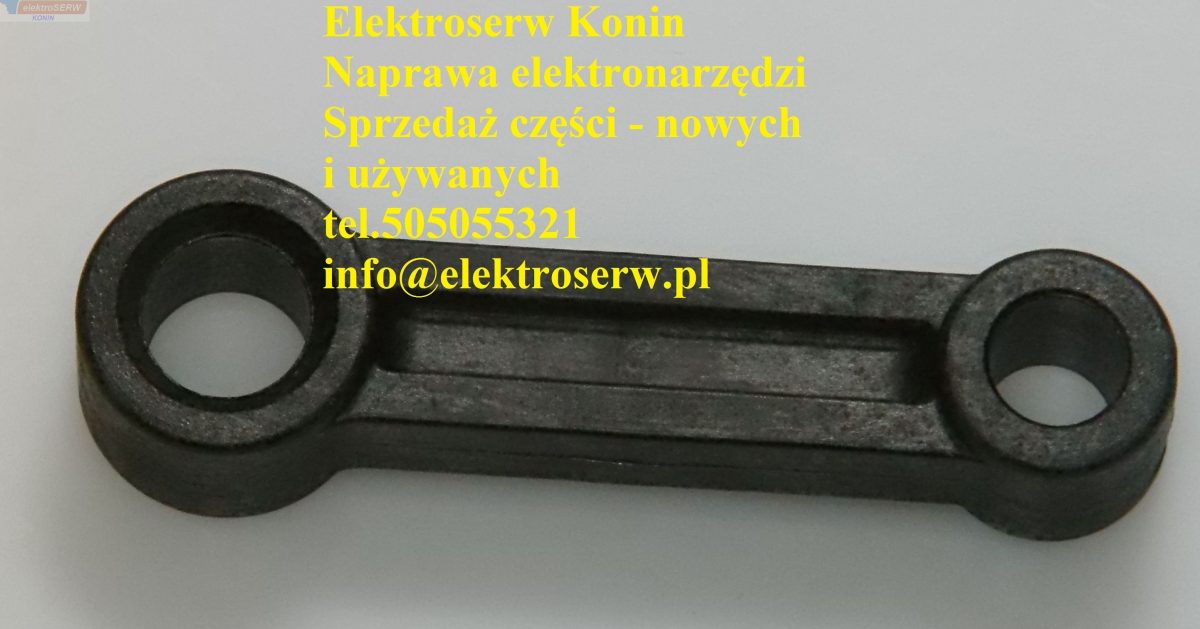

Hitachi - korbowód

Zastosowanie: DH40MR, DH40FR, DH38M

Nr katalogowy : 321-285

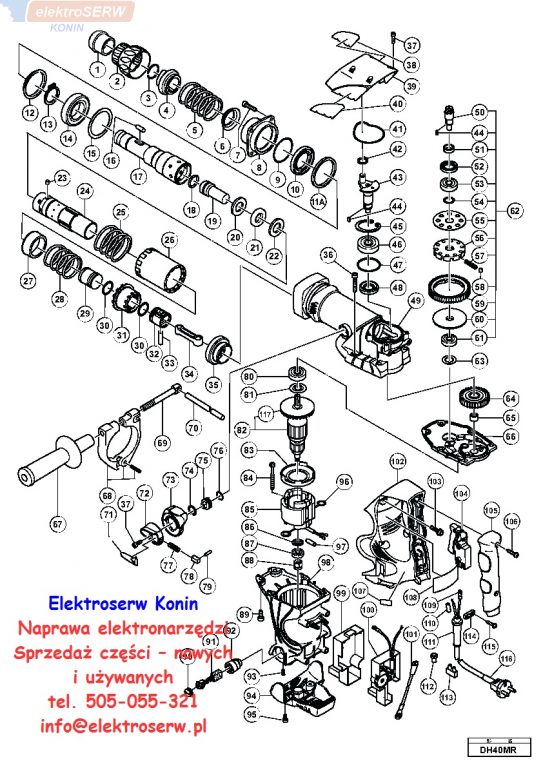

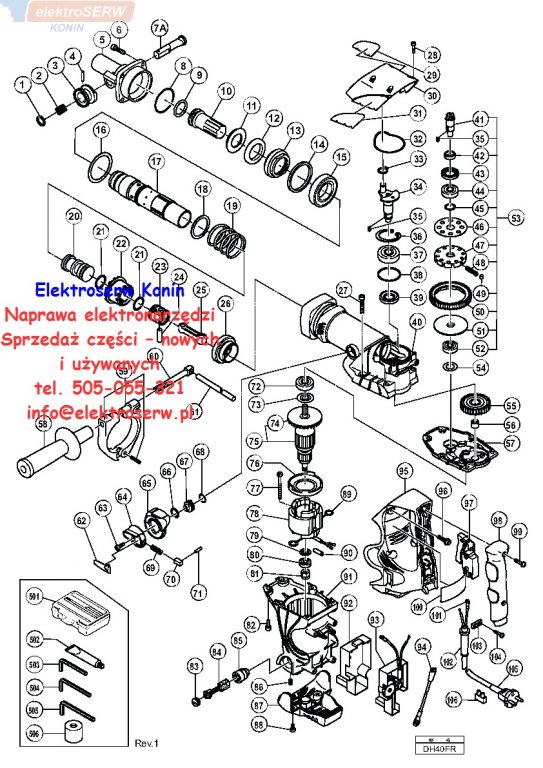

Pozycja na schemacie nr 34



DH40MR



NR REF	NR KAT. CZĘŚCI	NAZWA CZĘŚCI
1	321306	FRONT CAP
2	321305	GRIP
3	318590	STOPPER RING
4	321304	NEEDLE HOLDER
5	321303	RETAINER SPRING
6	321302	SPRING HOLDER (A)
7	981942	SEAL LOCK HEX. SOCKET
8	321300	FRONT COVER
9	956996	O-RING (1AS-60)
10	321301	OIL SEAL
11	981859	URETHANE RING
12	315868	URETHANE RING HOLDER
13	948131	RETAINING RING FOR D3
14	6007DD	BALL BEARING 6007DDUA
15	321297	BEARING WASHER
16	313421	NEEDLE ROLLER D8X20
17	321286	RETAINER SLEEVE
18	313396	O-RING (C)
19	321287	SECOND HAMMER
20	321288	DAMPER WASHER
21	321289	DAMPER
22	321290	DAMPER HOLDER
23	313057	NEEDLE PIN D6X6
24	321291	CYLINDER
25	321298	LOCK SPRING
26	321299	LOCK SLEEVE
27	321293	SPRING HOLDER (B)
28	321294	CLUTCH SPRING
29	321292	STRIKER
30	986104	O-RING
31	321295	CLUTCH
32	321284	PISTON
33	980708	PISTON PIN
34	321285	CONNECTING ROD
35	321296	BEVEL GEAR
36	986940	SEAL LOCK HEX. SOCKET HD. BOLT M6X45
37	983162	SEAL LOCK HEX. SOCKET
39	321315	CRANK COVER
41	335023	RUBBER SEAL
42	939540	RETAINING RING FOR D10 SHAFT (10 PCS.)
43	321275	CRANK SHAFT
44	944109	FEATHER KEY 3X3X8
45	948391	RETAINING RING FOR D40 HOLE
46	6203DD	BALL BEARING 6203DDCMPS2L
47	996363	O-RING (S-40)
48	321274	OIL SEAL (B)
49	321273	CYLINDER CRANK CASE
50	321278	BEVEL PINION
51	321279	COLLAR
52	313050	OIL SEAL (A)
53	6002DD	BALL BEARING 6002DDCMP
54	313058	WASHER
55	313053	WASHER (A)
56	321281	GEAR HOLDER
57	321282	SPRING (C)
58	320343	NEEDLE
59	321280	SECOND GEAR
60	321283	SPACER
61	629VVM	BALL BEARING 629VVC2PS2L
62	321277	SLIP CLUTCH ASS ÕY
63	944525	BEARING WASHER (C)
64	321276	FIRST GEAR
65	939299	NEEDLE BEARING (M661)
66	321319	GEAR COVER
67	313078	SIDE HANDLE
68	313079	HANDLE HOLDER
69	313080	HANDLE BOLT
70	971786	STOPPER ROD
72	331545	CHANGE LEVER
73	321308	LEVER HOLDER
74	47483	RETAINING RING FOR D20 HOLE
75	321307	LEVER SHAFT
76	873095	O-RING (P-16)
77	321310	LEVER SPRING
78	321311	PUSHING BUTTON
79	321312	PIN D2X10
80	6201DD	BALL BEARING 6201DDCMP
81	302429	DUST WASHER (B)
82	360591U	ARMATURE ASS ÕY 110V-120V
82	360591E	ARMATURE 220V-230V
82	360591F	ARMATURE 240V
83	321320	FAN GUIDE
84	953174	HEX. HD. TAPPING SCREW D5X55
85	340542F	STATOR ASS ÕY 240V
85	340542H	STATOR ASS ÕY 220V
85	340542E	STATOR ASS ÕY 220V-230V
85	340542G	STATOR ASS ÕY 120V
85	340542C	STATOR ASS ÕY 110V
86	982631	WASHER (A)
87	608VVM	BALL BEARING 608VVC2PS2L
88	318721	MAGNET
89	321313	SEAL LOCK HEX. SOCKET HD. BOLT M6X22
90	935829	BRUSH CAP
91	999073	CARBON BRUSH (AUTO STOP TYPE) (1 PAIR)
91	999043	CARBON BRUSH (1 PAIR)
92	971001	BRUSH HOLDER
93	938477	HEX. SOCKET SET SCREW M5X8
94	321321	TAIL COVER
95	877839	SEAL LOCK HEX. SOCKET HD.BOLT M5X10
96	930703	BRUSH TERMINAL
97	321322	VINYL TUBE
98	321318	HOUSING ASS ÕY
99	321317	CASE (B)
100	321326	CONTROLLER CIRCUIT 110V
100	321328	CONTROLLER CIRCUIT 120V
100	321327	CONTROLLER CIRCUIT 220V-
101	317113	INTERNAL WIRE
102	335738	HANDLE
103	998485	HEX. SOCKET HD. BOLT (W/
104	313093	SWITCH (C) (2P SCRE
105	335738	HANDLE
106	301653	TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
109	980063	TERMINAL
109	930804	TERMINAL M4.0 (10 PCS.)
110	981373	TUBE (D)
111	958049	CORD ARMOR D8.2
111	940778	CORD ARMOR D10.7
112	959141	CONNECTOR 50092 (10 PCS.)
113	938307	PILLAR TERMINAL
114	981987Z	CORD CLIP
114	960266	CORD CLIP
115	984750	TAPPING SCREW (W/FLANGE) D4X16
116	500434Z	CORD
116	500439Z	CORD
116	500408Z	CORD
116	500391Z	CORD
116	500435Z	CORD
116	500454Z	CORD
116	500446Z	CORD
116	500390Z	CORD
501	321325	CASE
502	981840	GREASE (A) FOR HAMMER.HAMMER DRILL (30G)
503	943277	HEX. BAR WRENCH 3MM
504	944458	HEX. BAR WRENCH 4MM
505	944459	HEX. BAR WRENCH 5MM
601	313448	DRILL BIT (SDS MAX) D16X340
602	313456	DRILL BIT (SDS MAX) D16X540
603	313449	DRILL BIT (SDS MAX) D19X340
604	313457	DRILL BIT (SDS MAX) D19X540
605	313450	DRILL BIT (SDS MAX) D22X320
606	313458	DRILL BIT (SDS MAX) D22X520
607	313451	DRILL BIT (SDS MAX) D25X320
608	313459	DRILL BIT (SDS MAX) D25X520
609	313452	DRILL BIT (SDS MAX) D28X370
610	313460	DRILL BIT (SDS MAX) D28X570
611	313453	DRILL BIT (SDS MAX) D32X370
612	313461	DRILL BIT (SDS MAX) D32X570
613	313454	DRILL BIT (SDS MAX) D38X370
614	313462	DRILL BIT (SDS MAX) D38X570
615	313455	DRILL BIT (SDS MAX) D40X370
616	313463	DRILL BIT (SDS MAX) D40X570
617	944460	TAPER SHANK DRILL BIT D11X100
618	944461	TAPER SHANK DRILL BIT D12.3X110
619	993038	TAPER SHANK DRILL BIT D12.7X110
620	944462	TAPER SHANK DRILL BIT D14.3X110
621	944500	TAPER SHANK DRILL BIT D14.5X110
622	944463	TAPER SHANK DRILL BIT D17.5X120
623	313464	TAPER SHANK ADAPTER ASS ÕY (SDS MAX) NO.1
624	944477	COTTER
625	313465	ADAPTER (SDS MAX) FOR SDS PLUS SHANK BIT
626	955994	CORE BIT 25MM
627	955995	CORE BIT 29MM
628	955996	CORE BIT 32MM
629	955997	GUIDE PLATE (FOR CORE BIT 32MM)
630	955998	CORE BIT 35MM
631	955999	GUIDE PLATE (FOR CORE BIT 35MM)
632	956000	CORE BIT 38MM
633	956001	GUIDE PLATE (FOR CORE BIT 38MM)
634	955154	CORE BIT 45MM
635	955166	GUIDE PLATE (FOR CORE BIT 45MM)
636	955155	CORE BIT 54MM
637	955167	GUIDE PLATE (FOR CORE BIT 54MM)
638	956002	CORE BIT 64MM
639	956003	GUIDE PLATE (FOR CORE BIT 64MM)
640	955157	CORE BIT 79MM
641	955168	GUIDE PLATE (FOR CORE BIT 79MM)
642	956004	CORE BIT 94MM
643	956005	GUIDE PLATE (FOR CORE BIT 94MM)
644	955159	CORE BIT 105MM
645	955169	GUIDE PLATE (FOR CORE BIT 105MM)
646	956009	CENTER PIN (B) 147L FOR CORE BIT D32-35
647	955165	CENTER PIN (A) 133L FOR CORE BIT D38-150
648	313466	CORE BIT SHANK (B) SDS MAX D25-35
649	313467	CORE BIT SHANK (A) SDS MAX D38-150
650	950272	DRILL CHUCK 13VLA
651	930515	CHUCK WRENCH 10G
652	313468	CHUCK ADAPTER (SDS MAX)
653	313469	CHEMICAL ANCHOR ADAPTER (SDS MAX) 12.7MM
654	313470	CHEMICAL ANCHOR ADAPTER (SDS MAX)19MM
655	313471	BULL POINT (SDS MAX) 280L
656	313472	BULL POINT (SDS MAX) 400L
657	313473	COLD CHISEL (SDS MAX) 280MM
658	313474	COLD CHISEL (SDS MAX) 400MM
659	313475	CUTTER (SDS MAX) W50X400L
660	313476	SCOOP (SDS MAX) 400L
661	313478	RAMMER (SDS MAX) 150MM X 150MM
662	313477	BUSHING TOOL (SDS MAX)
663	313479	SHANK (SDS MAX)FOR RAMMER,BUSHING TOOL
664	320859	SYRINGE (BLOW-OUT BULB TYPE)
665	318085	SYRINGE (BELLO
666	308471	GREASE FOR HAMMER.HAMMER DRILL (70G)
667	980927	GREASE FOR HAMMER.HAMMER DRILL (500G)



DH38M



NR REF	NR KAT. CZĘŚCI	NAZWA CZĘŚCI
1	331542	FRONT CAP
2	331541	GRIP
3	331540	STOPPER RING
4	331539	NEEDLE HOLDER
5	331538	RETAINER SPRING
6	331537	SPRING HOLDER (A)
7	331530	CYLINDER CASE
8	991712	HEX. SOCKET HD. BOLT (W/FLANGE) M6X25
9	956996	O-RING (1AS-60)
10	331531	RETAINER DAMPER
11	331532	RETAINER DAMPER WASHER
12	331524	RETAINER SLEEVE
13	331536	NEEDLE ROLLER D8X20
14	313396	O-RING (C)
15	331525	SECOND HAMMER
16	331224	DAMPER WASHER
17	321835	DAMPER
18	331225	DAMPER HOLDER
19	331526	CYLINDER
20	331533	SPRING HOLDER (B)
21	331534	LOCK SPRING
22	331535	LOCK SLEEVE
23	331527	CLUTCH SPRING
24	331528	CLUTCH
25	331529	BEVEL GEAR
26	331234	THRUST WASHER
27	331235	STRIKER
28	986104	O-RING
29	331221	PISTON PIN
30	326369	PISTON
31	321285	CONNECTING ROD
32	983162	SEAL LOCK HEX. SOCKET
33	331545	CHANGE LEVER
34	331544	LEVER HOLDER
35	47483	RETAINING RING FOR D20 HOLE
36	331543	LEVER SHAFT
37	873095	O-RING (P-16)
38	331548	PIN D2X10
39	331546	LEVER SPRING
40	321311	PUSHING BUTTON
41	6201DD	BALL BEARING 6201DDCMP
42	325003	DUST WASHER (B)
43	360875F	ARMATURE 240V
43	360875E	ARMATURE 220V-230V
43	360875U	ARMATURE ASS'Y 120V
43	360875C	ARMATURE 110V
44	331252	FAN GUIDE
45	953174	HEX. HD. TAPPING SCREW D5X55
46	340753F	STATOR ASS'Y 240V
46	340753J	STATOR ASS'Y 240V
46	340753H	STATOR ASS'Y 220V-230V
46	340753E	STATOR ASS'Y 220V-230V
46	340753D	STATOR ASS'Y 120V
46	340753G	STATOR ASS'Y 110V
46	340753C	STATOR ASS'Y 110V
47	930703	BRUSH TERMINAL
48	331251	HOUSING ASS'Y
49	331210	SLIP CLUTCH ASS'Y
50	331211	BEVEL PINION
51	944109	FEATHER KEY 3X3X8
52	331212	COLLAR
53	313050	OIL SEAL (A)
54	6002DD	BALL BEARING 6002DDCMP
55	331213	WASHER
56	331214	WASHER (A)
57	321281	GEAR HOLDER
58	331218	SPRING (C)
59	331217	NEEDLE
60	331215	SECOND GEAR
61	331219	SPACER
62	629VVM	BALL BEARING 629VVC2PS2L
63	331220	BEARING WASHER (C)
64	992803	SEAL LOCK HEX. SOCKET HD
65	986940	SEAL LOCK HEX. SOCKET HD. BOLT M6X45
67	994192	HEX. SOCKET HD. BOLT (W/FLANGE) M5X16
68	331245	CRANK COVER
69	878713	CYLINDER O-RING (B)
70	331523	CRANK CASE
71	331549	SEAL PACKING
72	939540	RETAINING RING FOR D10 SHAFT (10 PCS.)
73	331208	CRANK SHAFT
74	948391	RETAINING RING FOR D40 HOLE
75	6203DD	BALL BEARING 6203DDCMPS2L
76	996363	O-RING (S-40)
77	321274	OIL SEAL (B)
78	331209	FIRST GEAR
79	939299	NEEDLE BEARING (M661)
80	331253	GEAR COVER
81	307947	WING BOLT M6X12
82	331248	MOUNT
83	949556	NUT M6 (10 PCS.)
84	331247	HANDLE BOLT
85	331246	BAND
86	330209	SIDE HANDLE
87	945161	BRUSH CAP
88	999043	CARBON BRUSH (1 PAIR)
89	958900	BRUSH HOLDER
90	938477	HEX. SOCKET SET SCREW M5X8
91	982631	WASHER (A)
92	608VVM	BALL BEARING 608VVC2PS2L
93	331254	BEARING HOLDER
94	331202	TAIL COVER
95	302089	TAPPING SCREW (W/FLA
96	331203	NOISE SUPPRESSOR
96	331203	NOISE SUPPRESSOR
97	331204	HANDLE
98	330216	INTERNAL WIRE 270L
98	330216	INTERNAL WIRE 270L
99	959141	CONNECTOR 50092 (10 PCS.)
101	500475Z	CORD
101	500477Z	CORD
101	500457Z	CORD
101	500391Z	CORD
101	500454Z	CORD
101	500446Z	CORD
101	500434Z	CORD
101	500390Z	CORD
101	500239Z	CORD
101	500424Z	CORD
101	500235Z	CORD
101	500439Z	CORD
102	958049	CORD ARMOR D8.2
102	940778	CORD ARMOR D10.7
103	981974	INTERNAL WIRE
103	981974	INTERNAL WIRE
104	313093	SWITCH (C) (2P SCRE
105	938307	PILLAR TERMINAL
106	959141	CONNECTOR 50092 (10 PCS.)
107	960266	CORD CLIP
108	984750	TAPPING SCREW (W/FLANGE) D4X16
109	331205	HANDLE COVER
110	307028	TAPPING SCREW (W/FLANGE) D4X25 (BLACK)
111	331547	DUST SEAL
112	331550	WASHER (FW)
501	331206	CASE





Opinie klientówPomóż innym użytkownikom podjąć decyzje o zakupie. Dodaj nową opinię

Bądź pierwszą osoba, która zrecenzuje ten produkt. Dodaj opinię.

Pliki do pobrania

Inne z tej kategorii

Korbowód Hiltii do młota TE3000 2062819

Cena: 220.00 zł

Bosch korbowód do GSH11VC

Cena: 110.00 zł

Makita 151761-6 POKRYWA OBUDOWY KORBOWODU

Cena: 90.00 zł

Bosch korbowód z tłokiem 1617000873

Cena: 123.00 zł

Bosch korbowód 1612001033 do młota GSH11

Cena: 35.00 zł

Hilti korbowód do wiertarki TE 7-A

Cena: 75.00 zł

Bosch stojan GBH11 GSH11

Cena: 123.00 zł

Hilti zębatka do TE 55 202135

Cena: 86.00 zł

Tagi produktu:Hitachi korbowód 321285 321-285 DH40MR DH 40MR 40 MR CONNECTING ROD części Konin części zamienne w Koninie serwis naprawa elektronarzędzi do młota DH40FR FR DH40MR 40MR DH40FR DH38M 40FR 38M

© 2018 Elektroserw. Wszelkie prawa zastrzeżone.
